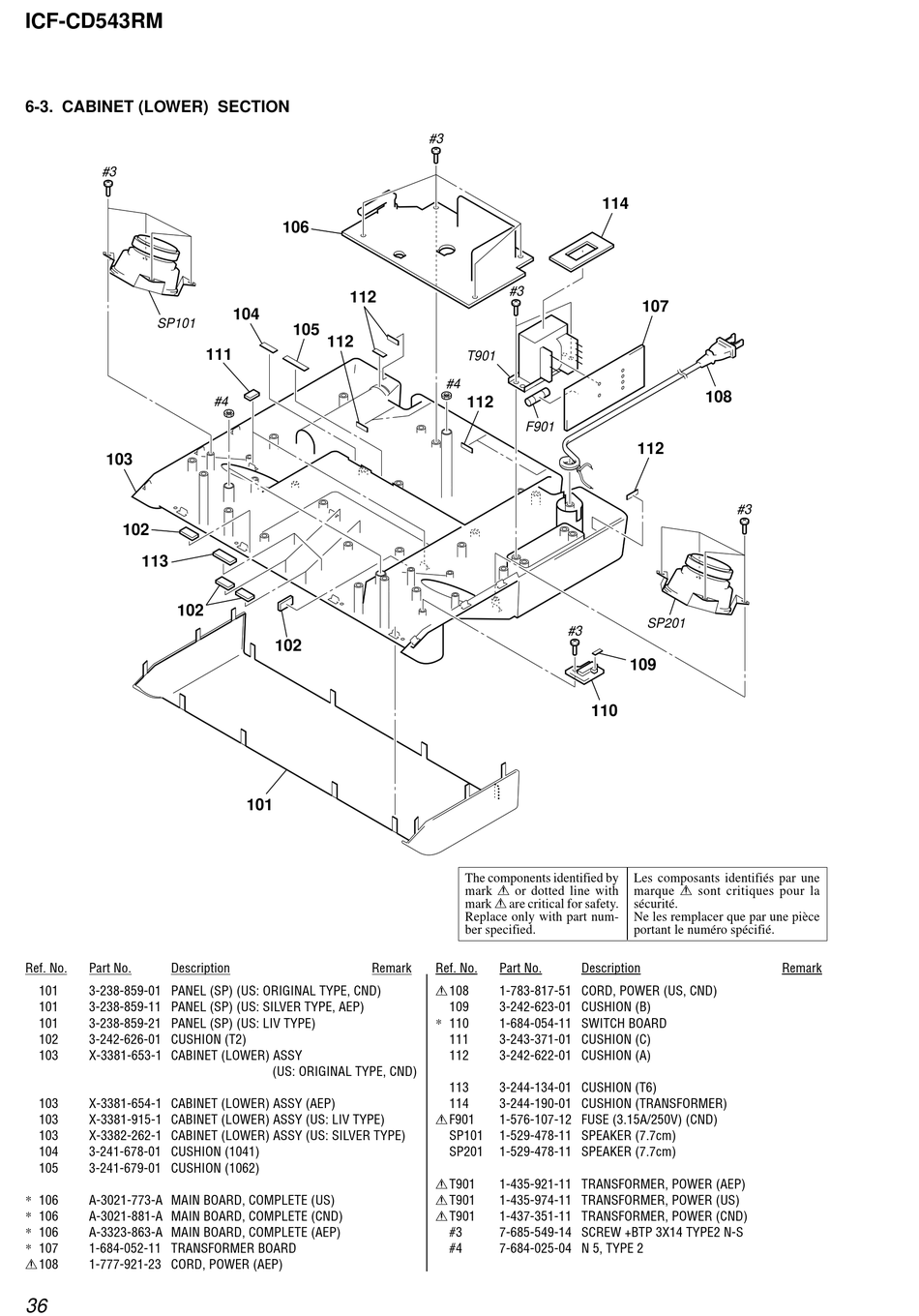

6-3. CABINET (LOWER) SECTION

#3
SP101
103
102
113
102
Ref. No. Part No. Description
101 3-238-859-01 PANEL (SP) (US: ORIGINAL TYPE, CND)
101 3-238-859-11 PANEL (SP) (US: SILVER TYPE, AEP)
101 3-238-859-21 PANEL (SP) (US: LIV TYPE)
102 3-242-626-01 CUSHION (T2)
103 X-3381-653-1 CABINET (LOWER) ASSY
103 X-3381-654-1 CABINET (LOWER) ASSY (AEP)
103 X-3381-915-1 CABINET (LOWER) ASSY (US: LIV TYPE)
103 X-3382-262-1 CABINET (LOWER) ASSY (US: SILVER TYPE)
104 3-241-678-01 CUSHION (1041)
105 3-241-679-01 CUSHION (1062)
* 106 A-3021-773-A MAIN BOARD, COMPLETE (US)
* 106 A-3021-881-A MAIN BOARD, COMPLETE (CND)
* 106 A-3323-863-A MAIN BOARD, COMPLETE (AEP)
* 107 1-684-052-11 TRANSFORMER BOARD
0 108
1-777-921-23 CORD, POWER (AEP)
36
106
112
104
105
112
111
#4
102
101
Remark
(US: ORIGINAL TYPE, CND)
#3
114
#3
T901
#4
112
F901
#3
110
The components identified by
mark 0 or dotted line with
mark 0 are critical for safety.
Replace only with part num-
ber specified.
Ref. No. Part No. Description
0 108
1-783-817-51 CORD, POWER (US, CND)
109 3-242-623-01 CUSHION (B)
* 110 1-684-054-11 SWITCH BOARD
111 3-243-371-01 CUSHION (C)
112 3-242-622-01 CUSHION (A)
113 3-244-134-01 CUSHION (T6)
114 3-244-190-01 CUSHION (TRANSFORMER)
0 F901 1-576-107-12 FUSE (3.15A/250V) (CND)
SP101 1-529-478-11 SPEAKER (7.7cm)
SP201 1-529-478-11 SPEAKER (7.7cm)
0 T901
1-435-921-11 TRANSFORMER, POWER (AEP)
0 T901 1-435-974-11 TRANSFORMER, POWER (US)
0 T901
1-437-351-11 TRANSFORMER, POWER (CND)
#3 7-685-549-14 SCREW +BTP 3X14 TYPE2 N-S
#4 7-684-025-04 N 5, TYPE 2
107
108
112
#3
SP201
109
Les composants identifiés par une
marque 0 sont critiques pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
Remark
