7-3.

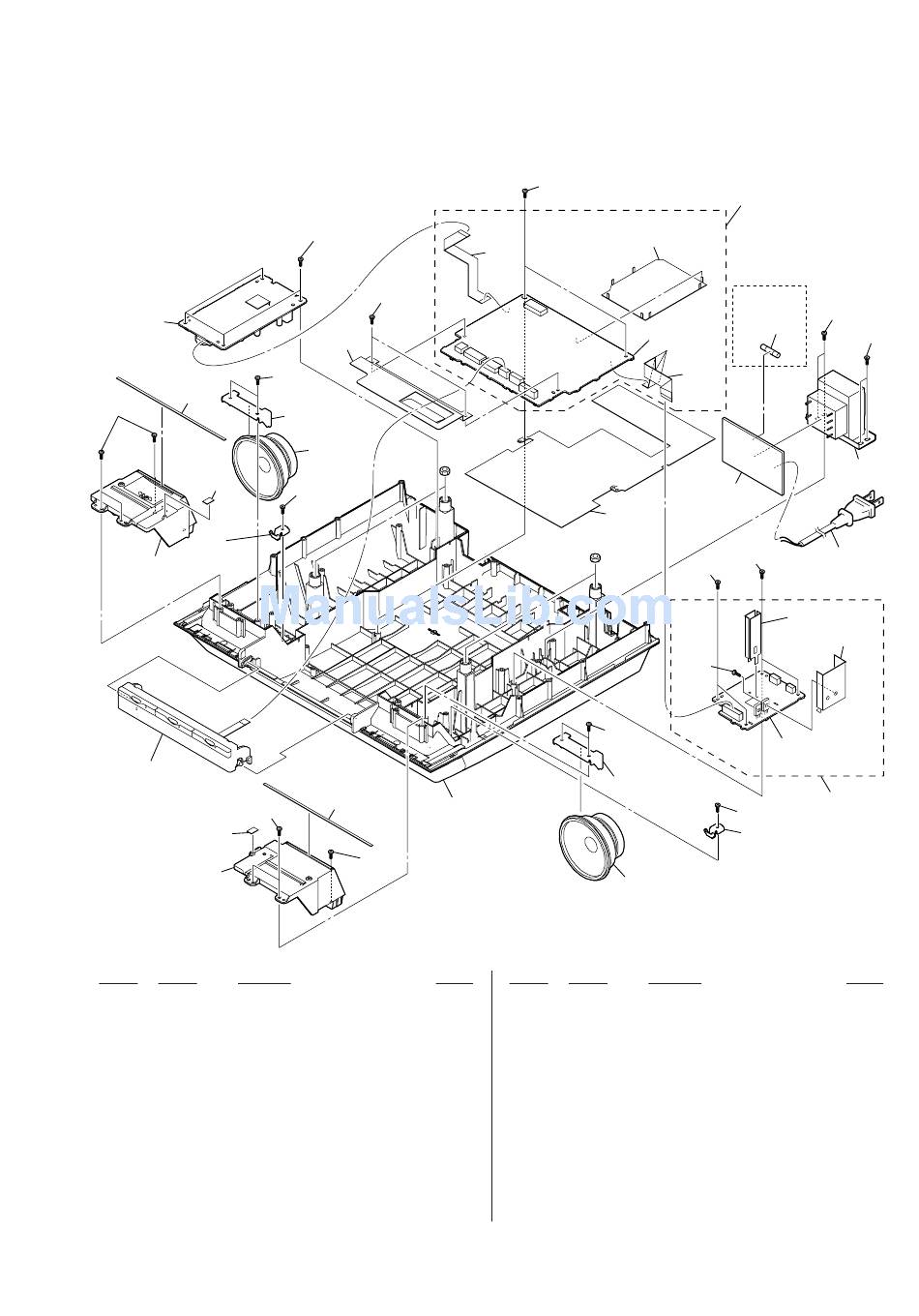

CABINET (LOWER) SECTION

106
116
102
104
not
supplied
105
CD lid assy section
102
104
103
Ref. No. Part No. Description
101 X-2177-112-1 CABINET (LOWER) SUB ASSY (US)
101 X-2177-113-1 CABINET (LOWER) SUB ASSY (CND)
102 3-254-151-01 SCREW (B2.6), (+) P TAPPING
103 2-893-497-01 SP BOX (R) (US)
103 2-893-497-11 SP BOX (R) (CND)
104 3-885-228-01 CUSHION (B)
105 2-893-496-01 SP BOX (L) (US)
105 2-893-496-11 SP BOX (L) (CND)
106 A-1109-056-A TU BOARD, COMPLETE
107 3-252-827-01 SCREW (B2.6), (+) BV TAPPING
108 2-896-915-01 SHEET (BLIND A)
109 A-1224-485-A MAIN BOARD, COMPLETE
110 1-832-425-21 CABLE, FLEXIBLE FLAT (11 CORE)
107
102
108
102
not supplied
SP101
#1
102
116
101
102
Remark
102
not supplied
110
MAIN board
112
#1
102
not supplied
SP201
Ref. No. Part No. Description
111 1-832-052-21 CABLE, FLEXIBLE FLAT (14 CORE)
112 3-100-562-01 SHEET (SHIELD)
113 A-1224-482-A POWER BOARD, COMPLETE (US)
113 A-1225-192-A POWER BOARD, COMPLETE (CND)
0 114 1-828-104-31 CORD, POWER
115 A-1224-478-A AMP BOARD, COMPLETE
116 3-208-071-21 CUSHION (SP BOX)
0 F901 1-533-451-12 FUSE, GLASS TUBE (DIA. 5) (3.15A/125V) (CND)
SP101 1-826-605-11 SPEAKER (6.6 cm) (L-CH)
SP201 1-826-605-11 SPEAKER (6.6 cm) (R-CH)
0 T901 1-435-917-22 TRANSFORMER, POWER
#1 7-684-025-04 N 5, TYPE 2
ICF-CDK70
109
(CND)
107
F901
111
T901
113
102
114
102
not supplied
not supplied
102
AMP board
115
102
not supplied
Remark
107
