Summary of Contents for Samsung MIM-E03*N

  • Page 1 EHS MONO Kit-EU_IM_05388A-00_EN.indd 2 2015-03-18 오전 11:53:30...
  • Page 2 MIM-E03✴N SAMSUNG CONTROL KIT installation manual This manual is made with 100% recycled paper. imagine the possibilities Thank you for purchasing this Samsung product. EN ES FR IT PT DE DB68-05388A-00 EHS MONO Kit-EU_IM_05388A-00_EN.indd 3 2015-03-18 오전 11:53:30...

  • Page 3: Table Of Contents

    Contents Safety precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Product specifications .

  • Page 4: Safety Precautions

    In order to prevent electric shocks, fires or injuries, always stop the unit, disable the protection switch and contact SAMSUNG’s technical support if the unit produces smoke, if the power cable is hot or damaged or if the unit is very noisy .

  • Page 5: Product Specifications

    Product specifications Item Description MIM-E03✴N Wired remote controller Temp . Sensor for DHW Tank (15m, YEL) (1EA) Temp . Sensor Temp . Sensor for Mixing Valve (15m, BLU) (1EA) Temp . Sensor for Heater (15m, BLK) (1EA) Smart Grid cable (Red, 2 m, 1EA) Flow Switch (1EA, 2m) Sensor holder (2EA, OD 7 .

  • Page 6: Main Components

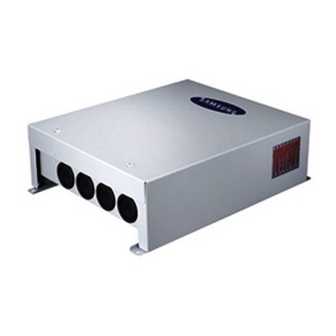

    Main components Model name MIM-E03✴N Parts Qty . Main PBA ELCB - Rated current : 30A - Leakage current : 30mA Detail components Grounding screw Rubber Base plate Top cover plate Case screw Weight (Net) 3 . 5  kg Packing size (W x H x D) 329 mm x 439 mm x 168 mm ❋...

  • Page 7: Installing The Unit

    Installing the unit Installing the remote controller Dimension (Unit : mm) 19 . 5 EHS MONO Kit-EU_IM_05388A-00_EN.indd 6 2015-03-18 오전 11:53:32...
  • Page 8 Installation 1 . Push the two hooks at the bottom of your Wired Remote Controller at the same time, and then pull up the front cover to separate it from the rear cover . ❋ ❋ Push the two hooks at the same time . • Insert a flat head screwdriver into the square groove in the upper area of the hook to disassemble it easily .
  • Page 9 Installing the unit 3 . Using more than two screws, firmly affix the rear cover of the remote controller to the wall, and then connect communication cables(F3, F4), making sure these cables have reasonable length, to the terminal at the back of the cover . Control kit 10 mm or more 10 mm or more...

  • Page 10: Wiring Works

    Wiring works • Field-supplied electrical components such as power switch, circuit breakers, wires, terminal blocks, etc must be properly chosen with compliance with national legislation or regulation . CAUTION • Switch off the power supply before making any connections . • All field wiring and components must be installed by a licensed electrician .
  • Page 11 Wiring works Note CNS043(White) 1-2:Heater Out 3-4:Eva Out ⑧ 5-6:Eva in 7-8:Water Out 9-10:Water In ⑨ CNS062(Blue) TB-C (Black) ⑩ F3-F4:COMM2 (Wired Remocon) INPUT/OUTPUT, DC, 210 mA(per each controller) TB-C (Black) ⑪ F1-F2:COMM1 (IN-OUT COMM) INPUT/OUTPUT, DC, 10 mA CNS1(White) ⑫...
  • Page 12 Selecting solderless ring terminal f Select a solderless ring terminal of a connecting power cable based on a nominal dimensions for cable . f Cover a solderless ring terminal and a connector part of the power cable and then connect it . Silver solder Nominal dimensions for cable (mm2) Nominal dimensions for screw (mm)
  • Page 13 Wiring works Selection for the power and booster heater wire terminal f Connect the cables to the terminal board using the solderless ring terminal . f Use certified and verified cables . f Connect using a driver which is able to apply the rated torque to the screws . f If the terminal is loose, fire may occur caused by arc .
  • Page 14 Grounding work f Grounding must be done by a qualified installer for your safety . Grounding the power cable f The standard of grounding may vary according to the rated voltage and installation place of a heating pump . f Ground the power cable according to the following . Installation place High humidity Average humidity...
  • Page 15 Wiring works Power and communication with outdoor unit Communication Wire ELCB Power Wire • Be careful when connecting L, N . CAUTION Connecting the power wire 1 . Connect ‘Live’ and 'Neutral’ power line with ‘L, N’ of a ELCB . 2 .
  • Page 16 Connecting the communication wire f Connect ‘outdoor unit’s F1&F2’ with ‘control kit’s F1&F2 in TB-C’ by 2 core cable . Outdoor Unit (at Control Plate) Control Kit Communication with a wired remote controller (1 unit) Wired Remote Controller (Master) Communication with a wired remote controller (2 units) Wired Remote Controller (Slave) Wired Remote Controller...
  • Page 17 Wiring works Temp. Sensor for DHW, Backup heater and a water Flow S/W External wiring to control a switch of relay by a installer Temp . sensor for backup heater Relay Temp . sensor for DHW Flow s/w Connecting a temp. sensor wire into DHW 1 .
  • Page 18 DHW tank Switch box layout DHW Tank Temp . (15m) CNS042(YEL) ❋ ❋ Use a correct sensor pocket which is fit for the DHW tank sensor(OD Ø6) . If the gap between the supplied sensor and DHW tank sensor pocket is big, use thermal grease . EHS MONO Kit-EU_IM_05388A-00_EN.indd 17 2015-03-18 오전...
  • Page 19 DHW tank Electrical connections Procedure • Switch off the power supply before making any connections . • Use a thermal grease in thermistor pocket after installing electric connections . WARNING Connections to be made in the electrical box of DHW tank 1 .
  • Page 20 Power connection 1 phase 3 phase L1(R) L2(S) L3(T) 230 V~ 380 V~ DHW Tank DHW Tank • It is important that the 3-way valve is fitted correctly: When the 3-way valve is idle (not activated) the space heating circuit should be selected, when the 3-way valve is activated the sanitary heating circuit should be NOTE selected .
  • Page 21 DHW tank Problem Possible cause Solution Water expands when heated . If there If drip from the SV is severe, it might is no consumption of hot water over need to be replaced . Some dripping Safety valve(SV) is dripping . a period of time pressure builds up, is normal .
  • Page 22 Booster heater Booster heater Recommended wire specification Power Cable Max. Length Load Power Supply , wires 4 . 0 / 3 L < 10m Use Booster Heater (Max. 3kW) 1Ø, 220-240V, 50Hz 6 . 0 / 3 10m < L ❈...
  • Page 23 Wiring works Backup heater Relay or Magnetic Contactor Wire Connecting a relay or a magnetic contactor for a backup heater (Not Directly connect a backup heater) 1 . Connect a "relay or a magnetic contactor" with "CNP003,CNP001,CNP002" . f When a backup heater mode is "ON" at 1st step, a control signal of AC 230V goes through CNP003 and CNP001 . f When a backup heater mode is "ON"...
  • Page 24 Specification table Part Specification Step1 : CNP003, CNP001 Tab-Terminal (output) Step2 : CNP003, CNP002 Connection load Relay or Magnetic contactor for a control signal Output(CNP003,CNP001 or AC 230V (MAX 0 . 5 A) (CNP003,CNP001)+(CNP003,CNP002) Backup boiler Connection of the back-up boiler Description No.
  • Page 25 Wiring works Connection guide of additional pump Case 1) INV. pump Connect the PWM control external type pump to PWM terminal block and power cable to the external contact terminal . The maximum number of additional pump installation is one inverter pumps (Input power 100W) . 1 .
  • Page 26 Case 2) AC pump The maximum number of additional pump installation is one AC pumps (Input power 100W) . 1 . Power supply (AC Pump) Live additional pump Neutral additional pump Neutral additional pump Live additional pump Terminal block Pump Power • Terminal of this product is for additional water pump and the maximum allowable current is 0 .
  • Page 27 Wiring works Connection of the 2-way valve Description No. of wires Max. A Thickness Supply Scope Motorized 2-way valve to shut off > 0 . 7 5 mm , H05RN-F or Field supply (230 V~, 2+ground 22 mA UFH loops during cooling . H07RH-F Output) 2-way motorized valve...
  • Page 28 Connection of the 3-way valve Description No. of wires Max. A Thickness Supply Scope Diverting type 3way > 0 . 7 5 mm , H05RN-F or Field supply (230 V~, 22 mA valve H07RN-F Input) 3-way diverting valve for water tank Status f Diverting typecooling mode, UFH loops will be closed . f 230V AC (Initial) Neutral (N)
  • Page 29 Wiring works Example zone#1 only : cooling mode zone#2 only : cooling mode zone#1, zone#2 : cooling mode Room thermostat Room thermostat Room thermostat zone#1 only : heating mode zone#2 only : heating mode zone#1, zone#2 : heating mode Room thermostat Room thermostat Room thermostat • Before completing installation of Room thermostat, check the wiring method in a manual of Room thermostat...
  • Page 30 Example of RX1 (Danfoss) f In manual of a RF receiver RX1 and RX2 Electronics N L 1 2 3 4 Terminal 1 RX2 only Zone 2 Zone 1 Zone 1 f Example of wiring works Control kit Cool Heat Cool Heat (zone#1)
  • Page 31 Wiring works Connection of the solar circulation pump for DHW tank Description No. of wires Max. A Thickness Supply Scope 0 . 7 5mm H05RN-F or Field supply (230 V~, Solar pump 2+ground 10 mA H07RN-F Input) 1 . Before the installation, control kit should be turned off . 2 .

  • Page 32: Wiring Schematics

    Wiring schematics Wiring diagram EHS MONO Kit-EU_IM_05388A-00_EN.indd 31 2015-03-18 오전 11:53:48...

  • Page 33: Self-Test Mode Of Wired Remote Controller

    Self-test mode of wired remote controller Use of self-test mode 1 . When using the self-test mode of the wired remote controller, press the [＜] and [＞] buttons for more than 3 seconds . 2 . You can operate the self-test mode as follows . f Load list: When pressing the corresponding button, you can set the load On or Off .
  • Page 34 f Thermostat 1, 2, and solar heat panel are displayed as below when you set them with an control kit . Thermostat 1 (Zone 1), Thermostat 2 (Zone 2), Solar heat panel (ON/OFF) f Timer button: Whenever you press the button, the sensor value will be displayed in order . TW2(Out1) TW3(Out2) TW4(Out3)

  • Page 35: Troubleshooting

    Troubleshooting If the unit has some problem to work properly, some error codes will be displayed on the controller . The following table described the explanation of error codes on the LCD display . Thermistor f Check its resistance . 10kohm@25 °C (Control kit), 200kohm@25 °C (DHW Tank, Solar) f Check its location as shown at the diagram .
  • Page 36 Communication Display Explanation Communication error between remote controller and the Control kit Tracking error between remote controller and the Control kit Memory(EEPROM) Read/Write Error(Wired remote Controller data error) E601, E604 E654 MEMORY(EEPROM) Read/Write Error (Wired controller data error) EEPROM EHS MONO Kit-EU_IM_05388A-00_EN.indd 35 2015-03-18 오전...
  • Page 37 Troubleshooting Water pump &flow S/W Display Explanation Flow S/W OFF error • In case of flow S/W OFF in 30 sec during water pump signal is ON(Starting) • In case of flow S/W OFF in 15 sec during water pump signal is ON (After starting) Flow S/W ON error • In case of flow S/W ON in 10min during water pump signal is OFF E911...

  • Page 38: Error Codes

    Error codes If the unit has some problems and does not work normally, error code is shown on the OUTDOOR UNIT main PBA or LCD of the wired remote controller . Display Explanation Error Source CONTROL KIT, CONTROL KIT / OUTDOOR UNIT wire connection error OUTDOOR UNIT EEPROM Error CONTROL KIT...
  • Page 39 Error codes Display Explanation Error Source IPM(IGBT Module) or PFCM temperature sensor Error OUTDOOR UNIT OUTDOOR UNIT fan2 error OUTDOOR UNIT PFC Overload Error OUTDOOR UNIT Input current sensor error OUTDOOR UNIT IPM is overheated OUTDOOR UNIT Gas leak error OUTDOOR UNIT Wired Remote Communication error between the CONTROL KIT and wired remote controller...

  • Page 40: Mixing Valve

    Mixing Valve Installation of mixing valve Radiator Balancing Vessel (Mixing tank) Under Floor When two different zones are used with different temperature, adjust the temperature of discharge water to high temperature water and control the amount of bypass to provide low temperature water by applying the mixing valve and temperature sensor of the mixing valve (TW4) .
  • Page 41 Mixing Valve Connection of the mixing valve Mixing Senser (Default, 15 m) CNS045(BLU) Radiator 2: Mixing Valve_CW 3: Mixing Valve_CCW 5: Neutral Balancing Vessel (Mixing tank) Under Floor Description No. of wires Max. A Thickness Supply Scope > 0 . 7 5 mm , H05RN-F or Field supply (230 V~, Mixing valve...
  • Page 42 Example of sensor installation (TW3 / TW4) Weld the sensor holder on the selected location of the pipe and then insulate it . When the pipe is a copper pipe When the pipe is not a copper pipe Pipe Pipe Sensor Sensor holder...

  • Page 43: Concrete Curing Function

    Concrete curing function When pipes of floor heating are installed, operation for reinforcing concrete curing is applied . (Period of operation: 20 days) Entering procedure 1 . After turning off the DIP switch K3 (3rd switch of SW03) of control kit (Default ON), turn off and turn on the control kit . The operation for concrete curing starts automatically .

  • Page 44: Installation Option Setting

    Installation option setting f Set the control kit installation option with remote controller option . The procedure of option setting Entering mode for option setting Option setting mode Mode change High Temp Button High Fan Button Low Fan Button Low Temp Button EHS MONO Kit-EU_IM_05388A-00_EN.indd 43 2015-03-18 오전...
  • Page 45 Installation option setting Entering mode to set option 1 . Remove batteries from the remote controller . 2 . Insert batteries and enter the option setting mode while pressing High Temp button and Low Temp button . Check if you have entered the option setting status . Changing a particular option You can change each digit of set option .
  • Page 46 MEMO EHS MONO Kit-EU_IM_05388A-00_EN.indd 45 2015-03-18 오전 11:53:56...
