RADIO-CONTROLLED PROJECTION
CLOCK WITH DIGITAL TUNING
AM/FM RADIO
MODEL NO.: RRM968P/RRM968PU
USER
MANUAL
INTRODUCTION
Congratulations on purchasing the
radio-controlled
with digital tuning AM/FM radio RRM968P/RRM968PU.
The unit is a multi-functional radio-controlled clock. The RRM968P
- the Central Europe model - is designed to automatically synchronize
its current time and date when brought within an approximate
1500km radius of the radio signal generated from Frankfurt,
Germany (DCF77). The RRM968PU - the UK model - will do the
same when brought within range of the radio signal MSF-60
generated from Rugby, England.
This unit
features a
projection function that allows the user to display
either (1) the Current Time with Indoor Temperature or (2) the pre-
set Alarm time with Indoor Temperature on the ceiling, wall or
other flat
surface. In addition, the Alarm status will also be projected,
as
indicated by the Alarm-on icon. The image
projector
red color which is easily seen in the dark.
This unit also comes with an digital tuning PLL (Phase Lock Loop)
AM/FM radio with 16 user-preset stations (8 for AM and 8 for FM
radio). A Radio Sleep-Timer (auto-off) function is also included.
1
RRM968PM_EN_R03
Other features include EL back-light, indoor temperature display,
hourly-chime function, and user-selectable daily beep alarm with
8-minute snooze function or Wake-up-to-Radio Alarm.
KEY CONFIGURATION & FEATURES
FRONT VIEW
projection
clock
any
is in a deep

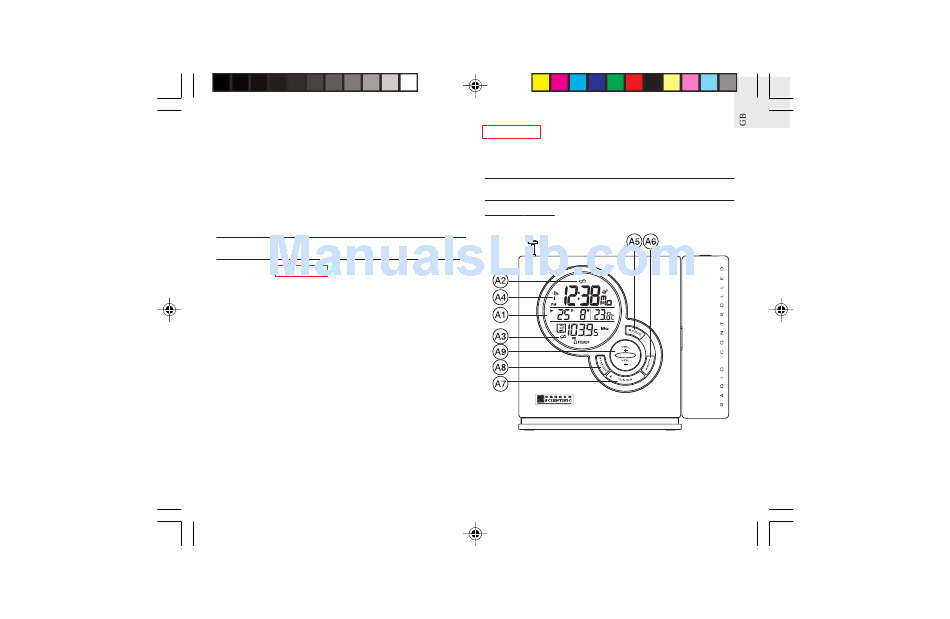

A1. 3-Line LCD Display
- Displays the time, date, indoor temperature and radio function
1
8/23/04, 10:39 AM
