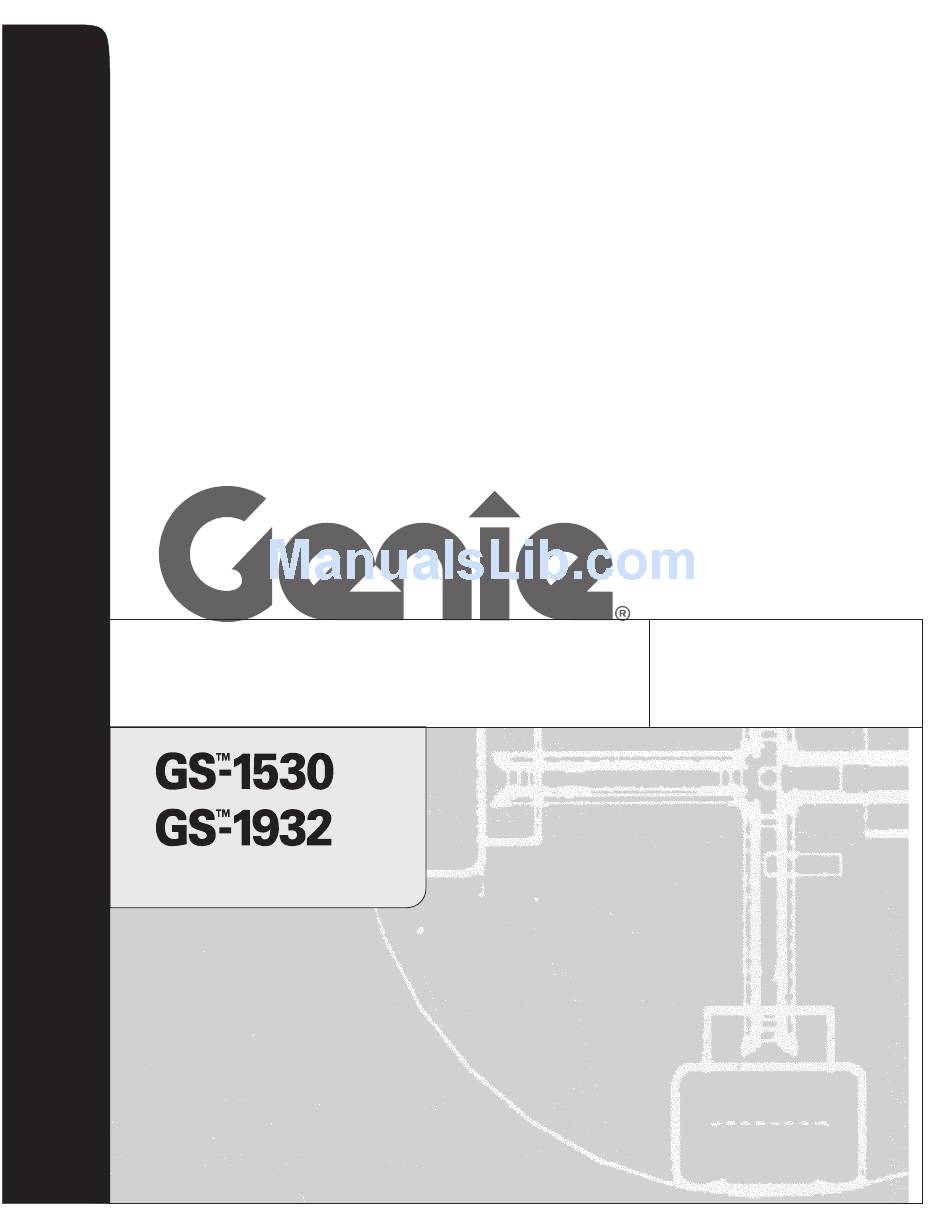

- Page 1 Operator’s Manual First Edition Second Printing with Maintenance Information Part No. 82290 Australia...
-
Page 2: Table Of Contents
Copyright © 2002 by Genie Industries Contact us: First Edition: Second Printing, May 2002 Internet: http://www.genielift.com "Genie" is a registered trademark of Genie E-mail: techpub@genieind.com Industries in the U.S.A. and many other countries. "GS" is a trademark of Genie Industries. -
Page 3: Safety
You read, understand and obey: Manufacturer's instructions and safety rules—safety and operator's manuals and machine decals employer's safety rules and worksite regulations applicable governmental regulations You are properly trained to safely operate the machine. Part No. 82290 Genie GS-1530 and Genie GS-1932... - Page 4 Do not operate the machine during lightning or storms. Do not use the machine as a ground for welding. Genie GS-1530 and Genie GS-1932 Part No. 82290...
- Page 5 Do not drive the machine on or near uneven terrain, unstable surfaces or other hazardous conditions with the platform raised. Part No. 82290 Genie GS-1530 and Genie GS-1932...
- Page 6 Do not contact adjacent structures with the operation. platform. Do not tie the platform to adjacent structures. Do not place loads outside the platform perimeter. Do not operate the machine with the chassis trays open. Genie GS-1530 and Genie GS-1932 Part No. 82290...
- Page 7 No stunt driving or horseplay while operating a machine. Do not operate the machine or charge the battery in hazardous locations or locations where potentially flammable or explosive gases or particles may be present. Part No. 82290 Genie GS-1530 and Genie GS-1932...
- Page 8 Damaged Machine Hazards Decal Legend Do not use a damaged or malfunctioning machine. Genie product decals use symbols, color coding and signal words to identify the following: Conduct a thorough pre-operation inspection of the machine and test all functions before each work shift.
- Page 9 The battery tray should remain open during the entire charging cycle. Do not contact the battery terminals or the cable clamps with tools that may cause sparks. Part No. 82290 Genie GS-1530 and Genie GS-1932...
-
Page 10: Legend
23 Safety arm 6 Platform controls 15 Hydraulic oil level indicator 7 GFCI outlet 16 Pothole guard 8 Platform extension 17 Non-steer tire 9 Platform extension release 18 Entry ladder/transport pedal tie-down Genie GS-1530 and Genie GS-1932 Part No. 82290... -
Page 11: Controls
Two function select buttons and red Emergency Stop button in upper left corner One function select button and red Emergency Stop button in upper left corner Red Emergency Stop button in lower right corner Part No. 82290 Genie GS-1530 and Genie GS-1932... - Page 12 Operator's Manual First Edition • Second Printing CONTROLS Ground Control Panel Breaker for electrical circuits Manual lowering knob Platform up/down toggle switch Hour meter Key switch for platform/off/ground selection Red Emergency Stop button Genie GS-1530 and Genie GS-1932 Part No. 82290...
-
Page 13: Pre-Operation Inspection
Scheduled maintenance inspections shall be performed by qualified service technicians, according to the manufacturer's specifications and the requirements listed in the responsibilities manual. Part No. 82290 Genie GS-1530 and Genie GS-1932... - Page 14 Platform entry chain or gate o Beacon and alarms (if equipped) o Brake release components o Safety arm o Pothole guards o Platform extension o Scissor pins and retaining fasteners o Platform control joystick Genie GS-1530 and Genie GS-1932 Part No. 82290...
-
Page 15: Maintenance
Indicates that tools will be required to perform this procedure. Indicates that new parts will be required to perform this procedure. Part No. 82290 Genie GS-1530 and Genie GS-1932... - Page 16 4 Remove the battery vent caps. 5 Check the battery acid level of each battery. If needed, replenish with distilled water to the bottom of the battery fill tube. Do not overfill. 6 Install the vent caps. Genie GS-1530 and Genie GS-1932 Part No. 82290...
-
Page 17: Function Tests
One function select button and red Emergency Stop button in upper left corner 7 Pull out the red Emergency Stop button to position. Controller with red Emergency Stop button in lower right corner Part No. 82290 Genie GS-1530 and Genie GS-1932... - Page 18 21 Release the control handle. Result: The platform should stop raising. 22 Press and hold the function enable switch. Slowly move the control handle in the direction indicated by the yellow arrow. Genie GS-1530 and Genie GS-1932 Part No. 82290...
- Page 19 1.2 m from the ground. panel. Result: The pothole guards should deploy. Result: The steer wheels should turn in the direction that the yellow triangle points on the control panel. Part No. 82290 Genie GS-1530 and Genie GS-1932...
- Page 20 Result: Before the platform is raised 7 feet / 2.1 m from the ground, an alarm should sound and the drive function should not work. 43 Lower the platform and remove the 2x4. Genie GS-1530 and Genie GS-1932 Part No. 82290...
-
Page 21: Workplace Inspection
It is the operator's responsibility to read and remember the workplace hazards, then watch for and avoid them while moving, setting up and operating the machine. Part No. 82290 Genie GS-1530 and Genie GS-1932... -
Page 22: Operating Instructions
That means every new operator should perform a pre-operation inspection, function tests, and a workplace inspection before using the machine. Genie GS-1530 and Genie GS-1932 Part No. 82290... - Page 23 Machine drive speed and function speed will drop when the low battery indicator light is on or when 4 Chock the wheels. the last light on the battery level indicator is 5 Charge the batteries. flashing. Part No. 82290 Genie GS-1530 and Genie GS-1932...
- Page 24 4 Charge the battery. indicated on the charger. 5 Check the battery acid level when the charging Use only Genie authorized battery and charger. cycle is complete. Replenish with distilled water to the bottom of the fill tube. Do not overfill.
-
Page 25: Transport Instructions
Be sure the vehicle capacity, the loading Towing the Genie GS-1530 or GS-1932 is not surfaces and the chains or straps are sufficient recommended. If the machine must be towed, do to withstand the machine weight. See the serial not exceed 2 mph / 3.2 km/h. -
Page 26: Decals
Notice - Power to Battery Charger 52061 Notice - Max Cap 500 lbs, GS-1932, 31785 Notice - Battery Charger Operating Australia Instructions 52062 Notice - Max Cap 600 lbs, GS-1530, 37145 Label - Manual Lowering Australia 40434 Label - Lanyard Anchorage 52475 Label, Transport Tie-down... - Page 27 First Edition • Second Printing Operator's Manual DECALS Battery Side Ground Controls Side Some decals are hidden from view when platform is lowered Part No. 82290 Genie GS-1530 and Genie GS-1932...
-
Page 28: Specifications
(Machine weights vary with option configurations) It should be used only with adequate safety factors. Gradeability Airborne noise emissions >70 dB Maximum sound level at normal operating workstations (A-weighted) Genie GS-1530 and Genie GS-1932 Part No. 82290... -
Page 29: Genie Gs-1530 & Genie Gs
Airborne noise emissions >70 dB Maximum sound level at normal operating workstations (A-weighted) Continuous improvement of our products is a Genie policy. Product specifications are subject to change without notice or obligation. Part No. 82290 Genie GS-1530 and Genie GS-1932... - Page 30 Genie North America Phone 425.881.1800 Toll Free USA and Canada 800.536.1800 425.883.3475 Genie Australia Pty Ltd. Phone + 61 7 3375 1660 Fax + 61 7 3375 1002 Genie China Genie Scandinavia Phone + 86 21 53852570 Phone + 46 31 575100...
