■ MB-86 contents

Belt clip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Base clip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Supplied screws . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

q Screw the base clip to the back of the transceiver, using

the two supplied screws.

Supplied screws

w Clip the belt clip over your belt and insert the transceiver.

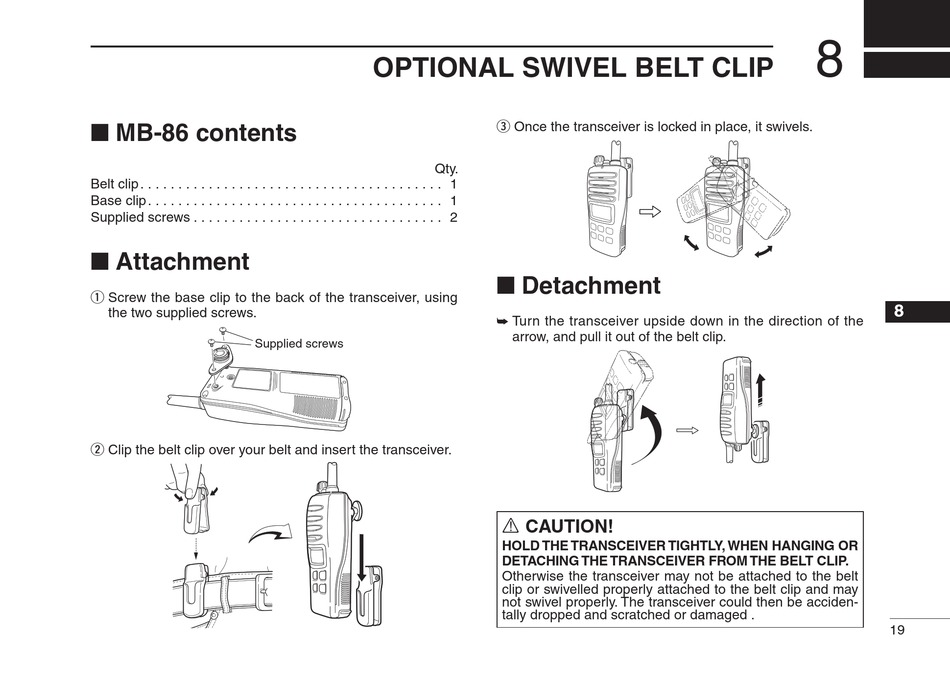

OPTIONAL SWIVEL BELT CLIP

e Once the transceiver is locked in place, it swivels.

Qty.

Turn the transceiver upside down in the direction of the

➥

arrow, and pull it out of the belt clip.

R CAUTION!

HOLD THE TRANSCEIVER TIGHTLY, WHEN HANGING OR

DETACHING THE TRANSCEIVER FROM THE BELT CLIP�

Otherwise the transceiver may not be attached to the belt

clip or swivelled properly attached to the belt clip and may

not swivel properly. The transceiver could then be acciden-

tally dropped and scratched or damaged .
