Panasonic KX-FP215 Service Manual

Compact plain paper fax with digital answering system
Hide thumbs Also See for KX-FP215:
Table of Contents

Advertisement

Quick Links

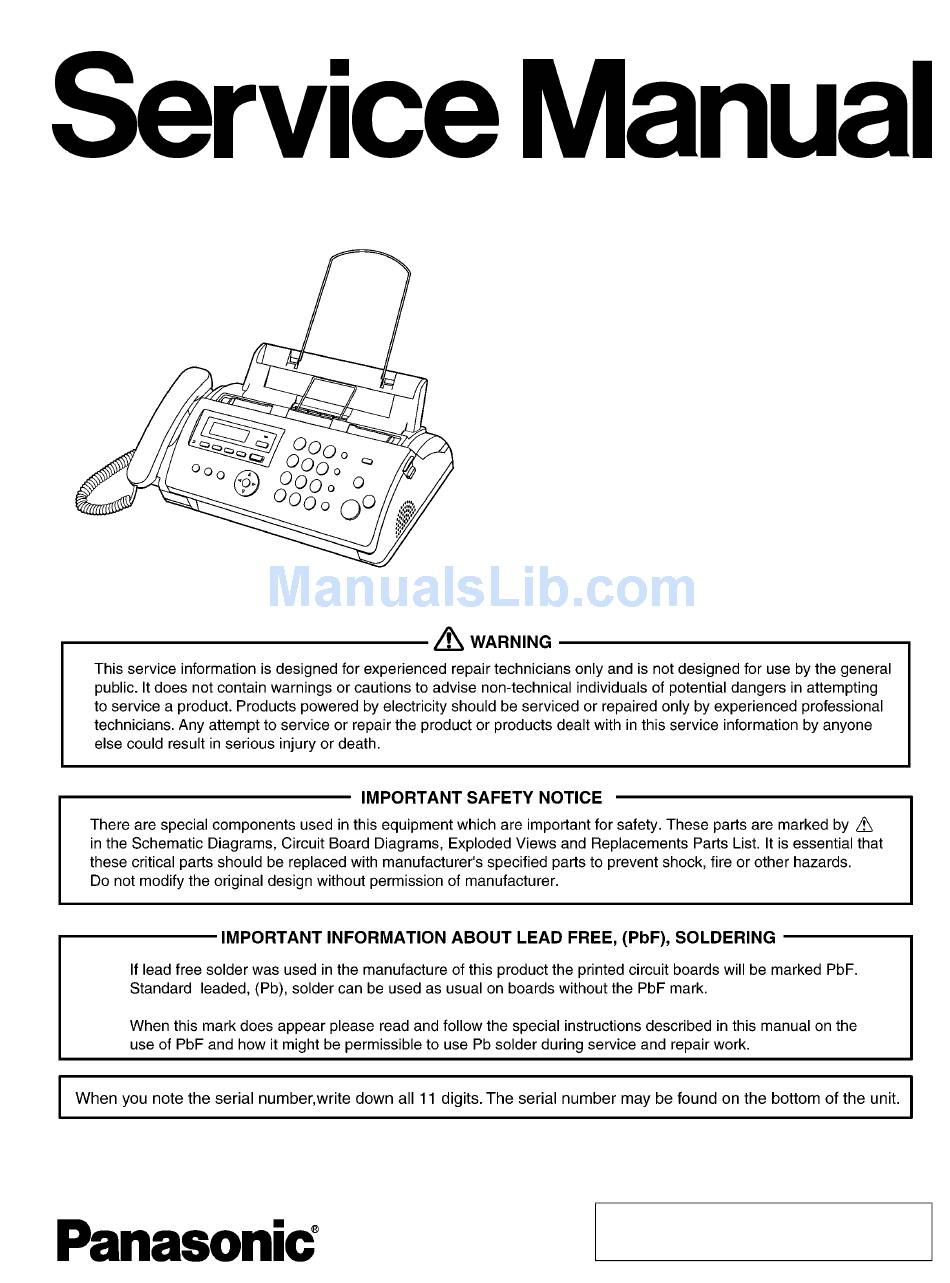

Compact Plain Paper Fax with Digital Answering System
KX-FP215
Model No.
(for U.S.A.)
© Panasonic Communications Co., Ltd. 2009. Unau-
thorized copying and distribution is a violation of law.
ORDER NO. KMF0902226CE
F7

Advertisement

Table of Contents
loading

Related Manuals for Panasonic KX-FP215

Summary of Contents for Panasonic KX-FP215

  • Page 1 ORDER NO. KMF0902226CE Compact Plain Paper Fax with Digital Answering System KX-FP215 Model No. (for U.S.A.) © Panasonic Communications Co., Ltd. 2009. Unau- thorized copying and distribution is a violation of law.

  • Page 2: Table Of Contents

    KX-FP215 TABLE OF CONTENTS PAGE PAGE 1 Safety Precautions -----------------------------------------------5 6.7.1. General ------------------------------------------------ 42 1.1. For Service Technicians ----------------------------------5 6.7.2. EXT. TEL. Line Relay (RLY101)----------------- 42 1.2. AC Caution---------------------------------------------------5 6.7.3. Bell Detection Circuit------------------------------- 42 1.3. Personal Safety Precautions ----------------------------6 6.7.4. Pulse Dial Circuit and ON/OFF Hook 1.3.1.
  • Page 3 KX-FP215 15.4. Cleaning -------------------------------------------------- 169 12.4.1. Entering the Remote Programming Mode and Changing Service Codes --------------------95 15.4.1. Document feeder/recording paper feeder/ 12.4.2. Program Mode Table--------------------------------96 scanner glass cleaning -------------------------- 169 12.5. Troubleshooting Details ---------------------------------98 15.4.2. Thermal Head Cleaning ------------------------- 170 12.5.1.
  • Page 4 KX-FP215 20.2.4. Operation Board Parts --------------------------- 210 20.2.5. Power Supply Board Parts -----------------------211 20.2.6. Interface Board Parts------------------------------211 20.2.7. Sensor Board Parts -------------------------------211 20.2.8. Film End Sensor Board Parts -------------------211 20.2.9. Motor Position Sensor Board Parts ----------- 212 20.2.10. Hook Swicth Board Parts------------------------ 212...

  • Page 5: Safety Precautions

    KX-FP215 1 Safety Precautions 1. Before servicing, unplug the AC power cord to prevent an electric shock. 2. When replacing parts, use only the manufacturer's recommended components. 3. Check the condition of the power cord. Replace if wear or damage is evident.

  • Page 6: Personal Safety Precautions

    KX-FP215 1.3. Personal Safety Precautions 1.3.1. Moving Sections of the Unit Be careful not to let your hair, clothes, fingers, accessories, etc., become caught in any moving sections of the unit. The moving sections of the unit are the rollers and a gear. There is a separation roller and a document feed roller which are rotated by the document feed motor.

  • Page 7: Service Precautions

    KX-FP215 1.4. Service Precautions 1.4.1. Precautions to Prevent Damage from static Electricity Electrical charges accumulate on a person. For instance, clothes rubbing together can damage electric elements or change their electrical characteristics. In order to prevent static electricity, touch a metallic part that is grounded to release the static electricity.

  • Page 8: Warning

    KX-FP215 2 Warning 2.1. About Lead Free Solder (PbF: Pb free) Note: In the information below, Pb, the symbol for lead in the periodic table of elements, will refer to standard solder or solder that con- tains lead. We will use PbF solder when discussing the lead free solder used in our manufacturing process which is made from Tin, (Sn), Silver, (Ag), and Copper, (Cu).

  • Page 9: Insulation Resistance Test

    KX-FP215 2.2. Insulation Resistance Test 1. Unplug the power cord and short the two prongs of the plug with a jumper wire. 2. Turn on the power switch. 3. Measure the resistance value with an ohmmeter between the jumpered AC plug and each exposed metal cabinet part (screw heads, control shafts, bottom frame, etc.).

  • Page 10: Specifications

    KX-FP215 3 Specifications Any details given in these instructions are subject to change without notice. Applicable Lines: Public Switched Telephone Network Document Size: Max. 216 mm (8 ") in width, Max. 600 mm (23 ") in length Effective Scanning Width: 208 mm (8 ")

  • Page 11: General/Introduction

    Replacement Film (Each roll will print about 80 letter-sized pages.) To ensure the unit operates properly, we recommend using the Panasonic replacement film. The ink film is not reusable. Do not rewind and use the ink film again. 5 Features General Large Memory...

  • Page 12: Technical Descriptions

    KX-FP215 6 Technical Descriptions 6.1. Connection Diagram...

  • Page 13: General Block

    KX-FP215 6.2. General Block The following is an outline of each device IC on the digital board. (Refer to General Block Diagram (P.14).). 1. ASIC (IC501) Composed mainly of an address decoder and a modem control. Controls the general FAX operations.

  • Page 14: General Block Diagram

    KX-FP215 6.2.1. General Block Diagram...

  • Page 15: Control Section

    KX-FP215 6.3. Control Section 6.3.1. Block Diagram...

  • Page 16: Memory Map

    KX-FP215 6.3.2. Memory Map...

  • Page 17: Asic (Ic501)

    KX-FP215 6.3.3. ASIC (IC501) This custom IC is used for the general FAX operations. 1. CPU: 6. IMAGE DATA RAM: This model uses a Z80 equivalent to the CPU operating This memory is programmed into the ASIC and uses 8 at 12 MHz.
  • Page 18 KX-FP215 Descriptions of Pin Distribution (IC501) SIGNAL POWER SUPPLIED DESCRIPTION VOLTAGE VSSA POWER SOURCE (ANALOG GND) VDDA 3.3 3.3V POWER SOURCE (ANALOG +3.3V) AIN1 3.3V CIS IMAGE SIGNAL INPUT (SIG) AIN2 3.3V THERMISTOR TEMPERATURE WATCH INPUT AIN3 3.3V LINE VOLTAGE DETECTION SIGNAL INPUT (DCIN) AMON 3.3V...
  • Page 19 KX-FP215 SIGNAL POWER SUPPLIED DESCRIPTION VOLTAGE TEST2 3.3V HIGH FIXED TEST3 3.3V HIGH FIXED TEST4 3.3V HIGH FIXED XMDMINT 3.3V MODEM INTERRUPT XMDMCS 3.3V MODEM CHIP SELECT XRAS/IOP 3.3V DRAM (IC503) ROW ADDRESS STROBE XCAS1/IOP 3.3V DRAM (IC503) CULUM ADDRESS STROBE XCAS2/IOP 3.3V...

  • Page 20: Flash Memory (Ic506)

    KX-FP215 SIGNAL POWER SUPPLIED DESCRIPTION VOLTAGE XRESETI 3.3V RESET INPUT WDERR 3.3V WATCHED ERROR OUTPUT SIGNAL THDAT 3.3V RECORDED IMAGE OUTPUT (XTHDAT) THCLK 3.3V CLOCK OUTPUT FOR DATA TRANSFER (XTHCLK) THLAT 3.3V PULSE OUTPUT FOR DATA LATCH (XTHLAT) STBNP 3.3V...

  • Page 21: Reset Circuit (Watch Dog Timer)

    KX-FP215 6.3.6. Reset Circuit (Watch dog timer) The output signal (reset) from pin 4 of the voltage detect IC (IC504) is input to the ASIC (IC501) 114 pin. 1. During a momentary power interruption, a positive reset pulse of 50~70 msec is generated and the system is reset com- pletely.

  • Page 22: Rtc Backup Circuit

    KX-FP215 6.3.7. RTC Backup Circuit 1. Function This unit has a lithium battery (BAT501) which works for Real Time Clock IC (RTC: inside IC501). The RTC continues to work, backed up by a lithium battery even when the power switch is OFF.

  • Page 23: Supervision Circuit For The Thermal Head Temperature

    KX-FP215 6.3.8. Supervision Circuit for the Thermal Head Temperature 1. Function The thermistor changes the resistor according to the temperature and uses the thermistor's characteristics. The output of pin 139 of IC501 becomes a low level. Then when it becomes a high level, it triggers point A In point C, according to the voltage output time, the thermal head's temperature is detected.

  • Page 24: Facsimile Section

    KX-FP215 6.4. Facsimile Section 6.4.1. Image Data Flow During Facsimile Operation Copy (Fine, Super-Fine, Half Tone) 1. Line information is read by CIS (to be used as the reference white level) via route1, and is input to IC501. Refer to Block Dia- gram (P.25)

  • Page 25: Block Diagram

    KX-FP215 6.4.2. Block Diagram...

  • Page 26: Thermal Head

    KX-FP215 6.4.3. Thermal Head 1. Function This unit utilizes the state of the art thermal printer technology. The ink film is chemically processed. The ink film is comprised of two parts: an ink layer and a base film. When the thermal head contacts this ink film, it emits heat momentarily, and the ink layer is melted and transferred to the paper.
  • Page 27 KX-FP215...

  • Page 28: Scanning Block

    KX-FP215 6.4.4. Scanning Block The scanning block of this device consists of a control circuit and a contact image sensor made up of a celfoc lens array, an LED array, and photoelectric conversion elements. When an original document is inserted and the start button pressed, pin 34 of IC501 goes to a high level and the transistor Q506 turns on.This applies voltage to the LED array to light it.

  • Page 29: Stepping Motor Drive Circuit

    KX-FP215 6.4.5. Stepping Motor Drive Circuit 1. Function The stepping motor works for both transmission and reception. 2. Motor During motor driving, pin 124 of ASIC IC501 becomes a high level, and Q403, Q402 turns ON. As a result, +24V is supplied to the motor coil.
  • Page 30 KX-FP215 When the motor suspends while it is in the receive mode (about 70~80 msec), pin 124 of ASIC IC501 becomes a low level and Q403 turns OFF. Then Q402 also turns OFF, and instead of +24 V, +6 V is supplied through D401 so that the motor is held in place.

  • Page 31: Sensors And Switches

    KX-FP215 6.5. Sensors and Switches All of the sensor and switches are shown below. Sensor Circuit Location Sensor Sensor or Switch Name Error Message Operation Panel SW351 Document top sensor [REMOVE DOCUMENT] SW352 Document set sensor [CHECK DOCUMENT] Sensor P.C.Board...

  • Page 32: Document Top Sensor (Sw351)

    KX-FP215 6.5.1. Document Top Sensor (SW351) When a document is brought to the read position, the SW turns ON, and the input signal of IC301-6 pin (Operation Board) becomes a low level. When there is no document at the read position, the SW turns OFF, and the input signal of IC301-6 pin (Operation Board) becomes a high level.

  • Page 33: Paper Top Sensor (Sw1001)

    KX-FP215 6.5.3. Paper Top Sensor (SW1001) When the recording paper is loaded on the print head or the recording paper cover is opened, the paper top sensor SW turns ON, and the input signal of IC501-21 pin (Digital Board) becomes a low level. Usually, the SW turns OFF, and the input signal of IC501- 21 pin (Digital Board) becomes a high level.

  • Page 34: Film End Sensor (Sw1003)

    KX-FP215 6.5.5. Film End Sensor (SW1003) When a film is set, the SW turns ON, and the input signal of IC501-45 pin (Digital Board) becomes a low level. When there is no film, the SW turns OFF, and the input signal of IC501-45 pin (Digital Board) becomes a high level.

  • Page 35: Modem Section

    KX-FP215 6.6. Modem Section 6.6.1. Function The unit uses a 1 chip modem (IC505) that serves as an interface between the control section for FAX transmission and recep- tion and the telephone line. During a transmitting operation, the digital image signals are modulated and sent to the telephone line.
  • Page 36 KX-FP215 3. Facsimile Call Time Series As shown in the following diagram, the facsimile call time series is divided into five phases. Phase A: Call setting Call setting can be manual/automatic. Phase B: Pre-message procedure Phase B is a pre-processing procedure and sequence for confirming the status of the terminal, transmission route, etc., and for terminal control.
  • Page 37 KX-FP215 6. Explanation of Communication and Compression Technology a. G3 Communication Signals (T. 30 Binary Process) For G3 Facsimile communication, this is the procedure for exchanging control signals between the sending and receiving machines both before and after transmission of image signals.
  • Page 38 KX-FP215 Bit No. DIS/DTC Receiver --- T.4 operation Receiver --- T.4 operation 11,12,13,14 Data signaling rate Data signaling rate 0,0,0,0 V.27 ter fall back mode 2400 bit/s, V.27 ter 0,1,0,0 V.27 ter 4800 bit/s, V.27 ter 1,0,0,0 V.29 9600 bit/s, V.29 1,1,0,0 V.27 ter and V.29...
  • Page 39 KX-FP215 Bit No. DIS/DTC Reserved for future recording width capability. Extend field Extend field R8×15.4 lines/mm R8×15.4 lines/mm 300×300 pels/25.4 mm 300×300 pels/25.4 mm R16×15.4 lines/mm and/or 400×400 pels/25.4 mm R16×15.4 lines/mm and/or 400×400 pels/25.4 mm Inch based resolution preferred Resolution type selection "0": neritic based resolution...
  • Page 40 KX-FP215 b. Redundancy Compression Process Coding Mode This unit uses one-dimensional MH format.

  • Page 41: Modem Circuit Operation

    KX-FP215 6.6.2. Modem Circuit Operation The modem (IC505) has all the hardware satisfying the CCITT standards mentioned previously. When the ASIC IC501 (61) is brought to a low level, the modem (IC505) is chip-selected and the resistors inside IC are selected by the select signals from ASIC (IC501) ADR0-ADR4.

  • Page 42: Ncu Section

    KX-FP215 6.7. NCU Section 6.7.1. General NCU is the interface with the telephone line. It is composed of Bell detection circuit, Pulse dial circuit, Line amplifier and sidetone circuits. The following is a brief explanation of each circuit. 6.7.2. EXT. TEL. Line Relay (RLY101) 1.

  • Page 43: Line Amplifier And Side Tone Circuit

    KX-FP215 6.7.5. Line Amplifier and Side Tone Circuit 1. Circuit Operation The reception signal output from the line transformer T101 is input to pin (2) of IC101 via C110 and R109 and then the signal is amplified at pin (2) of IC101 and sent to the reception system at 0dB.

  • Page 44: Calling Line Identification Circuit

    KX-FP215 6.7.7. Calling Line Identification Circuit 1. Function This unit is compatible with the Caller ID service offered by your local telephone company. To use this feature, you must sub- scribe to a Caller ID service. The data for the Caller ID from the telephone exchange is sent during the interval between the first and second rings of the bell signal.

  • Page 45: Its

    KX-FP215 6.8. ITS (Integrated telephone System) and Monitor Section 6.8.1. General The general ITS operation is performed by the special IC505 which has a handset circuit. The alarm tone, the key tone, and the beep are output from the ASIC IC501 (digital board). During the pulse dial operation, the monitor tone is output from the ASIC IC501.

  • Page 46: Operation Board Section

    The key matrix table is shown below. LCD MODULE ASIC CN302 KSL0~4 CN504 CN301 GATE ARRAY IC501 IC301 KEYS KIN0~7 MATRIX LED2 R320 LED301 XLED9, 10 AUTO ANSWER DOCUMENT TOP SW DOCUMENT SET SW DIGITAL BOARD KX-FP215 : OPERATION BOARD BLOCK DIAGRAM Key Matrix...

  • Page 47: Lcd Section

    KX-FP215 6.10. LCD Section The Gate Array (IC301) works only for writing the ASCII code from the data bus (D4~D7). V0 is supplied for the crystal drive. R310, R311, R312 and R314 are density control resistors. Consequently, in this unit, the timing (positive clock) is generated by the LCD interface circuitry in the gate array (IC301).

  • Page 48: Power Supply Board Section

    KX-FP215 6.11. Power Supply Board Section This power supply board uses the switching regulator method. Block Diagram Input Input Rectifier Circuit C106 Output Circuit Surge Circuit D110 Absorber Converter Circuit Circuit R104 A-B Voltage Wave Form Q101 Kick-on Surge 9~6V...
  • Page 49 KX-FP215 The following is an overview of how the power supply unit is controlled. The control method of this power supply unit is pulse width modulation. When Q is ON, the energy is charged in the transfer primary coil according to E .
  • Page 50 KX-FP215 [Surge Absorber Circuit] This circuit is for absorbing surge voltage generated by the transformer. [Control Circuit and Detecting Circuit] The control circuit amplifies the output with increased voltage detected in the error detecting circuit. Then it drives the main tran- sistor.

  • Page 51: Location Of Controls And Components

    KX-FP215 7 Location of Controls and Components 7.1. Overview 7.2. Control Panel (1) [MIC] (Microphone) • The built-in microphone. (2) [GREETING REC] • To record a greeting message. (3) [GREETING CHECK] • To check a greeting message. (1) Document guides...

  • Page 52: Installation Instructions

    KX-FP215 8 Installation Instructions (17) [TONE] • To change from pulse to tone temporarily during dialing when your line has rotary pulse service. You can also use 8.1. Installation Space tone dial service by changing feature #13 on Program Mode The space required to install the unit is shown below.

  • Page 53: Connections

    KX-FP215 8.2. Connections 8.3. Installing the Ink Film Caution: 1. Open the front cover. • When you operate this product, the power outlet should be near the product and easily accessible. Telephone line cord •Connect to a single telephone line jack (RJ11).
  • Page 54 KX-FP215 • Make sure the blue gear ( ) and white gear ( ) are installed as shown. 5. Turn the blue gear ( ) in the direction of the arrow until the ink film is tight ( ) and at least one layer of ink film is 6.

  • Page 55: Installing The Paper Tray

    KX-FP215 8.4. Installing the Paper Tray 8.5. Paper Support Pull up the metal recording paper guide ( ), then install Hold open the paper support ( ), then insert the ends into the the paper tray ( holes on the paper tray ( •...

  • Page 56: Installing The Recording Paper

    KX-FP215 8.6. Installing the Recording Paper Document requirements The unit can hold up to 20 sheets of 60 g/m to 90 g/m (16 lb to 24 lb) paper. For superior results, we recommend Hammermill® Jet Print paper. 1. Fan the paper to prevent paper jams.

  • Page 57: Operating Instructions

    KX-FP215 9 Operating Instructions To enter your logo Example: “BILL“ 1. Press [2] 5 times. 9.1. Setting Your Logo You can program your logo (name, company name, etc.) so that it appears on the top of each page sent. 2. Press [4] 6 times.

  • Page 58: Test Mode

    KX-FP215 10 Test Mode The codes listed below can be used to perform simple checks for some of the unit’s functions. When complaints are received from customers, they provide an effective tool for identifying the locations and causes of malfunctions. To do this, you set the Service mode (Refer to Operation Flow (P.62).) first, then operate the below test items.

  • Page 59: Dtmf Signal Tone Transmit Selection

    KX-FP215 Test Mode Type of Mode Code Function Operation after code input SENSOR CHECK & Service Mode “8” “1” “5” If you enter this mode and operate sensor levers with your hands, the LCD dis- VOX CHECK play of the related sensor (or switch) turns ON / OFF. Also, when copying a docu- ----- ment, the related sensor will turn ON / OFF.

  • Page 60: Button Code Table

    KX-FP215 10.2. Button Code Table Code Button Name Code Code Button Name NO INPUT MENU STOP HELP FAX START [+] VOLUME COPY [—] VOLUME SP-PHONE BROADCAST MUTE AUTO ANSWER MEMO CHECK ERASE REDIAL / PAUSE PLAYBACK FLASH CALLER ID...

  • Page 61: Print Test Pattern

    KX-FP215 10.3. Print Test Pattern 1. Platen roller 3. Thermal head 1 dot 2. Left margin / Top margin 4. Use this test pattern to confirm the torque limiter for Ink film and platen roller timing.

  • Page 62: Service Mode

    KX-FP215 11 Service Mode The programming functions are used to program the various features and functions of the machine, and to test the machine. This facilitates communication between the user and the service man while programming the unit. 11.1. Programing and Lists 11.1.1.

  • Page 63: Service Function Table

    KX-FP215 11.1.3. Service Function Table Code Function Set Value Effective Default Remarks Range × 100 msec Pause time set 001~600 ---------- Dial speed select 1: 10 pps 1, 2 ---------- 2: 20 pps VOX time 1: 6sec 1, 2 ----------...
  • Page 64 KX-FP215 Code Function Set Value Effective Default Remarks Range TAM continuous tone detection 1: ON 1, 2 ON : Stops TAM operation when Dial tone, etc. are 2: OFF detected. × number of FAX auto redial time set 00~99 Selects the number of redial times during FAX times communication (not including the first dial).

  • Page 65: Memory Clear Specification

    KX-FP215 Code Function Set Value Effective Default Remarks Range Voice prompt test See Test Mode (P.58). Sensor & Vox check See Test Mode (P.58). Digital SP-PHONE check See Digital Speakerphone (P.123). Print test pattern See Test Mode (P.58). Top margin ---------- ×...

  • Page 66: The Example Of The Printed List

    KX-FP215 11.2. The Example of the Printed List 11.2.1. User Mode Note: The above values are the default values.

  • Page 67: Service Mode Settings

    KX-FP215 11.2.2. Service Mode Settings Note: The above values are the default values.

  • Page 68: History

    KX-FP215 11.2.3. History Note: See the following descriptions of this report. Item No. (1) ~ (44) are corresponding to the listed items in Descriptions of the History Report (P.69).
  • Page 69 KX-FP215 11.2.3.1. Descriptions of the History Report (1) SOFTWARE VERSION (22) NUMBER OF RECEIVE FLASH ROM version The number of pages received. (2) SUM (23) NUMBER OF SENDING FLASH ROM internal data calculation. The number of pages sent. (3) YOUR LOGO (24) NUMBER OF CALLER ID The user logo recorded in the unit.

  • Page 70: Troubleshooting Guide

    KX-FP215 12 Troubleshooting Guide 12.1. Troubleshooting Summary After confirming the problem by asking the user, troubleshoot according to the instructions and observe the following precautions. 12.1.1. Precautions 1. If there is a problem with the print quality or the paper feed, first check if the installation space and the print paper meets the specifications, the paper selection lever/paper thickness lever is set correctly, and the paper is set correctly without any slack.

  • Page 71: Error Messages-Display

    • The ink film is empty. Replace the ink film with a new one. To place an order via the Internet, or to check for special offers, visit our web site: http://www.panasonic.com/fax- • The ink film is empty. Replace the ink film with a new one.
  • Page 72 • The unit is too hot. Stop using the unit for a while and let the unit cool down. • Please use genuine Panasonic replacement film. (Refer to Optional Accessories (P.11).) • The ink film is slack. Tighten it (See step 5 on Installing the Ink Film (P.53)).

  • Page 73: Error Messages-Report

    KX-FP215 12.3. Error Messages-Report If a problem occurs during fax transmission or reception, one of the following messages will be printed on the sending and jour- nal reports. 12.3.1. Journal Report If a problem occurs during fax transmission or reception, one of the following messages will be printed on the sending and jour- nal reports.
  • Page 74 KX-FP215 Countermeasure...
  • Page 75 KX-FP215 REFERENCE: Test Mode (P.58)
  • Page 76 KX-FP215 REFERENCE: Test Mode (P.58)
  • Page 77 KX-FP215 REFERENCE: Test Mode (P.58)
  • Page 78 KX-FP215 REFERENCE: Test Mode (P.58)
  • Page 79 KX-FP215...
  • Page 80 KX-FP215...
  • Page 81 KX-FP215 REFERENCE: Test Mode (P.58)

  • Page 82: Special Service Journal Report

    KX-FP215 12.3.2. Special Service Journal Report Journal 2 and Journal 3 shown below, which are special journals giving the additional detailed information about the latest 35 communications, can be printed by Service Code 881 or 882. Remote printing function for the journal reports (JOURNAL, JOURNAL 2 and JOURNAL 3) is also available for service technicians.
  • Page 83 KX-FP215 12.3.2.1. Journal 2 Refer to JOURNAL 2 in Printout Example (P.84). Journal 2 displays the additional detailed information about the last 35 communications. Descriptions: (1) RCV. MODE Indicates which receive mode the unit was in when the unit received a fax message.
  • Page 84 KX-FP215 12.3.2.2. Journal 3 Refer to JOURNAL 3 in Printout Example (P.84). Descriptions: (6) ENCODE (9) ERROR LINE(RX) Compression Code: MH/MR When an error occurs while receiving a fax, this shows the number of error lines. (7) MSLT MSLT means Minimum Scan Line Time. Used only at the (10) MAKER CODE factory.
  • Page 85 KX-FP215...

  • Page 86: Communication Section

    KX-FP215 12.3.3. Communication Section Find the problem in the table shown below, and refer to the corresponding troubleshooting procedure in Defective Facsimile Section (P.87). Symptom Reference Content Possible cause 1 The paper is not fed properly when faxing. Transmit Problem (P.87) Problem with the feeding mecha- (Not in the copy mode.)
  • Page 87 KX-FP215 12.3.3.1. Defective Facsimile Section 12.3.3.1.1. Transmit Problem REFERENCE: (*1): Operation Panel Section (P.128) (*2): ADF (Auto Document Feed) Section (P.101) (*3): Maintenance (P.158) (*4): How to Remove the Gear Block and Separation Roller (P.143) (*5): How to Remove the Operation Board and LCD (P.152)
  • Page 88 KX-FP215 12.3.3.1.2. Sometime there is a transmit problem Note: "596: Transmit level set" represents a service code. (Refer to Service Function Table(P.63).)
  • Page 89 KX-FP215 12.3.3.1.3. Receive Problem First confirm whether the recording paper is installed properly or not before starting troubleshooting. (Refer to "Remarks".) Note: • "596: Transmit level set" represents a service code. (Refer to Service Function Table (P.63).) • #06 : Refer to for Program Mode Table (P.96) Fax ring count.
  • Page 90 KX-FP215 12.3.3.1.4. The unit can copy, but cannot transmit / receive REFERENCE: (*1): Test Mode (P.58) (*2): Analog Board Section (P.121)
  • Page 91 KX-FP215 12.3.3.1.5. The unit can copy, but cannot either transmit/receive long distance or interna- tional communications The following two causes can be considered for this symptom. Cause 1: The other party is executing automatic dialing, the call has been received by this unit, and the CED or DIS signal response time is too long.
  • Page 92 KX-FP215 (Causes and Countermeasures) Countermeasure Side Echo Communication Problem Example Countermeasure Service Code Sending side Some time is needed to compare the level Add a dummy signal to the beginning of Service code (521) of the receiving and sending signals for the the training signal.
  • Page 93 KX-FP215 Fig. c (Countermeasure by Changing the Interval Between CED and DIS) Fig. d (Countermeasure by Ignoring the 1st DIS) <TX side signal> <RX side signal> <Countermeasure> 2nd / 3rd DCS / Training & delayed CFR / FTT at TX side 2nd / 3rd EOP / EOM / MPS &...
  • Page 94 KX-FP215 12.3.3.1.7. How to record fax signal by using PC Recording FAX signal is one of the useful analysis measures to solve communication problems. The way of recording easily by using PC is shown as follows. 1. Equipment Parts No.

  • Page 95: Remote Programming

    KX-FP215 12.4. Remote Programming If, after the call is connected, the customer describes the situation and it is determined that the problem can be corrected by making parameter changes, this function makes it possible to change parameters such as the user code and service code from another fax (using DTMF tones).

  • Page 96: Program Mode Table

    KX-FP215 12.4.2. Program Mode Table Code Function Set Value Default Remote Set- ting Set date and time mm/dd/yy hh:mm Jan/01/2009 Your logo --------- None Your FAX number --------- None Print confirmation report 1: ERROR / 2: ON / 3: OFF...
  • Page 97 KX-FP215 Code Function Set Value Default Remote Set- ting ITS auto redial time set 00~99 ITS auto redial line disconnection time set 001~999 sec 065 sec Remote turn-on ring number 01~99 Dial tone detect check 1: ON / 2: OFF...

  • Page 98: Troubleshooting Details

    KX-FP215 12.5. Troubleshooting Details 12.5.1. Outline Troubleshooting is for recovering quality and reliability by determining the broken component and replacing, adjusting or clean- ing it as required. First, determine the problem then decide the troubleshooting method. If you have difficulty finding the broken part, determine which board is broken.

  • Page 99: Troubleshooting Items Table

    KX-FP215 12.5.3. Troubleshooting Items Table ITEM SYMPTOM REFERENCE The document does not feed. No Document Feed P.101 (Auto Document Feeder) Document jam Document Jam P.102 Multiple feed Multiple Document Feed P.103 Skew Document Skew P.104 Recording paper feed The recording paper does not feed.
  • Page 100 KX-FP215 12.5.3.1. Simple Check List SERIAL NO. DATE FUNCTION JUDGEMENT REFERENCE FAX operation Transmission OK / NG Receiving OK / NG Copy operation OK / NG Telephone operation Handset transceiver / receiver OK / NG SP-PHONE OK / NG Ringer sound...

  • Page 101: Adf (Auto Document Feed) Section

    KX-FP215 12.5.4. ADF (Auto Document Feed) Section 12.5.4.1. No Document Feed REFERENCE: (*1): How to Remove the Separation Holder and Exit Roller (P.153) (*2): Installation Position of the Lead Wires (P.154) (*3): How to Remove the Gear Block and Separation Roller (P.143) (*4): Test Mode (P.58)
  • Page 102 KX-FP215 12.5.4.2. Document Jam REFERENCE: (*1): Disassembly and Assembly Instructions (P.134) (*2): Test Mode (P.58) (*3): How to Remove the Separation Holder and Exit Roller (P.153) (*4): Sensor Section (P.129)
  • Page 103 KX-FP215 12.5.4.3. Multiple Document Feed • When using thick paper etc., sometimes the document will not be fed. (*1) REFERENCE: (*1): Installing the Recording Paper (P.56) (*2): How to Remove the Gear Block and Separation Roller (P.143) (*3): Disassembly and Assembly Instructions (P.134) (*4): How to Remove the Separation Holder and Exit Roller (P.153)
  • Page 104 KX-FP215 12.5.4.4. Document Skew REFERENCE: (*1): Maintenance Items and Component Locations (P.158) (*2): Disassembly and Assembly Instructions (P.134) (*3): How to Remove the Image Sensor (CIS) (P.137) (*4): Overview (P.51) (*5): We recommend making a copy of the test chart in Test Chart (P.176) and using it.
  • Page 105 KX-FP215 12.5.4.5. The Recording Paper does not Feed REFERENCE: (*1): Installing the Recording Paper (P.56) (*2): How to Remove the Pickup Roller (P.150) (*3): Power Supply Board Section (P.125) (*4): Test Mode (P.58) (*5): How to Remove the P.C. Boards and Speaker (P.141) (*6): How to Remove the Gears, Motors and Arms of the Gear Block (P.144)
  • Page 106 KX-FP215 12.5.4.6. Paper Jam REFERENCE: (*1): Jams (P.167) (*2): Maintenance Items and Component Locations (P.158) (*3): Disassembly and Assembly Instructions (P.134) (*4): Test Mode (P.58) (*5): Sensors and Switches (P.31) (*6): How to Remove the Pickup Roller (P.150)
  • Page 107 KX-FP215 12.5.4.7. Recording Paper Multiple Feed and Skew REFERENCE: (*1): How to Remove the Platen Roller and Lock Lever (P.148) (*2): How to Remove the Pickup Roller (P.150) 12.5.4.8. The Sent Fax Data is Skewed REFERENCE: (*1): We recommend making a copy of the test chart in Test Chart (P.176) and using it.
  • Page 108 KX-FP215 12.5.4.10. Received or Copied Data is Expanded REFERENCE: (*1): Document feeder/recording paper feeder/scanner glass cleaning (P.169) (*2): Disassembly and Assembly Instructions (P.134) (*3): How to Remove the Separation Holder and Exit Roller (P.153) (*4): We recommend making a copy of the test chart in Test Chart (P.176) and using it.
  • Page 109 KX-FP215 12.5.4.11. A Blank Page is Copied REFERENCE: (*1): Test Mode (P.58) (*2): Thermal Head (P.26) (*3): How to Remove the Thermal Head (P.138) (*4): We recommend making a copy of the test chart in Test Chart (P.176) and using it.
  • Page 110 KX-FP215...
  • Page 111 KX-FP215 12.5.4.12. A Blank Page is Received REFERENCE: (*1): Test Mode (P.58) (*2): Check Sheet for Signal Route (P.121) (*3): A Blank Page is Copied (P.109) 12.5.4.13. Black or White Vertical Line REFERENCE: (*1): We recommend making a copy of the test chart in Test Chart (P.176) and using it.
  • Page 112 KX-FP215 12.5.4.14. Black or White Lateral Line on Print Out REFERENCE: (*1): Test Mode (P.58) (*2): How to Remove the Gears, Motors and Arms of the Gear Block (P.144) (*3): Installation Position of the Lead Wires (P.154) (*4): Disassembly and Assembly Instructions (P.134) (*5): We recommend making a copy of the test chart in Test Chart (P.176) and using it..
  • Page 113 KX-FP215 12.5.4.15. An Abnormal Image is Printed REFERENCE: (*1): Test Mode (P.58) (*2): Check Sheet for Signal Route (P.121) (*3): How to Remove the Thermal Head (P.138) (*4): We recommend making a copy of the test chart in Test Chart (P.176) and using it.

  • Page 114: Digital Board Section

    KX-FP215 12.5.5. Digital Board Section When the unit fails to boot up the system, take the troubleshooting procedures very carefully. It may have a serious problem. The symptom: No response when the power is turned on. (No LCD display, and keys are not accepted.) The first step is to check the power source.
  • Page 115 KX-FP215 12.5.5.1. Digital Block Diagram You also need to check the signal lines listed here [List 1] when the unit fails to boot up the system. Those signal lines should remain normal. Other signal lines are not directly related to that failure even if they have faults or troubles.
  • Page 116 KX-FP215 Normal Wave Patterns Remarks: When you use an oscilloscope to judge whether a signal to be tested is normal or NG, perform the signal check in exactly the same order as in [List 1]. (If the ASIC fails to access the FLASH ROM, the ASIC cannot access DRAM normally.) The digital circuit actually operates according to the timing combinations of these signals.
  • Page 117 KX-FP215 I/O and Pin No. Diagram...
  • Page 118 KX-FP215 After the power is turned on, the ASIC initializes and checks each IC. The ROM, DRAM, and modem are checked. If initialization fails for the ICs, the system will not boot up. In this case, please find the cause as follows.
  • Page 119 KX-FP215 Other NG example while the power is ON and the LCD displays the following.
  • Page 120 KX-FP215 12.5.5.2. NG Example...

  • Page 121: Analog Board Section

    KX-FP215 12.5.6. Analog Board Section This chapter provides the testing procedures required for the analog parts. A signal route to be tested is determined depending upon purposes. For example, the handset TX route begins at the handset microphone and the signal is output to the telephone line.
  • Page 122 KX-FP215 12.5.6.2. Defective ITS (Integrated Telephone System) Section 1. No handset transmission / reception and no monitor reception Perform a signal test in the ITS or the NCU section and locate a defective point (where the signal disappears) on each route between the handset microphone and telephone line (sending), or between the telephone line and the handset speaker (receiv- ing), or between the microphone and the telephone line (sending), or between the telephone line and the speaker (receiving).

  • Page 123: Digital Speakerphone

    KX-FP215 12.5.7. Digital Speakerphone The digital speakerphone has different features from the analog speakerphone. The analog speakerphone switches between Tx or Rx. Either Tx or Rx is able to pass through a telephone line or speaker, depending on the Tx and Rx signal (voice) level. The higher-level signal (either TX or RX) can pass through the route.
  • Page 124 KX-FP215 Note: Check to the SP-Phone Rx/Tx signal routes. (Refer to Check Sheet for Signal Route (P.121)).

  • Page 125: Power Supply Board Section

    KX-FP215 12.5.8. Power Supply Board Section 12.5.8.1. Key Components for Troubleshooting Check the following parts first: F101, D101-D104, C106, Q101and IC101. This comes from our experience with experimental tests. For example: power supply and lightning surge voltage test, withstanding voltage test, intentional short circuit test, etc.
  • Page 126 KX-FP215 12.5.8.2. Troubleshooting Flow Chart...
  • Page 127 KX-FP215 12.5.8.3. Broken Parts Repair Details (ZNR101, C106) Check for a short-circuit in terminals. Visually check these parts for damages. (D101, D102, D103, D104) Check for a short-circuit in terminal 4. If D101, D102, D103 and D104 are short-circuits, F101 will melt (open).

  • Page 128: Operation Panel Section

    KX-FP215 12.5.9. Operation Panel Section 12.5.9.1. No Key Operation REFERENCE: (*1): Test Mode (P.58) 12.5.9.2. No LCD Indication REFERENCE: (*1): Test Mode (P.58) (*2): How to Remove the Operation Panel (P.151)

  • Page 129: Sensor Section

    KX-FP215 12.5.10. Sensor Section Refer to Sensors and Switches (P.31) for the circuit descriptions. The Test Function makes the sensor circuit check easier. (Refer to Test Mode (P.58).) For example, as for "COVER OPEN SENSOR", "CO" is turned ON/OFF on the display when you open or close the front cover.
  • Page 130 KX-FP215 12.5.10.4. Check the Paper Top Sensor (SW1001) 12.5.10.5. Check the Film End Sensor (SW1003) 12.5.10.6. Check the Motor Position Sensor (SW1004) 12.5.10.7. Check the HOOK Switch (SW1501)

  • Page 131: Cis (Contact Image Sensor) Section

    KX-FP215 12.5.11. CIS (Contact Image Sensor) Section REFERENCE: (*1): Test Mode (P.58) Refer to Scanning Block (P.28).

  • Page 132: Thermal Head Section

    KX-FP215 12.5.12. Thermal Head Section Note: Refer to Thermal Head (P.26).

  • Page 133: Service Fixture & Tools

    KX-FP215 13 Service Fixture & Tools...

  • Page 134: Disassembly And Assembly Instructions

    KX-FP215 14 Disassembly and Assembly Instructions Please remove the Paper Support Spring, Paper Tray and Ink Film before disassembling. 14.1. General Section...

  • Page 135: Disassembly Flowchart

    KX-FP215 14.2. Disassembly Flowchart 14.2.1. Upper Cabinet Section REFERENCE: A-1: How to Remove the Image Sensor (CIS) (P.137) A-2: How to Remove the Thermal Head (P.138) 14.2.2. Lower Cabinet Section REFERENCE: B-1: How to Remove the Bottom Frame (P.140) B-2: How to Remove the P.C. Boards and Speaker (P.141) B-3: How to Remove the Power Supply Board and AC cord (P.142)

  • Page 136: Back Cover Section

    KX-FP215 14.2.3. Back Cover Section REFERENCE: C-1: How to Remove the Back Cover (P.147) C-2: How to Remove the Platen Roller and Lock Lever (P.148) C-3: How to Remove the Pickup Roller (P.150) 14.2.4. Operation Panel Section REFERENCE: D-1: How to Remove the Operation Panel (P.151) D-2: How to Remove the Operation Board and LCD (P.152)

  • Page 137: Disassembly Procedure

    KX-FP215 14.3. Disassembly Procedure 14.3.1. How to Remove the Image Sensor (CIS)

  • Page 138: How To Remove The Thermal Head

    KX-FP215 14.3.2. How to Remove the Thermal Head...
  • Page 139 KX-FP215...

  • Page 140: How To Remove The Bottom Frame

    KX-FP215 14.3.3. How to Remove the Bottom Frame...

  • Page 141: How To Remove The P.c. Boards And Speaker

    KX-FP215 14.3.4. How to Remove the P.C. Boards and Speaker...

  • Page 142: How To Remove The Power Supply Board And Ac Cord

    KX-FP215 14.3.5. How to Remove the Power Supply Board and AC cord...

  • Page 143: How To Remove The Gear Block And Separation Roller

    KX-FP215 14.3.6. How to Remove the Gear Block and Separation Roller...

  • Page 144: How To Remove The Gears, Motors And Arms Of The Gear Block

    KX-FP215 14.3.7. How to Remove the Gears, Motors and Arms of the Gear Block...
  • Page 145 KX-FP215...

  • Page 146: How To Remove The Handset Cradle And Hook Switch Board

    KX-FP215 14.3.8. How to Remove the Handset Cradle and Hook Switch Board...

  • Page 147: How To Remove The Platen Roller And Lock Lever

    KX-FP215 14.3.9. How to Remove the Back Cover...
  • Page 148 KX-FP215 14.3.10. How to Remove the Platen Roller and Lock Lever...
  • Page 149 KX-FP215...

  • Page 150: How To Remove The Pickup Roller

    KX-FP215 14.3.11. How to Remove the Pickup Roller...

  • Page 151: How To Remove The Operation Panel

    KX-FP215 14.3.12. How to Remove the Operation Panel...

  • Page 152: Lcd

    KX-FP215 14.3.13. How to Remove the Operation Board and LCD...

  • Page 153: How To Remove The Separation Holder And Exit Roller

    KX-FP215 14.3.14. How to Remove the Separation Holder and Exit Roller...

  • Page 154: Installation Position Of The Lead Wires

    KX-FP215 14.3.15. Installation Position of the Lead Wires 14.3.15.1. Lower Section...
  • Page 155 KX-FP215...
  • Page 156 KX-FP215...
  • Page 157 KX-FP215 14.3.15.2. Operation Panel and Mic Board Section...

  • Page 158: Maintenance

    KX-FP215 15 Maintenance 15.1. Maintenance Items and Component Locations 15.1.1. Outline Maintenance and repairs are reformed using the following steps. 1. Periodic maintenance 4. Determine causes Inspect the equipment periodically and if necessary, clean Determine the causes of the equipment problem by trouble- any contaminated parts.
  • Page 159 KX-FP215 15.1.2.1. Maintenance List OPERATION CHECK REMARKS Document Path Remove any foreign matter such as paper. — Rollers If the roller is dirty, clean it with a damp cloth then dry thor- Refer to Document feeder/recording paper oughly. feeder/scanner glass cleaning (P.169).

  • Page 160: Gear Section

    KX-FP215 15.2. Gear Section This model provides a motor-driven gear mechanism for transmitting/copying documents and printing fax data. In this chapter, you will see how the gears work to select and operate a mode and how the gear section, sensors and rollers mechanically work during the main operations (FAX transmission, FAX reception and Copy).

  • Page 161: Mode Operation

    KX-FP215 15.2.2. Mode Operation Once a mode is selected, the Drive Motor Gear rotates counterclockwise (CCW) and then the controlling positions of Swing Gears A, B and C, D, E determine which gears convey their drive power in each mode. See “Sensor Location” in Sensors and Switches (P.31).
  • Page 162 KX-FP215 C. Assist mode (See Fig. C.): The Swing Gear D engages with the next gear to drive Pickup Roller. The Swing Gear B engages with the next gear to drive Platen Roller gear and Ribbon Drive Gear. The Swing Gear C engages with the next gear to drive Paper Exit Roller Gear.
  • Page 163 KX-FP215 E. Copy mode (See Fig. E.): “Copy mode” = “Transmit mode“ + “Receive mode“ The Swing Gear A engages with the next gear to drive Document Separation Roller and Document Exit Roller. The Swing Gear B engages with the next gear to drive Platen Roller gear and Ribbon Drive Gear.

  • Page 164: Mechanical Movements

    KX-FP215 15.2.3. Mechanical Movements in the Main Operations (transmitting documents, receiving faxes and copying) 15.2.3.1. Idle Status Note: • See “Sensor Locations” in Sensors and Switches (P.31). • CW..clockwise • CCW..counterclockwise...
  • Page 165 KX-FP215 15.2.3.2. Transmitting Documents 15.2.3.3. Receiving Fax REFERENCE: Sensor Section (P.129). Note: See “Sensor Locations” in Sensors and Switches (P.31).
  • Page 166 KX-FP215 15.2.3.4. Copying Note: See “Sensor Locations” in Sensors and Switches (P.31). REFERENCE: Sensor Section (P.129)

  • Page 167: Jams

    KX-FP215 15.3. Jams 3. Turn the blue gear ( ) in the direction of the arrow until the ink film is tight ( ) and at least one layer of ink film is 15.3.1. Recording Paper Jams wrapped around the blue core ( 15.3.1.1.

  • Page 168: Document Jams - Sending

    KX-FP215 15.3.2. Document Jams - sending 4. Close the back cover securely by pushing down on the dotted area at both ends ( ), then close the front cover 1. Open the front cover. Remove the jammed document securely ( carefully ( 5.

  • Page 169: Cleaning

    KX-FP215 15.4. Cleaning Caution: • Do not use paper products, such as paper towels or tissues. 15.4.1. Document feeder/recording paper feeder/scanner glass cleaning Clean the document feeder/recording paper feeder/scanner glass when: — Documents or recording paper frequently misfeed. — Smudges or black/white lines appear on the original doc- ument when sending or copying.

  • Page 170: Thermal Head Cleaning

    KX-FP215 15.4.2. Thermal Head Cleaning If smudges or black/white lines appear on a copied/received 4. Clean the thermal head ( ) with a cloth moistened with document, check whether there is dust on the thermal head. isopropyl rubbing alcohol, and let it dry thoroughly.

  • Page 171: Miscellaneous

    KX-FP215 16 Miscellaneous 16.1. Terminal Guide of the ICs Transistors and Diodes 16.1.1. Digital Board 16.1.2. Analog Board 16.1.3. Operation Board...

  • Page 172: Power Supply Board

    KX-FP215 16.1.4. Power Supply Board 16.1.5. Interface Board...

  • Page 173: How To Replace The Flat Package Ic

    KX-FP215 16.2. How to Replace the Flat Package IC Even if you do not have the special tools (for example, a spot heater) to remove the Flat IC, with some solder (large amount), a soldering iron and a cutter knife, you can easily remove the ICs that have more than 100 pins.

  • Page 174: Test Chart

    KX-FP215 16.3. Test Chart 16.3.1. ITU-T No.1 Test chart...

  • Page 175: Itu-T No.2 Test Chart

    KX-FP215 16.3.2. ITU-T No.2 Test Chart...

  • Page 176: Test Chart

    KX-FP215 16.3.3. Test Chart...
  • Page 177 KX-FP215 Memo...

  • Page 178: Schematic Diagram

    KX-FP215 17 Schematic Diagram 17.1. Digital Board (PCB1)
  • Page 179 KX-FP215...
  • Page 180 KX-FP215...
  • Page 181 KX-FP215...

  • Page 182: Analog Board (Pcb2)

    KX-FP215 17.2. Analog Board (PCB2) HS TX FAX or HS TX R144 3.3K HS RX FAX or HS RX PC102 R129 D103 Q103 C105 K390p R104 +5VA Q105 C108 C110 R109 T101 IC101 JJ109 K0.1u JJ110 R112 C113 C104 K0.1u Z0.1u...
  • Page 183 R154 D111 (11) RLY101 Q110 D112 (12) Q111 +5VA R161 R151 C142 K0.047u (13) (14) R152 C139 K0.047u CN102 L106 HSMIC+ +5VA L107 HSMIC- L104 BEAD HOOK L108 Q109 HSSP+ L109 (15) HSSP- C145 6.3V47u KX-FP215 : Analog Board (16)

  • Page 184: Operation Board (Pcb3)

    KX-FP215 17.3. Operation Board (PCB3)

  • Page 185: Power Supply Board (Pcb4)

    KX-FP215 17.4. Power Supply Board (PCB4)

  • Page 186: Interface Board (Pcb5)

    KX-FP215 17.5. Interface Board (PCB5)

  • Page 187: Sensor Board (Pcb6)

    Sensor PTOP COVEROPEN COVEROPEN COMMON SW1001 PTOP KX-FP215 : Sensor Board 17.7. Film End Sensor Board (PCB7) FLMDET FILM Sensor SW1003 KX-FP215 : Film End Sensor Board 17.8. Motor Position Sensor Board (PCB8) SW1004 KX-FP215 : Motor Position Sensor Board...

  • Page 188: Hook Switch Board (Pcb9)

    KX-FP215 17.9. Hook Switch Board (PCB9)

  • Page 189: Printed Circuit Board

    KX-FP215 18 Printed Circuit Board 18.1. Digital Board (PCB1) 18.1.1. Bottom View R556...

  • Page 190: Component View

    KX-FP215 18.1.2. Component View...

  • Page 191: Analog Board (Pcb2)

    KX-FP215 18.2. Analog Board (PCB2) 18.2.1. Bottom View...

  • Page 192: Component View

    KX-FP215 18.2.2. Component View CN101 JJ108 C140 J101 J102 J103 C145 J107 J105 C149 J106 J118 CN102 C124 C117 J113 J126 J124 J125 C128 D103 JJ113 JJ111 JJ110 C136 J109 R167 D106 R126 CN105 D108 C141 D111 Q103 D112 L114...

  • Page 193: Operation Board (Pcb3)

    KX-FP215 18.3. Operation Board (PCB3) PFUP1582Z PFUP1582Z MIC- LED302 MIC+ JJ321 JJ320 SW314 SW313 JJ319 JJ318 JJ317 JJ310 JJ304 JJ315 JJ306 JJ314 JJ305 JJ303 JJ302 JJ301...

  • Page 194: Power Supply Board (Pcb4)

    KX-FP215 18.4. Power Supply Board (PCB4) C102 L103 JP104 D107 R110 JP103 R105 C109 C111 JP105 JP102 L102 D105 L201 D201 C211 JP206 JP205 JP204 C201 R230 C217 JP207 CN202...

  • Page 195: Interface Board (Pcb5)

    KX-FP215 : Interface Board 18.6. Sensor Board (PCB6) 18.7. Film End Sensor Board (PCB7) PFUP1579Z SW1003 BLACK WHITE KX-FP215 : Film End Sensor Board 18.8. Motor Position Sensor Board (PCB8) PFUP1589Z KX-FP215 : Sensor Board KX-FP215 : Motor position Board...

  • Page 196: Hook Switch Board (Pcb9)

    SW1501 L1505 CN1501 (Bottom View) KX-FP215 : Hook Switch Board 19 Appendix Information of Schematic Diagram Note: 1. DC voltage measurements are taken with an oscilloscope or a tester with a ground. 2. The schematic diagrams and circuit board may be modified at any time with the development of new technology.

  • Page 197: Exploded View And Replacement Parts List

    KX-FP215 20 Exploded View and Replacement Parts List 20.1. Cabinet, Mechanical and Electrical Parts Location 20.1.1. General Section...

  • Page 198: Operation Panel Section

    KX-FP215 20.1.2. Operation Panel Section...

  • Page 199: Upper Cabinet Section

    KX-FP215 20.1.3. Upper Cabinet Section...

  • Page 200: Back Cover Section

    KX-FP215 20.1.4. Back Cover Section...
  • Page 201 KX-FP215...

  • Page 202: Lower Cabinet Section

    KX-FP215 20.1.5. Lower Cabinet Section...

  • Page 203: Gear Block Section

    KX-FP215 20.1.6. Gear Block Section...

  • Page 204: Screws

    KX-FP215 20.1.7. Screws...

  • Page 205: Accessories And Packing Materials

    KX-FP215 20.1.8. Accessories and Packing Materials...

  • Page 206: Replacement Parts List

    KX-FP215 20.2. Replacement Parts List 20.2.1.2. Upper Cabinet Section Caution: Notes: (*1) The THERMAL HEAD KIT include the Thermal Head, Notes: Holders and Connector. 1. The “RTL” marking indicates that its Retention Time is For this model, please use only the Thermal Head for Limited.

  • Page 207: Digital Board Parts

    KX-FP215 Safe Ref. Part No. Part Name & Description Remark Safe Ref. Part No. Part Name & Description Remark PFKV1142Z2 COVER, ROLLER PS-HB PFDG1489Z GEAR POM-HB PFDR1057Z ROLLER, SUPPORT PFDG1479Z GEAR POM-HB PFUS1706Z BAR SPRING PFUS1750Z TORSION SPRING 20.2.1.6. Screws...
  • Page 208 KX-FP215 Safe Ref. Part No. Part Name & Description Remar Safe Ref. Part No. Part Name & Description Remar Q510 B1ABDF000025 TRANSISTOR(SI) R537 ERJ2GEJ222 2.2k Q513 B1GBCFJJ0048 TRANSISTOR(SI) R538 ERJ2GEJ182 1.8k Q514 B1GBCFJJ0048 TRANSISTOR(SI) R541 ERJ2GEJ334 330k Q515 B1ABDF000026 TRANSISTOR(SI)

  • Page 209: Analog Board Parts

    KX-FP215 Safe Ref. Part No. Part Name & Description Remar Safe Ref. Part No. Part Name & Description Remar C503 ECJ0EF1C104Z 0.1 C602 ECJ0EF1C104Z 0.1 C505 ECJ0EF1C104Z 0.1 C603 ECJ0EB1H102K 0.001 C507 ECJ1VF1A105Z 1 C604 ECJ1VF1A105Z 1 C508 ECJ0EB1H102K 0.001...

  • Page 210: Operation Board Parts

    KX-FP215 Safe Ref. Part No. Part Name & Description Remar Safe Ref. Part No. Part Name & Description Remar (PHOTO ELECTRIC TRANSDUC- C138 F0C2E105A216 1 ERS) C139 ECJ1VB1C473K 0.047 PC103 0N3181 PHOTO COUPLER C141 F2A1E3300024 33 C142 ECJ1VB1C473K 0.047 PC104...

  • Page 211: Power Supply Board Parts

    KX-FP215 Safe Ref. Part No. Part Name & Description Remar Safety Ref. Part No. Part Name & Description Remarks R301 ERJ3GEYJ181 R112 ERJ3GEYJ101 R302 ERJ3GEYJ271 R222 ERJ3GEYJ102 R303 ERJ3GEYJ181 R310 ERJ3GEYJ183 (CAPACITORS) R311 ERJ3GEYJ122 1.2k C106 200SXW180M71 180 R312 ERJ3GEYJ821...

  • Page 212: Motor Position Sensor Board Parts

    KX-FP215 Safety Ref. Part No. Part Name & Description Remarks PFJS02M17Z CONNECTOR, 2 PIN SW1003 K0L1BA000111 SWITCH, SENSOR LEVER 20.2.9. Motor Position Sensor Board Parts Safety Ref. Part No. Part Name & Description Remarks PCB8 PFWP6FG2451M MOTOR POSITION SENSOR BOARD ASS'Y (RTL)
  • Page 213 Compact Plain Paper Fax with Digital Answering System KX-FP215 Model No. (for U.S.A.) Please fi le and use this supplement manual together with the service manual for Model No.KX-FP215, Order No.KMF0902226CE. TABLE OF CONTENTS PAGE 1 REPLACEMENT PARTS LIST ------------------------------- 2 1.1.

  • Page 214: Replacement Parts List

    6. Deletion 7. Correction 8. Other 1.2. ORIGINAL AND NEW PARTS COMPARISON LISTS Change of the Suffi x Code (KX-FP215) Suffi x Code Reasons of change B → P To Change Digital & Analog unit due to Aegis SoC implementation.
  • Page 215 MONRX C131 PSHORT /BREAK AMON IC10 C127 BELL/DCN +3.3V A4 A5 STB1 ROMCS THLAT HEADON +24V FILM CHECK +1.2V MOTOR POS A10 A11 A12 TXD2 RTS2 XNMI CL14 CTS2 CL15 CL13 RXD2 XRESET +3.3V KX-FP215 : DIGITAL Board (Bottom View)

  • Page 216: Changes

    GIOP64 OPMODE1 C18 SENIN0 OPMODE2 K25 SENIN1 002:8B FILM_CHECK PLLBYPS J25 SENIN2 002:7B BELL/DCN TSCKIN1 H24 SENIN3 TSCKIN2 D20 SENCTL0 H25 SENCTL1 H23 SENCTL2 E14 SENCTL3 002:8A HOOK Plane Resonance Countermeasure +3.3V +1.2V +5VA KX-FP215 : DIGITAL Board No.1 (1/2)
  • Page 217 AB10 VSS18 Y24 DC_VOUT_12_4 AB16 VSS19 Y25 DC_VOUT_12_5 +3.3V_REG AA22 DC_FBDC +3.3V AD25 DC_AVDD 1 VIN ON/OFF +3.3V K1 CHA_MFE_AVDD_33 2 VSS H1 CHA_MFE_DVDD_33 N1 CHB_MFE_AVDD_33 +3.3V 3 VOUT VDOUT L1 CHB_MFE_DVDD_33 RESET IC KX-FP215 : DIGITAL Board No.1 (2/2)
  • Page 218 FLASH WRITER CIS BLOCK TXD2 001:1D RXD2 001:1D RTS2 001:1D +3.3V CTS2 001:1E LEDON 001:3D LEDVCC LEDGND R52 100 001:1D F1(CLK) FTG 001:1D FTG(TGR) +3.3V AIN1 001:5D AIN(SIG) +3.3V C76 NC CISON 001:1E C77 0.1u KX-FP215 : DIGITAL Board No.2 (1/2)
  • Page 219 3 FC1 R99 560k 002:8B 0.1u +6VA C133 4 VIN 001:4E C109 TXBP R129 C102 R117 680p C107 0.01u 390k J100p R66 22k TXBN C124 C137 0.1u 1000p 001:4E 001:5D C100 EVOLOUT 001:3D 0.1u VCM_B KX-FP215 : DIGITAL Board No.2 (2/2)
  • Page 220 KX-FP215 MEMO...

  • Page 221: Printed Circuit Board

    KX-FP215 2.2. Printed Circuit Board [Changed from original section “18.1. Digital Board (PCB1)”] 2.2.1. Bottom View [Changed from original section “18.1.1. Bottom View”]...

  • Page 222: Component View

    KX-FP215 2.2.2. Component View [Changed from original section “18.1.2. Component View”] C161 C172 C174 C173 RA11 R121 R128 C121 C135 R125 R142 R143 C162 C164 A E 2 4 C170 C103 C163 C123 C128 C132 R11 4 C11 3 R11 1...
  • Page 223 KX-FP215 2.3. Replacement Parts List Ref. Safety Part No. Part Name & Description Remarks [Changed from original section “20.2. Replacement Parts List”] (RESISTORS) J101 ERJ2GE0R00 2.3.1. Digital Board Parts ERJ2GE0R00 [Changed from original section “20.2.2. Digital Board Parts”] ERJ2GE0R00 ERJ2GE0R00 Ref.
  • Page 224 KX-FP215 Ref. Ref. Safety Part No. Part Name & Description Remarks Safety Part No. Part Name & Description Remarks ERJ2GEJ394 390k ECUE1A104KBQ 0.1 ERJ2GEJ273X F1H0J4750004 4.7 ERJ2GEJ222 2.2k ECUE1A104KBQ 0.1 ERJ2GEJ335 3.3M ECUE0J105KBQ 1 ERJ2GEJ273X ECUV1A105ZFV 1 ERJ2GEJ393X ECUE1A104KBQ 0.1 ERJ2GEJ272 2.7k...
  • Page 225 KX-FP215 Ref. Safety Part No. Part Name & Description Remarks C135 ECUE1H181JCQ 180p C136 ECUE1E102KBQ 1000p C137 ECUE1H102KBQ 0.001 C138 ECUE1H101JCQ 100p C139 F1J1A106A024 10 C141 ECUE1C103KBQ 0.01 C142 ECUE0J105KBQ 1 C143 F2G0J4700032 47 C144 ECUE1C104KBQ 0.1 C145 ECUE1C103KBQ 0.01 C146 ECUE1C103KBQ 0.01...
  • Page 226 ORDER NO. KMF1107763SE Compact Plain Paper Fax with Digital Answering System KX-FP215 Model No. (for U.S.A.) Please file and use this supplement manual together with the service manual for Model No.KX-FP215, Order No.KMF0902226CE. TABLE OF CONTENTS PAGE 1 REPLACEMENT PARTS LIST--------------------------------- 2 1.1.

  • Page 227: Digital Board Parts

    KX-FP215 1 REPLACEMENT PARTS LIST 1.1. REFERENCE CHART Reason for Change *The following items (1-8) indicate the reason for change. See the “Notes” column for each part in ORIGINAL AND NEW PARTS COMPARISON LISTS. 1. Improve performance Remarks: *a : To enhance the quality.
  • Page 228 ORDER NO. KMF1411638SE Compact Plain Paper Fax with Digital Answering System KX-FP215 Model No. (for U.S.A.) Please file and use this supplement manual together with the service manual for Model No. KX-FP215, Order No. KMF0902226CE. TABLE OF CONTENTS PAGE 1 CHANGES --------------------------------------------------------- 1.1.
  • Page 229 KX-FP215 CHANGES 1.1. Replacement Parts List Reason for Change *The following items (1-8) indicate the reason for change. See the “Notes” column for each part in ORIGINAL AND NEW PARTS COMPARISON LISTS. 1. Improve performance Remarks: 2. Change of material or dimension 3.
  • Page 230 ORDER NO. KMF1309169SE Compact Plain Paper Fax with Digital Answering System KX-FP215 Model No. (for U.S.A.) Please file and use this supplement manual together with the service manual for Model No.KX-FP215, Order No.KMF0902226CE. TABLE OF CONTENTS PAGE 1 REPLACEMENT PARTS LIST--------------------------------- 2 1.1.
  • Page 231 KX-FP215 1 REPLACEMENT PARTS LIST 1.1. REFERENCE CHART Reason for Change *The following items (1-8) indicate the reason for change. See the “Notes” column for each part in ORIGINAL AND NEW PARTS COMPARISON LISTS. 1. Improve performance Remarks: *a : To enhance the quality.
  • Page 232 KX-FP215 Ref. Part No. Part Name & Description Pcs/ Remarks Notes Time of Change Original (Old) (Suffix) IC508 C0JBAS000185 C0JBAS000390 C502- ECJ0EF1C104Z ECUE1A104KBQ CAPACITOR , 0.1 C503, C505, C517- C518, C523- C524, C526- C533, C538, C540- C545, C548- C550, C553,...
  • Page 233 ORDER NO. KMF1305621SE Compact Plain Paper Fax with Digital Answering System KX-FP215 Model No. (for U.S.A.) Please file and use this supplement manual together with the service manual for Model No.KX-FP215, Order No.KMF0902226CE. TABLE OF CONTENTS PAGE 1 REPLACEMENT PARTS LIST--------------------------------- 2 1.1.
  • Page 234 KX-FP215 1 REPLACEMENT PARTS LIST 1.1. REFERENCE CHART Reason for Change *The following items (1-8) indicate the reason for change. See the “Notes” column for each part in ORIGINAL AND NEW PARTS COMPARISON LISTS. 1. Improve performance Remark: *a : To enhance the quality.
  • Page 235 ORDER NO. KMF0911451SE Compact Plain Paper Fax with Digital Answering System KX-FP215 Model No. (for U.S.A.) Please file and use this supplement manual together with the service manual for Model No.KX-FP215, Order No.KMF0902226CE. TABLE OF CONTENTS PAGE 1 REPLACEMENT PARTS LIST--------------------------------- 2 1.1.
  • Page 236 KX-FP215 1 REPLACEMENT PARTS LIST 1.1. REFERENCE CHART Reason for Change *The following items (1-8) indicate the reason for change. See the “Notes” column for each part in ORIGINAL AND NEW PARTS COMPARISON LISTS. 1. Improve performance Remark: *a : To enhance the quality.

Table of Contents
