Table of Contents
Advertisement
Safety Instructions
. . . . . . . . . . . .2, 4
Operating Instructions
Features . . . . . . . . . . . . . . . . . . . . . . . . . .5, 6
Controls . . . . . . . . . . . . . . . . . . . . . . . . 7–10
Dispenser* . . . . . . . . . . . . . . . . . . . . . . . . .11
Autofill* . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Single Serve Brewer* . . . . . . . . . . . . . . .13
About Appliance Communication . . .14
Water Filter . . . . . . . . . . . . . . . . . . . . . . . .15
Fresh Food Storage Options . . . . .16,17
Climate Zone & Temperature
Controlled Drawer . . . . . . . . . . . . . . .18,19
Freezer . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Automatic Ice maker . . . . . . . . . . . . . . .21
Care and Cleaning . . . . . . . . . . . . . . . . 22
Replacing the Lights . . . . . . . . . . . . . . . .23
Installation Instructions
Preparing to Install the
Refrigerator . . . . . . . . . . . . . . . . . 24, 25
Installing the Refrigerator . . . . . . . 26-37
Installing the Water Line . . . . . . . . 38-40
Normal Operating Conditions . . . . . . .41
Truth or Myth . . . . . . . . . . . . . . . . . . .45 46
Consumer Support
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . .47
RPWFE Water Filter Cartridge Limited
Warranty . . . . . . . . . . . . . . . . . . . . . . . . .48
Performance Data Sheet . . . . . . . . . . .49
Consumer Support . . . . . . . . . . . . . . . . .50
*Select Models Only
Write the model and serial
numbers here:
Model # ____________________
Serial # ____________________
Find these numbers on a label
on the left side, near the middle
of the refrigerator compartment.
and GNE are Standard Depth Models (SD)
Les numéros de modèle commençant par PFE, GFE,
. . . . . . 42-44
Les numéros de modèle commençant par DYE, GYE,
PYE et PWE sont des modèles de profondeur
Los modelos que comienzan con las letras
DFE, PFE, GFE, DFE, PFH, y GNE son Modelos
Owner’s Manual and
Installation Instructions
GE and GE Profile™ models
Models that start with PFE, GFE, DFE, PFH,
Models that start with DYE, GYE, PYE and
PWE are Counter Depth Models
Réfrigérateurs
Manuel d’utilisation
et instructions
d’installation
Modèles GE et GE Profile™
DFE, PFH, et GNE sont des modèles
de profondeur normale (PN).
de comptoir (PC).
Refrigeradores
Manual del Propietario e
Instrucciones de Instalación
GE y GE Profile™ modelos
con Profundidad Estándar (SD)
Los modelos que comienzan con las
letras GYE, PYE y PWE son Modelos con
Profundidad de Mesada (CD)
093
(CD)
Advertisement
Table of Contents
Related Manuals for GEAppliances PFE28P

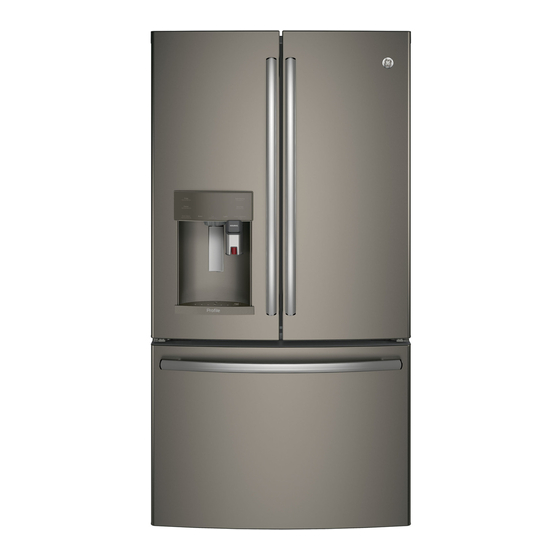

Summary of Contents for GEAppliances PFE28P
-
Page 1: Table Of Contents
Safety Instructions ... .2, 4 Owner’s Manual and Installation Instructions Operating Instructions Features ......5, 6 GE and GE Profile™... -
Page 2: Features
About the features. * GEAppliances.com Space-saving ice maker* QuickSpace™ shelf* Ice maker and bin are located on the door creating Functions as a normal full-sized shelf when needed more usable storage space. and easily slides back to store tall items below. -
Page 3: Dispenser
About the features.* Door ice bin* 1. Open left fresh food door. 2. Pull down latch to release bin door. 3. Using handhold lift ice bucket up and out to clear locators in bottom of bin. Latch 4. To replace the ice bucket, set it on the guide brackets and push until the ice bucket seats properly. - Page 4 Additional settings: Dispenser light • Connected Home ready* (PFE28P, PYE22P, PFH only) Lighting that can be turned on/off to light your dispenser. • Water Filter* - An indicator will illuminate when the filter needs Door Alarm to be replaced.
- Page 5 About the controls - features. GNE29, PWE23 Controls Style D, Internal Controls Door Alarm Freezer temp control Sounds to alert when the freezer or fresh food doors Adjust freezer compartment temperature have been left open. Refrigerator temp control Reset Filter Adjust fresh food compartment temperature Hold for 3 seconds after replacing filter.
- Page 6 About the dispenser.* GEAppliances.com Water & Ice Dispenser If no water is dispensed when the refrigerator is first installed, (See About the controls there may be air in the water line system. Press the dispenser with temperature settings & paddle for at least five minutes to remove trapped air from the About the control features) water line and to fill the water system.
-
Page 7: Autofill
About Autofill.* To Use HANDS FREE AUTOFILL: • Center container on Recess Dispenser Tray as far back as possible without activating paddle and remove hand from container • Press AUTOFILL To Stop AUTOFILL • Press AUTOFILL to stop. Important Facts about AUTOFILL •... - Page 8 The GE ConnectPlus will allow your appliance to communicate with your smart phone for remote appliance monitoring, control and notifications. Please visit www.GEAppliances.com/ connect to learn more about connected appliance features, to learn what connected appliance App’s will work with your Smart Phone and to learn where you can purchase a GE ConnectPlus.**...
-
Page 9: Water Filter
About the GE RPWFE water filter cartridge. ® GEAppliances.com Water Filter Cartridge The water filter cartridge is located in the fresh food interior on the left side wall, near the top. This product uses radio frequency identification (RFID) to detect leaks and monitor filter status. The RFID technology is certified by the FCC. -
Page 10: Fresh Food Storage Options
About the fresh food storage options. Rearranging the Shelves Shelves in the refrigerator compartment are adjustable. To remove: Remove all items from the shelf. Tilt the shelf up at the front. Lift the shelf up at the back and bring the shelf out. - Page 11 GEAppliances.com Non-Adjustable Dairy Bin* To remove: Lift the dairy bin straight up, To replace: Engage the bin in the molded door then pull out. supports and push down. The bin will lock in place. See page 36. Adjustable Bins on the Door...
-
Page 12: Controlled Drawer
About the climate zone and temperature controlled drawer. ClimateZone Keep fruits and vegetables organized in separate compartments for easy access. Excess water that may accumulate in the bottom of the drawers or under the drawers should be wiped dry. Temperature Controlled Drawer* The Temperature Controlled Drawer is a full-width drawer with adjustable temperature control. - Page 13 GEAppliances.com How to Remove and Replace the Adjustable Deli/Produce Drawer To remove: To replace: Pull the drawer out to the stop position. Pull left and right slides until fully extended. Lift the front of the drawer up and out. Place drawer back in first and rotate drawer front down to seat on slide.
- Page 14 About the freezer. Freezer Basket and Drawer Basket. Drawer Ice Bucket * (Available on Non-Dispense models only. Available as a IM Kit on some models) Non-Adjustable Bin in the Freezer* To remove: push in plastic tab on either left or right side To replace: slide bin into location until it locks into place.
-
Page 15: Freezer
Display Type (See Page 7) Model # How to turn the ice maker on/off Control Style A PFE28P, PYE22P Use the “ICE” button on the control. See Controls, pages 9 & 10. Control Style B, C PFH28,PFE28K,DFE28, Use the “ICE MAKER” button on the control. See Controls, pages 9 & 10. -
Page 16: Care And Cleaning
Care and cleaning of the refrigerator. Cleaning the Outside The stainless steel panels, door handles and trim. Silver-accented plastic parts. The stainless steel doors and door handles (on some Wash parts with soap or other mild detergents. Wipe clean models) can be cleaned with a commercially available stainless with a sponge, damp cloth or paper towel. -
Page 17: Installing The Water Line
Before you call for service… Troubleshooting Tips Save time and money! Review the charts on the following pages first and you may not need to call for service. Problem Possible Causes What to Do Water filter indicated as installed Water filter installed backward or is Check for leak. - Page 18 GEAppliances.com Problem Possible Causes What to Do Water spurting from dispenser* Newly installed filter cartridge Run water from the dispenser for 5 minutes (about 2 gallons) No water or ice cube production* Supply line or shutoff valve is clogged Call a plumber...
- Page 19 Before you call for service… Troubleshooting Tips (cont) Problem Possible Causes What to Do Beverage quality not as expected You may be using non-standard or Recommend using official Keurig K-cups out dated K-Cups that are not past expiration and have not been damaged Liquid drips from the brewer after It is possible for liquids to be retained...
-
Page 20: Truth Or Myth
Before you call for service, review the detailed troubleshooting tips in the Owner’s SERVICE manual. If needed, service can be scheduled by visiting us online GEAppliances. com or calling 800.ge.CARES 800.432.2737 Truth or Myth Truth or Myth? Answer Explanation The refrigerator water filter may require replacement... - Page 21 Before you call for service, review the detailed troubleshooting tips in the Owner’s SERVICE manual. If needed, service can be scheduled by visiting us online GEAppliances. com or calling 800.ge.CARES 800.432.2737 Truth or Myth (cont.) Truth or Myth? Answer Explanation Door removal is always required for installation.
