Page 1: Specifications

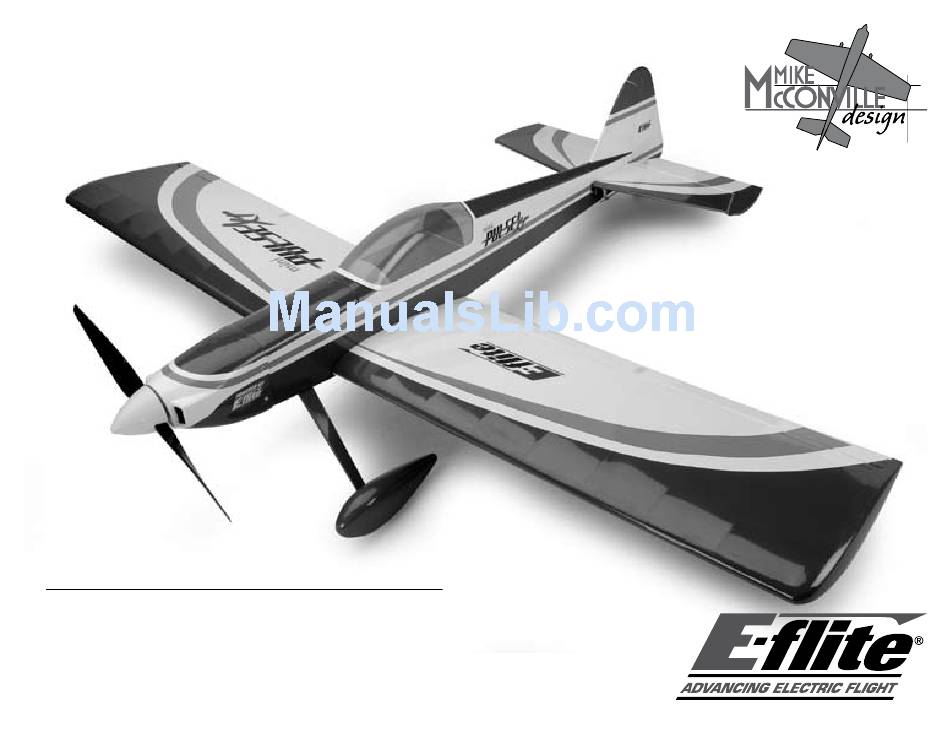

Mini Pulse PNP Assembly Manual Specifications Wingspan: 42.5 in (1080mm) Length: 37.5 in (875mm) Wing Area: 330 sq in (21.5 sq dm) Weight w/o Battery: 21–22 oz (710–820 g) Weight w/ Battery: 25–27 oz (795–965 g) -
Page 2: Table Of Contents
Tail Installation ..............12 Final Assembly ..............14 Control Throws ..............16 Tools & Equipment Range Testing the Radio ............16 EFLA250 P ark Flyer Tool Assortment, 5-piece Center of Gravity ..............17 Preflight ................17 Or Purchase Separately 2007 Official AMA National Model Aircraft Safety Code ..18 EFLA257 S crewdriver, #0 Phillips (or included with EFLA250) Building and Flying Notes .............19 EFLA255 N ut Driver, 5.5mm (or included with EFLA250) EFLA251 H ex Wrench: 3/32" (or included with EFLA250) E-flite Mini Pulse PNP Assembly Manual... -
Page 3: Contents Of Kit/Parts Layout
EFLA223 Foam Park Wheels, 2" EFLA213 E-flite/JR/Horizon Decals Or Purchase Separately SPM6000 A R6000 DSM DualLink ™ 6-Channel Park Flyer Rx JSP30610 6 -Channel UltraLite Rx w/o Crystal, Positive Shift JR/AIR (72MHz) JSP30615 6 -Channel UltraLite Rx w/o Crystal, Negative Shift FUT/HRC (72MHz) JRPXFR** FM Receiver Crystal Battery and Charger THP21003SPL 2 100mAh 3-Cell 11.1V Li-Po, 16GA EFLB1035 11.1V 2100mAh 3-Cell Li-Po, 16GA EFLC3005 Celectra™ 1–3 Cell Li-Po Charger E-flite Mini Pulse PNP Assembly Manual... -
Page 4: Optional Accessories
H ex Wrench: 3/32" (or included An RC aircraft is not a toy! If misused, it can cause serious with EFLA250) bodily harm and damage to property. Fly only in open areas, EFLA263 Nut driver: 1/4" preferably at AMA (Academy of Model Aeronautics) approved Needle-nose pliers flying sites, following all instructions included with your radio. Note Regarding Hinges Keep loose items that can get entangled in the propeller away from the prop, including loose clothing, or other objects such as For your convenience and to speed the assembly process, the pencils and screwdrivers. Especially keep your hands away from hinges have already been installed and glued. We suggest that the propeller. you take a minute before beginning assembly of your model to check them. Warranty Period Grasp the wing and aileron at each hinge location, then gently Horizon Hobby, Inc., (Horizon) warranties that the Products pull on the aileron to ensure the hinges are secure and cannot purchased (the “Product”) will be free from defects in materials easily be pulled away from either surface. Use caution when and workmanship at the date of purchase by the Purchaser. gripping the wing and aileron to avoid crushing or damaging the structure. Repeat this process for the elevator and rudder. If, however, you find that the hinges pull away, simply wick thin CA into the hinge slots and reinstall the hinges/surfaces. E-flite Mini Pulse PNP Assembly Manual... -
Page 5: Limited Warranty
(b) Limitations- HORIZON MAKES NO WARRANTY OR use, setup or assembly, the user accepts all resulting liability. REPRESENTATION, EXPRESS OR IMPLIED, ABOUT NON- INFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A If you as the Purchaser or user are not prepared to accept the PARTICULAR PURPOSE OF THE PRODUCT. THE PURCHASER liability associated with the use of this Product, you are advised ACKNOWLEDGES THAT THEY ALONE HAVE DETERMINED to return this Product immediately in new and unused condition THAT THE PRODUCT WILL SUITABLY MEET THE REQUIREMENTS to the place of purchase. OF THE PURCHASER’S INTENDED USE. Law: These Terms are governed by Illinois law (without regard to (c) Purchaser Remedy- Horizon's sole obligation hereunder shall conflict of law principals). be that Horizon will, at its option, (i) repair or (ii) replace, any Product determined by Horizon to be defective. In the event of a defect, these are the Purchaser's exclusive remedies. Horizon reserves the right to inspect any and all equipment involved in a warranty claim. Repair or replacement decisions are at the sole discretion of Horizon. This warranty does not cover cosmetic damage or damage due to acts of God, accident, misuse, abuse, negligence, commercial use, or modification of or to any part of the Product. This warranty does not cover damage due to improper installation, operation, maintenance, or attempted repair by anyone other than Horizon. Return of any goods by Purchaser must be approved in writing by Horizon before shipment. E-flite Mini Pulse PNP Assembly Manual... -
Page 6: Safety Precautions
Questions, Assistance, and Repairs name, street address, email address and phone number where you can be reached during business days, your RMA number, Your local hobby store and/or place of purchase cannot provide a list of the included items, method of payment for any non- warranty support or repair. Once assembly, setup or use of the warranty expenses and a brief summary of the problem. Product has been started, you must contact Horizon directly. This Your original sales receipt must also be included for warranty will enable Horizon to better answer your questions and service consideration. Be sure your name, address, and RMA number you in the event that you may need any assistance. For questions are clearly written on the outside of the shipping carton. or assistance, please direct your email to productsupport@ horizonhobby.com, or call 877.504.0233 toll free to speak to a Warranty Inspection and Repairs service technician. To receive warranty service, you must include your original sales receipt verifying the proof-of-purchase date. Provided warranty conditions have been met, your Product will be repaired or replaced free of charge. Repair or replacement decisions are at the sole discretion of Horizon Hobby. E-flite Mini Pulse PNP Assembly Manual... -
Page 7: Non-Warranty Repairs
Horizon Product Support of your preferred method of payment. Horizon accepts money 4105 Fieldstone Road orders and cashiers checks, as well as Visa, MasterCard, Champaign, Illinois 61822 American Express, and Discover cards. If you choose to pay by credit card, please include your credit card number and Please call 8-0-0 with any questions or concerns expiration date. Any repair left unpaid or unclaimed after 90 regarding this product or warranty. days will be considered abandoned and will be disposed of accordingly. Please note: non-warranty repair is only available on electronics and model engines. E-flite Mini Pulse PNP Assembly Manual... -
Page 8: Safety, Precautions, And Warnings
" (58mm), if your flying site has rough areas for any reason. terrain. By using a larger wheel, you will not be able to • Never operate your model with low transmitter batteries. use the included wheel pants. • C arefully follow the directions and warnings for this and any optional support equipment (chargers, rechargeable battery packs, etc.) that you use. • K eep all chemicals, small parts and anything electrical out of the reach of children. • M oisture causes damage to electronics. Avoid water exposure to all equipment not specifically designed and protected for this purpose. E-flite Mini Pulse PNP Assembly Manual... - Page 9 1. Place the landing gear onto the bottom of the fuselage. 2. Slide the 4-40 x 1 " socket head bolt through one They will angle back slightly when installed in the correct of the 2" wheels. Slide a #4 steel washer so it fits against direction. Attach with two 4-40 x 1/2" socket head bolts the wheel. Next secure a 4-40 nut against the washer. and two #4 black washers. Make sure the wheel still spins freely. Slide a second #4 steel washer onto the bolt. This washer will fit inside the wheel pant. E-flite Mini Pulse PNP Assembly Manual...
-
Page 10: Propeller Installation
Propeller Installation 3. Fit the assembly in Step 2 into the wheel pant and insert the bolt into the landing gear. With the fuselage Required Parts level to the work surface, rotate the wheel pant so it is also level to your work surface and secure the pant to the Fuselage w/motor installed landing gear with a 2mm x 6mm wood screw. Secure the Propeller bolt with a 4-40 locknut while using needle-nose pliers to Spinner hold the head of the bolt inside the pant. Prop adapter (for outrunner motor) Important Information About Your Propeller It is also very important to check to be sure the propeller is balanced before installing onto the shaft. An unbalanced propeller may strip the gears or cause poor flight characteristics. 1. Slide the propeller adapter through the hole in the propeller. 4. Repeat Steps 2 and 3 for the remaining wheel and wheel pant. E-flite Mini Pulse PNP Assembly Manual... - Page 11 2. Slide the 1/2" (13mm) washer onto the adapter. 4. Install the propeller assembly onto the motor shaft. Tighten the propeller nut using a hex wrench slipped through the hole in the propeller nut. 3. Slide the spinner backplate onot the adapter. Thread the propeller nut onto the adapter, but do not tighten it Note: Make sure to check the balance of the propeller at this time. after enlarging the hole in the propeller. 5. Snap the spinner cone onto the spinner. E-flite Mini Pulse PNP Assembly Manual...
-
Page 12: Tail Installation
Tail Installation 1. Locate the stabilizer/elevator assembly. Position the stabilizer/elevator assembly so the control horn will face Required Parts down, away from the fin. The threaded rods from the rudder/fin assembly will slide into the two holes in the Fuselage stabilizer. Rudder/Fin Stabilizer/Elevator 2mm x 4mm screw (2) 4-40 locknut (2) #4 washer (2) Linkage wire, 4" (102mm) for elevator Linkage wire, 5 " (140mm) for rudder Required Tools and Adhesives Nut driver: 1/4" Screwdriver, #0 Phillips 2. Slide the rudder/stabilizer assembly onto the fuselage. E-flite Mini Pulse PNP Assembly Manual... - Page 13 3. Slide the #4 washers onto the threaded rods. Thread 4. Locate the 4 in (102mm) linkage wire. Slide the the nuts onto the rod, tightening them snugly against the “Z” bend into the center hole of the elevator control bottom of the fuselage. horn. Pass the linkage through the pushrod connector on the servo arm. Turn on the radio and plug the elevator servo into the receiver. Center the elevator trim and stick, and check that the sub-trim (if a programmable radio) has been set to 0. Install the servo horn back onto the elevator servo. Use a 2mm x 4mm screw to secure the linkage. Note: The tail section is removable for easy transporting if needed. 5. Repeat Step 4 for the rudder linkage. E-flite Mini Pulse PNP Assembly Manual...
-
Page 14: Final Assembly
Required Parts 2. Plug the Y-harness for the aileron servos into the Fuselage receiver. Attach the wing to the fuselage using two Wing 4-40 x 1" socket head screws and two #4 washers. Receiver Battery Battery hatch 4-40 x 1" socket head bolt (2) #4 washer (2) Hook and loop tape Hook and loop strap Required Tools and Adhesives Hex wrench: 3/32" 1. Plug in the elevator and rudder servos and ESC into the receiver. Mount the receiver to the inside of the fuselage using hook and loop material. Route the antenna wire through the bottom of the fuselage to the rear, or as directed by your radio instruction manual. E-flite Mini Pulse PNP Assembly Manual... - Page 15 Note: Place a piece of hook and loop tape on the bottom of the battery and on the fuselage where the battery rests. This will keep the battery from shifting forward or backward during extreme maneuvers. E-flite Mini Pulse PNP Assembly Manual...
-
Page 16: Control Throws
3. Check the movement of the elevator with the radio system. Moving the elevator stick down will make the 3. Be sure that your transmitter batteries are airplane elevator move up. fully charged, per the instructions included with your radio. 4. Use a ruler or throw gauge to adjust the throw of the elevator, ailerons and rudder. Adjust the position of the pushrod at the control horn to achieve the following measurements when moving the sticks to their endpoints. Measurements are taken at the widest point on the surface. Low Rate High Rate Ailerons: Up/Down 3/8" (9mm) 1/2" (13mm) Elevator: Up/Down 1/4" (6mm) 1/2" (13mm) Rudder: Right/Left " (32mm) " (38mm) These are general guidelines measured from our own flight tests. You can experiment with higher rates to match your preferred style of flying. E-flite Mini Pulse PNP Assembly Manual... -
Page 17: Center Of Gravity
These include loose clothing, or other objects such as pencils and screwdrivers. Especially keep your hands away from the propeller. Double-check that all controls (aileron, elevator, rudder and throttle) move in the correct direction. Check the radio installation and make sure all the control surfaces are moving correctly (i.e. the correct direction and with the recommended throws). Test run the motor and make sure it transitions smoothly from off to full throttle and back. Also ensure the engine is installed according to the manufacturer’s instructions, and it will operate consistently. Check all the control horns, servo horns, and clevises to make sure they are secure and in good condition. Replace any items that would be considered questionable. Failure of any of these components in flight would mean the loss of your aircraft. E-flite Mini Pulse PNP Assembly Manual... -
Page 18: 2007 Official Ama National Model Aircraft Safety Code
6) I will not operate models with metal-bladed propellers or with safety requirements will be per the RC Combat section of the gaseous boosts, in which gases other than air enter their internal current Competition Regulations. combustion engine(s); nor will I operate models with extremely 7) At air shows or model flying demonstrations, a single straight line hazardous fuels such as those containing tetranitromethane or must be established, one side of which is for flying, with the other hydrazine. side for spectators. RADIO CONTROL 8) With the exception of events flown under AMA Competition rules, 1) I will have completed a successful radio equipment ground range after launch, except for pilots or helpers being used, no powered check before the first flight of a new or repaired model. model may be flown closer than 25 feet to any person. 2) I will not fly my model aircraft in the presence of spectators until I 9) Under no circumstances may a pilot or other person touch a become a qualified flier, unless assisted by an experienced helper. powered model in flight. 3) At all flying sites a straight or curved line(s) must be established in front of which all flying takes place with the other side for spectators. Only personnel involved with flying the aircraft are allowed at or in front of the flight line. Intentional flying behind the flight line is prohibited. E-flite Mini Pulse PNP Assembly Manual... -
Page 19: Building And Flying Notes
Building and Flying Notes E-flite Mini Pulse PNP Assembly Manual... - Page 20 © 2007 Horizon Hobby, Inc. 4105 Fieldstone Road Champaign, Illinois 61822 (877) 504-0233 horizonhobby.com E-fliteRC.com 100.1...
