Your 1120E brings voice to the desktop by connecting directly to a Local Area Network (LAN) through an
Ethernet connection.

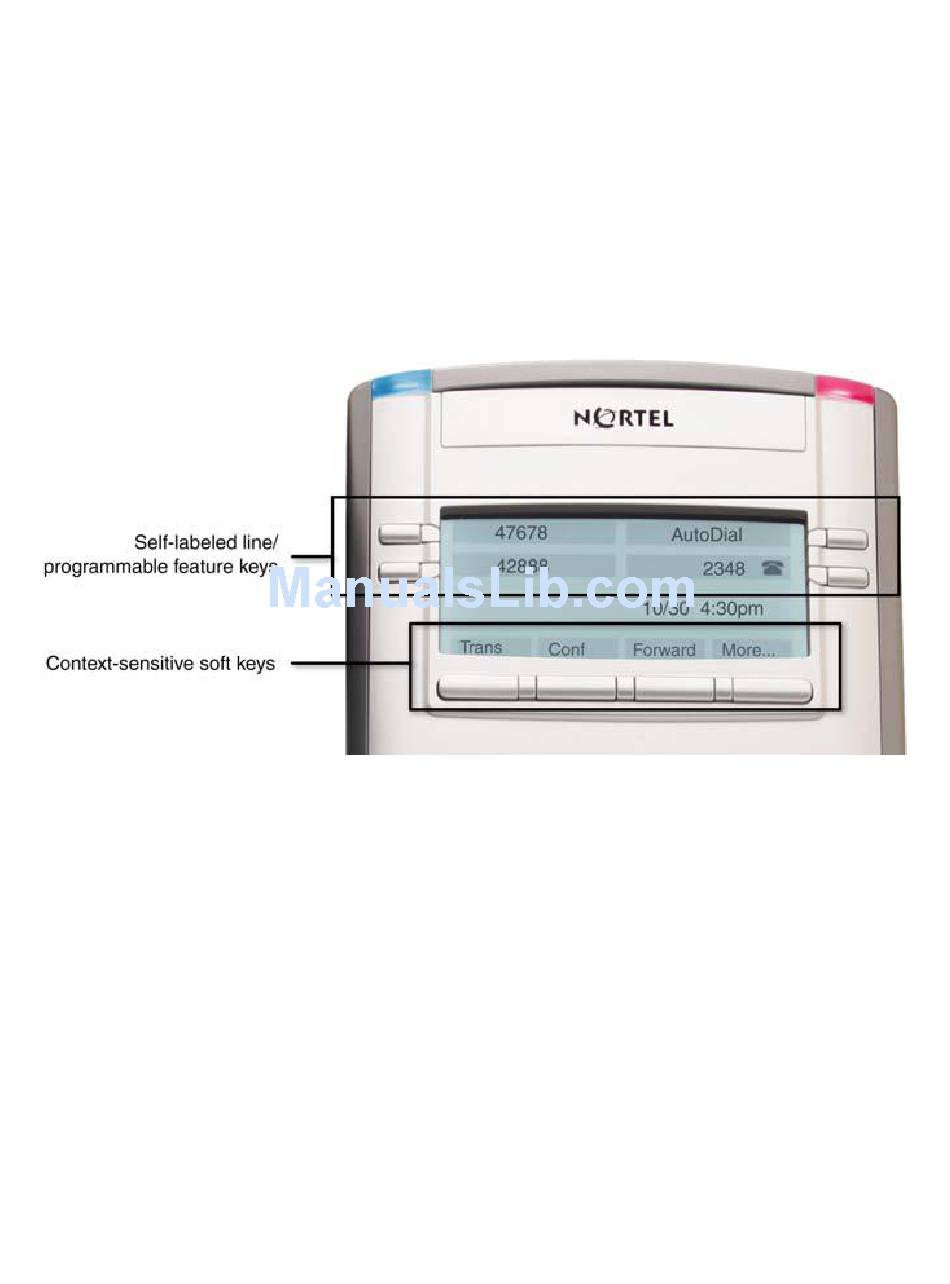

In this guide, self-labeled line/programmable feature key labels appear beside the keys, and context-
sensitive soft key labels appear directly above the keys. The following shows self-labeled
line/programmable feature keys and context-sensitive soft keys. Only the main line (prime directory
number) cannot be personalized.
Your IP Phone 1120E supports the following features:
• four self-labeled line/programmable feature keys with labels and indicators
• four context-sensitive soft keys
• graphical, high-resolution LCD display, backlit, with adjustable contrast
• high-quality speaker phone
• volume control keys for adjusting ringer, speaker, handset, and headset volume
• six specialized feature keys:
— Quit
— Directory
— Message/Inbox
— Shift/Outbox
— Services
— Copy
• six call-processing fixed keys:
— Mute
— Handsfree
1120E IP Phone
Basic features
1
