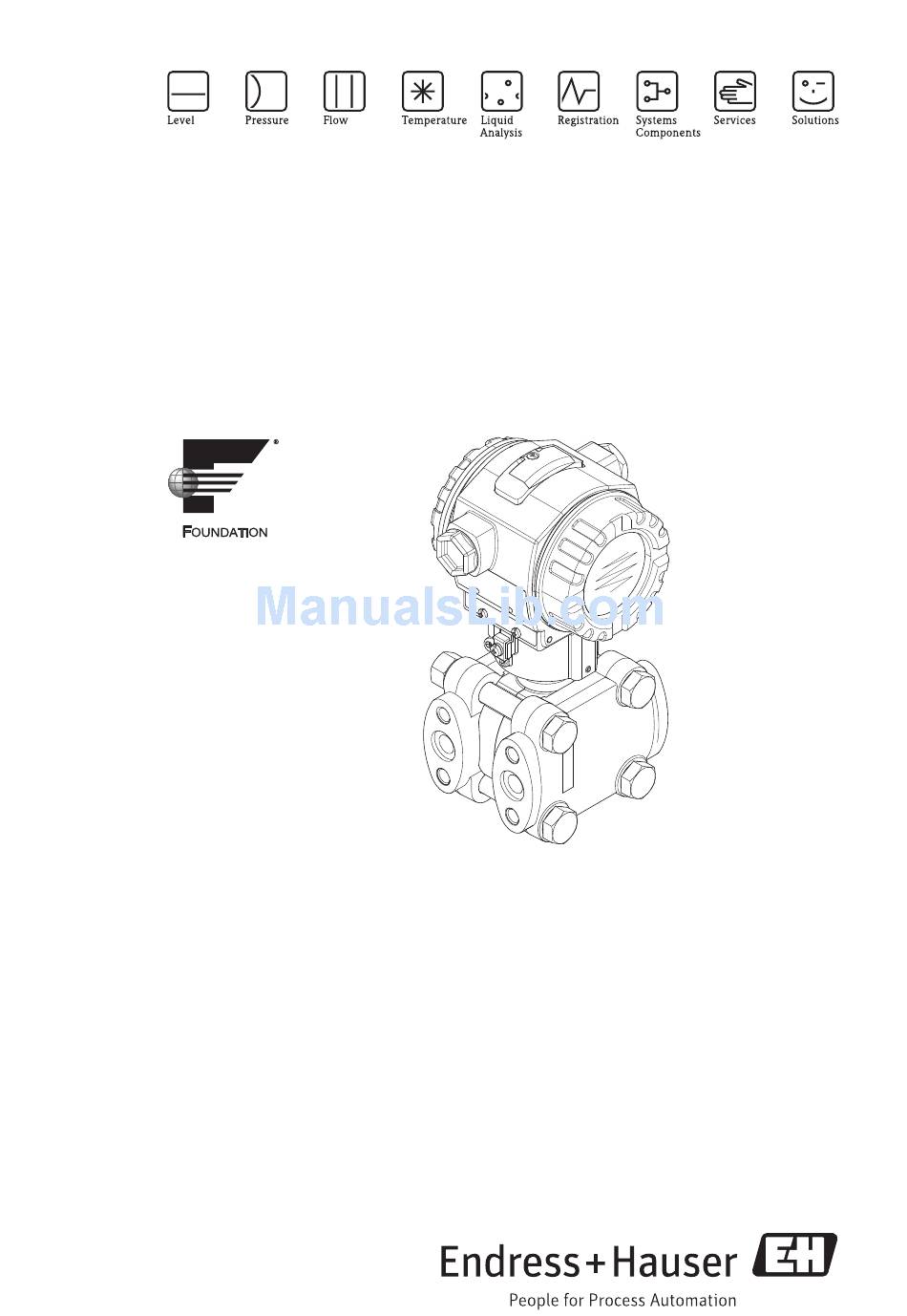

Brief Operating Instructions
Deltabar S
PMD70, PMD75, FMD76, FMD77, FMD78
Differential pressure measurement
These Instructions are Brief Operating Instructions; they do not replace the
Operating Instructions included in the scope of supply.
For detailed information, refer to the Operating Instructions and other
documentation on the CD-ROM provided or visit
"www.endress.com/deviceviewer".
KA01024P/00/EN/15.14
71254469
