Item #45601
WARNING
READ AND FOLLOW ALL SAFETY RULES AND INSTRUCTIONS IN THIS MANUAL
BEFORE ATTEMPTING TO OPERATE THIS MACHINE. FAILURE TO COMPLY WITH
THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY.
Ver. 082216
Advertisement
Table of Contents
Related Manuals for Cub Cadet chl 500
Summary of Contents for Cub Cadet chl 500

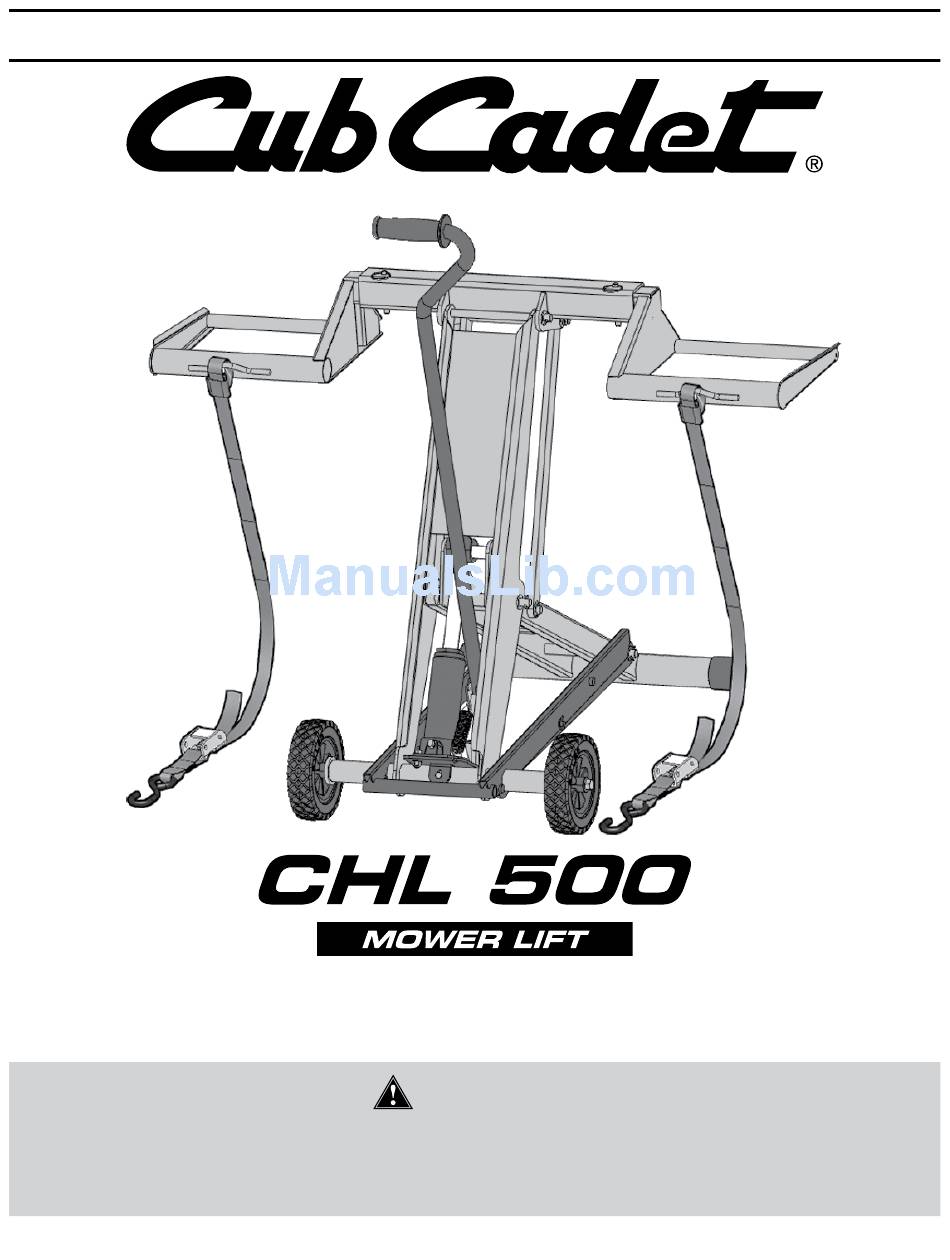

- Page 1 SET-UP • OPERATION • MAINTENANCE • SERVICE • TROUBLESHOOTING • WARRANTY BY MOJACK DISTRIBUTORS, LLC Item #45601 WARNING READ AND FOLLOW ALL SAFETY RULES AND INSTRUCTIONS IN THIS MANUAL BEFORE ATTEMPTING TO OPERATE THIS MACHINE. FAILURE TO COMPLY WITH THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY. Ver.
-
Page 2: Need Assistance
INTRODUCTION This manual contains assembly, parts, operating, maintenance, adjustment and safety instructions for the Cub Cadet CHL 500 Mower Lift. BEFORE USING YOUR LIFT, CAREFULLY READ THIS MANUAL IN ITS ENTIRETY. By following these operating, maintenance and safety instructions, you will prolong the life of your lift and promote safe operation. -
Page 3: Warnings And Safety Instructions
WARNINGS AND SAFETY INSTRUCTIONS Read and understand all safety and operating instructions before using the mower lift. Never allow anyone unfamiliar with the safety or operating instructions to use the lift. Follow all safety and servicing instructions provided by the lawn mower’s manufacturer before using the lift. Do not modify the lift in any way. -
Page 4: Warranty
WARRANTY LIMITED WARRANTY For two years for residential use and one year for commercial use MoJack warrants the product against failure due to defect in material or workmanship when product is used properly. MoJack will replace any defective part at no cost. This warranty does not cover any product that has been altered or adjusted, or any product that has been misused or abused. - Page 5 PARTS AND HARDWARE LIST ITEM PART # QTY. DESCRIPTION 518-0055 CHL 500 Mower Lift 518-0030 Hydraulic Cylinder - 2 Ton 518-0031 Left Wheel Pad 518-0032 Right Wheel Pad 518-0047 Handle 009-0007 Safety Straps 001-0039 Push Pins T-Bar The 3 locking positions are: 18” , 21”, 26”...
- Page 6 ASSEMBLY AND OPERATING INSTRUCTIONS STEP 1 Remove lift from package. Inventory items to be certain all parts and hardware are present. If you have any questions regarding assembly, please call Customer Service at 1-877-575-3173. Identify the Right and Left Wheel Pads. IMPORTANT: The Wheel Pads are side specific.
- Page 7 ASSEMBLY AND OPERATING INSTRUCTIONS STEP 3 Attach the Safety Straps to the wheel pads. Insert the strap loop through the wheel pad around the smaller wheel pad tube. Thread strap hook and buckle through the strap loop and pull until tight. Repeat with the other Safety Strap and wheel pad.
- Page 8 ASSEMBLY AND OPERATING INSTRUCTIONS STEP 6 Secure the front mower tires to the Wheel Pads using the Safety Straps. Safety Strap Extend the Safety Strap over the top of tire or over the top of mower wheel arm and secure the hook into the loop on the wheel pad.
- Page 9 ASSEMBLY AND OPERATING INSTRUCTIONS STEP 8 To raise the mower: Make sure the cylinder valve is closed by turning the valve clockwise. If yes, proceed to insert the handle into the cylinder handle opening. Proceed to pump the handle up and down to raise the lift to the desired height.
- Page 10 ASSEMBLY AND OPERATING INSTRUCTIONS STEP 9 Preparing the mower for service. Place wheel chocks (not included) behind the back tires of the mower and apply the parking brake on the mower. Wheel Chock YOU MAY NOW SERVICE THE MOWER. STEP 10 To lower the mower: 1) Before Lowering the Lift, Remove the Wheel Chocks and Parking Brake.
-
Page 11: Maintenance
MAINTENANCE Important: Use only a good grade hydraulic jack oil. Avoid mixing different types of fluid and NEVER use brake fluid, turbine oil, transmission fluid, motor oil or glycerin. Improper fluid can cause premature failure of the jack and the potential for sudden and immediate loss of load. - Page 12 Manufactured By: MoJack Distributors, LLC 3535 N. Rock Rd. Suite 300 Wichita, KS 67226 1-877-575-3173 www.themojack.com...
