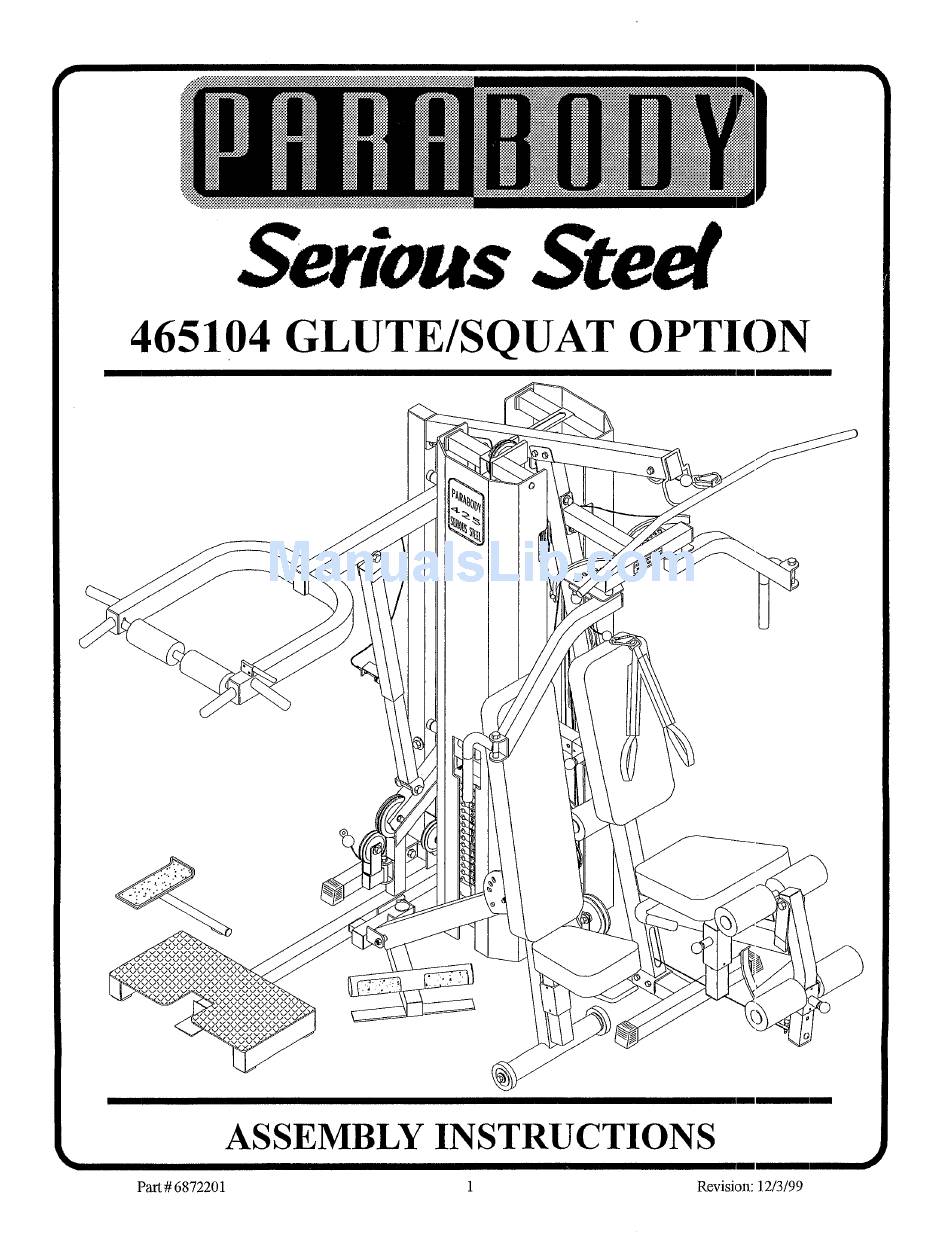

- Page 1 Serious Steel 465104 GLUTE/SQUAT OPTION ASSEMBLY INSTRUCTIONS Part# 6872201 Revision: 12/3/99...
- Page 2 2. Do not allow minors or children to play on or arotmd this equipment. 3. Exercise with care to avoid injury. 4. If unsure of proper use of equipment, call your local Parabody distributor or call the Parabody customer service department at (800) 328-9714.
-
Page 3: Parts List
DESCRIPTION iKEY PART # FOOT PLATE 6733802 6736202 SQUAT BAR GLUTE KICK 6736502 6016401 ROLLER PAD PRESS BASE FIGURE 1 STEP 1 ¯ Swing the PRESS SEAT over 90 ° to install ¯ SECURELY attachthe FOOT PLATE (1) to the PRESS BASE using two 1/2 X 3-1/4" BOLTS (6) and two 1/2" LOCK NUTS (7) shown in FIGURE 1. - Page 4 FIGURE 2 STEP 2 ¯ Slide two ROLLERPADS (4) over the SQUAT BAR (2). See FIGURE 2. Space PADS out equally to support back of neck. (Optional : SQUAT BAR may be used without ROLLER PADS.) ¯ Insert SQUAT BAR (4) into the hole on the PRESS ARM as shown. PRESS FIGURE 3 ITEP 3...
- Page 5 STEP 5 ¯ Rotate GLUTE KICK (3) ° to hol d GLU TE KIC K (3) in P RES S ARM. See FIGUR E 5. Thank you for purchasing the PARABODY 465104 GLUTE/SQUAT OPTION. If unsutre of proper use of...
