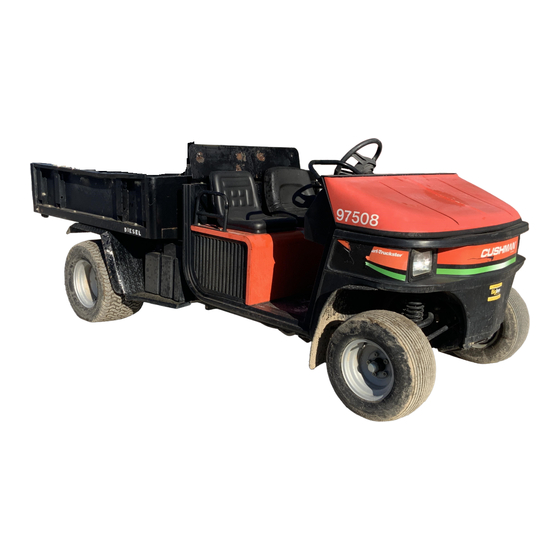

Cushman Turf Truckster Parts & Maintenance Manual

Hide thumbs Also See for Turf Truckster:
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

See also: Parts & Maintenance Manual
4140039-PT
Parts & Maintenance Manual
Manual de Peças & Manutençao
Cushman Turf Truckster
84043 – Motor Perkins 403 Diesel, Transmissão Manual
84044 – Motor Perkins 403 Diesel, Transmissão Manual, CE
898627 – Motor Suzuki K6 a Gasolina, Transmissão Manual
898628 – Motor Suzuki K6 a Gasolina, Transmissão Automática

Advertisement

Table of Contents
loading

Related Manuals for Cushman Turf Truckster

Summary of Contents for Cushman Turf Truckster

  • Page 1 4140039-PT Parts & Maintenance Manual Manual de Peças & Manutençao Cushman Turf Truckster 84043 – Motor Perkins 403 Diesel, Transmissão Manual 84044 – Motor Perkins 403 Diesel, Transmissão Manual, CE 898627 – Motor Suzuki K6 a Gasolina, Transmissão Manual 898628 – Motor Suzuki K6 a Gasolina, Transmissão Automática...

  • Page 2: Table Of Contents

    Table of Contents Safety Jump Starting ............ 19 Operating Safety..........4 6.10 Battery ............... 20 Important Safety Notes ........5 6.11 Charging Battery ..........20 Standards and Publications 6.12 Hydraulic Hoses ..........21 Standards and Publications ......... 6 6.13 Hydraulic Reservoir and Filter ......21 Vehicle Identification Numbers 6.14 Fuel ..............

  • Page 3: How To Use This Manual

    Suggested Stocking Guide To Keep your Equipment fully operational and productive, maintain a stock of the more commonly used maintenance items. We have included part numbers for additional support materials and training aids. A more complete listing of accessories and attachments can be found in the Specifications Section. Service Parts Qty.

  • Page 4: Safety

    SAFETY SAFETY OPERATING SAFETY ______________________________________________________ WARNING EQUIPMENT OPERATED IMPROPERLY OR BY UNTRAINED PERSONNEL CAN BE DANGEROUS. Familiarize yourself with the location and proper use of all controls. Inexperienced operator’s should receive instruction from someone familiar with the equipment before being allowed to operate the machine. Safety is dependent upon the awareness, concern and 12.

  • Page 5: Important Safety Notes

    SAFETY IMPORTANT SAFETY NOTES ________________________________________________ CAUTION - Indicates a potentially hazardous situation which, if not avoided, MAY result in minor or moderate This safety alert symbol is used to alert you to injury and property damage. It may also be used to alert against unsafe practices.

  • Page 6: Standards And Publications

    STANDARDS AND PUBLICATIONS STANDARDS AND PUBLICATIONS STANDARDS AND PUBLICATIONS ___________________________________________ This product meets requirements of ANSI B56.8 and has Internal Combustion Engine Powered Industrial Trucks: been approved by the Factory Mutual Research ANSI/UL 558 Corporation to meet all Powered Industrial Truck portions American National Standards Institute, Inc.

  • Page 7: Vehicle Identification Numbers

    VEHICLE IDENTIFICATION NUMBERS VEHICLE IDENTIFICATION NUMBERS VEHICLE IDENTIFICATION NUMBER __________________________________________ The Vehicle Identification Number (VIN), consisting of the model number, date code and serial number are all printed on the Nameplate/Identification Decal attached to the cross member under the dash. This vehicle may be covered GOLF, TURF &...

  • Page 8: Specifications

    SPECIFICATIONS SPECIFICATIONS PRODUCT IDENTIFICATION _________________________________________________ 84043 ......Turf Truckster liquid cooled diesel transmission, 2 speed differential. engine, 4 speed manual 898628......Turf Truckster liquid cooled diesel transmission, 2 speed differential. engine, 3 speed automatic 84044 ......Turf Truckster liquid cooled diesel transmission, 2 speed differential.

  • Page 9: Gear Ratios

    SPECIFICATIONS GEAR RATIOS ____________________________________________________________ Diesel Engine Manual Transmission Gear Ratios: 2nd Gear....2.391:1 4th Gear ....1.000:1 1st Gear ....4.031:1 3rd Gear ....1.423:1 Reverse ....4.173:1 2nd Gear ....1.947:1 Hypoid Differential ..14.21:1 1st Gear ....3.652:1 Gas Engine Automatic Transmission Gear Ratios: Reverse.....

  • Page 10: Adjustments

    ADJUSTMENTS ADJUSTMENTS GENERAL ________________________________________________________________ adjustment cannot be made, contact an authorized WARNING Jacobsen Dealer. 2. Replace, adjust, worn damaged To prevent injury, depress clutch pedal and shift components. transmission to neutral, engage parking brake, stop engine and remove key from ignition switch before 3.

  • Page 11: Front Cowl Access

    ADJUSTMENTS FRONT COWL ACCESS_____________________________________________________ The front cowl opens to gain access to two access panels, fuse panel, horn and master cylinder reservoir. Pull Lever To Release To open the front cowl, locate the release lever at the Cowl Latc h upper left corner of front clip, near the left side headlight.

  • Page 12: Diesel Engine Alternator Belt

    ADJUSTMENTS DIESEL ENGINE ALTERNATOR BELT ________________________________________ Inspect and adjust new belt after first 24-48 hours of operation. Adjust every 200 hours thereafter. Adjust alternator pulley so belt deflects 1/4” to 1/2” (6 -12 mm) with a 20 lb. push at midpoint between water pump and alternator pulleys.

  • Page 13: Gas Engine Hydraulic Pump Belt

    ADJUSTMENTS GAS ENGINE HYDRAULIC PUMP BELT _______________________________________ Inspect and adjust new belt after first 24-48 hours of operation. Adjust every 200 hours thereafter. Adjust hydraulic pump belt so belt deflects 1/4” to 1/2” (6 -12 mm) with a 20 lb. push at midpoint between pulleys. If tension is incorrect, loosen pump mounting bolts (G) and carefully pry away from the engine until proper belt tension is achieved.

  • Page 14: Torque Specification

    ADJUSTMENTS 5.10 TORQUE SPECIFICATION___________________________________________________ CAUTION All torque values included in these charts are approximate and are for reference only. Use of these torque values is at your sole risk. Jacobsen is not responsible for any loss, claim, or damage arising from the use of these charts. Extreme caution should always be used when using any torque value.

  • Page 15: Maintenance

    MAINTENANCE MAINTENANCE GENERAL ________________________________________________________________ Keep the equipment clean. WARNING Keep all moving parts properly adjusted and lubri- cated. Before you clean, adjust, or repair this equipment, Replace worn or damaged parts before operating depress clutch pedal and shift transmission to neutral, the machine.

  • Page 16: Engine Oil

    MAINTENANCE ENGINE OIL ______________________________________________________________ Check the engine oil at the start of each day, before starting the engine. To check the engine oil, remove the dipstick and wipe it Oil Level Must with a clean rag. Reinsert the dipstick until it contacts the Be Between Marks Engine Dipstick oil tube, remove the dipstick and read the oil level.

  • Page 17: Power Steering Reservoir

    MAINTENANCE POWER STEERING RESERVOIR _____________________________________________ When checking the fluid level before the engine has been WARNING warmed up, the level should be at the COLD mark on the dipstick. After the engine has been warmed up and the Before servicing or doing any maintenance work around fluid is warm, the level should be between the COLD and the engine area, make sure the engine has had time to HOT marks.

  • Page 18: Cooling System

    MAINTENANCE COOLING SYSTEM ________________________________________________________ This vehicle is equipped with a radiator, temperature a. Remove the cooling fan fuse controlled fan, temperature gauge and an overheat b. Remove the radiator cap. buzzer. Open the engine block drain and the radiator drain. Remove lower radiator hose. Close both WARNING drains and install lower radiator hose once system has completely drained.

  • Page 19: Air Filter

    MAINTENANCE AIR FILTER _______________________________________________________________ Do not remove the element for inspection or cleaning. Unnecessary removal of the filter increases the risk of injecting dust and other impurities into the engine. When service is required, first clean the outside of the filter housing;...

  • Page 20: Battery

    MAINTENANCE 6.10 BATTERY ________________________________________________________________ Make absolutely certain the ignition switch is “Off” and When installing the battery, always assemble the RED, positive (+) battery cable first and the ground, BLACK, the key has been removed before servicing the battery. negative (-) cable last. CAUTION When removing the battery, always remove the ground, BLACK, negative (-) cable first and the RED,...

  • Page 21: Hydraulic Hoses

    MAINTENANCE 6.12 HYDRAULIC HOSES _______________________________________________________ IMPORTANT: hydraulic system WARNING permanently damaged becomes contaminated. Before disconnecting any hydraulic To prevent serious injury from hot, high pressure oil, component, clean the area around the fittings and the never use your hands to check for oil leaks, use paper or hose ends to keep impurities out of the system.

  • Page 22: Fuel

    MAINTENANCE 6.14 FUEL ____________________________________________________________________ Handle fuel with care - it is flammable and highly switch to the ON position and reading the level explosive under certain conditions. Use an approved indicated by the fuel gauge. container, the spout must fit inside the fuel filler neck. 4.

  • Page 23: Tire Removal And Installation

    MAINTENANCE 6.17 TIRE REMOVAL AND INSTALLATION _________________________________________ Removal: CAUTION 1. Park the vehicle on a flat and level surface. Apply parking brake, shut off engine and shift transmission Unless you have the proper training, tools and to 1st gear. experience, DO NOT attempt to mount a tire on a rim. Improper mounting can produce an explosion which 2.

  • Page 24: Towing The Vehicle

    MAINTENANCE 6.19 TOWING THE VEHICLE _____________________________________________________ 4. Slowly drive towing vehicle forward until tow-line is WARNING pulled tight. 5. While towing, try to keep the tow light taught at all To prevent injury or vehicle damage, the following times. Be careful going down inclines and turning guidelines should always be followed.

  • Page 25: Hydraulic Brakes

    MAINTENANCE 6.21 HYDRAULIC BRAKES ______________________________________________________ 5. Most communities have a disposal system for DOT WARNING 3 brake fluid. Please dispose of fluids properly. Improper maintenance of the brake system may result in loss of vehicle control by the operator. Losing control of the vehicle due to brake loss may cause injury to the operator or bystanders and vehicle damage Brake Fluid...

  • Page 26: Differential Fluid

    MAINTENANCE 6.22 DIFFERENTIAL FLUID______________________________________________________ The differential fluid should be checked every 100 hours or 3 months. Fluid should be changed after the first 100 hours and every 600 hours (or yearly) thereafter. Differential Fluid Capacity ..5.2 pints (2.5 l) Level Check And Fluid Type ......

  • Page 27: Gas Engine Manual Transmission

    MAINTENANCE 6.24 GAS ENGINE MANUAL TRANSMISSION _______________________________________ The transmission fluid should be checked every 100 Fill transmission with gear lube until fluid begins to leak hours or 3 months. Fluid should be changed every 600 from hole. Apply pipe thread sealant and install filler plug. hours (or yearly).

  • Page 28: Electrical System

    MAINTENANCE 6.26 ELECTRICAL SYSTEM _____________________________________________________ Diesel Engine CAUTION 20 A Dash Panel, Power Port 15 A Fuel Pump Always turn the ignition switch off and remove the & Ignition Brake Light, negative battery cable (Black) before inspecting or 5th Wheel Brake 10 A 10 A Accessary...

  • Page 29: Headlight Replacement

    MAINTENANCE Tachometer DIP Switch Setting: Using a small blade screwdriver or similar tool, push the switch levers either up or down to match the sequence The dash panel uses a DIP Switch sequence code to code for this unit. identify the number of input pulses per engine revolution and engine type to correctly display the engine RPM on Dipswitch Setting the tachometer.

  • Page 30: Efi Diagnostic Check

    MAINTENANCE 6.30 EFI DIAGNOSTIC CHECK ___________________________________________________ Suzuki Gas Engine units only position. The brake fluid light at the lower left corner of the dash panel will flash a diagnostic code. The electrical system is equipped with a plug in connector which, when used with the diagnostic jumper The first digit of the code will be given first with a full accessory (Part No.

  • Page 31: Care And Cleaning

    MAINTENANCE 6.31 CARE AND CLEANING _____________________________________________________ Wash the vehicle after each use. Keep the equipment Do not spray water directly at the dash panel, ignition switch, controls or any other electrical components, or clean. at bearing housings and seals. Note: Do not wash any portion of the equipment while it is Clean all plastic or rubber trim with a mild soap hot.

  • Page 32: Troubleshooting

    TROUBLESHOOTING TROUBLESHOOTING GENERAL ________________________________________________________________ The troubleshooting chart below lists basic problems that detailed information regarding the electrical system may occur during start-up and operation. For more contact your area Jacobsen Dealer. Symptoms Possible Causes Action Engine will not start. Clutch pedal not depressed. Check start-up procedure.

  • Page 33: Maintenance & Lubrication Charts

    MAINTENANCE & LUBRICATION CHARTS MAINTENANCE & LUBRICATION CHARTS GENERAL ________________________________________________________________ 2. Lubricate with grease that meets or exceeds NLGI WARNING Grade 2 LB specifications. Apply grease with a manual grease gun and fill slowly until grease begins Before you clean, adjust, or repair this equipment, to seep out.

  • Page 34: Maintenance Charts

    MAINTENANCE & LUBRICATION CHARTS MAINTENANCE CHARTS ___________________________________________________ Recommended Service and Lubrication Intervals Every Every Every Every First Every 400 Lubricant Daily Hours or Hours or Hours or Hours or Hours or 12 Section Type Hours 9 Months 2 Months 3 Months 6 Months Months Air Filter...
  • Page 35 MAINTENANCE & LUBRICATION CHARTS Notes: Lubricants * Indicates initial service for new machines. Manual grease gun with NLGI Grade 2 (Service ** Depending on operating conditions, engine oil, oil Class LB). filter filter require more frequent Engine Oil - See Section 6.3 replacement.

  • Page 36: Notes

    NOTES NOTES GB-36...
  • Page 38 Índice SEGURANÇA Sistema de arrefecimento ........18 Segurança no funcionamento......4 Filtro do ar ............19 Importantes instruções de segurança ....5 Arranque induzido ..........19 NORMATIVOS E PUBLICAÇÕES 6.10 Bateria ............... 20 Normativos e publicações........6 6.11 Carregar a bateria ..........20 NÚMEROS DE IDENTIFICAÇÃO DO VEÍCULO 6.12 Mangueiras hidráulicas ........
  • Page 39 Guia de Stocks Recomendados Para manter o seu equipamento totalmente funcional e produtivo, mantenha uma reserva dos artigos mais correntemente usados na sua manutenção. Incluímos os números de peças para materiais de apoio adicionais e ajuda à formação. Poderá encontrar-se uma listagem de acessórios na Secção Especificações. Peças de assistência técnica Nº...

  • Page 40: Segurança

    SEGURANÇA SEGURANÇA SEGURANÇA NO FUNCIONAMENTO _________________________________________ AVISO ESTE VEÍCULO PODE SER PERIGOSO SE FOR COMANDADO INCORRECTAMENTE OU POR PESSOAL NÃO TREINADO. Familiarize-se com a localização e a utilização adequada de todos os comandos. Operadores sem experiência devem receber instrução de alguém conhecedor do veículo antes de começar a trabalhar com o veículo. A segurança depende da atenção, do cuidado e da chapas, deflectores...

  • Page 41: Importantes Instruções De Segurança

    SEGURANÇA IMPORTANTES INSTRUÇÕES DE SEGURANÇA ________________________________ CUIDADO - Indica uma situação potencialmente perigosa que, se não for evitada, PODE provocar ferimentos ligeiros Esta chamada de atenção de segurança é usado a médios e danos materiais. Este símbolo também pode ser usado para avisar contra práticas perigosas.

  • Page 42: Normativos E Publicações

    NORMATIVOS E PUBLICAÇÕES NORMATIVOS E PUBLICAÇÕES NORMATIVOS E PUBLICAÇÕES _____________________________________________ Este produto cumpre as exigências da ANSI B56.8 e foi Veículos de Carga Motorizados por Motor de Combustão aprovado pela Factory Mutual Research Corporation Interna: como estando em conformidade todas as partes dos ANSI/UL 558 Veículos de Carga Industriais Motorizados (classificação American National Standards Institute, Inc.

  • Page 43: Números De Identificação Do Veículo

    NÚMEROS DE IDENTIFICAÇÃO DO VEÍCULO NÚMEROS DE IDENTIFICAÇÃO DO VEÍCULO NÚMERO DE IDENTIFICAÇÃO DO VEÍCULO ___________________________________ O VIN (Número de Identificação do Veículo), que integra o número do modelo, o código da data e o número de série estão impressos na etiqueta com Identificação colada na transversal, sob o painel de instrumentos.

  • Page 44: Especificações

    ESPECIFICAÇÕES ESPECIFICAÇÕES IDENTIFICAÇÃO DO PRODUTO ______________________________________________ 84043 ..Turf Truckster com motor a diesel arrefecido 898628..Turf Truckster com motor a diesel arrefecido por líquido, transmissão manual de 4 por líquido, transmissão automática de 3 velocidades, diferencial de 2 velocidades. velocidades, diferencial de 2 velocidades.

  • Page 45: Relações De Transmissão

    ESPECIFICAÇÕES RELAÇÕES DE TRANSMISSÃO ______________________________________________ Relações de Transmissão Manual do Motor a Diesel: 1ª velocidade .... 4,031:1 4ª velocidade .... 1,000:1 Marcha atrás..... 4,173:1 3ª velocidade .... 1,423:1 Diferencial Hypoid..14,21:1 2ª velocidade..... 1,947:1 Relações de Transmissão Automática do Motor a 1ª...

  • Page 46: Afinações Generalidades

    AFINAÇÕES Afinações GENERALIDADES _________________________________________________________ 1. Trabalhos de afinação e de manutenção devem ser AVISO sempre feitos por um técnico qualificado. Se não for possível fazer a afinação adequada, contacte um Para se evitar a ocorrência de ferimentos, antes de representante Jacobsen autorizado. fazer quaisquer afinações...

  • Page 47: Acesso Ao Painel Dianteiro

    AFINAÇÕES ACESSO AO PAINEL DIANTEIRO_____________________________________________ A capota frontal abre-se para dar acesso a dois painéis de acesso, ao painel dos fusíveis, à buzina e ao Puxe a alavanca reservatório do cilindro principal. para libertar a lingueta da capota Para abrir a capota frontal, localize a alavanca de abertura no canto superior esquerdo do clipe dianteiro, perto do farolim dianteiro esquerdo.

  • Page 48: Correia Do Alternador Do Motor A Diesel

    AFINAÇÕES CORREIA DO ALTERNADOR DO MOTOR A DIESEL _____________________________ Inspeccione e afine a nova correia após as primeiras 24- 48 horas de utilização. Após isso, afine-a a cada 200 horas. Afine a polia do alternador para a correia deflectir 6 a 12 mm com uma pressão de 9 kg a meio entre a bomba da água e a polia do alternador.

  • Page 49: Correia Da Bomba Hidráulica Do Motor A Gasolina

    AFINAÇÕES CORREIA DA BOMBA HIDRÁULICA DO MOTOR A GASOLINA ____________________ Inspeccione e afine a nova correia após as primeiras 24- 48 horas de utilização. Após isso, afine-a a cada 200 horas. Afine a polia da bomba de água para a correia deflectir 6 a 12 mm com uma pressão de 9 kg a meio entre as polias.

  • Page 50: Binário

    AFINAÇÕES 5.10 BINÁRIO _________________________________________________________________ CUIDADO Todos os valores de binário incluídos nestas tabelas são aproximados e servem apenas como referência. A aplicação destes valores de binário é por conta e risco do utilizador. A Jacobsen não se responsabiliza por quaisquer perdas, reclamações ou danos resultantes da aplicação destas tabelas. Deve haver sempre extrema cautela ao usar qualquer valor de binário.

  • Page 51: Manutenção

    MANUTENÇÃO MANUTENÇÃO GENERALIDADES _________________________________________________________ Mantenha o equipamento limpo. AVISO Mantenha todos os componentes móveis correcta- mente afinados e lubrificados. Antes de proceder a limpeza, afinações ou reparações neste equipamento, desengate todos os accionadores, Substitua peças gastas ou danificadas antes de baixe os utensílios até...

  • Page 52: Óleo De Motor

    MANUTENÇÃO ÓLEO DE MOTOR _________________________________________________________ Verifique diariamente o nível do óleo antes de colocar o Motor Diesel: Encha motor Perkins motor a trabalhar. aproximadamente 3,5 l de óleo novo de motor. Verifique o nível de óleo e acrescente óleo, se necessário. Para verificar o nível do óleo do motor, retire a vareta e limpe-a com desperdício limpo.

  • Page 53: Reservatório Da Direcção Assistida

    MANUTENÇÃO RESERVATÓRIO DA DIRECÇÃO ASSISTIDA ___________________________________ Ao verificar o nível do fluido antes de motor estar quente, AVISO este deverá situar-se na marca FRIO da vareta. Ao verificar o nível do fluido com o motor quente, este Antes de qualquer intervenção de assistência ou de deverá...

  • Page 54: Sistema De Arrefecimento

    MANUTENÇÃO SISTEMA DE ARREFECIMENTO _____________________________________________ Este veículo está equipado com um radiador, uma Verifique visualmente o reservatório. O nível do ventoinha de controlo da temperatura, manómetro de refrigerante deverá situar-se perto da linha temperatura e um aviso sonoro de sobreaquecimento. CHEIO, mas a menos de 4 polegadas (102 mm).

  • Page 55: Filtro Do Ar

    MANUTENÇÃO FILTRO DO AR ____________________________________________________________ Não retire o elemento para inspeccioná-lo ou limpá-lo. A remoção desnecessária do filtro aumenta o risco de injecção de poeiras e outras impurezas ao motor. Quando for necessária qualquer intervenção técnica, limpe primeiro a parte de fora do filtro; depois, retire o Motor a elemento velho tão suavemente quanto possível e Diesel...

  • Page 56: Bateria

    MANUTENÇÃO 6.10 BATERIA ________________________________________________________________ Tenha a certeza absoluta de que a ignição está 1. Ao instalar uma nova bateria, instale sempre o cabo desligada e de que a chave foi retirada antes de VERMELHO positivo (+) primeiro e o de terra, qualquer intervenção na bateria.

  • Page 57: Mangueiras Hidráulicas

    MANUTENÇÃO 6.12 MANGUEIRAS HIDRÁULICAS________________________________________________ IMPORTANTE: sistema hidráulico pode AVISO permanentemente danificado óleo ficar contaminado. Antes de desligar qualquer componente hidráulico, limpe a área em torno dos encaixes e das Para evitar lesões graves provocadas por óleo quente a extremidades das mangueiras para que impurezas não alta pressão, nunca use as mãos para verificar fugas de penetrem no sistema.

  • Page 58: Combustível

    MANUTENÇÃO 6.14 COMBUSTÍVEL ___________________________________________________________ Manuseie com cuidado o combustível: é inflamável e Nunca encha demasiado o depósito ou permita que altamente explosivo em certas condições. Use um fique totalmente vazio. Verifique o nível de combustível recipiente apropriado, a ponteira de enchimento deverá rodando a ignição para a posição ON e lendo o nível entrar completamente no gargalo de enchimento de indicado no manómetro do combustível.

  • Page 59: Remoção/Instalação Dos Pneus

    MANUTENÇÃO 6.17 REMOÇÃO/INSTALAÇÃO DOS PNEUS ________________________________________ Remoção: CUIDADO Estacione o veículo numa superfície firme e nivelada. Accione o travão de estacionamento, desligue o motor NÃO tente instalar um pneu numa jante excepto se e engrene a primeira velocidade. detiver a experiência e as ferramentas necessárias. A Consulte Secção 6.18...

  • Page 60: Rebocar O Veículo

    MANUTENÇÃO 6.19 REBOCAR O VEÍCULO _____________________________________________________ 4. Avance devagar o veículo rebocador até que a AVISO corda de reboque se estique. 5. Ao rebocar, tente manter a linha de reboque Para evitar ferimentos graves ou danos no veículo, sempre esticada. Tenha cuidado com descidas tenha sempre cuidado com o seguinte: acentuadas e em curvas.

  • Page 61: Travões Hidráulicos

    MANUTENÇÃO 6.21 TRAVÕES HIDRÁULICOS ___________________________________________________ A maior parte das comunidades possui um sistema de AVISO eliminação para o fluido de travões DOT 3. Elimine os fluidos de forma consciente. A manutenção descuidada do sistema de travões poderá também resultar na perda de controlo do veículo por parte do utilizador.

  • Page 62: Fluido Do Diferencial

    MANUTENÇÃO 6.22 FLUIDO DO DIFERENCIAL __________________________________________________ O fluido do diferencial deverá ser verificado a 100 horas ou de 3 em 3 meses. O fluido deverá ser mudado após as primeiras 100 horas; depois, a cada 600 horas (ou anualmente). Bujão de verificação Capacidade do fluido do diferencial ..

  • Page 63: Transmissão Manual Do Motor A Gasolina

    MANUTENÇÃO 6.24 TRANSMISSÃO MANUAL DO MOTOR A GASOLINA _____________________________ O fluido da transmissão deverá ser verificado a cada 100 Aplique um vedante de roscas e instale o tampão do horas ou de 3 em 3 meses. O fluido deverá ser mudado bocal de enchimento.

  • Page 64: Sistema Eléctrico

    MANUTENÇÃO 6.26 SISTEMA ELÉCTRICO______________________________________________________ Motor a Diesel CUIDADO Painel de instrumentos , 20 A Ponto de transmissão 15 A bomba de combustível Desligue sempre a ignição e retire sempre o cabo e ignição preto de terra, negativo (-) antes de inspeccionar ou Luz de travão , 10 A Accesório...

  • Page 65: Substituição Do Farolim Dianteiro

    MANUTENÇÃO Configuração do Interruptor DIP do Tacómetro: cima ou para baixo até se atingir a sequência adequada a cada motor. O painel de instrumentos faz uso de uma sequência codificada do interruptor DIP para identificar os impulsos de Afinação dos faróis entrada por rotação do motor e tipo de motor para exibir correctamente as RPM do motor no tacómetro.

  • Page 66: Verificação Do Diagnóstico Efi

    MANUTENÇÃO 6.30 VERIFICAÇÃO DO DIAGNÓSTICO EFI ________________________________________ Apenas veículos com motor Suzuki a Gasolina O primeiro dígito do código será dado com uma pausa de um segundo, piscando 0,3 segundos, seguido do O sistema eléctrico encontra-se equipado com um segundo dígito, sem pausa. conector de ficha o qual, quando utilizado com um acessório comutador de diagnóstico (Peça nº...

  • Page 67: Cuidados E Limpeza

    MANUTENÇÃO 6.31 CUIDADOS E LIMPEZA _____________________________________________________ Lave o tractor e os utensílios após cada utilização. controlador ou em quaisquer outros componentes Mantenha o equipamento limpo. eléctricos, ou nas carcaças e vedações dos mancais. NOTA: Não lave qualquer parte do equipamento enquanto Limpe todo o acabamento de plástico ou borracha com ele estiver quente.

  • Page 68: Reparação De Avarias

    REPARAÇÃO DE AVARIAS REPARAÇÃO DE AVARIAS GENERALIDADES _________________________________________________________ A tabela de resolução de problemas apresentada a seguir detalhadas em relação aos sistemas hidráulico e eléctrico, indica os problemas básicos que podem ocorrer no início e entre em contacto com o distribuidor Jacobsen da sua área. durante o funcionamento.

  • Page 69: Tabelas De Manutenção E Lubrificação

    TABELAS DE MANUTENÇÃO E LUBRIFICAÇÃO TABELAS DE MANUTENÇÃO E LUBRIFICAÇÃO GENERALIDADES _________________________________________________________ 2. Lubrifique com um produto igual ou superior às AVISO especificações NLGI Grau Aplique lubrificante com uma pistola manual e encha Antes de limpar, ajustar ou reparar este equipamento, suavemente até...

  • Page 70: Tabela De Manutenção

    TABELAS DE MANUTENÇÃO E LUBRIFICAÇÃO TABELA DE MANUTENÇÃO _________________________________________________ Periodicidade recomendada para assistência e lubrificação A cada A cada A cada A cada Primei- A cada 600 Tipo de Diaria- horas ou lubrifi- horas ou horas ou horas ou horas ou mente de 12 em Secção...
  • Page 71 TABELAS DE MANUTENÇÃO E LUBRIFICAÇÃO Notas: Lubrificantes * Indica o serviço inicial para máquinas novas. Pistola lubrificante manual com NLGI Grau 2 (Classe ** Dependendo das condições de funcionamento, o óleo de serviço LB). de motor, o filtro do óleo e o filtro do ar poderão precisar Óleo de motor - Consultar secção 6.3 de substituições mais frequentes.
  • Page 72 NOTAS NOTAS PT-36...
  • Page 73 PARTS CATALOG PARTS CATALOG 10.1 TABLE OF CONTENTS______________________________________________________ 1.1 ..Front Body ............38 2.1 ..Engine Cover ............. 40 3.1 ..Throttle Control ..........42 4.1 ..Control Console ..........44 5.1 ..Parking Brake and High-Low Speed Control.. 46 6.1 ..

  • Page 74: Front Body

    TURF TRUCKSTER Serial No. All 1.1 Front Body  By Jacobsen Turf Truckster Turf Truckster   By Jacobsen By Jacobsen 30 / 31...
  • Page 75 Screw, 1/4-20 x 1/2” Hex Head 306488 Lockwasher, 1/4” Shakeproof 450410 Lockwasher, M6 844293 Plug, Panel 74765G01 Decal, Cushman 74793G01 Decal, Left Side Turf Truckster 74767G01 Decal, RIght Side Turf Truckster 38541 Tube, Clear Document 38061A Cap, Vinyl 840508 Mount, Cable Tie 800344...

  • Page 76: Engine Cover

    TURF TRUCKSTER Serial No. All 2.1 Engine Cover Engine Cover Lock...
  • Page 77 TURF TRUCKSTER Item Part No. Qty. Description Serial Numbers/Notes 306328 Cotter Pin, 3/32 x 3/4” 308090 Washer, 1/4 450452 Nut, M6-1 Hex Flange 450453 Nut, M8-1.25 Hex Flange 450454 Nut, M10-1.5 Hex Flange 893541 Handold, Right Side 450541 Screw, M6-1 x 16 mm Hex Flange 452388 Screw, M8-1.25 x 20 mm Hex Flange...

  • Page 78: Throttle Control

    TURF TRUCKSTER Serial No. All 3.1 Throttle Control Attach Pivot Link in Bottom Hole To Engine Cable Routing Hand Throttle Panel STOP Ignition Switch Panel Throttle Pivot All Views Rotated 90° for Clarity...
  • Page 79 TURF TRUCKSTER Item Part No. Qty. Description Serial Numbers/Notes 841663 Panel, Floor Access 800943 Screw, #10-14 x 5/8” Self Tapping 894159 Pedal, Throttle 524633 Bolt, 5/16-18 x 1” Shoulder 524643 Bearing, Split 548911 Nut, 5/16-18 Flange 2703257.7 Bracket, Foot Throttle...

  • Page 80: Control Console

    TURF TRUCKSTER Serial No. All 4.1 Control Console 4 / 5 WARNING P A R K I N G B R A K E S A R E N O T A U T O - M A T I C A L LY A P P L I E D . V E H I C L E M AY M O V E C A U S I N G P E R S O N A L I N J U R Y A N D / O R P R O P E R T Y D A M A G E .
  • Page 81 TURF TRUCKSTER Item Part No. Qty. Description Serial Numbers/Notes 2700796 Console Used on 84043, 898627, 898628 2700797 Console, EC Used on 84044 Only 844177 • Decal, Aux. Transmission 844179 • Decal, Hydraulic Controls 822819 • Decal, Parking Brake Used on 84043, 898627, 898628 845185 •...

  • Page 82: Parking Brake And High-Low Speed Control

    TURF TRUCKSTER Serial No. All 5.1 Parking Brake and High-Low Speed Control...
  • Page 83 TURF TRUCKSTER Item Part No. Qty. Description Serial Numbers/Notes 894317 Lever, Parking Brake 845134 Bracket, Parking Brake Lever 452388 Screw, M8-1.25 x 20 mm Flange 452391 Screw, M8-1.25 x 40 mm Flange 450453 Nut, M8-1.25 Flange 845133 Cable, Parking Brake...

  • Page 84: Brake Pedal

    TURF TRUCKSTER Serial No. All 6.1 Brake Pedal Route both hoses through opening in front clip Lower ROPS Pedal Mounting View Rotated 90 Degrees for Clarity Route front brake tube through opening in front clip Route rear brake Left Frame Rail...
  • Page 85 TURF TRUCKSTER Item Part No. Qty. Description Serial Numbers/Notes 2701737.7 Bracket, Master Cylinder 892921 Pedal, Brake 840726 Bearing, Brake Pivot 840725 Tube, Brake Pivot 842935 Tab, Locking 452388 Screw, M8-1.25 x 20 mm Flange 450453 Nut, M8-1.25 Flange 895113 Master Cylinder 800930 Screw, M8-1.25 x 16 mm Flange...

  • Page 86: Clutch Pedal Linkage

    TURF TRUCKSTER Serial No. 84043 All 7.1 Clutch Pedal Linkage Serial No. 84044 All Serial No. 898627 All Lower ROPS Cable Routing View Rotated 90 Degrees for Clarity View Rotated 90 Degrees for Clarity Gas Units Diesel Units...
  • Page 87 TURF TRUCKSTER Item Part No. Qty. Description Serial Numbers/Notes 892933 Pedal, Clutch 840726 Bearing, Brake Pivot 844611 Spring, Torsion 840725 Tube, Pedal Pivot 842935 Tab, Locking 452388 Screw, M8-1.25 x 20 mm Flange 450453 Nut, M8-1.25 Flange 894308 Switch, Clutch Micro 450510 Screw, M3-0.5 x 20 mm Pan Head...

  • Page 88: Manual Transmission Shifter Linkage

    TURF TRUCKSTER Serial No. 84043 All 8.1 Manual Transmission Shifter Linkage Serial No. 84044 All Serial No. 898627 All 21 22 Diesel Unit Cable Attachment Shifter Mounting and Cable Routing View Rotated 180 Degrees for Clarity Gas Unit Cable Attachment...
  • Page 89 TURF TRUCKSTER Item Part No. Qty. Description Serial Numbers/Notes 893966 Shifter Assembly Diesel Units 2701274 Shifter Assembly Gas Units 2703956.7 • Mount, Shifter 2703953 • Selector, Gear 842773 • Rod End, 1/2-20 308091 • Flat Washer, 1/2 311763 • Screw, 1/2-20 x 2-1/4” Hex Head 843679 •...

  • Page 90: Automatic Transmission Shifter

    SPRAYTEK DS 300 Serial No. 898628 All 9.1 Automatic Transmission Shifter Item Part No. Qty. Description Serial Numbers/Notes 103867 Flat Washer, 5/16 302020 Screw, 1/4-20 x 1-1/4” 306375 Nut, 1/4-20 Hex 306396 Lockwasher, 1/4 800582 Screw, 1/4-20 x 3/4” 821164 Hair Pin, 1/4 x 1-1/8”...

  • Page 91: Automatic Transmission Oil Cooler

    SPRAYTEK DS 300 Serial No. 898628 All 10.1 Automatic Transmission Oil Cooler Item Part No. Qty. Description Serial Numbers/Notes 838340 Oil Cooler 800789 Kit, Oil Cooler Mounting 826590 Hose, 5/16 I.D. 821893 Trim, Push On 809231 Grommet 825264 Hose Clamp >...

  • Page 92: Frame Attachments

    TURF TRUCKSTER Serial No. All 11.1 Frame Attachments...
  • Page 93 TURF TRUCKSTER Item Part No. Qty. Description Serial Numbers/Notes Front Suspension See 14.1, 15.1 and 16.1 452415 Screw, M12-1.75 x 80 mm Flange 450454 Nut, M10-1.5 Hex Flange 4139806G03 Wheel and Tire, Multi Rib Standard 4139806G03 Wheel and Tire, Turf Master...

  • Page 94: Frame, Lower Rops And Platform

    TURF TRUCKSTER Serial No. All 12.1 Frame, Lower ROPS and Platform Gas Engine and Transmission Mounts...
  • Page 95 TURF TRUCKSTER Item Part No. Qty. Description Serial Numbers/Notes 893235.7 Frame, Main 4 Wheel Standard Frame, Painted Black 893235G Frame, Galvanized Main 4 Wheel Optional Galvanized Frame 893145.7 ROPS, Lower 893199.7 Platform, Truckster Standard Platform, Painted Black 893199-G02 Platform, Galvanized Truckster...

  • Page 96: Rear Axle

    TURF TRUCKSTER Serial No. All 13.1 Rear Axle 21 / 22...
  • Page 97 TURF TRUCKSTER Item Part No. Qty. Description Serial Numbers/Notes 893491 11.16:1 Rear Differential Assembly Diesel Units, See 38.1 894509 14.21:1 Rear Differential Assembly Gas Units, See 38.1 800198 Locknut, 1/2-20 809180 Flat Washer, 1/2 893862 Spring, Leaf 843238 • Bushing, Nylatron...

  • Page 98: Front Control Arms

    TURF TRUCKSTER Serial No. All 14.1 Front Control Arms...
  • Page 99 TURF TRUCKSTER Item Part No. Qty. Description Serial Numbers/Notes 36106G01 Frame, 4 Wheel Steering 893266 Upper Control Arm 893233 Left Side Lower Control Arm 893234 Right Side Lower Control Arm 844148 Upper Ball Joint • Boot • Boot Retainer • Screw, 5/16-24 x 1” Hex Head Black Oxide Finish, Grade 8 •...

  • Page 100: Steering Linkage

    TURF TRUCKSTER Serial No. All 15.1 Steering Linkage...
  • Page 101 TURF TRUCKSTER Item Part No. Qty. Description Serial Numbers/Notes 841255 Steering Gear 305134 • Nut, 7/8-14 Hex Jam 308008 • Lockwasher, 7/8 841336 Arm, Pitman 894635 Strut Assembly 452413 Screw, M12-1.75 x 60 mm Hex Head 450455 Nut, M12-1.75 Hex Flange Grade 10.9...

  • Page 102: Front Brakes

    TURF TRUCKSTER Serial No. All 16.1 Front Brakes ★ Hose Clamp Location ★ ★ ★ ★...
  • Page 103 TURF TRUCKSTER Item Part No. Qty. Description Serial Numbers/Notes 2702257.7 Front Hub 808088 • Outer Bearing Cup 814474 • Inner Bearing Cup 800908 • Bolt, M12-1.5 x 42 mm Wheel 385174 Outer Bearing Cone 815403 Inner Bearing Cone 817928 Seal, Grease...

  • Page 104: Steering Column

    TURF TRUCKSTER Serial No. All 17.1 Steering Column Lower ROPS 23 / 24 Power Steering Hose Routing...
  • Page 105 TURF TRUCKSTER Item Part No. Qty. Description Serial Numbers/Notes 893571 Tube, Steering Mount 800930 Screw, M8-1.25 x 16 mm Flange 306799 Lockwasher, 5/16 External Tooth 450453 Nut, M8-1.25 Flange 893344 Shaft, Steering 887259 Bearing Assembly 828590 • Housing, Bearing 808060 •...

  • Page 106: Diesel Radiator

    TURF TRUCKSTER Serial No. 84043 All 18.1 Diesel Radiator Serial No. 84044 All...
  • Page 107 TURF TRUCKSTER Item Part No. Qty. Description Serial Numbers/Notes 843862 Tube, 1/4” I.D. Clear Vinyl 10 Foot Length, Cut to 8” 835805 Hose, Radiator Overflow 300646 Screw, 1/4-20 x 3/4” Hex Head 306396 Lockwasher, 1/4 308090 Flat Washer, 1/4 450452...

  • Page 108: Gas Radiator

    TURF TRUCKSTER Serial No. 898627 All 19.1 Gas Radiator Serial No. 898628 All...
  • Page 109 TURF TRUCKSTER Item Part No. Qty. Description Serial Numbers/Notes 843296 Tube, 1/4” I.D. Clear Vinyl 10 Foot Length, Cut to 8” 835805 Hose, Radiator Overflow 300646 Screw, 1/4-20 x 3/4” Hex Head 306396 Lockwasher, 1/4 308090 Flat Washer, 1/4 450452...

  • Page 110: Diesel Engine And Transmission Mounting

    TURF TRUCKSTER Serial No. 84043 All 20.1 Diesel Engine and Transmission Mounting Serial No. 84044 All...
  • Page 111 TURF TRUCKSTER Item Part No. Qty. Description Serial Numbers/Notes Engine and Clutch See 23.1 894580 Frame, Engine Mount Mount, Engine See 11.1, Left shown, right similar 306836 Screw, 3/8-16 x 2-1/4” Hex Head 306891 Flat Washer, 3/8 841885 Mount, Engine Isolation...

  • Page 112: Gas Engine And Mt Mounting

    TURF TRUCKSTER Serial No. 898627 All 21.1 Gas Engine and MT Mounting...
  • Page 113 TURF TRUCKSTER Item Part No. Qty. Description Serial Numbers/Notes Engine Assembly See 24.1 4138963 Manual Transmission See... 11311-67H00 Plate, Clutch Housing 2702548 Clutch Disc 4117900 Pressure Plate 2702547 Screw, M8-1.25 x 16 mm Lockwasher 2702688 Stud, M10-1.25 x 65 mm 2702687 Screw, M10-1.25 x 75 mm Flange...

  • Page 114: Gas Engine And At Mounting

    TURF TRUCKSTER Serial No. 898628 All 22.1 Gas Engine and AT Mounting...
  • Page 115 TURF TRUCKSTER Item Part No. Qty. Description Serial Numbers/Notes Engine Assembly See 24.1 4138668 Automatic Transmission See... 11311-67H20 Plate, Transmission Housing 2702701 Torque Converter 4120097 Plate, Drive 2702702 Screw, M8-1.25 x 9.5 mm Flange 2702688 Stud, M10-1.25 x 65 mm 2702686 Screw, M10-1.25 x 55 mm Flange...

  • Page 116: Diesel Engine And Clutch

    TURF TRUCKSTER Serial No. 84043 All 23.1 Diesel Engine and Clutch Serial No. 84044 All ★ ★...
  • Page 117 TURF TRUCKSTER Item Part No. Qty. Description Serial Numbers/Notes Engine, Perkins Model 403C-11 Spec HH70581U 842553 • Engine Oil Filter 185086321 • Starter Order directly from Perkins 843760 Bracket, Hydraulic Pump 844272 Mount, Right Side Engine 838440 Screw, M12-1.25 x 25 mm Flange...

  • Page 118: Suzuki Gas Engine

    TURF TRUCKSTER Serial No. 898627 All 24.1 Suzuki Gas Engine Serial No. 898628 All...
  • Page 119 TURF TRUCKSTER Item Part No. Qty. Description Serial Numbers/Notes Suzuki K6 Engine See ... through ... for Service 2701908 • Oil Filter 4120026 • Belt, Water Pump and Alternator 4120017 • Right Side Engine Mount 01550-10253 • Bolt, RIght Side Engine Mount 11710-65H01 •...

  • Page 120: Engine Speed Control

    TURF TRUCKSTER Serial No. 84043 All 25.1 Engine Speed Control Serial No. 84044 All Part of Engine Item Part No. Qty. Description Serial Numbers/Notes 2703683 Throttle Cable See 3.1 for other end of cable 844130 Cable, Governor Control See 3.1 for other end of cable...

  • Page 121: Exhaust

    TURF TRUCKSTER Serial No. 898627 All 26.1 Exhaust Serial No. 898628 All Tailpipe outlet to be parallel to ground. Item Part No. Qty. Description Serial Numbers/Notes 4119866.8 Muffler 2703800.8 Tube, Exhaust Inlet 314990013 Gasket, Exhaust Order directly from Perkins 452389 Screw, M8-1.25 x 25 mm Flange...

  • Page 122: Governor Linkage

    TURF TRUCKSTER Serial No. 898627 All 27.1 Governor Linkage Serial No. 898628 All...
  • Page 123 TURF TRUCKSTER Item Part No. Qty. Description Serial Numbers/Notes 4115258 Plate, Governor 450010 Screw, M6-1 x 75 mm Hex Head 306396 Lockwasher, 1/4 308090 Flat Washer, 1/4 4119526 Spacer, 7/16 x 2-1/8” 452381 Screw, M6-1 x 40 mm Hex Flange 2700522 Spacer, 7/16 x 1”...

  • Page 124: Governor

    TURF TRUCKSTER Serial No. 898627 All 28.1 Governor Serial No. 898628 All 24 / 25...
  • Page 125 TURF TRUCKSTER Item Part No. Qty. Description Serial Numbers/Notes 4115000 Governor 111812 • Yoke, Spool 111814 • Washer, Thrust 111816 • Washer, Thrust 111817 • Spool, Governor 112840 • Bearing, Thrust 130728 • Nut, 1/4-20 Hex Jam 111813 • Seal, Shaft 160410 •...

  • Page 126: Gas Engine Remote Oil Fill

    TURF TRUCKSTER Serial No. 898627 All 29.1 Gas Engine Remote Oil Fill Serial No. 898628 All Item Part No. Qty. Description Serial Numbers/Notes 601942 Brace, Governor 548827 Screw, 1/4-20 x 1/2 Hex Flange 601580 Bracket, Remote Oil Fill 843420 O-Ring...

  • Page 127: Gas Engine Exhaust

    TURF TRUCKSTER Serial No. All 30.1 Gas Engine Exhaust Tailpipe outlet to be parallel to ground. Item Part No. Qty. Description Serial Numbers/Notes 4116284.8 Muffler 36072-G01 Catalytic Converter 2700144 Bolt, Muffler Flange 2700145 Spring, Muffler Flange 838295.8 Strap, Muffler Hanger 450193 Screw, M8-1.25 x 30 mm Hex Head...

  • Page 128: Diesel Fuel System

    TURF TRUCKSTER Serial No. 84043 All 31.1 Diesel Fuel System Serial No. 84044 All...
  • Page 129 TURF TRUCKSTER Item Part No. Qty. Description Serial Numbers/Notes 826590 Hose, Fuel Tank to Trap 5/16” 25 Foot Roll, Cut to 13-1/2” 825624 Clamp, Hose 826590 Hose, Pre Filter to Pump 5/16” 25 Foot Roll, Cut to 9-1/2” 826590 Hose, Pump to Fuel Filter 5/16”...

  • Page 130: Gas Fuel System

    TURF TRUCKSTER Serial No. 898627 All 32.1 Gas Fuel System Serial No. 898628 All...
  • Page 131 TURF TRUCKSTER Item Part No. Qty. Description Serial Numbers/Notes 826590 Hose, Fuel Tank to Adapter 5/16” 25 Foot Roll, Cut to 14” 11394G4 Clamp, Hose 7332 Hose, Adapter to Pump 7/16” Cut to 3” 826590 Hose, Pump to Fuel Filter 5/16”...

  • Page 132: Hydraulic Tank And Filter

    TURF TRUCKSTER Serial No. All 33.1 Hydraulic Tank and Filter NOTE: PREVENT HYDRAULIC SYSTEM DAMAGE H O S E R E M O V E D F R O M A C C E S S O R Y M U S T...
  • Page 133 TURF TRUCKSTER Item Part No. Qty. Description Serial Numbers/Notes 894675 Tank, Hydraulic 452388 Screw, M8-1.25 x 20 mm Flange 450453 Nut, M8-1.25 Hex Flange 452399 Screw, M10-1.5 x 25 mm Flange 800113 Plug, 1/2 NPT 893539 Dipstick, Hydraulic Tank 827486...

  • Page 134: Hydraulic Pump And Filter

    TURF TRUCKSTER Serial No. All 34.1 Hydraulic Pump and Filter...
  • Page 135 TURF TRUCKSTER Item Part No. Qty. Description Serial Numbers/Notes 844564 Hose, Tank to Filter 836206 Clamp, Hose 844583 Fitting, 90° 844566 Fitting, Straight 844628 Hose, Pump to Selector Valve 844652 Fitting, 9/16-18 x 3/4-16 Straight 844600 Hose, Selector Valve to Coupler 844571 Fitting, 9/16-18 x 3/4-16 90°...

  • Page 136: Lift Cylinder Circuit

    TURF TRUCKSTER Serial No. All 35.1 Lift Cylinder Circuit Lift Cylinder Mounting...
  • Page 137 TURF TRUCKSTER Item Part No. Qty. Description Serial Numbers/Notes 882993 Cylinder, Dump Box 883236 • Seal Kit Texas Hydraulics 884574 • Seal Kit Columbus Hydraulics 886001 • Seal Kit DANA Hydraulics 830810 Pin, Clevis 809265 Hair Pin 821893 Trim, Push On...

  • Page 138: Diesel Electrical Components

    TURF TRUCKSTER Serial No. 84043 All 36.1 Diesel Electrical Components Serial No. 84044 All Item 8 Routing Engine Harness Ground Wires...
  • Page 139 TURF TRUCKSTER Item Part No. Qty. Description Serial Numbers/Notes 450452 Nut, M6-1 Hex Flange 452378 Screw, M6-1 x 20 mm Hex Flange 889673 Solenoid, Starter 120052 • Lockwasher, #10 132520 • Nut, #10-32 Hex 306325 • Lockwasher, 5/16 306932 • Nut, 5/16-18 Hex...

  • Page 140: Gas Electrical Components

    TURF TRUCKSTER Serial No. 898627 All 37.1 Gas Electrical Components Serial No. 898628 All Item 8 Routing Engine Harness Ground Wires Black Wires Wires...
  • Page 141 TURF TRUCKSTER Item Part No. Qty. Description Serial Numbers/Notes 450452 Nut, M6-1 Hex Flange 452378 Screw, M6-1 x 20 mm Hex Flange 889673 Solenoid, Starter 120052 • Lockwasher, #10 132520 • Nut, #10-32 Hex 306325 • Lockwasher, 5/16 306932 • Nut, 5/16-18 Hex...

  • Page 142: Differential Assembly

    TURF TRUCKSTER 38.1 Differential Assembly Serial No. All Part Number 894509 (14.21:1 Differntial) Part Number 893591 (11.16:1 Differential)
  • Page 143 TURF TRUCKSTER Item Part No. Qty. Description Serial Numbers/Notes 894509 Differential Assembly 14.21:1 Differential 893491 Differential Assembly 11.16:1 Differential 891829 • Differential Housing See 39.1 • Axle Tubes and Shafts See 40.1 • Input, Main and Jack Shaft See 42.1 •...

  • Page 144: Differential Housing

    TURF TRUCKSTER Serial No. All 39.1 Differential Housing Part Number 891829...
  • Page 145 TURF TRUCKSTER Item Part No. Qty. Description Serial Numbers/Notes 891829 Differential Housing • Bearing Caps 306829 • Screw, 7/16-14 x 2” Hex Head 103687 • Flat Washer, 5/16 111074 • Plug, Drain 111758 • Stud, 3/8-16 & 3/8-24 x 1-23/32 306322 •...

  • Page 146: Axle Tubes And Shafts

    TURF TRUCKSTER Serial No. All 40.1 Axle Tubes and Shafts...
  • Page 147 TURF TRUCKSTER Item Part No. Qty. Description Serial Numbers/Notes 894509 Differential Assembly 14.21:1 Differential 893491 Differential Assembly 11.16:1 Differential 2702535.7 • Tube, Right Side Axle 2702534.7 • Tube, Left Side Axle 2700530 • Left Side Axle Assembly 2700514 • • Shaft, Left Side Axle 845346 •...

  • Page 148: Front And Shifter Cover

    TURF TRUCKSTER 41.1 Front and Shifter Cover Serial No. All 14.21:1 Differential (894509) 11.16:1 Differential (893491) 11 / 12...
  • Page 149 TURF TRUCKSTER Item Part No. Qty. Description Serial Numbers/Notes 836431 Cover, Front 306322 Screw, 5/16-18 x 7/8” Hex Head 103867 Flat Washer, 5/16 307776 Screw, 3/8-16 x 2-3/4” Hex Head 810437 Clamp, 1/2” P 14.21:1 Differential Only 810435 Clamp Right Side Brake Tube...

  • Page 150: Input, Main And Jack Shafts

    TURF TRUCKSTER 42.1 Input, Main and Jack Shafts Serial No. All 14.21:1 Differential (894509) 11.16:1 Differential (893491)
  • Page 151 TURF TRUCKSTER Item Part No. Qty. Description Serial Numbers/Notes 836421 Shaft, Input 836693 Bearing, Ball 809254 Ring, External Retaining 800695 Ring, External Retaining 800737 Ring, Internal Retaining 837020 Baffle, Vent 812325 Seal, Oil 836422 Shaft, Main 812009 Bearing, Ball 836429...

  • Page 152: Transmission Clutch Release-Shift Selector 116 44.1

    TURF TRUCKSTER Serial No. 84043 - All 43.1 Transmission Clutch Release-Shift Selector Serial No. 84044 - All Diesel Engine Only...
  • Page 153 TURF TRUCKSTER Item Part No. Qty. Description Serial Numbers/Notes Transmission Case See 44.1 Shift Assembly See 46.1 845223 Gasket, Shift Case 2702659 Screw, M8-1.25 x 40 mm 01550-08553 Screw, M8-1.25 x 55 mm 844228 Stop, 5th Gear Lockout 548222 Set Screw, #8-32...
  • Page 154 TURF TRUCKSTER Serial No. 84043 - All 44.1 Transmission Case Serial No. 84044 - All Diesel Engine Only...
  • Page 155 TURF TRUCKSTER Item Part No. Qty. Description Serial Numbers/Notes 24700-85200 Case, Transmission Upper and Lower Half 2702690 • Pin, Alignment 09103-08131 • Screw, M8-1.25 x 120 mm Flange 2702470 • Screw, M8-1.25 x 30 mm Flange 2702659 • Screw, M8-1.25 x 40 mm Flange 2702471 •...

  • Page 156: Input And Main Shaft

    TURF TRUCKSTER Serial No. 84043 - All 45.1 Input and Main Shaft Serial No. 84044 - All...
  • Page 157 TURF TRUCKSTER Item Part No. Qty. Description Serial Numbers/Notes 24110-80410 Shaft, Input 4th Gear 2702561 Bearing, Needle 09262-28002 Bearing, Input Shaft Ball 09380-28007 Cir Clip 24410-83000 High Speed Syncroniser Includes Hub and Sleeve 24471-60A00 Key, Syncronizer 24442-81A20 Spring, High Speed Syncronizer...

  • Page 158: Gear Shift Fork Linkage

    TURF TRUCKSTER Serial No. 84043 - All 46.1 Gear Shift Fork Linkage Serial No. 84044 - All...
  • Page 159 TURF TRUCKSTER Item Part No. Qty. Description Serial Numbers/Notes 25411-85201 Shaft, Low Speed Fork 1st and 2nd Gear 25420-85201 Shaft, High Speed Fork 3rd and 4th Gear 25451-85261 Shaft, Reverse Fork Reverse 06111-12004 Ball 25415-83000 Spring, Detent 09261-03017 Roller 25211-85201...

  • Page 160: Diesel Engine Electrical Schematic

    TURF TRUCKSTER Serial No. 84043 All 47.1 Diesel Engine Electrical Schematic Serial No. 84044 All Automatic Transmission Controller Heater Accessory 20 A 10 A Accessory Ye/Rd Clutch Connector 1 Ye/Rd Switch 10 A Accessory Ye/Rd Wh/Gn Connector 2 10 A...
  • Page 161 TURF TRUCKSTER Tail Light Bu/Bk Bu/Bk Rd/Bk Rd/Bk Single Brake Horn Horn Tail Light Light Button Harness Cab Stop Og/Bk Light Accessory Brake Wh/Rd Accessory Connector 1 Brake Og/Bk Accessory Connector 2 Brake Pedal 15 A Switch Wh/Rd Jumper Og/Bk...
  • Page 162 TURF TRUCKSTER...

  • Page 164: Diesel Engine Main Harness

    TURF TRUCKSTER Serial No. All 48.1 Diesel Engine Main Harness Part Number 894266 Engine Harness Engine Harness Connector #1 Connector #2 Engine Harness Connector Engine Harness (Gas Only) Connector #3 Cab Stop Light (Option) Flasher Jumper Plug (Option) Tail Light Harness...
  • Page 165 TURF TRUCKSTER Item Part No. Qty. Description Serial Number / Notes 825973 Connecter, Six Male Terminal 825866 Terminal, 1/4” Male 14-16 Gauge Single Wire 825961 Terminal, 1/4” Male 10 Gauge Two Wire 829630 Connector, Four Female Terminal 825748 Terminal, 1/4” Female 14-16 Gauge...

  • Page 166: Diesel Engine And Fan Harness

    TURF TRUCKSTER Serial No. All 49.1 Diesel Engine and Fan Harness Part Numbers 601572 & 601586 Starter Parking Brake Ground Wires Glow Plug Starter Solenoid Fuel Solenoid Diode Engine Harness Connectors Connector #1 Diodes Engine Harness Connector #2 Engine Harness...
  • Page 167 TURF TRUCKSTER Item Part No. Qty. Description Serial Numbers/Notes 601572 Engine Harness 825877 • Connector, Six Female Terminal 825748 • Terminal, 1/4” Fem. 14-16 Gauge Single Wire 825878 • Terminal, 1/4” Fem. 10 Gauge Two Wire 829630 • Connector, Four Male Terminal 825961 •...

  • Page 168: Gas Engine Electrical Schematic

    TURF TRUCKSTER Serial No. 898627 All 50.1 Gas Engine Electrical Schematic Serial No. 898628 All Bn/Ye Gn/Wh Bk/Rd Bk/Rd Wh/Rd Wh/Rd Pk/Gn Pk/Gn Rd/Wh Timing Bk/Gn Plug Gn/Wh Gn/Wh Bl/Wh Diagnostic Plug Rd/Wh Bl/Wh Bk/Wh Bk/Wh Shifter Switch (Automatic Gn/Pk...
  • Page 169 TURF TRUCKSTER Gn/Bk Bk/Wh Shifter Rd/Ye Bk/Wh Light 25 A Bk/Wh Bk/Wh Wh/Rd Rd/Bk 15 A Rd/Og Bn/Ye Bn/Ye 10 A Gn/Bk Gn/Wh Gn/Wh 10 A Bk/Rd Motor Wh/Rd Relay Pk/Gn Pk/Gn Bk/Rd Bk/Rd Bk/Rd Fuel Pk/Bu Pk/Bu Fuel Pump...
  • Page 170 TURF TRUCKSTER Gn/Bk Bk/Wh Bk/Wh Bk/Wh Bk/Wh Bk/Wh Bk/Wh 20 A 10 A Clutch Switch Ye/Rd (Manual Transmission) Ye/Rd 10 A Pk/Bu Wh/Og Wh/Gn 10 A Accessory Accessory Accessory Accessory Accessory ACC - B + A Ignition OFF - None...
  • Page 171 TURF TRUCKSTER Tail Light Bu/Bk Bu/Bk Brake Light Rd/Bk Rd/Bk Single Horn Horn Tail Light Button Harness Cab Stop Og/Bk Light Accessory Brake Wh/Rd Accessory Connector 1 Brake Og/Bk Accessory Connector 2 Power Point Bk/Ye Brake Pedal 15 A Switch...

  • Page 172: Gas Engine Schematic

    TURF TRUCKSTER 51.1 Gas Engine Schematic Br/Bk Br/Bk Bn/Wh Bn/Wh Og/Gn Wh/Gn Bk/Bu Rd/Bu Rd/Bu Rd/Ye Rd/Ye Rd/Pk Rd/Pk Bn/Rd Bn/Rd Wh/Rd Wh/Rd Wh/Bk Wh/Bk Bu/Ye Bu/Ye Gn/Ye Ignition Resistor Rd/Bu Rd/Bu Gn/Ye Gn/Rd Bu/Ye Bu/Bk Gn/Rd Bu/Wh Manifold Gn/Bk...
  • Page 173 TURF TRUCKSTER Injector #1 Bk/Rd Br/Bk Br/Bk Bn/Wh Injector #2 Bk/Rd Bn/Wh Injector #3 Bk/Rd Rd/Bu Bk/Rd Bk/Rd Rd/Ye Rd/Bu Rd/Bu Rd/Pk Oxygen Sensor Bu/Ye Rd/Ye Rd/Pk Bn/Rd Bk/Wh Bk/Rd Knock Bk/Rd Wh/Rd Sensor Bk/Rd Wh/Bk Bu/Ye Bu/Ye Crank Position...

  • Page 174: Gas Main Harness

    TURF TRUCKSTER Serial No. All 52.1 Gas Main Harness Part Number 4115709 Engine Harness Speed Connector Connector Shift Sensor Back-Up Solenoid Switch 17” Shift Switch Parking Brake Back-Up Switch Alarm 30” Starter 18” 21” Fuel Pump Solenoid 20-1/2” Fuel Sender...
  • Page 175 TURF TRUCKSTER Item Part No. Qty. Description Serial Number / Notes 825973 Connecter, Six Male Terminal 825886 Terminal, 1/4” Male 14-16 Gauge Single Wire 825961 Terminal, 1/4” Male 10 Gauge Two Wire 829631 Connector, Four Female Terminal 825748 Terminal, 1/4” Female 14-16 Gauge...

  • Page 176: Gas Main Harness (Continued)

    TURF TRUCKSTER 52.1 Gas Main Harness (Continued) Part Number 4115709 Engine Harness Speed Connector Connector Shift Sensor Back-Up Solenoid Switch 17” Shift Switch Parking Brake Back-Up Switch Alarm 30” Starter 18” 21” Fuel Pump Solenoid 20-1/2” Fuel Sender B+ Starter...
  • Page 177 TURF TRUCKSTER Item Part No. Qty. Description Serial Number / Notes 826192 Tubing, 3/4” I.D. Black Convoluted 25 Foot Bulk 826193 Tubing, 7/16” I.D. Green Convoluted 25 Foot Bulk 4116015 Connector, 12 Contact Male 833257 Terminal, Female 838463 Seal, Wire...
  • Page 178 INDEX 00414-G5.....89 111814......89 24780-83010..... 119 2700913 ....139 009034880.....71 111816......89 24821-09001..... 123 2700933 ....141 01116-G01....87 111817......89 25121-85051..... 123 2700993-G01 .... 105 01117-G01....75 111838......69 25211-85201..... 123 2701107.7 ....97 01117-G02....75 111893......87 25221-83002..... 123 2701129 ...... 87 01421-08303 .....119 111898.... 43 25221-85202.....
  • Page 179 INDEX 2702702...... 79 306450 ......91 4115400 ...... 73 2702756...... 79 306463 ....39 4115904 ...... 95 45045341 2702883....123 306488 ..39 4116015 ....141 ..57 2702893...... 77 306506 ......89 4116017 ....105 ... 75 2702906...... 79 306514 ......
  • Page 180 INDEX 548061......61 800271....43 814079 ......45 826590 ....55 548079......63 800279......97 814474 ......67 826726 ....129 548159......39 800294......61 814476 ...... 109 827182 ......47 548171......45 800344......39 815403 ......67 827486 ......97 548175.. 39 800446......47 815860 ......91 827821 ......43 548201.......115 800485......65 816307 ......
  • Page 181 INDEX 834036......93 838770 ...... 141 842104 ......67 843866 ......89 835101....99 839213 ......45 842359 ...... 115 843876 ......61 835271.... 84 839328 ......69 842360 ...... 115 843942 ......105 835805....71 839752 ......81 842553 ......81 843997 ......43 836206......
  • Page 182 INDEX 845206.7......59 893388......73 894702 ......99 845223.......117 893487......57 894886 ...... 115 845224......73 893488......57 894930 ....67 845231......41 893491....107 894931 ....67 845232......41 893519.......111 894932 ....67 845234......41 893525......59 894933 ....67 845327.......141 893539......97 894934 ....67 845328.......141 893541......41 894935 ....67 845329.......141 893554....
  • Page 183 INDEX...
  • Page 186 Qualidade, prestações e assistência de classe mundial O equipamento de Jacobsen é construído segundo padrões exactos garantidos pela atribuição de ISO 9001 e ISO 14001 a todos os nossos centros de produção. Rede mundial de distribuidores e técnicos formados na fábrica apoiados por Textron PartsXpress para un apoio fiável e de alta qualidade aos nossos produtos.

Table of Contents
