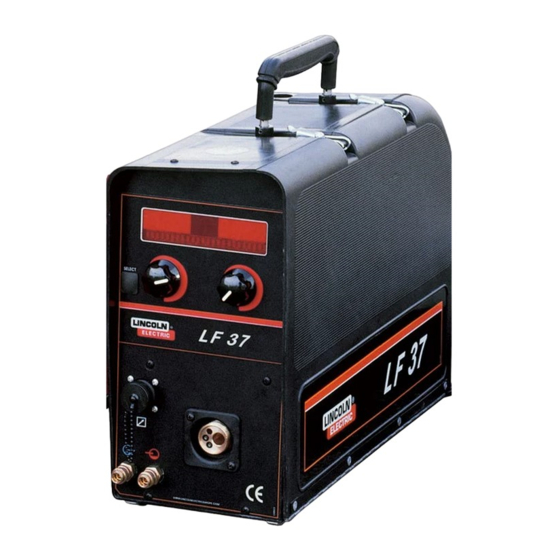

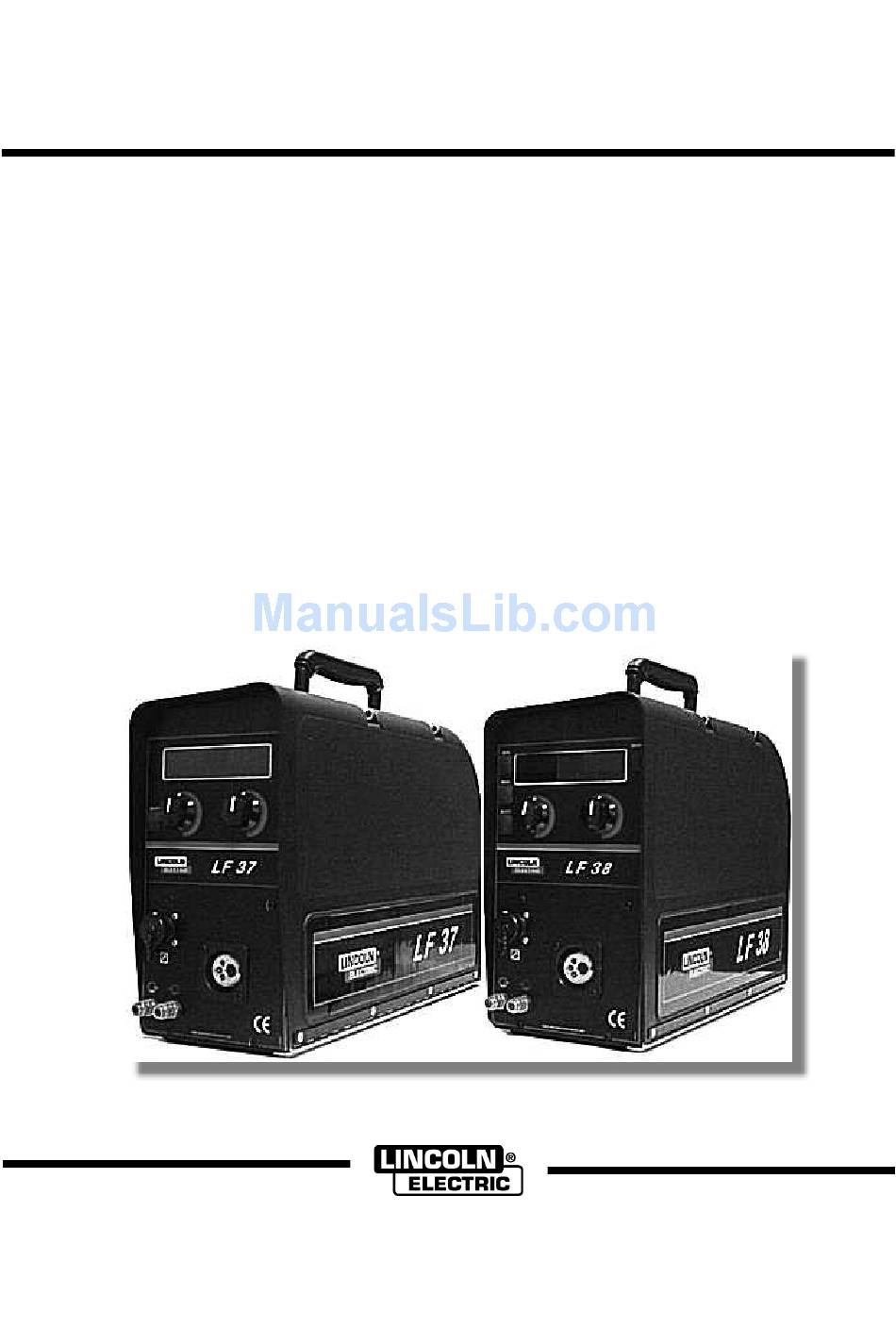

- Page 1 IM1094 09/2016 REV08 LINC FEED 37 &38 OPERATOR’S MANUAL ENGLISH Lincoln Electric Bester Sp. z.o.o. ul. Jana III Sobieskiego 19A, 58-263 Bielawa, Poland www.lincolnelectric.eu...
-
Page 2: Declaration Of Conformity
2014/35/EU, 2014/30/EU and has been designed in compliance with the following standards: EN 60974-5:2013, EN 60974-10:2014 20.04.2016 Piotr Spytek Operations Director Lincoln Electric Bester Sp. z o.o., ul. Jana III Sobieskiego 19A, 58-263 Bielawa, Poland 12/05 English English... -
Page 3: Table Of Contents
12/05 THANKS! For having choosen the QUALITY of the Lincoln Electric products. • Please Examine Package and Equipment for Damage. Claims for material damaged in shipment must be notified immediately to the dealer. • For future reference record in the table below your equipment identification information. Model Name, Code &... -
Page 4: Safety
Failure to follow the instructions in this manual could cause serious personal injury, loss of life, or damage to this equipment. Read and understand the following explanations of the warning symbols. Lincoln Electric is not responsible for damages caused by improper installation, improper care or abnormal operation. -
Page 5: Installation And Operator Instructions
CYLINDER MAY EXPLODE IF DAMAGED: Use only compressed gas cylinders containing the correct shielding gas for the process used and properly operating regulators designed for the gas and pressure used. Always keep cylinders in an upright position securely chained to a fixed support. Do not move or transport gas cylinders with the protection cap removed. - Page 6 Maintenance WARNING For any maintenance or repair operations it is recommended to contact the nearest Technical Service Amphenol Connection: 8-Pin connection to power Center or Lincoln Electric. Maintenance or repairs source. performed unauthorized service centers personnel will null and void the manufacturer's Fast-Mate Adapter: Input power connection.
- Page 7 A. Non Synergic Welding Mode (CV Mode) Description: During Non Synergic (CV Mode) welding, the pre-setting of the welding parameters (Wire Feed Speed and Voltage) are independent from one another. Set-Up: LF 37: This machine is always in Non-Synergic Welding Mode LF 38: While pressing the Prog button, rotate the left knob until “NON SYNERGIC”...
- Page 8 B. Synergic Welding Mode (LF 38 only) Description: During Synergic welding, the wire feeder determines the optimal voltage characteristics based upon the selected wire type and diameter. Only the wire feed speed needs to be regulated by the user. The user can then adjust the height of the arc using the right knob.
- Page 9 C. Selecting Welding Parameter Description: The following options can be regulated using the Select button and the procedure below: 2/4 Step Trigger, Burnback, Run-In, Crater, Hot/Soft Start, Pre-Flow and Post-Flow. Press SELECT button KNOB 1: KNOB 2: Turn Right () or Left () Turn Right() or Left () 2 strokes: Keep trigger pushed during welding.
- Page 10 D. Memory Function - Saving, Reading and Erasing (LF 38 Only) Description: The Memory function can be used to recall up to 10 specific sets of welding parameters defined by the user. Once the welding parameters have been defined, the following steps can be taken to write these parameters to memory. Press the MEM button KNOB 1: Button "ENTER"...
- Page 11 E. Memory Function - Recalling Memory (LF 38 Only) Description: The saved Memory configurations can be recalled. Set-Up: While pressing the Prog button, rotate the left knob until “RECALL MEMORY” appears on the display. Selection: Release the Prog button, then rotate the left knob to scroll through the saved memory configurations.
- Page 12 F. Memory Function - Locking / Unlocking Memory (LF 38 Only) Description: The Memory values can be locked / unlocked with a 4-digit code. Press Mem & Enter Button Enter Knob 2: Turn Right () or Left () Confirm NO to Exit this menu ...
- Page 13 G. Configuration Menu Description: This hidden menu allows you to change the Machine Configuration. To enter the set-up menu, press the Select pushbutton and at the same time Switch ON the machine. Knob 1: Knob 2: Turn right or left Turn right or left Choice of the configuration Choice...
-
Page 14: Error Messages
Error messages: Message Description Misadjustment(s) Corrective Action Unstable Welding The generator is unable to Voltage deliver the pre-set value (voltage) requested by the wire feeder. It can appears: • • During welding: Check that welding pre-set Adjust parameters. parameters (WFS and Voltage) matches the application (wire diameter, thickness, gas…). -
Page 15: Electromagnetic Compatibility (Emc)
Lincoln Electric. Before installing the machine, the operator must check the work area for any devices that may malfunction because of electromagnetic disturbances. -
Page 16: Weee
12/05 Part List reading instructions • Do not use this part list for a machine if its code number is not listed. Contact the Lincoln Electric Service Department for any code number not listed. • Use the illustration of assembly page and the table below to determine where the part is located for your particular code machine.
