CRADLEPOINT
PRODUCT MANUAL
Cellular Broadband Adapter

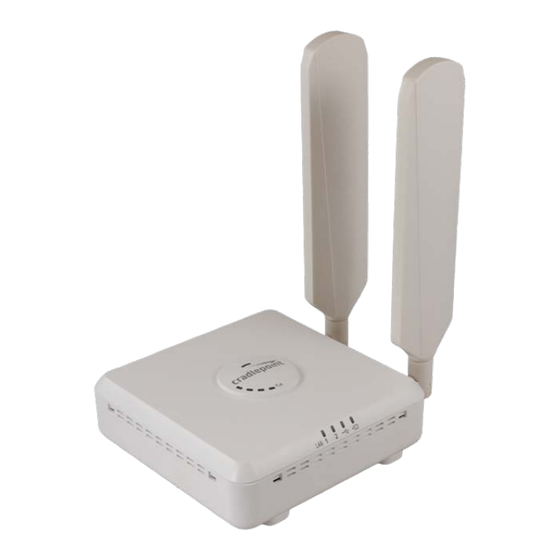

ARC CBA850
For additional information, visit
knowledgebase.cradlepoint.com

Advertisement

Table of Contents
loading

Related Manuals for Cradlepoint ARC CBA850

Summary of Contents for Cradlepoint ARC CBA850

  • Page 1 CRADLEPOINT ARC CBA850 PRODUCT MANUAL Cellular Broadband Adapter For additional information, visit knowledgebase.cradlepoint.com...

  • Page 2: Trademarks

    CBA850 | USER MANUAL Firmware version 5.4.0 CRADLEPOINT PREFACE Cradlepoint reserves the right to revise this publication and to make changes in the content thereof without obligation to notify any person or organization of any revisions or changes. MANUAL REVISIONS...

  • Page 3: Table Of Contents

    ................ 46 TATISTICS ............3 YSTEM EQUIREMENTS ..............48 YSTEM CBA850 O ............4 VERVIEW ARC CBA850 S ........6 RADLEPOINT ERIES 6 NETWORK SETTINGS ............49 2 HARDWARE OVERVIEW ..........12 ............50 ONTENT ILTERING DHCP S ..............54 ERVER .........
  • Page 4 ........... 136 ONFIGURATION ......154 ............139 EGULATORY AND AFETY NFORMATION YSTEM ONTROL ........ 156 ............140 ARRANTY IABILITY RIVACY YSTEM OFTWARE ............157 PECIFICATIONS © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 2...

  • Page 5: Introduction

    ARC CBA850LPE-GN – 4G LTE/HSPA+/EVDO for T-Mobile in US and Rogers, Bell, and TELUS in Canada System Requirements • An Internet source: a Cradlepoint 3G/4G business-grade modem or USB broadband data modem with active subscription • Windows 2000/XP/7, Mac OS X, or Linux computer •...

  • Page 6: Cba850 Overview

    FAILOVER MADE SIMPLE The Cradlepoint CBA850 3G/4G cellular broadband adapter provides IP passthrough capabilities for any device that requires wireless broadband access. For most applications, simply connect the CBA850 to an existing CPE router configured for WAN failover, and it’s ready to go.
  • Page 7 CradleCare – Access the Experts 24/7 Cradlepoint understands how important and critical network uptime is to your business. We have a knowledgeable enterprise technical support staff that is available anytime via phone, chat, or email to protect your investment. Our experts will expedite issue resolution and provide flexible device-by-device solutions to help maximize operational efficiency.

  • Page 8: Cradlepoint Arc Cba850 Series

    CBA850 | USER MANUAL Firmware version 5.4.0 CRADLEPOINT Cradlepoint ARC CBA850 Series ARC Series includes a Cradlepoint 3G/4G business-grade modem with the CBA850 and creates an effortless instant network from high-speed wireless broadband. Cradlepoint integrated business-grade modems are specifically designed to provide the highest level of performance, reliability, and security for 24x7 business-critical applications.
  • Page 9 (maximum torque spec is 7 kgf-cm) GPS: active GPS support Industry Standards & Certs: FCC, Verizon Modem Part Number: MC400LPE SIM: two 2FF SIM slots © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 7...
  • Page 10 (maximum torque spec is 7 kgf-cm) GPS: active GPS support Industry Standards & Certs: PTCRB, FCC, IC, AT&T Modem Part Number: MC400LPE SIM: two 2FF SIM slots © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 8...
  • Page 11 (maximum torque spec is 7 kgf-cm) GPS: active GPS support Industry Standards & Certs: FCC, Sprint Modem Part Number: MC400LPE SIM: two 2FF SIM slots © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 9...
  • Page 12 (maximum torque spec is 7 kgf-cm) GPS: active GPS support Industry Standards & Certs: CE, GCF-CC Modem Part Number: MC400LP3 SIM: two 2FF SIM slots © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 10...
  • Page 13 (maximum torque spec is 7 kgf-cm) GPS: active GPS support Industry Standards & Certs: PTCRB, FCC, IC Modem Part Number: MC400LPE SIM: two 2FF SIM slots © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 11...

  • Page 14: Hardware Overview

    CBA850 | USER MANUAL Firmware version 5.4.0 CRADLEPOINT 2 HARDWARE OVERVIEW © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 12...

  • Page 15: Ports, Buttons, And Switches

    NOTE: USB port may not be used for external modem if router is being run using PoE. Power On/Off: • I = On • O = Off © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 13...
  • Page 16 Console Port: Used for Out-of-Band Management (OOBM) when connected to console port of connected device. Refer to the following table for a pinout of the CBA850 Console Port: CP Console RJ45 Function Direction © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 14...

  • Page 17: Leds

    CBA850 | USER MANUAL Firmware version 5.4.0 CRADLEPOINT LEDs Modem Signal Strength: The bar LEDs indicate the signal strength from the active 3G/4G modem (Cradlepoint business-grade modem or USB modem). A blinking LED indicates ½ bar. © 2015 CRADLEPOINT, INC.

  • Page 18: Quick Start

    3. Attach modem cover and insert screw if desired. 4. Attach included modem antennas. 5. Connect to a power source. 6. Connect to a computer or other network equipment. © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES...

  • Page 19: Accessing The Administration

    Wizard. Follow the instructions given with the Wizard or see Getting Started – First Time Setup for more information about using the First Time Setup Wizard. © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 17...

  • Page 20: Common Problems

    CBA850 | USER MANUAL Firmware version 5.4.0 CRADLEPOINT Common Problems This section contains some of the most common issues faced by users of the CBA850. Please visit Cradlepoint Knowledge Base at http://knowledgebase.Cradlepoint.com/ for more help and answers to your other questions.
  • Page 21 Then log into the router administration pages and manually upload the firmware. Go to System Settings → System Software and click on “Manual Firmware Upload." If you are still unable to access the Internet after following the above directions, contact Cradlepoint Technical Support for further assistance.

  • Page 22: Web Interface -- Essentials

    Web Interface – Essentials contains the following sections to help you more quickly and easy navigate these administration pages: 4.1 Administrator Login 4.2 Getting Started – First Time Setup 4.3 Quick Links 4.4 Configuration Pages 4.5 IP Passthrough Setup © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 20...

  • Page 23: Administrator Login

    Password. This password is also the last eight digits of the unit’s MAC address. You may have changed the administrator password during initial setup using the First Time Setup Wizard. Log in using your personalized administrator password. © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/...
  • Page 24 • Model Number: CBA850 • Internet Connection: Connected/Disconnected MODEM DETAILS • Manufacturer: The name of the modem manufacturer (Cradlepoint, Novatel, etc.) • Model: The name of the modem model • Signal: The strength of the signal (dBm) • Mode: (LTE, EVDO, HSPA, etc.) ©...

  • Page 25: Getting Started - First Time Setup

    Wizard. (Otherwise, go to Getting Started → First Time Setup). 4. Cradlepoint recommends that you change the router’s ADMINISTRATOR PASSWORD, which is used to log in to the administration pages. 5. You can select your TIME ZONE from a dropdown list. (This may be necessary to properly show time in your router log, but typically your router will automatically determine your time zone through your browser.) Click NEXT.
  • Page 26 6. Configuring Your Access Point Name (APN) If you are using a SIM-based modem (LTE/GSM/HSPA) with your Cradlepoint router, you may need to configure the APN before it will properly connect to your carrier. Wireless carriers offer several APNs, so check with your carrier to confirm the appropriate one to use.
  • Page 27 Protocol – Set this only if your service provider requires a specific protocol and the Auto option chooses the wrong one. Select from: o Auto o Pap o Chap • Username • Password © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 25...
  • Page 28 WAN connections can use. For best results, select an established public IP address. For example, you might ping Google Public DNS at 8.8.8.8 or Level 3 Communications at 4.2.2.2. Click NEXT. © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES...
  • Page 29 CBA850 | USER MANUAL Firmware version 5.4.0 CRADLEPOINT 9. Review the details and record your administrative password. Click APPLY to save the settings and update them to your router. © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES...

  • Page 30: Quick Links

    CRADLEPOINT Quick Links The Cradlepoint logo in the upper left-hand corner of all the administration pages is a link to the Dashboard (Status → Dashboard), which displays fundamental information about the router. The black bar across the top provides quick access to important information and controls.

  • Page 31: Configuration Pages

    (Data Usage) or set the APN for a modem (Connection Manager). System Settings – Provides broad administrative controls. For example, you can upgrade firmware (System Software), or enable remote management of the router (Administration). © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES...
  • Page 32 • If you want to change the content filtering settings for the network created by the CBA850, go to the Network Settings tab. • If you want to track the data usage for your Internet source (such as your Cradlepoint business-grade modem), go to the Internet tab.

  • Page 33: Enterprise Cloud Manager Registration

    CRADLEPOINT Enterprise Cloud Manager Registration To register your device with Cradlepoint Enterprise Cloud Manager, navigate to Getting Started → Enterprise Cloud Manager Registration. Input your ECM Username and ECM Password and click Register. You have now registered the device with Enterprise Cloud Manager.

  • Page 34: Status

    The Status tab displays information about many different aspects of the router. It provides access to eight submenu options: • Client List • Dashboard • GPS • Internet Connections • LLDP • Routing • Statistics • System Logs © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 32...

  • Page 35: Client List

    Hostname: The name by which each computer or device in a network is known. IP: The IP address, or “Internet Protocol address”, specifies a location for each device. MAC: This is the "MAC address", a factory-assigned identifier used to identify a specific attached computer or device. © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/...

  • Page 36: Dashboard

    After the initial setup of the router, every time you log in you will automatically be directed to this Dashboard. Also, you can click on the Cradlepoint logo in the upper left-hand corner to return to the Dashboard from any page.
  • Page 37 For configuration options, see Internet → Connection Manager. The IP address and gateway describe your active WAN source. For DNS server configuration options, see Network Settings → DNS. © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES...
  • Page 38 Router Alerts includes links to the System Software page (for new firmware) and the Connection Manager. © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES...

  • Page 39: Gps

    GPS signal strength. If no information is displayed, check that both the modem and your carrier support GPS. If GPS is supported, make sure the modem is in an area where it can receive a signal from the GPS satellites. © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/...

  • Page 40: Internet Connections

    The Internet Connections submenu option provides a list of attached WAN devices used as the Internet source for the CBA850. Select one of these devices to see detailed information about that particular device. See screenshots below for included detailed information. © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/...
  • Page 41 CBA850 | USER MANUAL Firmware version 5.4.0 CRADLEPOINT © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 39...
  • Page 42 CBA850 | USER MANUAL Firmware version 5.4.0 CRADLEPOINT © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 40...
  • Page 43 CBA850 | USER MANUAL Firmware version 5.4.0 CRADLEPOINT © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 41...
  • Page 44 CBA850 | USER MANUAL Firmware version 5.4.0 CRADLEPOINT © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 42...
  • Page 45 CBA850 | USER MANUAL Firmware version 5.4.0 CRADLEPOINT © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 43...

  • Page 46: Lldp

    Double-click on a device to view details for that device. The information displayed in this popup window varies significantly for different types of devices with different LLDP implementations. To enable LLDP for Ethernet on the WAN and/or LAN side, go to System Settings → Administration and select the LLDP tab. © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/...

  • Page 47: Routing

    CBA850 | USER MANUAL Firmware version 5.4.0 CRADLEPOINT Routing System Routes displays routes associated with networks connected to the router. Static Routes displays user-specified routes configured in Network Settings → Routing. © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 45...

  • Page 48: Statistics

    “Live Diagnostics.” Sample rate and size can be adjusted from the dropdown boxes. Data Usage: A measure of amount of information that is currently being sent or received through the network. Sample rate and size can be adjusted from the dropdown boxes. © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/...
  • Page 49 Failover/Failback/Load Balance: An easy way to view current connective states of the devices plugged into the router as compared to the past. Sample rate and size can be adjusted from the dropdown boxes. © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/...

  • Page 50: System Logs

    Level: Select/Deselect from the following levels to filter messages by priority. • Critical • Error • Warning • Info NOTE: The logs are erased whenever the router is rebooted or loses power. © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 48...

  • Page 51: Network Settings

    LAN (Local Area Networks), the networks you set up with the CBA850. • Content Filtering • DHCP Server • DNS • Firewall • Local Networks • MAC Filter/Logging • Routing © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 49...

  • Page 52: Content Filtering

    50, the addition of an “Allow” rule for espn.go.com with a priority of 51 or greater will allow access. When creating rules keep in mind that some sites use multiple domains, so each domain may need a rule added to produce the desired behavior. © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES...
  • Page 53 • Rule Priority: Higher number rules overrule lower number rules. • Enabled: A rule can be enabled or disabled by selecting or deselecting the checkbox. Click Submit to save your rule changes. © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 51...
  • Page 54 This can have the side effect of being very strict; sites that are hosted across many domains may need every domain added to the list for full functionality. © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES...
  • Page 55 53, which will prevent OpenDNS filtering. If OpenDNS does not appear to be working correctly, enabling this will attempt to bypass those ports when using an OpenDNS content filtering level. © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/...

  • Page 56: Dhcp Server

    While you have the option to manually input the information to reserve an IP address (Hostname, Hardware Addr, IP Addr), it is much simpler to select a device under the Active Leases section and click “Reserve.” The selected device’s information will automatically be added under Reservations. © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/...

  • Page 57: Dns

    CBA850 | USER MANUAL Firmware version 5.4.0 CRADLEPOINT DNS, or Domain Name System, is a naming system that translates between domain names (www.Cradlepoint.com, for example) and Internet IP addresses (206.207.82.197). A DNS server acts as an Internet phone book, translating between names that make sense to people and the more complex numerical identifiers.
  • Page 58 User name: Enter the user name or key provided by the Dynamic DNS service provider. If the Dynamic DNS provider supplies only a key, enter that key for both the User name and Password fields. Password: Enter the password or key provided by the Dynamic DNS service provider. © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/...
  • Page 59 To ensure that the device keeps the same IP address, go to Network Settings → DHCP Server and reserve the IP address for the device by selecting the device in the Active Leases list and clicking “Reserve”. © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/...

  • Page 60: Firewall

    • Local Port(s): The port number(s) that corresponds to the service (Web server, FTP, etc.) on a local computer or device. For example, you might input “80” in the Local Port(s) field to open a port for a Web server on a computer within your network. © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/...
  • Page 61 IPv6 providers, but it cannot be used effectively in all situations. The primary purpose for Cradlepoint’s NPT implementation is for failover/failback and load balancing setups. LAN clients can potentially retain the original IPv6 lease information and may experience a more seamless transition when WAN connectivity changes than if not utilizing NPT.
  • Page 62 • Network IP: Optional field to specify a matching network IP address for this rule to match against. • Netmask: Use this to define a subnet size this rule will match against. • Port Negation: Match on any port that is NOT in the specified port range. © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/...
  • Page 63 • Protocol: Any IP Source • Network IP: 172.22.24.160 (Johnny’s IP address) • Netmask: 255.255.255.255 (This netmask restricts the rule to one single address). • Port(s): 80 © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 61...
  • Page 64 Point to Point Tunneling Protocol. This is enabled by default. • SIP: For Voice over IP using Session Initiation Protocol. • TFTP: Enables file transfer using Trivial File Transfer Protocol. © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES...
  • Page 65 This does not restrict access to LAN-based administration, i.e. devices within your network still have administration access. The individual remote administration services can be enabled under System Settings → Administration --> Remote Management. © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/...
  • Page 66 255.255.255.255 will be used, which means that only the single specified IP address would have remote administration access. © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 64...

  • Page 67: Local Networks

    Each local network can be attached to either (or both) of the following types of interfaces: • Ethernet • VLAN © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 65...
  • Page 68 • Access Control (Admin Access, UPnP Gateway, LAN Isolation) • Attached Interfaces (Ethernet port, VLAN) Click Add to configure a new network, or select an existing network and click Edit to view configuration options. © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/...
  • Page 69 Name: This primarily helps to identify this network during other administration tasks. Hostname: [Default: cp (for Cradlepoint)] The hostname is the DNS name associated with the router's local area network IP address. NOTE: You can access the router’s administration pages by typing the hostname into your browser, so if you change “cp” to another hostname, you can access the administration pages through the new hostname.
  • Page 70 (LAN). The easiest way to enable IP Passthrough mode is with the IP Passthrough Setup Wizard (see Getting Started → IP Passthrough Setup). • Disabled: Disable this network. © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES...
  • Page 71 LAN is passed through from the WAN side. Change this to Static to input your own IPv6 address range here, or select None to explicitly disable IPv6 LAN connectivity. © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES...
  • Page 72 “–“ button). If you want more interface options, you must configure additional interfaces separately. See the LOCAL NETWORK INTERFACES section below (on this same administration page: NETWORK SETTINGS → LOCAL NETWORKS). © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/...
  • Page 73 UPnP Gateway service for computers on this network. • Admin Access: When enabled, users may access these administration pages on this network. © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 71...
  • Page 74 192.168.0.4. The starting IP address for the DHCP server needs to be 192.168.0.5 or higher. Lease Time: (Default: 720 minutes [12 hours]) Specifies how long DHCP-enabled computers will wait before requesting a new DHCP lease. Smaller values are better suited to busy environments. © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/...
  • Page 75 DHCP Server Address: An optional DHCP server address if more than one DHCP server is located on the network. This field is only available when DHCP Relay is enabled. © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES...
  • Page 76 DHCP-enabled computers on your network. • IPv6 DHCP Lease Time: This specifies how long DHCP-enabled computers will wait before requesting a new DHCP lease. Disable SLAAC and DHCP – Disable both IPv6 address configuration modes. © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/...
  • Page 77 In the example shown, the network is enabled from 8-5 on Monday through Friday, but disabled at all other times. © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 75...
  • Page 78 • Auto • 10Mbps - Half Duplex • 10Mbps - Full Duplex • 100Mbps - Half Duplex • 100Mbps - Full Duplex • 1000Mbps - Full Duplex © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 76...
  • Page 79 For example, this ID is referenced in the Local IP Networks configuration to attach this group of Ethernet ports to a network configuration. Use a simple short text phrase to describe a group, such as "main", "guestport", etc. © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES...
  • Page 80 VID: An integer value that is the Virtual LAN ID. Ethernet Group: Select the LAN port with which you want to associate the VLAN ID from a dropdown list. Click Submit to save your configured VLAN. © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES...

  • Page 81: Mac Filter-Logging

    MAC Filter List (Whitelist or Blacklist): Add devices to either your whitelist or blacklist simply by inputting each device’s MAC address. NOTE: Use caution when using the MAC Filter to avoid accidentally blocking yourself from accessing the router. © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/...
  • Page 82 The time/date that is logged is the time of the first connection. The page may need to be refreshed to show the most recent log entries. Double-clicking on entries from this list will add them to the Ignored MAC Addresses list. © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/...

  • Page 83: Routing

    Selecting this option automatically creates this IP Filter Rule. If the IP/Network Address falls outside the LAN IP range, you probably need to select this option. © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/...

  • Page 84: Internet

    The Internet tab provides access to three submenu items for managing a variety of Internet connection options. • Connection Manager • Data Usage • WAN Affinity/Load Balancing © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 82...

  • Page 85: Connection Manager

    Click on the small box at the top of the list to select/deselect all devices for either Load Balance or Enabled. Click on a device in the list to reveal additional information about that device and to enable configuration options. © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/...

  • Page 86: Device Configuration

    • Stats: bytes in, bytes out • Uptime Click “Edit” to view configuration options for the selected device. Click “Control” to view options to activate or update the device. © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES...

  • Page 87: General Settings

    • Download bandwidth: Defines the default download bandwidth for use in Load Balance algorithms. (Range: 128 Kb/s to 76800 Kb/s.) • MTU: Maximum transmission unit. This is the size of the largest protocol data unit that the device can pass. (Range: 46 to 1500 Bytes.) © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES...
  • Page 88 WAN connections can use. For best results, select an established public IP address. For example, you might ping Google Public DNS at 8.8.8.8 or Level 3 Communications at 4.2.2.2. © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/...
  • Page 89 Immediate failback returns you to the use of your preferred Internet source more quickly which may have advantages such as reducing the cost of a failover data plan, but it may cause more interruptions in your network than Usage or Time modes. © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/...
  • Page 90 Override any of the following fields: • IP Address • Subnet Mask • Gateway IP • Primary DNS Server • Secondary DNS Server © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 88...

  • Page 91: Ipv6 Settings

    IPv4 packet and routed back over an IPv4 route. Some tunnel modes do not require upstream ISPs to route or even be aware of IPv6 traffic at all. Some modes are utilized by upstream ISPs to simplify the configuration and rollout of IPv6. © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/...
  • Page 92 IP connectivity without relying on any translation mechanism. In order to achieve this, each client device on the LAN network needs to have a publicly routable IPv6 address. © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/...
  • Page 93 Prefixes specified here only take effect if those supplied by the connection are insufficient to configure your LANs. • Delegated IPv6 Network – Additional network available for delegation to LANs. Example Configuration: © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/...
  • Page 94 Prefixes specified here only take effect if those supplied by the connection are insufficient to configure your LANs. • Delegated IPv6 Network – Additional network available for delegation to LANs. Example Configuration: © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/...
  • Page 95 Prefixes specified here only take effect if those supplied by the connection are insufficient to configure your LANs. • Delegated IPv6 Network – Additional network available for delegation to LANs. Example Configuration: © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/...
  • Page 96 Prefixes specified here only take effect if those supplied by the connection are insufficient to configure your LANs. • Delegated IPv6 Network – Additional network available for delegation to LANs. Example Configuration: © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/...
  • Page 97 Prefixes specified here only take effect if those supplied by the connection are insufficient to configure your LANs. • Delegated IPv6 Network – Additional network available for delegation to LANs. Example Configuration: © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/...

  • Page 98: Modem Settings

    • Force LTE: Connect to LTE only and do not attempt to connect to 3G • Force 3G (EVDO, UMTS, HSPA): Connect to 3G network only • Force 2G (1xRTT, EDGE, GPRS): Connect to 2G network only © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/...
  • Page 99 • AAA Shared Secret (Password): “Authentication, Authorization, and Accounting” password. • Verify AAA Shared Secret. • HA Shared Secret: “Home Agent” shared secret. • Primary HA. © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 97...
  • Page 100 APN, etc. For Verizon modems, only the third slot is editable. Changes made here are written to the modem, so a factory reset of the router will not impact these settings. © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES...
  • Page 101 However if you try to start a different operation or use a different modem, this second request will fail without interfering with the pending operation. © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/...
  • Page 102 Use Manual Firmware Upgrade to instead manually upload firmware from a local computer or device. NOTE: Only Cradlepoint integrated modems have this firmware upgrade option. RESET THE MODEM Click on the Reset button to power cycle the modem.
  • Page 103 The router goes down the list and applies all rules that fit for attached Internet sources. Configuration settings farther down the list will override previous settings. Select any of these rules and click “Edit” to change the settings for a rule. To create a new rule, click “Add.” © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/...
  • Page 104 Select by the manufacturer, such as Sierra Wireless. • Model: Set your rule according to the specific model of modem. • Type (LTE, Modem, HSPA): Select by type of Internet source. © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES...
  • Page 105 – General Settings, IP Overrides, IPv6 Settings, Ethernet Settings, Modem Settings, WiMAX Settings, CDMA Settings, and SIM/APN/Auth Settings – have the same configuration options shown above in the WAN Configuration section (the options for Configuration Rules are the same as they are for individual devices). © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/...

  • Page 106: Data Usage

    The purpose of this agreement is to ensure that you understand that the data numbers for the CBA850 may not perfectly match those of your carrier: Cradlepoint cannot be held responsible. You must accept the agreement by clicking Yes in order to begin creating data usage rules.
  • Page 107 This is a best effort to keep all interfaces with these rules at a similar percentage utilization of © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES...
  • Page 108 Percent of Usage (1-1000): If selected, a custom alert will be sent when your data usage reaches this percentage of your usage cap. For example, you could set this at 90 percent so that you know when your usage is nearing 100 percent of the cap. © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/...
  • Page 109 The rest of the rule settings options match those in the Data Usage Rules. See the section above for additional information about how to configure your template usage rules. © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES...

  • Page 110: Wan Affinity And Load Balancing

    LAN, saving you money. Click “Add” to open the WAN Affinity Policy Editor and create a new WAN Affinity rule. Name: Give a name for your rule that is meaningful to you. © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/...
  • Page 111 WAN Binding Type: You have several options for specifying the type of WAN interface(s) you want associated with your rule. Designate the interface(s) by Port, Manufacturer, Model, Type, Serial Number, MAC Address, or Unique ID. This selection will create a dropdown © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/...
  • Page 112 For proper function you need to create data usage rules for each WAN device you will be load balancing. Make certain to select the "Use with Load Balancing" checkbox in the Data Usage rule editor. © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/...

  • Page 113: System Settings

    CBA850: • Administration • Device Alerts • Enterprise Cloud Manager • Serial Redirector • SNMP Configuration • System Control • System Software © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 111...

  • Page 114: Administration

    Administrator Password. ADVANCED SECURITY MODE When you enable Advanced Security Mode, you have three different options for the Authentication Mode: • Local Users © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES...
  • Page 115 "1.2.3.4", or a DNS name in form of "host.domain.com". Only lower case letters are allowed for a DNS name. Port: Port 49 is default for TACACS+. Shared Secret © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 113...
  • Page 116 "1.2.3.4", or a DNS name in form of "host.domain.com". Only lower case letters are allowed for a DNS name. Port: Port 1812 is common for RADIUS servers. Shared Secret © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 114...
  • Page 117 Time Zone: Select from a dropdown list. Setting your Time Zone is required to properly show time in your router log. Daylight Savings Time: Select this checkbox if your location observes daylight saving time. © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/...
  • Page 118 Enable SSH Server: When the router's SSH server is enabled you may access the router's command line interface (CLI) using the standards-based SSH protocol. Use the username "admin" and the standard system password to log in. SSH Server Port: Default: 22. © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/...

  • Page 119: Remote Management

    Local Management tab. Some Carriers block the remote SSH Access ports. If a ping to the router's WAN port does not work, it is unlikely that remote SSH Access will work. © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/...
  • Page 120 • Enable GPS server on WAN: Enables a TCP server on the WAN side of the firewall, which will periodically send GPS NMEA sentences to connected clients. • Port: Specify desired port. © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES...
  • Page 121 Time in seconds since last update from differential reference stations 0138 Differential reference station ID number Checksum – used by program to check for transmission errors © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 119...
  • Page 122 • SMS is a slow protocol. It can take seconds or up to a few minutes for messages to be delivered. • SMS messages are not encrypted; they are sent in full readable text over the network. © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/...
  • Page 123 This list is blank by default, which means that the router will accept SMS messages from any phone number. Leaving this blank is unsecure, so Cradlepoint recommends that you add phone numbers to this list. Once any numbers are listed, only those numbers have the ability to connect to the router via SMS.
  • Page 124 NOTE: The subject field may be limited to a certain number of characters, so if you get an error when sending the command on the subject line, switch to using the body instead.) © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/...
  • Page 125 This command returns info about the router along with the port names for ports with attached modems. These port names may be helpful for using the commands that follow. Example of response: uptime: 0:35:13 © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES...
  • Page 126 Set the APN on the modem (for SIM-based modems)* • Syntax: <password>,apn,<new APN>,[port,] • Example: 1234,apn,myapn@apn.com, //set APN of highest priority modem • Example: 1234,apn,myapn@apn.com,usb1, //set APN for modem in port usb1 © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 124...
  • Page 127 The “port” parameter is optional. It specifies which port to perform the action on. If not given, the action will happen on the highest priority modem. © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/...
  • Page 128 Set the modem’s APN to the correct setting: 1234,apn,broadband, Verify the APN was set properly: 1234,mstatus, Continue to verify the status periodically to ensure that the modem connects: 1234,rstatus, © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 126...

  • Page 129: System Logging

    Log to attached USB stick: Only enable this option if instructed by a Cradlepoint support agent. This will write a very verbose log file to the root level of an attached USB stick. Please disable the feature before removing the USB stick, or you may lose some logging data.
  • Page 130 CBA850 | USER MANUAL Firmware version 5.4.0 CRADLEPOINT Verbose modem logging: Only enable this option if instructed by a Cradlepoint support agent. Create support log: This functionality allows for a quick collection of system logging. Create this log file when instructed by a Cradlepoint support agent.

  • Page 131: Device Alerts

    • Recurring System Log: The system log is sent periodically. This alert contains all of the system events since the last recurring alert. It can be scheduled for daily, weekly and monthly reports. You also choose the time you want the Alert sent. © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/...
  • Page 132 Advanced: Delivery Options Email Subject Prefix: This optional string is prefixed to the alert subject. It can be customized to help you identify alerts from specific routers. © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 130...
  • Page 133 Retry Attempts: The number of attempts made to send an alert to the mail server. After the attempts are exhausted, the alert is discarded. Retry Delay: The delay between retry attempts. © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES...

  • Page 134: Enterprise Cloudm

    CBA850 | USER MANUAL Firmware version 5.4.0 CRADLEPOINT Enterprise Cloud Manager Cradlepoint ECM is a cloud-based management service for configuring, monitoring, and organizing your Cradlepoint routers. Key features include: • Group based configuration management • Health monitoring of router connectivity and data usage •...
  • Page 135 • Ethernet Communication Only: Select this to ensure that the WiPipe Central client will not start unless the WAN is Ethernet. • Registration URL: Register your router using the code provided by Cradlepoint when you purchase WiPipe Central. © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/...

  • Page 136: Serial Redirector

    USB Serial Adapter Configuration Baud Rate: Select from the dropdown list. • 50 • 75 • 110 • 134 • 150 • 200 • 300 • 600 © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 134...
  • Page 137 Software (XON/XOFF): Use XON/XOFF to enable flow control. Linefeed: Select how you want linefeeds translated (CR = carriage return and LF = line feed). • Ignore • CR/LF • CR • LF © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 135...

  • Page 138: Snmp Configuration

    SNMP, or Simple Network Management Protocol, is an Internet standard protocol for remote management. You might use this instead of Cradlepoint Enterprise Cloud Manager if you want to remotely manage a set of routers that include both Cradlepoint and non- Cradlepoint products.
  • Page 139 Enable SNMP traps: Enabling traps will allow you to configure a destination server, community, and port for trap notifications. Trap notifications are returned to the server with SNMPv1. Trap community string: The trap notifications will be returned to the trap server using this SNMPv1 trap community name. © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/...

  • Page 140: System Information

    System Contact: Input the email address of the system administrator. System Name: Input the router’s hostname. System Location: Input the physical location of the router. This is simply a string for your own information. © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/...

  • Page 141: System Control

    Ping Test: A simple test to check Internet connectivity. Type the Hostname or IP address of the computer you want to ping and press 'Enter' or click the 'Ping' button. © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/...

  • Page 142: System Software

    Automatic (Internet): Have the router download the file and perform the upgrade with no user interaction. Manual Firmware Upload: Upload the router firmware from an attached computer. (Go to www.Cradlepoint.com/firmware to download the firmware.) © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 140...

  • Page 143: 2015 Cradlepoint, Inc

    Restore Settings: Click on “Upload from file” to restore your previous settings from a file on a computer. Firmware Upgrade and System Config Restore Load new firmware and restore your previous settings from a file on a computer without rebooting between steps. © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/...

  • Page 144: Glossary

    AES. Government encryption standard. ASCII Alphanumeric American Standard Code for Information Interchange. This Characters A-Z and 0-9. system of characters is most commonly used for text files. © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 142...
  • Page 145 The amount of bits that pass in given amount of time. Client A program or user that requests data from a server. Bit/sec Bits per second. © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 143...
  • Page 146 A 9-pin connector for RS-232 connections. DSSS. Modulation technique used by 802.11b wireless devices. Decibels related to dipole antenna. Domain Name System. Translates Domain Names to IP addresses. © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 144...

  • Page 147: File Server

    Dynamic DNS, whenever the IP address changes. © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES...
  • Page 148 A device that connects your network to another, like the Internet. HTTPS HTTP over SSL is used to encrypt and decrypt HTTP Gbps transmissions. Gigabits per second. © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 146...

  • Page 149: Intrusion Detection

    Internet Explorer Kbps A World Wide Web browser created and provided by Microsoft. Kilobits per second. Intranet Kbyte A private network. Kilobyte. © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 147...
  • Page 150 Traditionally there have been different types of malware based © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES...
  • Page 151 Multicast OFDM Sending data from one device to many devices on a network. Orthogonal Frequency-Division Multiplexing. Modulation technique for both 802.11a and 802.11g. © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 149...
  • Page 152 Point-to-Point Protocol is used for two computers to communicate scenario. Attackers would send out emails pretending to be a with each over a serial interface, like a phone line. © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES...
  • Page 153 Session Initiation Protocol. A standard protocol for initiating a Retransmits the signal of an access point in order to extend its user session that involves multimedia content, such as voice or coverage. chat. © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 151...
  • Page 154 TCP/IP email addresses, cyber attackers send out a very small number Transmission Control Protocol/Internet Protocol. of crafted emails to very specific individuals, usually all at the © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 152...
  • Page 155 Uniform Resource Locator. A unique address for files accessible connected to, which may be the Internet itself, or a regional or on the Internet. corporate network © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 153...

  • Page 156: Appendix

    • Reorient or relocate the receiving antenna. © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/...
  • Page 157 (i.e., contain errors), or totally lost. The CBA850 device is not intended for, and Cradlepoint recommends the device not be used in, any critical applications where failure to transmit or receive data could result in property damage or loss or personal injury of any kind (including death) to the user or to any other party. Cradlepoint expressly disclaims liability for damages of any kind resulting from: (a) delays, errors, or losses of any data transmitted or received using the device;...

  • Page 158: Warranty , Liability , Privacy

    Within thirty (30) days of receipt should the product fail for any reason other than damage due to customer negligence, purchaser may return the product to the point of purchase for a full refund of the purchase price. If the purchaser wishes to upgrade or convert to another Cradlepoint, Inc. product within the thirty (30) day period, purchaser may return the product and apply the full purchase price toward the purchase of the other product.

  • Page 159: Specifications

    FCC, CE, IC, PTCRB, GCF-CC, carrier (some certifications are specific to particular ARC models) OPERATING TEMPERATURE C to 50 For more in-depth specifications and router details, see the product data sheet. © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES...
  • Page 160 CBA850 | USER MANUAL Firmware version 5.4.0 CRADLEPOINT http://www.Cradlepoint.com/ Copyright © 2015 by Cradlepoint, Inc. All rights reserved. © 2015 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 158...

Table of Contents
