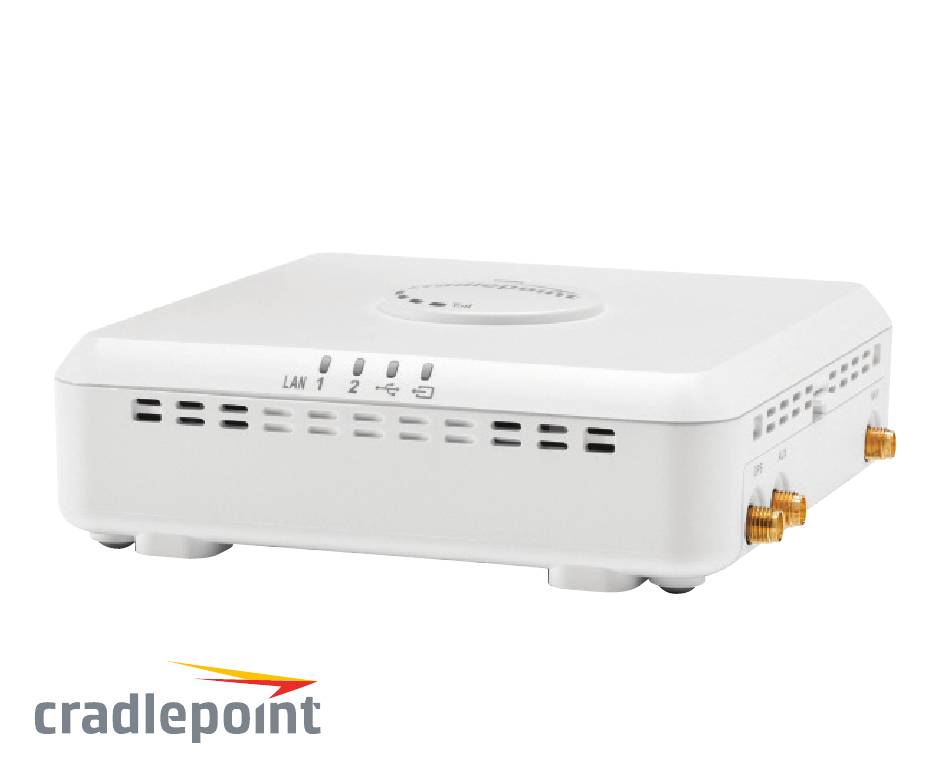

- Page 1 Cradlepoint ARC CBA850 Quick Start Guide Model: S4A452A cradlepoint.com Quick Start Guide Part Number: 170670-001...
-
Page 2: What's In The Box
Connected (blinking) Connecting Not active / may be engaged in failover process (blinking) Connection error (blinking) Modem resetting **MODEM SIGNAL STRENGTH KEY: Blinking indicates 1/2 bar LAN Ethernet 1, 2 Integrated Modem ***POWER LIGHT COLOR CODE: External/USB Modem Attention cradlepoint.com... - Page 3 HARDWARE Integrated Modem Cover GPS Connector (SMA) 3G/4G Antenna Connectors (SMA) Power/Status Lock Slot Cable Guide Slot USB Port Modem Signal Strength (blinking indicates 1/2 bar) Cable Guide Slot Cover cradlepoint.com...
- Page 4 LAN 1 Ethernet for local management of CBA850 (Default: NAT) LAN 2 Ethernet to WAN port of connected device (Default: IP Modem Passthrough 0/24) Cover Screw POE enabled Power OFF/ON Mounting Holes cradlepoint.com...
-
Page 5: Basic Setup
1. Insert an activated SIM into the integrated modem. The Cradlepoint ARC CBA850 requires a SIM with an activated wireless broadband data plan. Contact your carrier for details about selecting a data plan and about the process for provisioning your SIM. -
Page 6: Mounting Recommendations
Mounting: Preferred location is vertical wall mount near a window for best signal. Horizontal mounting or ceiling mount is not recommended where ambient temperatures exceed 40° C (104° F). BACK BACK Mounting Holes Antenna Connectors GPS Connector FRONT FRONT cradlepoint.com... -
Page 7: Accessing The Administration Pages
To restore the ARC CBA850 to its factory default settings, press and hold the RESET button on the side of the device for ten seconds. Reset returns the login password to the DEFAULT PASSWORD and resets all configuration changes. cradlepoint.com... -
Page 8: Cloud Management
Enterprise Cloud Manager, Cradlepoint’s network management and application platform. To learn more about how cloud-based management can help your organization improve productivity, reduce costs, and enhance network intelligence, visit Cradlepoint.com/ECM. No static IP required for 00BM through ECM to a connected device.
