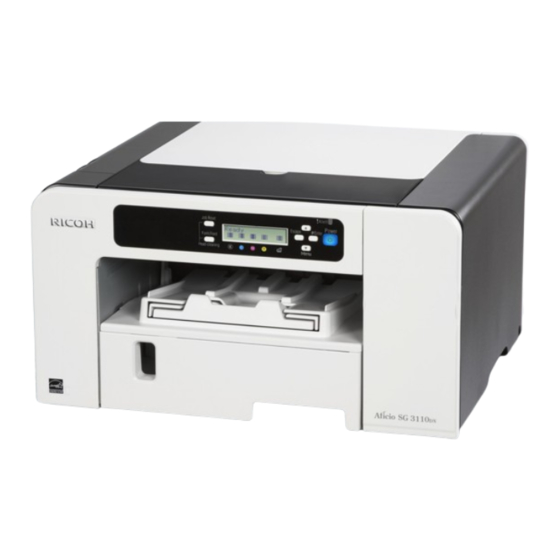

Ricoh SG 3110DN
ChromaBlast-R Driver

INSTALLATION GUIDE

WIN OS
CAUTION
DO NOT INSTALL THE RICOH (OEM) INKS THAT WERE PROVIDED WITH THE PRINTER.
DO NOT POWER ON THE PRINTER BEFORE INSTALLING SAWGRASS ChromaBlast-R INK CARTRIDGES.
DURING DOWNTIME, IT IS HIGHLY RECOMMENDED TO LEAVE THE PRINTER POWERED ON TO ALLOW
CLEAR.
THE RICOH AUTOMATIC MAINTENANCE UTILITIES TO KEEP THE PRINT HEAD NOZZLES
v20120608

Advertisement

loading

Related Manuals for Ricoh SG 3110DN

Summary of Contents for Ricoh SG 3110DN

  • Page 1: Installation Guide

    WIN OS CAUTION DO NOT INSTALL THE RICOH (OEM) INKS THAT WERE PROVIDED WITH THE PRINTER. DO NOT POWER ON THE PRINTER BEFORE INSTALLING SAWGRASS ChromaBlast-R INK CARTRIDGES. DURING DOWNTIME, IT IS HIGHLY RECOMMENDED TO LEAVE THE PRINTER POWERED ON TO ALLOW CLEAR.
  • Page 2 ON to allow the Ricoh Automatic Maintenance Utilities to keep the print head nozzles clear. The Ricoh GELJET has been engineered to perform automatic maintenance at various times in an effort to keep the print head nozzles in top condition. If this maintenance cannot be automatically performed, it is possible that the nozzles may suffer permanent effects.
  • Page 3 Ricoh SG 3110DN – Installation Guide Microsoft Windows OS Verification Before you begin, you will need to verify your Windows Edition and System Type. This is important when deciding which driver to download. You should only download drivers which are compatible with your version of Windows OS.
  • Page 4 The following instructions will demonstrate how to install the Ricoh (OEM) printer driver on computers running Windows OS. Before installing the ChromaBlast-R SG 3110DN WinProfile, you will need to install the Ricoh (OEM) printer driver. First, access the Ricoh website by entering www.ricoh.co.uk...
  • Page 5 ChromaBlast-R: Ricoh SG 3110DN – Installation Guide Ricoh (OEM) Driver Download & Installation Select Aficio SG 3110DN from the Printers drop down box and click GO (see FIGURE 3). FIGURE 3 Select the link to Download file from external website (see FIGURE 4).
  • Page 6 ChromaBlast-R: Ricoh SG 3110DN – Installation Guide Ricoh (OEM) Driver Download & Installation Locate and click the link for your Operating System (see FIGURE 5). FIGURE 5 Locate the RPCS Raster Driver for your Operating System and click the Download Icon (see FIGURE 6).
  • Page 7 ChromaBlast-R: Ricoh SG 3110DN – Installation Guide Ricoh (OEM) Driver Download & Installation The following window will appear asking to Run the installation or Save the file to your computer. For this example we will Save the file to our Desktop. Click Save to continue (see FIGURE 7).
  • Page 8 ChromaBlast-R: Ricoh SG 3110DN – Installation Guide Ricoh (OEM) Driver Download & Installation The following window displaying the download status should now appear (see FIGURE 9). FIGURE 9 10.) Once the download has completed, double-click the Executable Icon to begin the installation process (see FIGURE 10).
  • Page 9 ChromaBlast-R: Ricoh SG 3110DN – Installation Guide Ricoh (OEM) Driver Download & Installation Click Run to continue with the installation (see FIGURE 11). 11.) FIGURE 11 12.) The software executable will need to be extracted before continuing. Note the folder location where the files will be stored and click Unzip (see FIGURE 12).
  • Page 10 ChromaBlast-R: Ricoh SG 3110DN – Installation Guide Ricoh (OEM) Driver Download & Installation 13.) Once the files have been unzipped, the following window will appear (see FIGURE 13). Click OK to continue. This will return you to the WinZip Self-Extractor (see FIGURE 14). Again, note the folder location of the unzipped files and click Close.
  • Page 11 ChromaBlast-R: Ricoh SG 3110DN – Installation Guide Ricoh (OEM) Driver Download & Installation 15.) You must accept the Software License Agreement before you can install the printer driver. If you agree with the terms select I accept the agreement and click Next (see FIGURE 16).
  • Page 12 ChromaBlast-R: Ricoh SG 3110DN – Installation Guide Ricoh (OEM) Driver Download & Installation 17.) The following window will appear asking you to select your printer (see FIGURE 18). Highlight RICOH AficioSG3110DN RPCS-R and click Next. FIGURE 18 18.) Ensure your printer is powered OFF and the USB cable is Unconnected. Click Next to continue (see FIGURE 19).
  • Page 13 ChromaBlast-R: Ricoh SG 3110DN – Installation Guide Ricoh (OEM) Driver Download & Installation 19.) The following window displaying the installation status should now appear (see FIGURE 20). FIGURE 20 20.) Power the printer ON and Connect the USB cable to allow the software to Auto-detect the printer (see FIGURE 21).
  • Page 14 ChromaBlast-R: Ricoh SG 3110DN – Installation Guide Ricoh (OEM) Driver Download & Installation 21.) In the following window you are asked to customise the Status Monitor (see FIGURE 22). Adjust the settings according to your preferences and click Next to continue.
  • Page 15 24.) You must restart your computer to complete the printer driver installation. Save and close any work that may be open and click Finish (see FIGURE 25). FIGURE 25 Congratulations! The Ricoh (OEM) printer driver installation is complete. Please proceed to the ChromaBlast-R Installation & Registration section. PAGE 12 of 12 >>...
  • Page 16 FIGURE 1 Navigate to: Technical Support > ChromaBlast-R Technical Support > PowerDriver and click on the Ricoh SG 3110DN Driver download link and save the file to your desktop: (see FIGURE 2). FIGURE 2 PAGE 1 of 11 >>...

  • Page 17: Select Desktop As Your Download Destination And Click Save (See Figure

    ChromaBlast-R: Ricoh SG 3110DN – Installation Guide ChromaBlast-R Installation & Registration The following window will appear asking to Run the installation or Save the file to your computer. For this example we will Save the file to our Desktop. Click Save to continue (see FIGURE 3).

  • Page 18: The Following Window Displaying The Download Status Should Now Appear (See Figure

    ChromaBlast-R: Ricoh SG 3110DN – Installation Guide ChromaBlast-R Installation & Registration The following window displaying the download status should now appear (see FIGURE 5). FIGURE 5 Once the download has completed, double-click the Executable Icon to begin the installation process (see FIGURE 6).
  • Page 19 ChromaBlast-R: Ricoh SG 3110DN – Installation Guide ChromaBlast-R Installation & Registration Select your appropriate locale and click Next (see FIGURE 7). FIGURE 7 Ensure you are installing the correct driver and click Next (see FIGURE 8). FIGURE 8 PAGE 4 of 11 >>...
  • Page 20 ChromaBlast-R: Ricoh SG 3110DN – Installation Guide ChromaBlast-R Installation & Registration If you agree with the terms of the License Agreement, click I Agree (see FIGURE 9). FIGURE 9 10.) Choose the components you wish to install and click Next (see FIGURE 10).
  • Page 21 ChromaBlast-R: Ricoh SG 3110DN – Installation Guide ChromaBlast-R Installation & Registration Click Install if you would like to install the driver in the specified Destination Folder (see FIGURE 11). 11.) FIGURE 11 12.) The following window displaying the installation status should now appear (see FIGURE 12).
  • Page 22 ChromaBlast-R: Ricoh SG 3110DN – Installation Guide ChromaBlast-R Installation & Registration 13.) If you receive the following message, click Install this driver software anyway (see FIGURE 13). FIGURE 13 14.) As installation nears completion, the following window will prompt you to register your product (see FIGURE 14).
  • Page 23 ChromaBlast-R: Ricoh SG 3110DN – Installation Guide ChromaBlast-R Installation & Registration 16.) The following instructions will show how to register On-line. Note the Product ID as this will be needed during the registration process and click Obtain Registration Code (see FIGURE 15).
  • Page 24 ChromaBlast-R: Ricoh SG 3110DN – Installation Guide ChromaBlast-R Installation & Registration 18.) Enter the Registration Code you receive into the Registration Code text box and click Apply Code (see FIGURE 17). FIGURE 17 19.) You should receive the following window confirming that registration was successful (see FIGURE 18).
  • Page 25 ChromaBlast-R: Ricoh SG 3110DN – Installation Guide ChromaBlast-R Installation & Registration 20.) Click OK to select the appropriate Ricoh (OEM) printer you wish to use (see FIGURE 19). FIGURE 19 Click the drop-down arrow and select the RICOH Aficio SG3110DN RPCS-R as the OEM Printer (see 21.)
  • Page 26 ChromaBlast-R: Ricoh SG 3110DN – Installation Guide ChromaBlast-R Installation & Registration 22.) You should receive the following window informing you that installation was completed successfully (see FIGURE 21). Click Close to continue. FIGURE 21 23.) You must restart your computer to complete the installation. Save and close any work that may be open and click Yes (see FIGURE 22).
