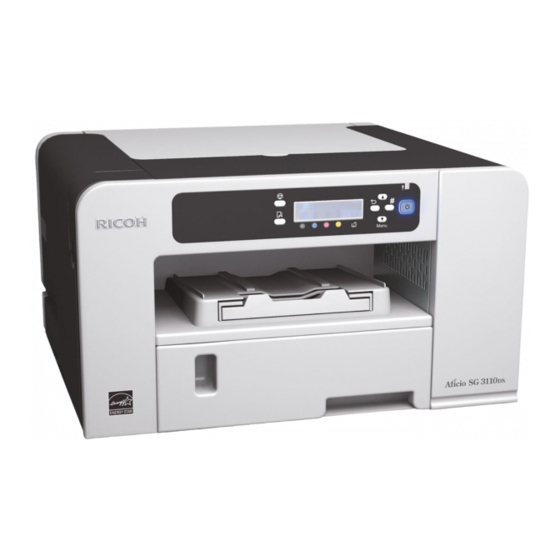

Ricoh SG 3110DN Installation Manual
  1. Manuals
  2. Brands
  3. Ricoh Manuals
  4. Printer Accessories
  5. Aficio SG 3110DN
  6. Installation manual
Ricoh SG 3110DN Installation Manual

Ricoh SG 3110DN Installation Manual

Sublijet r macprofile mac os x
Hide thumbs Also See for SG 3110DN:

Advertisement

Quick Links

Download this manual See also: User Manual, Installation Manual
Ricoh SG 3110DN
MacProfi le

INSTALLATION GUIDE

MAC OS X

CAUTION
DO NOT INSTALL THE RICOH (OEM) INKS THAT WERE PROVIDED WITH THE PRINTER.
DO NOT POWER ON THE PRINTER BEFORE INSTALLING SAWGRASS SUBLIJET-R INK CARTRIDGES.
DURING DOWNTIME, IT IS HIGHLY RECOMMENDED TO LEAVE THE PRINTER POWERED ON TO ALLOW
CLEAR.
THE RICOH AUTOMATIC MAINTENANCE UTILITIES TO KEEP THE PRINT HEAD NOZZLES
v20120614

Advertisement

loading

Related Manuals for Ricoh SG 3110DN

Summary of Contents for Ricoh SG 3110DN

  • Page 1: Installation Guide

    MAC OS X CAUTION DO NOT INSTALL THE RICOH (OEM) INKS THAT WERE PROVIDED WITH THE PRINTER. DO NOT POWER ON THE PRINTER BEFORE INSTALLING SAWGRASS SUBLIJET-R INK CARTRIDGES. DURING DOWNTIME, IT IS HIGHLY RECOMMENDED TO LEAVE THE PRINTER POWERED ON TO ALLOW CLEAR.
  • Page 2 ON to allow the Ricoh Automatic Maintenance Utilities to keep the print head nozzles clear. The Ricoh GELJET has been engineered to perform automatic maintenance at various times in an effort to keep the print head nozzles in top condition. If this mainte- nance cannot be automatically performed, it is possible that the nozzles may suffer permanent effects.
  • Page 3 Ricoh SG 3110DN – Installation Guide Macintosh OS Verifi cation Before you begin, you will need to verify your version of Mac OS. This is important when deciding which driver to download. You should only download drivers which are compatible with your version of Mac OS.
  • Page 4 The following instructions will demonstrate how to install the Ricoh (OEM) printer driver on computers running Mac OS X. Before installing the MacProfi le, you will need to install the Ricoh (OEM) printer driver. First, access the Ricoh website by entering www.ricoh.com...
  • Page 5 Afi cio SG 3110DN Afi cio SG 3110DN FIGURE 3 To proceed, read the Ricoh Software License Agreement. If you agree with the terms of the agreement, click I Agree (see FIGURE 4). FIGURE 4 PAGE 2 of 7 >>...
  • Page 6 Operating System (see FIGURE 5). FIGURE 5 Finally, locate the RPCS Raster Driver for your operating system and click the Download Icon (see FIGURE 6). The Ricoh (OEM) printer driver should now begin downloading to your computer. FIGURE 6 PAGE 3 of 7 >>...
  • Page 7 (see FIGURE 7 > 1). Next, double-click the r53405L4.dmg fi le (see FIGURE 7 > 2). The Ricoh_Afi cioSG3110DN window should now appear (see FIGURE 8). Finally, double-click the Ricoh_ Afi cioSG3110DN icon to begin the Ricoh (OEM) printer driver installation process (see FIGURE 8 > 3). FIGURE 7 FIGURE 8 Click Continue to allow the program to determine if the software can be installed (see FIGURE 9).
  • Page 8 SubliJet-R: Ricoh SG 3110DN – Installation Guide Ricoh (OEM) Driver Download & Installation In the Introduction window, click Continue (see FIGURE 10). FIGURE 10 10.) In the License window, read the terms of the Software License Agreement and click Continue when fi nished (see FIGURE 11).
  • Page 9 SubliJet-R: Ricoh SG 3110DN – Installation Guide Ricoh (OEM) Driver Download & Installation 11.) If you agree with the terms of the Software License Agreement, click Agree (see FIGURE 12). FIGURE 12 12.) Select the disk where you want to install the driver and click Continue (see FIGURE 13).
  • Page 10 14.) Once installation has completed successfully, click Close to fi nish installing the software (see FIGURE 15). FIGURE 15 Congratulations! The Ricoh (OEM) printer driver has successfully been installed. Please proceed to the SubliJet-R Ricoh SG 3110DN MacProfi le Installation section. PAGE 7 of 7 >>...
  • Page 11 SG3110DN MacProfi le on Mac OS X. First, access the Sawgrass website by entering www.sawgrassink.com in the address fi eld of your web browser. Once there, highlight Technical Support > SubliJet-R > Ricoh SG 3110DN, and highlight and click PowerDrivers & MacProfi les (see FIGURE 1) FIGURE 1 Under MacProfi les: Ricoh Platforms, click the link for your printer (see FIGURE 2).
  • Page 12 SubliJet-R: Ricoh SG 3110DN – Installation Guide MacProfi le Installation & Registration Once the download has completed, click the download icon in the bottom right corner of your desktop (see FIGURE 3 > 1). Next, double-click the SubliJet-R GX e7700N.dmg fi le (see FIGURE 3 > 2). The Sawgrass Installer window should now appear (see FIGURE 4).
  • Page 13 SubliJet-R: Ricoh SG 3110DN – Installation Guide MacProfi le Installation & Registration I n the Introduction window, click Continue (see FIGURE 6). FIGURE 6 In the Read Me window, read the description of the two profi les being installed and click Continue when fi nished (see FIGURE 7).
  • Page 14 SubliJet-R: Ricoh SG 3110DN – Installation Guide MacProfi le Installation & Registration In the License window, read the terms of the Software License Agreement and click Continue when fi nished (see FIGURE 8). FIGURE 8 If you agree with the terms of the Software License Agreement, click Agree (see FIGURE 9).
  • Page 15 SubliJet-R: Ricoh SG 3110DN – Installation Guide MacProfi le Installation & Registration 10.) You will use the Product ID to register your product. The Product ID is located in the MacProfi le Registration window (see FIGURE 6). The easiest and fastest way to obtain a Registration Code 24/7 is by clicking the Obtain Registration Code button also located in the MacProfi le Registration window.
  • Page 16 SubliJet-R: Ricoh SG 3110DN – Installation Guide MacProfi le Installation & Registration 12.) On the Product Registration web page, fi ll in the required information and click Submit when complete (see FIGURE 12). Your Registration Code will now be sent to the e-mail address used during registration.
  • Page 17 SubliJet-R: Ricoh SG 3110DN – Installation Guide MacProfi le Installation & Registration 14.) You should receive the following window informing you that registration completed successfully (see FIGURE 14). Click OK to continue. FIGURE 14 15.) Select the disk where you want to install the MacProfi le and click Continue (see FIGURE 15).
  • Page 18 Close to fi nalize installation of the MacProfi le (see FIGURE 16). FIGURE 16 Congratulations! The SubliJet-R SG 3110DN MacProfi le installation is complete. Please proceed to the Print Setup Guide that corresponds with your version of graphics software. For the absolute latest information and updates on all products, materials, processes and/or procedures relative to all offerings by or through Sawgrass Technologies, Inc., please refer to our website:...
