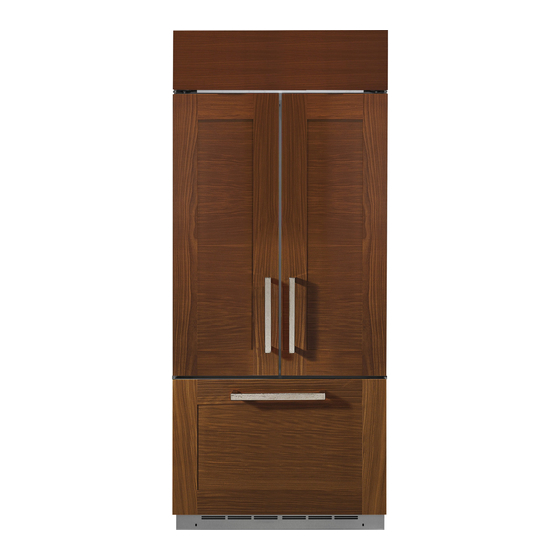

- Page 1 Monogram 36" Built-In French-door Bottom-freezer ZIP360NH ® SECTION 1 FLUSH INSET INSTALLATION SECTION 2 STANDARD INSTALLATION 1/4" FRAMED PANELS 3/4" OVERLAY PANELS Product Specification Revised 5/15...
-
Page 2: Specifications
Monogram 36" Built-In French-door Bottom-freezer ZIP360NH ® OVERALL DIMENSIONS FLUSH INSET INSTALLATION AFTER PANEL INSTALL 25 7/8" (65.7) 38" (96.5) 20 5/8" (52.4) 10 13/16" (27.5) 7/16" (1.1) *83 1/2" 212.1) *73 5/16" (186.2) 7/16" (1.1) *26 3/8" (70.0) SPECIFICATIONS Overall Width 38"... -
Page 3: Anti-Tip Bracket
Monogram 36" Built-In French-door Bottom-freezer ZIP360NH ® FLUSH INSET INSTALLATION 3/4" PANELS FLUSH INSET INSTALLATION TOP VIEW Case NOTES Finished cleats 5 1/4" (13.3) Case Trim Door A Mounting the junction box in this 1/2" 3/4" Panel (1.3) location will also allow for front 26 3/16"... -
Page 4: Panel Dimensions
Monogram 36" Built-In French-door Bottom-freezer ZIP360NH ® FLUSH INSET 3/4" PANEL DIMENSIONS FLUSH INSET INSTALLATION PANEL DIMENSIONS NOTES Grille Panel 38" 10 13/16" 46 7/16" 22 3/8" 18 3/4" Trimmed refrigerators are designed to be customized with decorative panels. Field- installed 1/2"... - Page 5 Monogram 36" Built-In French-door Bottom-freezer ZIP360NH ® 3/4" RAISED FREEZER DRAWER PANEL ROUTING FLUSH INSET INSTALLATION DETAIL TOP NOTE: Routed areas should be 3/4" NOTES finished as they may be visible 11/32" when assembled. 1/4" 1/2" Trimmed refrigerators are designed to be 1/4"...
- Page 6 Monogram 36" Built-In French-door Bottom-freezer ZIP360NH ® FLUSH INSET INSTALLATION 1/2" PANELS FLUSH INSET INSTALLATION TOP VIEW Case NOTES Finished cleats 5 3/8" (13.7) Case Trim Door A Mounting the junction box in this 1/2" 1/2" Panel (1.3) location will also allow for front 26 3/16"...
- Page 7 Monogram 36" Built-In French-door Bottom-freezer ZIP360NH ® FLUSH INSET1/2" PANEL DIMENSIONS FLUSH INSET INSTALLATION PANEL DIMENSIONS NOTES Grille Panel The 1/2" overlay panel must be secured to a .10" spacer panel and a 1/4" thick backer 1/4" Backer Panel 33 7/8"...
-
Page 8: Standard Installation
Monogram 36" Built-In French-door Bottom-freezer ZIP360NH ® OVERALL DIMENSIONS STANDARD INSTALLATION AFTER PANEL INSTALL 25 3/8" (64.5) 23 13/16" 36" (60.5) (91.4) 1 5/8" 9 7/8" (4.1) (25.1) 9/16" (1.4) 46 5/16" (117.7) *83 1/2" 212.1) *73 1/4" (186.1) 1/2"... - Page 9 Monogram 36" Built-In French-door Bottom-freezer ZIP360NH ® STANDARD INSTALLATION 3/4" PANELS STANDARD INSTALLATION TOP VIEW NOTES A Mounting the junction box in this 3 1/8" 24" (61) 35 1/2" location will also allow for front (7.93) (90.2) 7/16" (1.1) 2 5/16"...
- Page 10 Monogram 36" Built-In French-door Bottom-freezer ZIP360NH ® STANDARD 1/4" FRAMED PANEL DIMENSIONS STANDARD INSTALLATION NOTES PANEL ASSEMBLY CROSS SECTION Trim Trimmed refrigerators are designed to be Grille Panel Door customized with decorative panels Field- installed custom door and grille panels are required.
- Page 11 Monogram 36" Built-In French-door Bottom-freezer ZIP360NH ® STANDARD 3/4" OVERLAY PANEL DIMENSIONS STANDARD INSTALLATION PANEL ASSEMBLY CROSS SECTION NOTES Grille Panel Trim Door 1/4" Backer Panel Trimmed refrigerators are designed to be customized with decorative panels Field- 3/4" Overlay Panel installed custom door and grille panels .10"...
-
Page 12: Features And Benefits
Monogram 36" Built-In French-door Bottom-freezer ZIPS360NH ® FEATURES AND BENEFITS French-door design gives your wide-open access to every fresh food shelf and bin. Finely crafted glass-front metal door bins with riveted metal accents offer easy access to beverages and quick-grab items.
