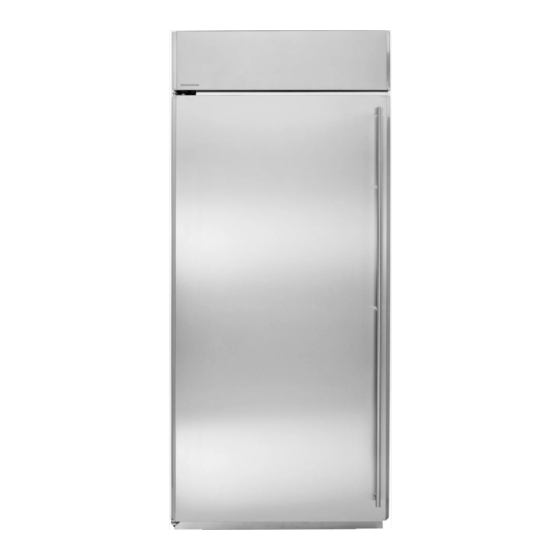

Monogram ZIRS360NHLH Installation Instructions Manual
36” built-in all-refrigerators and all-freezers
Hide thumbs
Also See for ZIRS360NHLH:
- Installation instructions manual (32 pages) ,
- Owner's manual (20 pages)
Related Manuals for Monogram ZIRS360NHLH
Summary of Contents for Monogram ZIRS360NHLH
- Page 1 Installation Instructions 36” Built-In All-Refrigerators and All-Freezers Design Guide With Installation Instructions monogram.com...
-
Page 2: Safety
This unit is very heavy. To reduce the risk of person injury during maneuvering and installing this appliance, 3 people are required for proper installation. For Monogram local service in your area, call 1.800.432-2737. For Monogram service in Canada, call 1.800.561.3344 For Monogram Parts and Accessories, call 1.877.959.8688. - Page 3 CONSIGNES DE SÉCURITÉ AVERTISSEMENT Risque de choc électrique. Branchez l’appareil dans une prise triple avec terre. Remplacer immédiatement tout cordon électrique effiloché ou endommagé. Ne retirez pas la broche de terre. N’utilisez pas de rallonge avec cet appareil. N’utilisez pas d’adaptateur. Le non-respect de ces instructions peut entraîner Le non-respect de ces instructions peut entraîner des risques d’incendies, des chocs électriques ou la...
-
Page 4: Table Of Contents
Contents Safety Unified Door Panel Dimensions Refrigerator Location Instructions for Standard Installation Planning Guide Installation Instructions The Installation Space Tools, Hardware, Materials Dimensions and Clearances Grounding the Unit Customization Basics Step 1. Remove Packaging Refrigerator Location Step 2. Install Water Line 1/4”... -
Page 5: Instructions For Standard Installation
Instructions for Standard Installation... -
Page 6: The Installation Space
Design Guide - Standard Installation DIMENSIONS AND CLEARANCES THE INSTALLATION SPACE 35" Case Width 25-3/8" Case Depth * Shipping height. The product can be adjusted to fit into a cutout that is 84-1/2” max. height. *84" From Note that the top case *83-1/2"... - Page 7 Design Guide - Standard Installation CLEARANCES 25" 2" Min. to 15" 130° Door Wall Swing 130° Clearances for two products installed side-by- These units are equipped with a 3-position door stop. side with the same (left or right) door swing The factory set 115°...
-
Page 8: Customization Basics
• Do not install the refrigerator in a location Optional Accessory Kits exposed to water (rain, etc.) or direct sunlight. • ZKHSS2: Monogram Tubular Stainless Steel • Install it on a floor strong enough to support it handles designed to fit 3/4” overlay panels. -
Page 9: 1/4" Framed Panel Dimensions
Design Guide - Standard Installation 1/4” FRAMED PANEL DIMENSIONS If you choose to install framed panels, they must be cut 5/16" to the dimensions shown. The panels will slide into the Trim Door frame on the door and grille. Reveal If the custom panel is less than 1/4”... -
Page 10: Side Panels
Design Guide - Standard Installation SIDE PANELS ZUG2 GRILLE PANEL DIMENSIONS Side panels must be used whenever the sides of the The ZUG2 unified grille panel kit provides for the unit will be exposed. The 1/4” side panels will slip into installation of a framed or overlay grille panel. -
Page 11: 130° Door Swing
Design Guide - Standard Installation Frameless Cabinets: The case trim overlaps cabinets at the top and sides. Therefore, frameless cabinets may require filler strips to prevent interference with cabinet door swing. The opening must allow for filler strips. Top View 130°... -
Page 12: Installation Instructions
Installation Instructions - Standard Installation TOOLS AND MATERIALS REQUIRED GROUNDING THE UNIT • Tin snips to cut banding WARNING Electrical Shock Hazard. • #2 Phillips screwdriver Failure to follow these instructions can result in death, • Stepladder fire, or electrical shock. •... -
Page 13: Step 1 Remove Packaging
Installation Instructions - Standard Installation STEP 1 REMOVE PACKAGING • The unit is secured to the skid WARNING Tip Over Hazard. Product with 4 slotted tie-down straps. is much heavier at the top than at the bottom – be Remove the four 5/16” bolts careful when moving. -
Page 14: Step 3 Install Side Panels
Installation Instructions - Standard Installation STEP 3 INSTALL SIDE PANELS Skip this step when not using side panels Fasten the panels to the unit with stick-on hook and loop If you are using 1/4” side panels, they should be insert- fastener strips before setting unit in place. - Page 15 Installation Instructions - Standard Installation STEP 4 INSTALL ANTI-TIP BRACKET (cont.) Install Wall Toggles: Install Screws and Bolts: The wall toggles and bolts can be ordered as Service • Have someone hold the wall bracket centered in place Kit #WR49X10193. Wall toggles are installed in the with each of the holes aligned with the correct opening drywall and metal studs for stability.
- Page 16 Installation Instructions - Standard Installation STEP 4 INSTALL ANTI-TIP BRACKET (cont.) Remove Grilles for Access to Anti-Tip Locking Hooks Power Cord Locate the power cord inside the left cavity. If it has not Fresh Food Unit been adjusted so the plug is easily accessible, do so •...
-
Page 17: Step 5 Level Unit
Installation Instructions - Standard Installation STEP 5 LEVEL UNIT STEP 6 SECURE UNIT TO WALL All models have 4-point leveling. The front is support- • The “L” rods can be found in the upper left and right ed by leveling legs; the rear is supported by adjustable corners of the unit in the access compartment. -
Page 18: Step 7 Adjust Door Swing
Installation Instructions - Standard Installation STEP 7 ADJUST DOOR SWING STEP 8 INSTALL GRILLE PANEL NOTE: This appliance has a 3-position door stop. • Raise the access panel to the stop position. When space does not allow the door to swing open fully to 115°, you may change the door swing to a 90°... -
Page 19: Step 9 Install Framed Panels
Installation Instructions - Standard Installation STEP 9 INSTALL FRAMED PANELS Right hand models shown. Use the same instruc- tions for left hand models. IF YOU ARE INSTALLING OVERLAY PANELS, GO TO STEP 10A. Handle Door Trim Trim Door Use Front Holes to Secure Trim Use Rear Holes to Secure Handle... -
Page 20: Step 9A Install Overlay Panels
Installation Instructions - Standard Installation Right hand models shown. Use the same instruc- STEP 9A INSTALL OVERLAY PANELS tions for left hand models. Door Trim Handle Trim Door Move Forward For 3/4" Panel Use Front Holes to Secure Handle Use Rear Holes to Secure Trim Supplied handle shown in the overlay panel position. -
Page 21: Step 10 Connect Water Supply
Installation Instructions - Standard Installation STEP 10 CONNECT WATER SUPPLY STEP 11 START ICEMAKER (FREEZER MODELS ONLY) (FREEZER MODELS ONLY) Icemaker House Freezer Water Supply Water Supply Power • Locate and bring the tubing to the front of the cabinet. Feeler Arm Switch •... -
Page 22: Instructions For Flush Installation
Instructions for Flush Installation... -
Page 23: The Installation Space
Design Guide - Flush Installation DIMENSIONS AND CLEARANCES THE INSTALLATION SPACE 35" 39” Case Width Finished Width 25-3/8" Case Depth 4-5/16” Wall View * Shipping height. The product can be adjusted 5-1/2” to fit into a cutout that Electrical 9” is 85”... -
Page 24: Custom Handle Design Guide
Design Guide - Flush Installation CLEARANCES 4" Min. to Wall 1" 15" 15" 115° Door 115° Door Min. to 90° Door Swing Min. to Swing Swing Wall Wall 38-3/4" These units are equipped with a 3-position door stop. Clearances for Multiple Single Door Installations The factory set 115°... -
Page 25: 1/2" Overlay Panel Dimensions
Design Guide - Flush Installation 1/2” OVERLAY PANEL DIMENSIONS For a more custom appearance, overlay panels may be Door installed on trimmed models. The overlay panel must be 1/2" secured to a 1/4” thick backer panel which slides into the Overla Panel trim. -
Page 26: 3/4" Decorative Panel Dimensions
Design Guide - Flush Installation 3/4” DECORATIVE PANEL IMPORTANT NOTE: Maximum total weight for the assembled panels: DIMENSIONS • Door panel – 67 lbs. • Grille Panel – 18 lbs. For a more custom appearance, overlay panels may be installed to give a flush appearance with surrounding WARNING cabinets. -
Page 27: 3/4" Raised Door Panel Routing
Design Guide - Flush Installation 3/4” RAISED DOOR PANEL ROUTING For 3/4” raised door panel, routing is required. The router depth is 1/4” all the way around the panel back. Additional panel width reductions are required per the diagrams below. This will create a “picture frame” routing that will slide onto the attached door trim. -
Page 28: 3/4" Raised Grille Panel Routing
Design Guide - Flush Installation 3/4” RAISED GRILLE PANEL ROUTING For 3/4” raised grille panel, routing is required. The router depth is 1/4” all the way around the panel back. Additional panel width reductions are required per the diagrams below. This will create a “picture frame” routing that will slide onto the attached grille trim. -
Page 29: 3/4" Raised Door Panel Routing For Unified Installation
Design Guide - Flush Installation 3/4” RAISED DOOR PANEL ROUNTING FOR UNIFIED INSTALLATION DETAIL TOP NOTE: Routed areas should be 3/4” finished as they may be visible when assembled. 11/32” 1/4” Front 11/32” 1/4” Back 1/4” Back Front CORNER VIEW SHOWING “PICTURE FRAME”... -
Page 30: Side Panels
Design Guide - Flush Installation SIDE PANELS ZUG2 GRILLE PANEL DIMENSIONS Side panels must be 24" The ZUG2 unified grille panel kit provides for the used whenever the installation of a framed or overlay grille panel. sides of the unit will be exposed. -
Page 31: Installation Instructions
Installation Instructions - Flush Installation TOOLS AND MATERIALS REQUIRED GROUNDING THE UNIT • Tin snips to cut banding WARNING Electrical Shock Hazard. • #2 Phillips screwdriver • Stepladder Failure to follow these instructions can result in death, • Drill and 1/2”, 3/16” bits fire, or electrical shock. -
Page 32: Step 1 Remove Packaging
Installation Instructions - Flush Installation STEP 1 REMOVE PACKAGING WARNING Tip Over Hazard. Product is much heavier at the top than at the bottom – be careful when moving. When using a hand truck, handle from side only. AVERTISSEMENT Risque de basculement Le produit est beaucoup plus lourd en haut qu’en bas. -
Page 33: Step 4 Install Case Trim
Installation Instructions - Flush Installation STEP 4 INSTALL CASE TRIM STEP 5 INSTALL ANTI-TIP BRACKET (cont.) The unit arrives with case trim for standard installation attached. Flush installation case trim is provided. • The kit supplied with the unit contains 2 lag bolts and Remove the factory installed case trim. - Page 34 Installation Instructions - Flush Installation STEP 5 INSTALL ANTI-TIP BRACKET (cont.) • Mark an additional hole at each end of the bracket. If Install Screws and Bolts: one of the studs is closer to the end of the bracket, mark •...
-
Page 35: Step 6 Level Unit
Installation Instructions - Flush Installation STEP 5 INSTALL ANTI-TIP BRACKET (cont.) Remove Grilles for Access to Anti-Tip Locking Hooks Power Cord Fresh Food Unit Locate the power cord inside the left cavity. If it has not • Open the access door. been adjusted so the plug is easily accessible, do so •... -
Page 36: Step 7 Adjust Door Swing
Installation Instructions - Flush Installation STEP 7 ADJUST DOOR SWING STEP 8 INSTALL GRILLE PANEL NOTE: This appliance has a 3-position door stop. • Raise the access panel to the stop position. When space does not allow the door to swing open fully to 115°, you may change the door swing to a 90°... -
Page 37: Step 9 Install Overlay Panels
Installation Instructions - Flush Installation STEP 9 INSTALL OVERLAY PANELS Custom Handles • Custom handles must be used for flush installation. The handle must be properly secured to the overlay panel before sliding the panel into the trim. • The cabinet manufacturer will supply the custom handle and hardware. -
Page 38: Step 10 Connect Water Supply
Installation Instructions - Flush Installation STEP 10 CONNECT WATER SUPPLY STEP 11 START ICEMAKER (FREEZER MODELS ONLY) (FREEZER MODELS ONLY) Icemaker House Freezer Water Supply Water Supply Power Feeler Arm • Locate and bring the tubing to the front of the Switch cabinet. -
Page 39: Instructions For Stainless Steel Installation
Instructions for Stainless Steel Installation... -
Page 40: The Installation Space
Design Guide - Stainless Steel Installation THE INSTALLATION SPACE DIMENSIONS AND CLEARANCES 35" 25-3/4" Stainless Steel Models Case Width Case Depth * Shipping height. The product can be adjusted *84" From to fit into a cutout that *83-1/2" Floor to is 84-1/2”... - Page 41 Design Guide - Stainless Steel Installation CLEARANCES 25" 2" Min. to 15" 130° Door Wall Swing 130° Clearances for two products installed side-by-side These units are equipped with a 3-position door stop. with the same (left or right) door swing The factory set 115°...
-
Page 42: Customization Basics
(rain, etc.) or direct sunlight. and grille panel, beveled edges, and tubular stainless • Install it on a floor strong enough to support it steel handles that coordinate with other Monogram fully loaded. appliances. These models are shipped ready for installation. -
Page 43: 130° Door Swing
Design Guide - Stainless Steel Installation Frameless Cabinets: The case trim overlaps cabinets at the top and sides. Therefore, frameless cabinets may require filler strips to prevent interference with cabinet door swing. The opening must allow for filler strips. Top View 130°... -
Page 44: Installation Instructions
Installation Instructions - Stainless Steel Installation GROUNDING THE UNIT TOOLS AND MATERIALS REQUIRED WARNING Electrical Shock Hazard. • Tin snips to cut banding Failure to follow these instructions can result in death, • #2 Phillips screwdriver fire, or electrical shock. •... -
Page 45: Step 1 Remove Packaging
Installation Instructions - Stainless Steel Installation STEP 1 REMOVE PACKAGING WARNING Tip Over Hazard. Product is much heavier at the top than at the bottom – be careful when moving. When using a hand truck, handle from side only. AVERTISSEMENT Risque de basculement Le produit est beaucoup plus lourd en haut qu’en bas. -
Page 46: Step 4. Anti-Tip Bracket
Installation Instructions - Stainless Steel Installation STEP4 INSTALL ANTI-TIP BRACKET (cont.) • The kit supplied with the unit contains 2 lag bolts and 4 Wall Bracket toggles with bolts. The wall bracket will be attached to Center the wall in 4 places. •... - Page 47 Installation Instructions - Stainless Steel Installation STEP 4 INSTALL ANTI-TIP BRACKET (cont.) Remove Grilles for Access to Anti-Tip Locking Hooks • Gently pull back at the ends of the plastic straps to make the channel rest flush behind the wall. Fresh Food Unit •...
-
Page 48: Step 5 Level Unit
Installation Instructions - Stainless Steel Installation STEP 4 INSTALL ANTI-TIP STEP 5 LEVEL UNIT BRACKET (cont.) All models have 4-point leveling. The front is support- Move Unit into Final Position ed by leveling legs; the rear is supported by adjustable •... -
Page 49: Step 6 Secure Unit To Wall
Installation Instructions - Stainless Steel Installation STEP 6 SECURE UNIT TO WALL STEP 7 ADJUST DOOR SWING • The “L” rods can be found in the upper left and right NOTE: This appliance has a 3-position door stop. corners of the unit in the access compartment. Look When space does not allow the door to swing open through the access compartment to make sure the fully to 115°, you may change the door swing to a 90°... -
Page 50: Step 8 Connect Water Supply
Installation Instructions - Stainless Steel Installation STEP 8 CONNECT WATER SUPPLY STEP 9 START ICEMAKER (FREEZER MODELS ONLY) (FREEZER MODELS ONLY) Icemaker House Freezer Water Supply Water Supply Power Feeler Arm • Locate and bring the tubing to the front of the Switch cabinet. - Page 51 Notes...
- Page 52 NOTE: While performing installations described in this book, safety glasses or goggles should be worn. For Monogram local service in your area, call ® 1.800.432-2737. NOTE: Product improvement is a continuing endeavor at General Electric. Therefore, materials, appearance and specifications are subject to change without notice.
