Oki POS 425D Developer's Manual

Oki printer developer's guide
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
global logo.jpg
OKIPOS 425D
Developer's Guide
59336301

Advertisement

Table of Contents
loading

Related Manuals for Oki POS 425D

Summary of Contents for Oki POS 425D

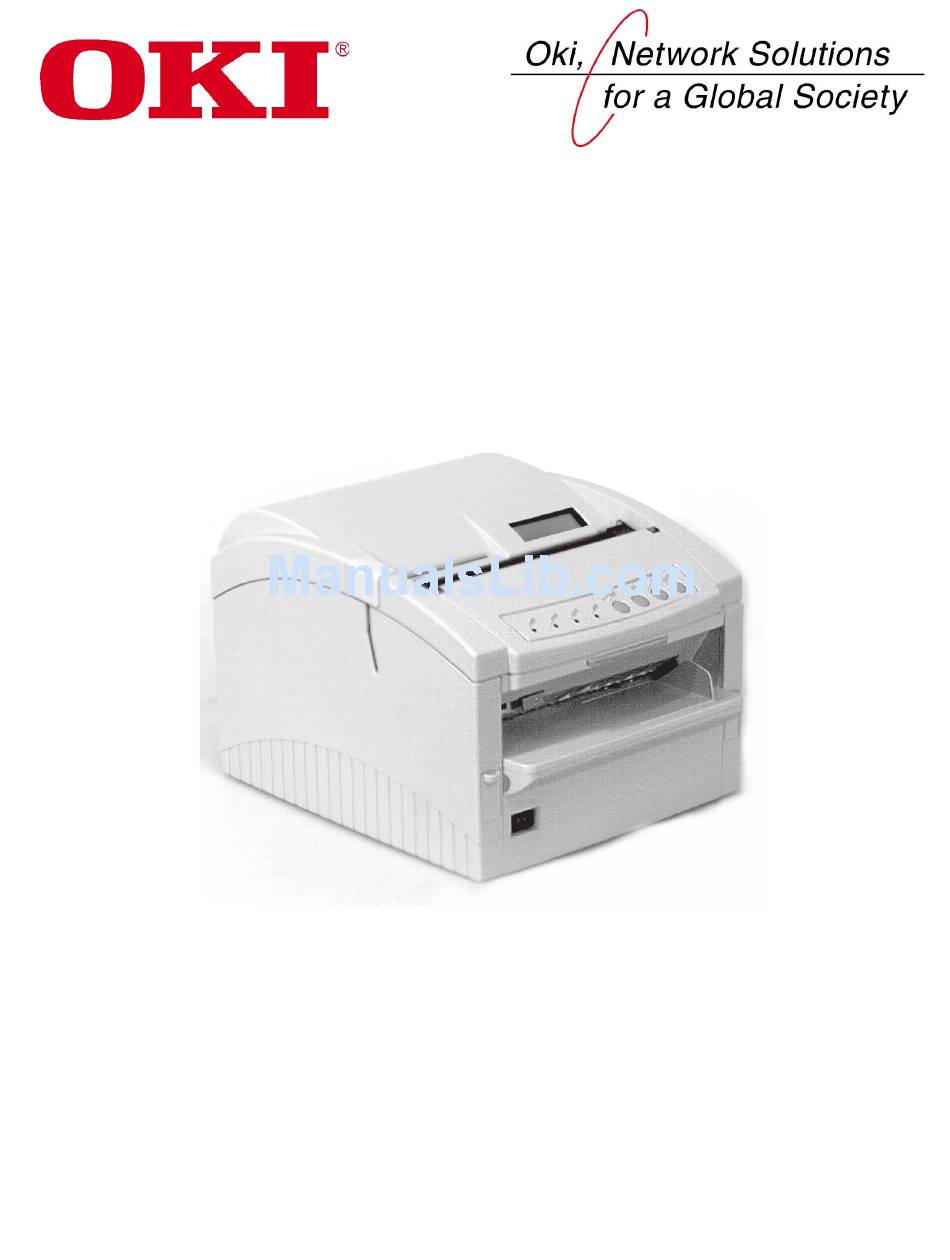

  • Page 1 okilogo.jpg global logo.jpg OKIPOS 425D o425_72.jpg Developer’s Guide 59336301...
  • Page 2 Disclaimer Every effort has been made to ensure that the information in this document is complete, accurate, and up-to-date. Oki Data assumes no responsibility for the results of errors or omissions beyond its control. Oki Data also cannot guarantee that changes in software and equipment made by other manufacturers and referred to in this document will not affect the applicability of the information in it.

  • Page 3: Table Of Contents

    2.2.1 Types ...35 2.2.2 Starting ...36 2.3 Menu Function (Receipt) ...37 2.3.1 OEM — Standard Model ...37 2.3.2 OKI — Standard Model ...38 2.3.3 How to Operate ...39 2.4 Hex Dump Function (Receipt) ...40 2.4.1 Print Format ...40 2.4.2 How to Print ...40 2.5 Using the MICR Reader ...41...
  • Page 4 5.3.1 Parallel Interface (OKI/OEM Standard Type) ...65 5.3.2 RS-232C Interface (OKI Standard Type) ...66 5.3.3 Cash Drawer connector (OKI Standard Type) ...67 5.3.4 Customer Display connector (OKI Standard RS-232C Interface Type) ...68 5.4 Physical Characteristics ...69 5.4.1 Printhead ...69 5.4.2 Printer ...69 5.5 Logical Characteristics ...70...
  • Page 5 6.2.1.7 Abicomp ... 108 6.2.1.8 Multilingual 858 ... 109 6.2.1.9 ISO 8859/15 ... 110 6.2.1.10 International character set table ... 111 6.2.2 Code table (OKI — Standard Type) ... 112 6.2.2.1 USA ... 112 6.2.2.2 Canada-French ... 113 6.2.2.3 Multilingual ... 114 6.2.2.4 Portugal ...

  • Page 6: Setting Up The Printer

    1.2 Where to install your printer Install your printer on as flat and stable a desk as possible. Also, make sure that the following installation space is reserved for services such as operation, daily check and replacement of supplies to maintain the performance of your printer.

  • Page 7: Unpacking

    1.3 Unpacking Getting Started Check the contents: Printer Ribbon Cartridge If anything is missing or damaged, contact your dealer immediately. o425_72.jpg and o425_07.jpg Developer’s Guide: English...

  • Page 8: Installing The Printer

    1.4 Installing the Printer Getting to Know the OKIPOS 425D o425_72.jpg Printer Cover Control Panel Paper Guide Cover Open Bar ON/OFF Switch OKIPOS 425D...

  • Page 9: Remove The Shipping Restraints

    1.4.1 Remove the Shipping Restraints Important! Save the shipping restraints and packing materials in case you ever need to ship the printer. Remove the five pieces of shipping tape. o425_30.jpg Press the Cover open bar and open the printer cover.

  • Page 10: Setting The Interface Board Assembly

    1.4.2 Setting the Interface Board Assembly 1.4.2.1 Setting the DIP Switches (RS-232C) A25001.doc DIP SW Function Selects the data bit length Selects between the presence and absence of parity bits. Selects the parity Selects the protocol Selects the signaling speed 5 –...

  • Page 11: Installing The Interface Board Assembly

    1.4.2.2 Installing the Interface Board Assembly (1) Insert the Interface Board Assembly in the direction of the arrow. o425_84.jpg (2) Secure the Interface Board Assembly with 2 screws. o425_28.jpg Developer’s Guide: English...

  • Page 12: Connecting The Computer

    1.4.3 Connecting the Computer This printer supports either Parallel Interface or RS232C when the interface board is installed in the printer. To install the interface board, refer to Section 1.4.2.2. 1. Check to be sure that the printer’s power is OFF.

  • Page 13: Installing The Ribbon Cartridge

    1.4.7 Installing the Ribbon Cartridge Make sure the printer is turned OFF. Press the Cover open bar and open the printer cover. o425_31.jpg and o425_32.jpg Center the printhead. o425_86.jpg Developer’s Guide: English...
  • Page 14 . Unpack the ribbon cartridge. Important! Do NOT remove the ribbon shield from the ribbon! o425_07.jpg Ribbon Shield Take-up Knob Grip Points 5. Install the new ribbon cartridge. 1) Hold the ribbon cartridge as shown below. o425_87.jpg 2) Fit the grooves in the flat end of the cartridge over the posts on the ribbon plate. OKIPOS 425D...
  • Page 15 3) Lower the front of the cartridge over the printhead until it snaps into place. o425_87.jpg and o425_88.jpg 4) Turn the knob (1) in the direction of the arrow on the cartridge to take up the ribbon slack. o425_86.jpg Developer’s Guide: English...

  • Page 16: Installing The Paper

    1.5 Installing the Paper A25002.doc Media Type Width Cut-Sheet Single part 105 to 215.9mm Paper (slip) (4.13” to 8.5”) (Sip/ Validation) Note 1 Single part 105 to 215.9mm (validation) (4.13” to 8.5”) Multi part 105 to 215.9mm carbon lined (4.13” to 8.5”) or pressure sensitive (slip)

  • Page 17: Roll Paper

    Paper width: 2.75 inches (69.5 mm) or 3.00 inches (76.2 mm) Adjustment must be made for both Receipt and Journal. 1) When the printer is shipped, the paper width is set for wide roll paper (3 inch or 76.2 mm width) o425_89.jpg 2) To use narrow roll paper (2.73 inch or 69.5 mm width), hold up the roll paper guide and move it to the left to insert...

  • Page 18: Loading The Roll Paper (Receipt)

    1.5.1.2 Loading the Roll Paper (Receipt) Use roll paper that matches the specifications. Note: The printer must be turned on before installing the roll paper. Fold the paper so it is exactly straight and even (1), and will not tear off jaggedly (2).
  • Page 19 Cut the roll paper. o425_92.jpg Close the printer cover. Developer’s Guide: English...

  • Page 20: Adjusting The Roll Paper Guide (Journal)

    Paper width: 2.75 inches (69.5 mm) or 3.00 inches (76.2 mm) Adjustment must be made for both Receipt and Journal. 1) When the printer is shipped, the paper width is set for wide roll paper (3 inch or 76.2 mm width) o425_89.jpg 2) To use narrow roll paper (2.73 inch or 69.5 mm width), hold up the roll paper guide and move it to the right to insert...

  • Page 21: Loading The Roll Paper (Journal)

    With the right side of the roll paper adjusted to the rightmost, insert the paper tip into the paper inlet as far as it goes, and printer feed the roll paper until the paper comes out from the top of the printer.
  • Page 22 3) and 4). Note that the flange can be demounted in the reverse procedures to its mounting. Note: This printer can use two kinds of roll paper. Their widths are 69.5mm+0.5mm and 76.2mm+0.5mm. Close the printer cover.

  • Page 23: Adjusting The Roll Paper Near End Sensing Position

    The paper near end detector detects when the paper is almost gone by measuring the diameter of the Roll paper. If you want to change the amount of paper remaining when the printer stops printing, follow the steps below to adjust the paper near end detector.

  • Page 24: Cut-Sheet Paper (Slip)

    Printer feed the paper until the top of form of the paper is reached. Note: If cut sheet paper is set askew, remove the paper following the procedure below and reset it: 1. Pull the lever (1) (marked “PULL”).

  • Page 25: Cut-Sheet Paper (Validation/Stub)

    With the right edge of the paper positioned at the “ ” mark on the Cover Top, insert the paper. o425_48.jpg Note: To feed paper along the long edge, remove the Piece (1) on the left side of the printer cover and set the paper. o425_72.jpg Developer’s Guide: English...
  • Page 26 How to remove the Piece 1. Press the Cover Open Bar and open the Printer Cover. CAUTION: Printhead may be very hot. o425_31.jpg and o425_32.jpg Unlock the latch (1) of the Piece Cover B (2) and remove the Piece Cover B.
  • Page 27 Close Printer Cover. * Paper has been set for long-edge printing. o425_49.jpg * Store the removed Piece in a safe place so that you will not lose it. Developer’s Guide: English...

  • Page 28: Sprocket Paper (Tractor)

    The printer must be turned off before inserting the tractor. 1. Turn off the printer. Move the Paper Guide all the way to the right. Pull the hooks (1) on the tractor cover (2) in the arrow direction and remove the tractor cover.
  • Page 29 3. Set the tractor lever (1) in the direction of the arrow. o425_18.jpg 4. Turn on the printer. 5. Pull up on the lock levers (1) and open the tractor covers (2), then move the right tractor over to fit the width of the paper.
  • Page 30 7. Move the left tractor to align the edge of the paper with the appropriate reference mark (!), and push back the right lock lever (2). o425_52.jpg 8. Fine-tune the position of the right tractor to center the holes in the paper on the pins, and push back the left lock lever (1). o425_52.jpg OKIPOS 425D...
  • Page 31 9. Printer feeds the paper into the printer when your computer sends data. 10. Preparation 1) Position the printer at the front edge of the support (this promotes the unrestricted flow of paper into the printer), then place a stack of Sprocket (Tractor) Paper below the printer.

  • Page 32: Using The Printer

    2. Using the Printer 2.1 Operation Panel Functions Note) OEM Fiscal Type: The operation panel is under the control of the fiscal control PCB. Consequently, the fiscal control PCB should be removed before self tests. Alternatively, disconnecting the cable from the main control PCB is acceptable.

  • Page 33: Switching Functions

    2.1.1 Switching Functions Switch Function in Modes other than Tractor In Receipt Mode: Feeds Receipt paper for the specified (FF/LOD,PAK) length (10/6”) In Slip Mode: Ejects a fed slip paper In Validation Mode: Disabled *Printing will not be started. In Receipt/Slip/Validation Modes: (CUT) Disabled In Receipt Mode: Feed a line of...

  • Page 34: Led Function

    *Slip Feed/Eject Alarm *Auto Loading Alarm *Auto Parking Alarm *Media Mismatch Alarm (1) *Media Mismatch Alarm (2) *Cover Open Alarm (Only OKI standard type) Paper is not fed Paper has (In sheet-insertion been fed wait state) (in print ready state)

  • Page 35: Local Functions

    2.2 Local Functions Note OEM Fiscal Type : This section describes local maintenance capabilities under the control of the printer block. The fiscal control PCB should be removed before the functions are performed. 2.2.1 Types Local Functions Local test All letters & rolling ASCII continuous printing test (Receipt) All letters &...

  • Page 36: Starting

    Tractor side. 3. No. 5, 8 and 10: if the lever is on the Tractor side, the printer starts up for normal printing with the function disabled. No. 1-3, 6, 7 and 9: the printer starts up with the function enabled regardless of the lever position.

  • Page 37: Menu Function (Receipt)

    Overview The menu function is the local function that sets each mode to control the printer and adjust it. This mode has the following items, saved in the E2P-ROM. This information is printed only when the menu mode is activated at Power On, and the information can be overwritten from the operator panel.

  • Page 38: Oki - Standard Model

    2.3.2 OKI — Standard Model Item Auto Cutter Unit MICR Unit Print Registration Top Adjust Cut Adjust Auto LF (Auto line feed) Receive Buffer Size Print Mode Off-line Busy Control Cover Open Alarm Width of Roll Paper Zero Character Page Length...

  • Page 39: How To Operate

    To start the Menu Mode, turn the printer on while holding down SW2 + SW1. When the printer’s initialization ends correctly, the printer prints the title “Menu Print” and all the menu items and set values. Then, the printer line-feeds until the print result goes beyond the Manual Cutter position, prints the item/set value immediately after “Menu Print,”...

  • Page 40: Hex Dump Function (Receipt)

    If it receives the I-PRIME signal (Parallel model)/Reset signal (Serial model), the printer starts printing if it has some data, then feeds one line. Then, the printer is initialized. (If it does not have any data, the printer feeds one line and then is initialized.)

  • Page 41: Using The Micr Reader

    2.5 Using the MICR Reader If your printer has the factory installed optional MICR (Magnetic Ink Character Recognition) reader that enables the printer to read and process MICR characters on personal checks, read this section. Note 1: If Cut-sheet Paper or Sprocket Paper has been loaded, eject it before you use the MICR feature. This does not apply to the Roll Paper.
  • Page 42 How to use the MICR Reader Send the command “FS a 0 n” from the host computer. Then the printer shifts to the MICR Mode and waits for the Check Sheet to be inserted. LED3 blinks slowly in orange (repeats 1 sec ON, 1 sec OFF).

  • Page 43: Micr Read Test (Receipt)

    (a) When this mode is started, the printer enters Wait for MICR Insertion state. (b) Insert MICR card and perform MICR read. (c) The printer prints MICR read results on the Receipt paper, and enters Wait for MICR Insertion state. (b) and (c) above are repeated.
  • Page 44 (4) Contents printed When Read is OK: (a) Prints “Read OK.” (b) Prints the MICR read results in HEX dump. (“XX XX ... XX” + ASCII: 1 line contains 8 byte information) When Read is NG: (a) Prints “Read NG.” (b) Prints the MICR read results (Return Code (1 byte) and read data) in HEX dump.

  • Page 45: Rewinder Winding Evaluation Continuous Print Test (Journal)

    2.7 Rewinder Winding Evaluation Continuous Print Test (Journal) This function performs print/platen switch continuous test to evaluate the rewinder winding performance. (1) How to start Turn the power on while holding down SW3 + SW1 + SW4. (2) How to exit Turn the power off.

  • Page 46: Using The Auto Cutter

    2.8 Using the Auto Cutter This printer is equipped with an Auto Cutter. Follow the procedure below to automatically cut the Roll Paper (Receipt). Note 1: Make sure that “Auto Cutter Unit” items in the menu are set to “Yes.” If there are any “No” items, change them to “Yes.”...

  • Page 47: Maintenance

    3.1 Replacing the Ribbon Cartridge When printing becomes light, replace the Ribbon Cartridge, following the procedure shown below: Make sure the printer is turned OFF. Press the Cover open bar and open the printer cover. o425_31.jpg and o425_32.jpg Center the printhead.
  • Page 48 Swing the front of the cartridge up off the printhead, then lift the cartridge out and discard it. Caution! The printhead may be HOT! o425_87.jpg Unpack the ribbon cartridge. Important! Do NOT remove the ribbon shield (1) from the ribbon! o425_07.jpg Ribbon Shield Take-up Knob...
  • Page 49 3) Lower the front of the cartridge over the printhead until it snaps into place. o425_87.jpg and o425_88.jpg 4) Turn the knob (1) in the direction of the arrow on the cartridge to take up the ribbon slack. o425_86.jpg Developer’s Guide: English...

  • Page 50: Replacing The Roll Paper

    3.2.1 Roll Paper (Receipt) Press Form Feed switch (1) on Receipt side so that the whole Receipt Paper (2) is ejected. o425_62.jpg Press the Cover Open Bar and open the Printer Cover. * Caution! The printhead may be HOT! o425_31.jpg and o425_32.jpg Load new paper roll.

  • Page 51: Roll Paper (Journal)

    Green light on: Journal + Receipt mode • Green light blinking (slow): Journal mode • Green light blinking (quick): Receipt mode Press the Cover Open Bar and open the printer cover. Caution! The printhead may be HOT! o425_31.jpg and o425_32.jpg Developer’s Guide: English...
  • Page 52 Remove the paper roll (Journal) on the rewinder following the procedure below. (1) Remove the rewinder (1) from the printer. (2) Rotate the flange (2) in the direction shown below and remove it from the rewinder. Note 1: Rotation direction of the flange varies depending on the width of the Roll Paper.

  • Page 53: Clearing Paper Jams

    3.3 Clearing Paper Jams When Roll Paper gets jammed, remove the paper, following the procedure shown below: Press Cover Open Bar and open the printer cover. * Print head may be very hot. Exercise caution. o425_31.jpg and o425_32.jpg Remove the rewinder and cut the Roll Paper at the location shown below.
  • Page 54 Before loading Roll Paper, press down on the two levers shown below to close the plate assembly securely. o425_78.jpg Auto Cutter When paper gets jammed at the Auto Cutter, remove the paper following the procedure below. Press the Cover Open Bar, and open the printer cover. Caution! The printhead may be HOT! o425_31.jpg and o425_32.jpg OKIPOS 425D...
  • Page 55 Remove the rewinder and cut the paper at the positions (1). o425_75.jpg Press down the two levers shown below simultaneously, lift up the plate assembly, and gently pull out the paper (Journal) in the direction shown below. o425_76.jpg and o425_77.jpg again Cut the paper roll (Receipt) and gently pull out the paper in the direction shown below.
  • Page 56 Cut-Sheet Paper When cut-sheet paper gets jammed, remove the paper, following the procedure shown below: Press the Cover Open Bar and open the printer cover * Print head may be hot. Exercise caution. o425_31.jpg and o425_32.jpg Slowly pull out the paper upward or toward you while pulling the lever (1) [marked “PULL”] toward you.
  • Page 57 Open the Tractor Cover (1) and cut the sprocket paper at the perforation (2). o425_57.jpg Press the Cover Open Bar and open the printer cover o425_31.jpg and o425_32.jpg Slowly pull out the paper upward or toward you while pulling the lever (1) [marked “PULL”] toward you.

  • Page 58: Troubleshooting And Repair

    4. Troubleshooting and Repair 4.1 Alarm Indication for a Failure When a failure occurs, the printer indicates its contents with LED1 lamp on the operation panel, which blinks in different ways depending on the failure type. Note: OEM Fiscal Type: The alarm indication works only when the Fiscal Control PCB is not mounted.

  • Page 59: Details Of Alarm Indications

    MICR Unit Error (only Although the MICR Option is not installed in your with MICR type) printer, is the No. 2 MICR Unit setting in the Menu “Yes?” (On how to check the Menu Settings, refer to Section 2.3, “Menu Function.”...

  • Page 60: Led Indication

    Slip paper did not exit correctly. Remove the Slip Sprocket paper was not loaded correctly. Set it at Sprocket paper did not eject correctly. Do the Media different from the one the printer is trying Close the printer cover. Load the media.

  • Page 61: Specifications

    5.1.1 Scope of Application This specification applies to OKIPOS 425D/425D/425DF, a 9-pin type serial dot impact printer. This device is a desk-top serial dot impact printer, used exclusively as the output device for POS (Point-of-sales) system. • OKIPOS 425D: OKI Dual Standard Version •...
  • Page 62 Options Front Tractor: User Option o425_26.jpg Parallel Interface: Dealer Option (OKI/OEM Standard Type) o425_23.jpg RS-232C Interface: Dealer Option (OKI Standard Type) o425_81.jpg Note Only one interface option can be installed. OKIPOS 425D...

  • Page 63: Configuration

    5.1.3 Configuration Standard Printer Configuration Printer Cover Control Panel Paper Guide Cover Open Bar ON/OFF Switch o425_72.jpg Developer’s Guide: English...

  • Page 64: General Specifications

    5.2 General Specifications 5.2.1 Power Requirements Input power Single-phase AC Voltage: Universal Frequency: 50/60Hz +2% Power consumption (without Fiscal Control PCB) Local Test : Max. 40W (Local Printing) Idle: Max. 15W (Energy Star compliant) 5.2.2 Environmental Conditions Ambient temperature and relative humidity Operating Non-operating Temperature...

  • Page 65: Communication Interface Specifications

    OKI Standard Type: Paper End Online 1284 mode move request Not connected Signal ground Frame ground +5VDC power supply (Max 400mA) Initialization Error OEM Standard Type: Not used OKI Standard Type: Cash Drawer status signal 1284 mode move request Developer’s Guide: English...

  • Page 66: Rs-232C Interface (Oki Standard Type)

    5.3.2 RS-232C Interface (OKI Standard Type) Interface signals A25013.doc Pin No. Signal Protective ground Transmitted Data Received Data Request to Send Data Set Ready (Note 2) Signal Ground Data Terminal Ready 5,8 to 10,11, 12 to 19, 21 to 24...

  • Page 67: Cash Drawer Connector (Oki Standard Type)

    5.3.3 Cash Drawer connector (OKI Standard Type) Cash Drawer Connector Signals A25014.doc Pin No. Signal Name Direction CASHDV1 To Cash Drawer CASHST-N From Cash Drawer +24V To Cash Drawer CASHDV2 To Cash Drawer Note: Pin arrangement OP425_07.eps 1 2 3 4 5 6...

  • Page 68: Customer Display Connector (Oki Standard Rs-232C Interface Type)

    5.3.4 Customer Display connector (OKI Standard RS-232C Interface Type) Customer Display Connector Signals A25015.doc Pin No. Signal Name Direction To Customer Display To Customer Display From Customer Display +24V To Customer Display Note Pin arrangement OP425_08.eps 1 2 3 4 5 6 7 8...

  • Page 69: Physical Characteristics

    Impact dot matrix Number of dot wires: 9 wires Dot wire diameter: 0.34 mm (0.013") 5.4.2 Printer Outside dimensions (without Tractor) 265 mm (10.43") (W) x 218 mm (8.58") (H) x 337 mm (13.27") (D) OP425_09b.eps 265mm (10.43inch) Outside dimensions (with Tractor) 265 mm (10.43") (W) x 218 mm (8.58") (H) x 422 mm (16.61") (D)

  • Page 70: Logical Characteristics

    5.5 Logical Characteristics 5.5.1 Print Direction Bidirectional, unidirectional printing Short-line-seeking printing 5.5.2 Selectable Character Pitches Character width A25016.doc Selected font 20 CPI Regular size 0.05 inch 1.27 mm 10 CPI Double wide size 0.1 inch 2.54 mm (*) OEM Type: Cut Sheet or Sprocket Paper (Tractor) mode only Character pitch A25017.doc Item...

  • Page 71: Font Size/Cell Size

    A variable line feed pitch of n/216 inch (integer n: 0 < n < 255) can also be specified. OKI Standard Type: A variable line feed pitch of n/144 inch (integer n: 0 < n < 255) can also be specified.

  • Page 72: Media Specifications

    5.7 Media Specifications 5.7.1 Cut-Sheet Paper (Slip/Validation) Paper Width: 105 to 215.9 mm (4.13" to 8.5") Paper Length: 70 to 297 mm (2.76" to 11.7") Single part (Slip) Weight: 52 to 105 g/m Thickness: 0.065 to 0.13 mm (0.0026" to 0.005") Single part (Validation) Weight: 65 to 81g/m...

  • Page 73: Appendix: Media Specifications

    5.7.5 Appendix: Media Specifications 5.7.5.1. Cut-Sheet Paper (Slip/Validation) 5.7.5.1.1. Paper Size and Printing Area Single-part Paper OP425_10.eps Base line First character position Paper inserting direction Against the perpendicular to the Base line Printing area + 0.2mm or less Standard media are in A5 and B5 sizes. A25022.doc Symbol Designation...
  • Page 74 Counterfoil and Stub OP425_11.eps Printing area Stub Inserting direction A25023.doc Symbol Designation Paper width Paper length Print starting position Left margin Right margin Printing area width Note 1 To feed paper, insert a paper from the top side of the device and keep holding it until printing ends. Note 2 Use a flat sheet free curls, bends (especially those on its edges), cambers, wrinkles, etc.
  • Page 75 Note 3 Wide paper with the left or right edge pasted should be printed carefully, since it may twist during feeding. Note 4 Only a multi-part slip can be used for printing. (Insert it from the front side of the printer.)
  • Page 76 5.7.5.1.4 Fixing Method of Multi-part Paper Joint The multi-part paper joint shall be fixed with 1mm line-pasting on the edge which is first fed into the printer. The joint must be glued securely and pressed without fail to prevent any part from lifting.
  • Page 77 5.7.5.1.5 Binding Holes Do not use a paper with punched holes. It may invalidate your warranty. If you choose to use punched paper, be sure to test it thoroughly. Follow these guidelines: Do not print within 5 mm of the hole center. Make sure that paper dust is not left on the paper.
  • Page 78 5.7.5.1.6 Perforated Lines Do not use paper with perforations. It may invalidate your warranty. If you choose to use perforated paper, be sure to test it thoroughly. Follow these guidelines: The specification of a perforated line corresponds to that of a perforated line on Sprocket Paper. Do not print within the shaded area adjoining the perforations.
  • Page 79 5.7.5.1.7 Provisions on Fold, Bend and Curl on Cut-sheet Paper Paper is apt to sustain bends, cambers or curls resulting from manual handling, carrying, stacking, storing conditions, etc. Therefore, before printing, check and adjust paper in accordance with the provisions below to eliminate paper feed problems. Do not use paper that does not meet the specifications outlined here: it may cause paper feed problems.

  • Page 80: Roll Paper (Receipt/Journal)

    5.7.5.2. Roll paper (Receipt/Journal) 5.7.5.2.1 Paper size and Printing area OP425_19b.eps 1 First character position 2 Cutting position (for manual cutting) 3 Printing area A25048.doc Symbol Designation Roll paper width Roll paper outside diameter Core inside diameter Left margin Right margin Printing area width Top margin OKIPOS 425D...
  • Page 81 5.7.5.2.2 Paper Quality Paper of the following quality may be used. A25049.doc Type Paper Quality Single-part paper High quality paper Paper smoothness must be 90 ~ 7 sec. for Beek and 75 ~ 300 sec. for Sheffield. If you use paper other than that specified here, test it to verify that it prints without problems. 5.7.5.2.3 Paper Weight The weight of paper usable for printing .

  • Page 82: Sprocket Paper (Tractor)

    5.7.5.3. Sprocket Paper (Tractor) 5.7.5.3.1 Paper size and Printing area OP425_20.eps Printing area Printable area First character position Paper inserting direction Unit: mm Maximum 160.02 The specification for the printable area differs from that for the printing area. A25030.doc OKIPOS 425D...
  • Page 83 Symbol Designation Paper width Paper length Heading position Top margin (on the 1 page) Bottom margin, recommended Bottom margin, printable Top margin, recommended Top margin, printable Bottom margin, recommended Bottom margin, printable Unprintable left margin Unprintable right margin Note 1 Though you can print within the light shaded area (printable area), feeding may be less accurate. Note 2 The print quality on the last page is not warrantied.
  • Page 84 5.7.5.3.2 Paper Quality Paper of the following quality may be used. A25031.doc Type Paper Quality Single-part paper High quality paper Multi-part paper Pressure-sensitive paper, Carbon-lined paper or Interleaved paper Note 1 Interleaved paper is a multi-part paper with carbons inserted between copies. Paper smoothness must be 90 ~ 7 sec.
  • Page 85 5.7.5.3.4 Fixing Method of Multi-part Paper Joint The joint fixing method for a multi-part paper shall be spot-pasting, line-pasting or crimping. Spot pasting is the proper precaution against position deviation made when piling sheet tiers. Crimping may cause position deviation of approx 3 mm. Metal staples must not be used.
  • Page 86 Crimping Crimp paper on both right/left sides. Apply crimping from the front surface, making no protrusion on the surface. All the sheets must be engaged securely with each other at the crimp position free of lifting. Use a double-type crimp and apply crimping in the direction to produce the crimped mark horizontal to the paper right/left edges.
  • Page 87 5.7.5.3.5 Rising in Horizontal Perforated Line Protrusions in a horizontal perforated line may result in poor print quality, unstable paper feeding or frequent paper jam. Therefore, the rising height must be kept within 1mm. OP425_24.eps Horizontal perforated line Within 1mm 5.7.5.3.6 Position Deviation of Sprocket Holes Deviation of the sprocket hole positions may be caused when each copy or tier is piled to produce multi-part paper.
  • Page 88 5.7.5.3.7 Binding Holes Do not use a paper with punched holes. It may invalidate your warranty. If you choose to use punched paper, be sure to test it thoroughly. Follow these guidelines: Do not print within 5 mm of the hole center. Make sure that paper dust is not left on the paper.
  • Page 89 5.7.5.3.8 Corner Cut Do not use paper with corner cuts. It may invalidate your warranty. If you choose to use corner cut paper, be sure to test it thoroughly. Follow these guidelines: Do not print within the shaded area adjoining a corner cut. Make sure that paper dust is not left on the paper.
  • Page 90 5.7.5.3.9 Wrinkle, Pleat and Swell Use paper, which has been folded zigzag on horizontal perforated lines, free of wrinkles and pleats. Newly unpacked paper often has wrinkles or pleats on the first and last pages. Please eliminate pages having wrinkles and pleats before printing.

  • Page 91: Micr (Only With Micr Type)

    5.7.5.4. MICR (only with MICR Type) 5.7.5.4.1 Paper Size and Scanning Area OP425_30.eps Paper inserting direction Scanning Area A25033.doc Symbol Designation Standard Value Paper width 76~78mm (2.99~3.07 inch) Paper length 174~176mm (6.85~6.93 inch) 4.8mm (0.19 inch) Scanning area 6.4mm (0.25 inch) 4.8mm (0.19 inch) 6.35mm (1/4 inch) or more 50mm (1.97 inch) or more...

  • Page 92: Paper Feed Specifications

    With Sprocket paper (Tractor) feed, the paper end is detected when the remaining paper length is about 19.6mm (0.77 inch) from the last printed line. Upon detecting the paper end, the printer stops printing and sends a paper end signal to the interface. OKIPOS 425D...

  • Page 93: Micr Specifications (Only With Micr Type)

    9.2 inches / sec 5.9.3 Recognition Rating 95% or more at 25°C Rating = ([total checks - number misread or not identified] / total checks) x 100 Check paper tested is OKI recognized check paper 5.9.4 Reliability Life: 240,000 passes Passes: reading and printing on U.S.

  • Page 94: Auto Cutter Specifications

    Rated one rotation time: Voltage: Starting Current: Dielectric resistance: Dielectric strength: Cutting frequency: 5.11 Ribbon Specifications Genuine Oki Data cartridge ribbon Ink color: Black Ribbon life: Approximately 3 million characters (when 1 character = 14 dots) 5.12 Reliability MTBF (mean time between failures) 10,000 hours of power-on time at 25% duty cycle.

  • Page 95: Command Description

    6. Command Description 6.1 Control Code List 6.1.1 OEM — Standard Model 6.1.1.1 Function Code List of Function Codes A25037.doc CODE * Print Start Column O : Command that invokes print start X : Command that does not invoke print start ^ : Command that sometimes invokes print start This applies hereafter.

  • Page 96: Esc Sequence

    To designate/clear underline To set 1/6 line feed To set n/216 line feed To designate one line uni-directional print To initialize the printer To set the page length of sprocket paper To set/reset emphasize print To set/reset double strike print...

  • Page 97: Gs Sequence

    6.1.1.3 GS sequence Command recognition GS codes in combination are handled the same way that ESC codes are handled. GS Sequence table A25039.doc Command Sequence 1D 45 GS E n 1D 76 GS v n 6.1.1.4 US Sequence A25038a.doc Command Sequence 1F 0E US 0EH n 1F 0E 00...

  • Page 98: Oki Standard Model

    6.1.2 OKI Standard Model 6.1.2.1 Function Code List of Function Codes A25040.doc CODE * Print Start Column O : Command that invokes print start X : Command that does not invoke print start ^ : Command that sometimes invokes print start This applies hereafter.

  • Page 99: Esc Sequence

    Sets n/144 line feed Sets Italic Mode Resets Italic Mode Designates one-line uni-directional print Selects peripheral device Initializes printer Sets n/72 line feed pitch Sets page length for Sprocket paper Designates/cancels Emphasize print Designates/cancels Double Strike print Feeds paper in increments of n/144...
  • Page 100 1B 6D ESC m 1B 70 ESC p m t1 t2 1B 74 ESC t n 1B 75 ESC u n 1B 76 ESC v 1B 77 ESC w n 1B 7A ESC z n 1B 10 41 ESC DLE A Pno N1…N8 1B 10 42 ESC DLE B Pno Pm...

  • Page 101: Fs Sequence

    Loads Check paper to the print start position Ejects Check paper Requests for resending a result of reading Check paper Functions Sends a status of the printer status real-time Selects print speed and printhead current flow time Sends a printer ID Enables/disables auto status send...

  • Page 102: Character Set

    6.2 Character Set 6.2.1 Code table (OEM — Standard Type) The character code tables follow. 6.2.1.1 USA OP425_03.tif 0xH and 1xH are Control Code areas. If a code received is other than a control code in 0xH and 1xH, it is ignored. The above table assumes international character set is set to “American.”...

  • Page 103: Canada-French

    6.2.1.2 Canada-French OP425_04.tif 0xH and 1xH are Control Code areas. If a code received is other than a control code in 0xH and 1xH, it is ignored. The above table assumes international character set is set to “American.” The blank space (20H, 7FH, FFH) indicates a space code. Developer’s Guide: English...

  • Page 104: Multilingual

    6.2.1.3 Multilingual OP425_05.tif 0xH and 1xH are Control Code areas. If a code received is other than a control code in 0xH and 1xH, it is ignored. The above table assumes international character set is set to “American.” The blank space (20H, 7FH, FFH) indicates a space code. OKIPOS 425D...

  • Page 105: Portugal

    6.2.1.4 Portugal OP425_06.tif 0xH and 1xH are Control Code areas. If a code received is other than a control code in 0xH and 1xH, it is ignored. The above table assumes international character set is set to “American.” The blank space (20H, 7FH, FFH) indicates a space code. Developer’s Guide: English...

  • Page 106: Norway

    6.2.1.5 Norway OP425_07.tif 0xH and 1xH are Control Code areas. If a code received is other than a control code in 0xH and 1xH, it is ignored. The above table assumes international character set is set to “American.” The blank space (20H, 7FH, FFH) indicates a space code. OKIPOS 425D...

  • Page 107: Brascii

    6.2.1.6 BRASCII OP425_08.tif 0xH and 1xH are Control Code areas. If a code received is other than a control code in 0xH and 1xH, it is ignored. The above table assumes international character set is set to “American.” The blank space (20H, 7FH, A0H) indicates a space code. 8xH and 9xH are ignored.

  • Page 108: Abicomp

    6.2.1.7 Abicomp OP425_09.tif 0xH and 1xH are Control Code areas. If a code received is other than a control code in 0xH and 1xH, it is ignored. The above table assumes international character set is set to “American.” The blank space (20H, 7FH, A0H) indicates a space code. 8xH, 9xH, ExH, and FxH are ignored.

  • Page 109: Multilingual 858

    6.2.1.8 Multilingual 858 OP425_10.tif 0xH and 1xH are Control Code areas. If a code received is other than a control code in 0xH and 1xH, it is ignored. The above table assumes international character set is set to “American.” The blank space (20H, 7FH, FFH) indicates a space code. Developer’s Guide: English...

  • Page 110: Iso 8859/15

    6.2.1.9 ISO 8859/15 OP425_11.tif 0xH and 1xH are Control Code areas. If a code received is other than a control code in 0xH and 1xH, it is ignored. The above table assumes international character set is set to “American.” The blank space (20H, 7FH, A0H) indicates a space code. 8xH and 9xH are ignored.

  • Page 111: International Character Set Table

    6.2.1.10 International character set table A25044.doc ESC R n Country (00)H American (01)H French (02)H German … (03)H British (04)H Danish I ¼ (05)H Swedish (06)H Italian (07)H Spanish I (08)H Japanese ¼ (09)H Norwegian (0A)H Danish II (0B)H Spanish II (0C)H Latin American...

  • Page 112: Code Table (Oki - Standard Type)

    6.2.2 Code table (OKI — Standard Type) The character code tables follow. 6.2.2.1 USA OP425_12.tif 0xH and 1xH are Control Code areas. If a code received is other than a control code in 0xH and 1xH, it is ignored. The above table assumes international character set is set to “American.”...

  • Page 113: Canada-French

    6.2.2.2 Canada-French OP425_13.tif 0xH and 1xH are Control Code areas. If a code received is other than a control code in 0xH and 1xH, it is ignored. The above table assumes international character set is set to “American.” The blank space (20H, 7FH, FFH) indicates a space code. Developer’s Guide: English...

  • Page 114: Multilingual

    6.2.2.3 Multilingual OP425_14.tif 0xH and 1xH are Control Code areas. If a code received is other than a control code in 0xH and 1xH, it is ignored. The above table assumes international character set is set to “American.” The blank space (20H, 7FH, FFH) indicates a space code. OKIPOS 425D...

  • Page 115: Portugal

    6.2.2.4 Portugal OP425_15.tif 0xH and 1xH are Control Code areas. If a code received is other than a control code in 0xH and 1xH, it is ignored. The above table assumes international character set is set to “American.” The blank space (20H, 7FH, FFH) indicates a space code. Developer’s Guide: English...

  • Page 116: Norway

    6.2.2.5 Norway OP425_16.tif 0xH and 1xH are Control Code areas. If a code received is other than a control code in 0xH and 1xH, it is ignored. The above table assumes international character set is set to “American.” The blank space (20H, 7FH, FFH) indicates a space code. OKIPOS 425D...

  • Page 117: Brascii

    6.2.2.6 BRASCII OP425_17.tif 0xH and 1xH are Control Code areas. If a code received is other than a control code in 0xH and 1xH, it is ignored. The above table assumes international character set is set to “American.” The blank space (20H, 7FH, A0H) indicates a space code. 8xH and 9xH are ignored.

  • Page 118: Abicomp

    6.2.2.7 Abicomp OP425_18.tif 0xH and 1xH are Control Code areas. If a code received is other than a control code in 0xH and 1xH, it is ignored. The above table assumes international character set is set to “American.” The blank space (20H, 7FH, A0H) indicates a space code. 8xH, 9xH, ExH, and FxH are ignored.

  • Page 119: Multilingual 858

    6.2.2.8 Multilingual 858 OP425_19.tif 0xH and 1xH are Control Code areas. If a code received is other than a control code in 0xH and 1xH, it is ignored. The above table assumes international character set is set to “American.” The blank space (20H, 7FH, FFH) indicates a space code. Developer’s Guide: English...

  • Page 120: Iso 8859/15

    6.2.2.9 ISO 8859/15 OP425_20.tif 0xH and 1xH are Control Code areas. If a code received is other than a control code in 0xH and 1xH, it is ignored. The above table assumes international character set is set to “American.” The blank space (20H, 7FH, A0H) indicates a space code. 8xH and 9xH are ignored.

  • Page 121: International Character Set Table

    6.2.2.10 International character set table A25045.doc ESC R n Country (00)H American (01)H French (02)H German (03)H British (04)H Danish I (05)H Swedish (06)H Italian (07)H Spanish I (08)H Japanese (09)H Norwegian (0A)H Danish II (0B)H Spanish II (0C)H Latin American (0D)H French Canadian (0E)H...

  • Page 122: Using The Unitool Printer Driver

    7.1 Setting Slip Paper in the Paper Tray This section describes the method to set Slip paper in the input bin. With this printer, the position of the Paper Guide can be adjusted sideways, enabling you to change the paper setting position. If you use this printer driver, however, follow the procedure below when determining the right/left margins for paper and the position to set the Slip paper.

  • Page 123: Using Registered Paper Icons

    7.1.1 Using Registered Paper Icons Paper width is 190.5 mm (7.5") or more and up to 215.9 mm (8.5") inclusive. O425_108.jpg Printing area Left Margin 27.94mm (1.1 inch) Right Margin 27.94mm (1.1 inch) Printable Maximum Width 160.02mm (6.3 inch) Slip Tray Left Side Paper Guide Slip Tray Right Side Left Margin 2.54mm (0.1 inch)
  • Page 124 For paper that is 190.5 mm (7.5") or more and less than 215.9 mm (8.5"), slide the Paper Guide toward the left as needed so that the entire printing area on the paper shifts toward the right, as illustrated below. O425_109.jpg Printing area Printable Maximum Width 160.02mm (6.3 inch)
  • Page 125 Paper Width is less than 190.5 mm (7.5"). The printing area, when printing paper that is less than 190.5mm (7.5") in width, is illustrated below. For paper 190.5 mm (7.5") or more and less than 215.9 mm (8.5"), slide the Paper Guide toward the left as needed so that the entire printing area on the paper shifts toward the right.

  • Page 126: Using Custom Size

    7.1.2 Using Custom Size Custom Size is variable in width in the range of 187.96 mm (7.4") - 215.9 mm (8.5"). 7.1.2.1 Using Paper Size that is less than 187.96 mm (7.4") in Width To adjust the left and right margins and create data for a paper size you want to use, follow the procedure below. Set the length of paper to use in the Custom Size Setup dialog.
  • Page 127 Set the right margin at 27.94 mm (1.1") (Printing disabled area 25.4 mm [1.0"] + Slip paper’s minimum right margin 2.54 mm [0.1"]) or more. Image of actual printing area O425_112.jpg Target Printing Area Printing Area with margin adjusted Left margin for paper to be used 2.54mm (0.1 inch) or more Width of Paper Size actually used 101.6mm (4.0 inch) Right margin for paper to be used 25.4mm (1.1 inch) or more (including the printing disabled area) Right margin actually set...
  • Page 128 With the Paper Guide pushed to the right, insert 101.6 mm (4.0")-wide paper to print. o425_119.jpg Target Printing Area Printable Maximum Width 160.02mm (6.3 inch) Slip Tray Left Side Slip Tray Right Side Paper Guide Right Margin 27.94mm (1.1 inch) or more When you need to print Custom Size paper (e.g.
  • Page 129 With the Paper Guide pushed to the left, insert 101.6 mm (4.0")-wide paper to print. An image of actual printing area o425_112.jpg Target Printing Area Printing Area with margin adjusted Left margin for paper to be used: 2.54mm (0.1 inch) or more Width of actually used Paper Size 101.6mm (4.0 inch) Right margin for paper to be used: 2.54mm (0.1 inch) Actually set right margin 25.4mm (1.1 inch) or more (including the printing disable area)
  • Page 130 With Paper Guide pushed to the left, insert 101.6 mm (4.0")-wide paper to print. O425_113.jpg Target Printing Area Printable Maximum Width 160.02mm (6.3 inch) Right Margin 27.94mm (1.1 inch) Slip Tray Left Side Paper Guide Slip Tray Right Side OKIPOS 425D...

  • Page 131: Using Paper Size That Is 187.96 Mm (7.4") Or More And Less Than 215.9 Mm (8.5") In Width

    The printer’s physical printable area is 160.02 mm (6.3"). The value that is set at Left Margin/Page Setup in the application is treated as the distance from the printer’s print start position (left edge). In other words, if the value set at Left Margin is greater than 0, the printing area shifts to the right in actual printing by as much as the set value.

  • Page 132: About The Validation Printing Area

    7.2 About the Validation Printing Area This section describes the information for the Validation printing area, and it includes notes for using Validation. In Validation mode, you can use the same paper as in Slip mode, but the printing area is not the same as that of Slip mode. Only 1-line printing is supported.
  • Page 133 The following shows examples of print data created in Windows applications in each Paper source (L_Alignment/Center/ R_Alignment). Data in application O425_116.jpg Center Line (L_Alignment is used) (Center is used) (R_Alignment is used) (L_Alignment is used) (Center is used) (R_Alignment is used) When spaces are inserted ( x x : space) Print result Developer’s Guide: English...
  • Page 134 Basically, the concept of setting the printing area in the horizontal direction and the margins for Custom paper is the same as for Slip, except for the following. Custom Size is variable in width in the range of 162.56 mm (6.4") - 215.9 mm (8.5"). Validation’s paper setting position is different from that of Slip, and the minimum Right Margin value is 2.54 mm (0.1").

  • Page 135: Setting Tractor Paper In The Tractor Unit

    Orientation selections available with this printer driver are described next. The printer driver switches the document orientation according to the setting made by the user. When Landscape is designated, the driver rotates the direction 90° clockwise for printing. This rotation is done in Windows;...

  • Page 136: Special Functions Of The Windows 95/98 Version Printer Driver

    When the printer’s TOF position/paper auto exit position (see below) is changed in the printer side, this setting is used to adjust the driver’s TOF position/paper auto exit position to the positions set in the printer. The TOF position/paper auto exit...
  • Page 137 Thus, the application produces data while ignoring the data in the first 1 inch from the top of that data. Unless you set the printer Auto Loading to 1 inch, you cannot get the printing result you expect.

This manual is also suitable for:

Okipos 425d

Table of Contents
