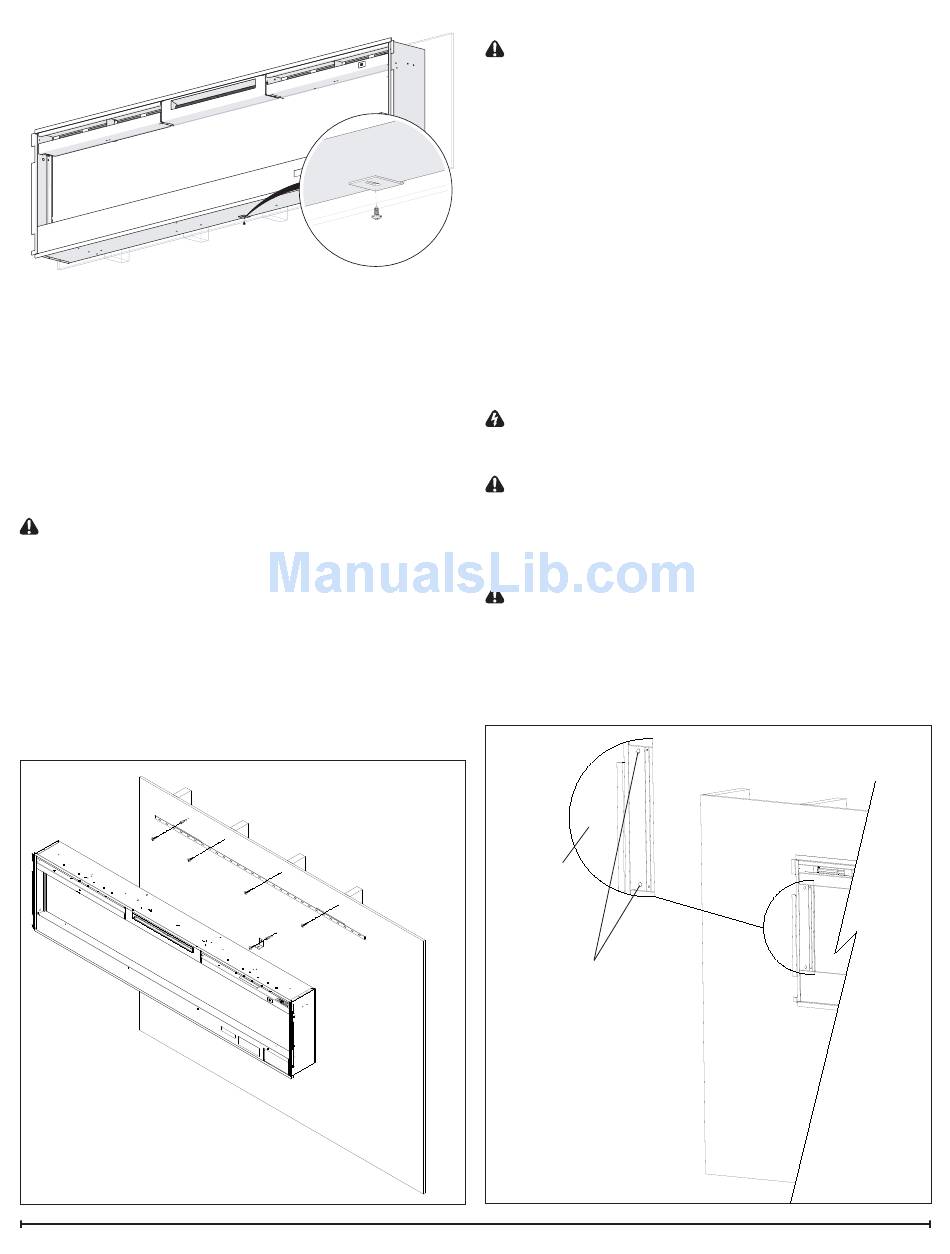

Figure 5
wood flooring), it is recommended that a protective barrier
be used underneath, (i.e. cloth, cardboard, thick plastic).
5. Proceed to the instructions within this manual relating
to the repair being performed - see Table of Contents
for page number.
6. Once repair is complete, reassemble in the reverse
order as above.
Flush Mount – Complete In-wall
(Figure 7)
Tools Required: Philips head screwdriver
CAUTION: Follow "Preparation for Service" instructions
before proceeding.
1. Remove the decorative glass ember-bed pieces from
the media tray, which lies along the bottom of the
interior Partially Reflective Glass. A medium sized
container such as a bucket or a box will be needed to
keep the glass ember-bed pieces together.
2. Locate and remove the 4 mounting screws inside the
unit located on left and right side towards the front.
There are 2 screws per side, going from the side
panels out into the side of the wall stud that frames the
Figure 6
8
fireplace. (Figure 7)
CAUTION: The unit should be supported while remov-
ing the screws to prevent the unit from falling.
3. Remove the fireplace out of the opening by slightly lift-
ing and pulling forward.
4. Carefully lay the unit down on a solid flat surface with
the front of the unit facing up.
!
NOTE: If the surface you are using as a work area is
a finished surface that is prone to scratches (i.e. hardwood
flooring), it is recommended that a protective barrier be
used underneath, (i.e. cloth, cardboard, thick plastic).
5. Proceed to the instructions within this manual relating
to the repair being performed - see Table of Contents
for page number.
6. Once repair is complete, reassemble in the reverse
order as above.

ON/OFF SWITCH REPLACEMENT

WARNING: Disconnect power before attempting any
maintenance or cleaning to reduce the risk of electric
shock or damage to persons.
CAUTION: If unit was operating prior to servicing allow
at least 10 minutes for lights and heating elements to cool
off to avoid accidental burning of skin.
Tools required: Phillips head screwdriver.
Needle nosed pliers.
CAUTION: Follow "Preparation for Service" instructions
before proceeding.
1. Remove the 2 screws, that secure the controls assem-
bly (Figure 8), located at the top of the mirror on the
right side of the unit.
Figure 7
Wall Surface
Mounting Hole
