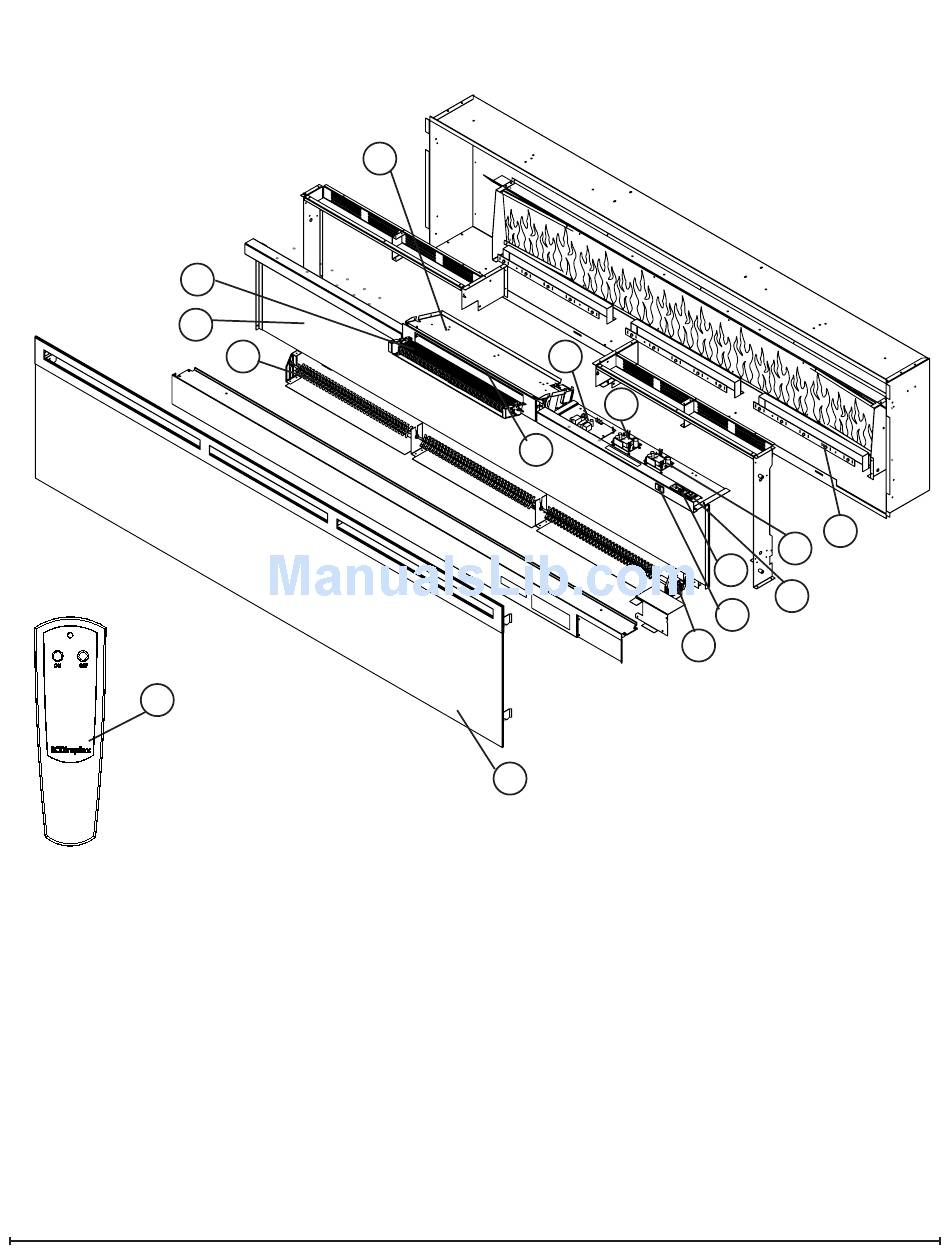

EXPLODED PARTS DIAGRAM

15

REPLACEMENT PARTS LIST

1. Element . . . . . . . . . . . . . . . . . . . . . . . . 2200510700RP
2. Partially Reflective Glass Kit . . . . . . . . 9600750100RP
3. Blower Assembly . . . . . . . . . . . . . . . . . 5300160300RP
4. Front Glass . . . . . . . . . . . . . . . . . . . . . 6908730100RP
5. Flicker Motor . . . . . . . . . . . . . . . . . . . . 2000220100RP
6. Flicker Assembly . . . . . . . . . . . . . . . . 5902490100RP
7. Cutout . . . . . . . . . . . . . . . . . . . . . . . . . 2300201600RP
8. LED Light Panel (3/unit) . . . . . . . . . . . 3000830200RP
(Serial #'s starting with 28113-28313 .3000830100RP)
9. Remote Receiver . . . . . . . . . . . . . . . . 3000821000RP
10. Switch Board . . . . . . . . . . . . . . . . . . . . 3000821100RP
11. LED Driver Board . . . . . . . . . . . . . . . . 3000810100RP
1
2
6
3
7
4
12. LED Driver Board . . . . . . . . . . . . . . . . 3000810200RP
13. On/Off Switch . . . . . . . . . . . . . . . . . . . 2800070400RP
14. Voltage Selector Switch . . . . . . . . . . . 2800080100RP
15. Remote Control . . . . . . . . . . . . . . . . . . 3000370900RP
16. Glass Media . . . . . . . . . . . . . . . . . . . . 1400070100RP
17. Terminal Block . . . . . . . . . . . . . . . . . . . 4000070100RP
18. Mounting Kit . . . . . . . . . . . . . . . . . . . . 9600760100RP
19. 120V Plug Kit . . . . . . . . . . . . . . . . . . . BLF-PLUG-KIT
Accessories
Wall Switch Remote Control . . . . . . . . . . . . . .WRCPF-KIT
OEM Accessory
River Rocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . DFS1314
9
12
10
14
5
8
11
13
5
