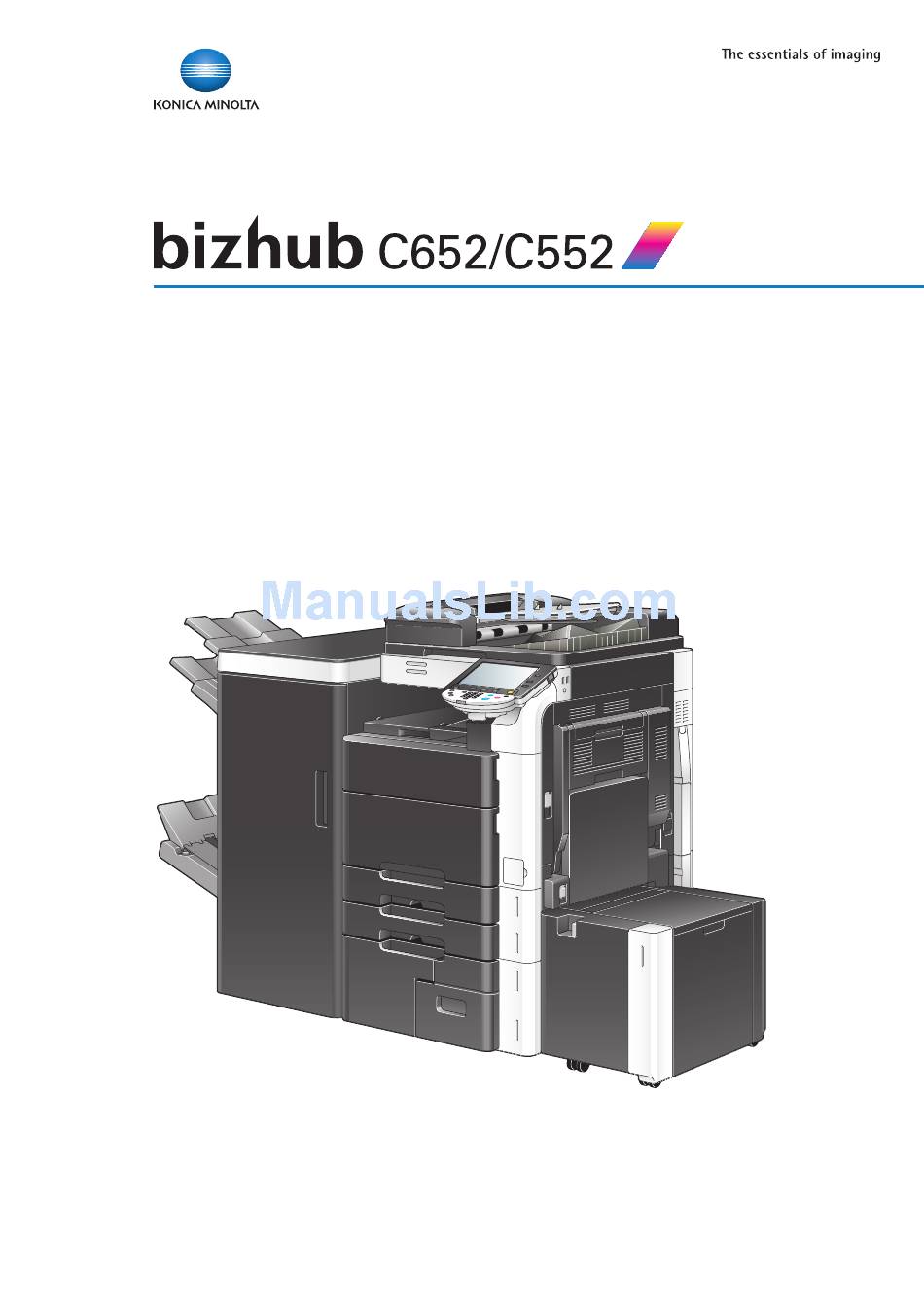

Page 1 User’s Guide [Copy Operations]...
Page 2: Table Of Contents
The [Reset] key ..........................4-5 About the [Copy] key, the [Fax/Scan] key, and the [User Box] key ........... 4-6 The [Copy] key ........................... 4-6 The [Fax/Scan] key ..........................4-6 The [User Box] key..........................4-6 The [Utility/Counter] key ........................ 4-7 bizhub C652/C552 Contents-1...
Page 3 Book Copy ............................5-32 Image Repeat........................... 5-33 Poster Mode ............................ 5-34 Booklet Original..........................5-35 5.4.4 Page Margin............................. 5-36 5.4.5 Image Adjust ............................ 5-38 5.4.6 Booklet............................. 5-39 5.4.7 Erase ..............................5-40 Frame Erase ............................. 5-40 Non-Image Area Erase........................5-41 bizhub C652/C552 Contents-2...
Page 4 Stamp Settings ..........................7-21 7.1.13 Blank Page Print Settings ........................ 7-22 7.1.14 Skip Job Operation Settings......................7-22 7.1.15 Default Bypass Paper Type Setting ....................7-23 7.1.16 Page Number Print Position......................7-24 Administrator/Machine Settings....................7-25 One-Touch/User Box Registration ....................7-26 bizhub C652/C552 Contents-3...
Page 5 Original glass ........................... 8-11 Original glass, control panel, paper take-up roller................8-11 Housing, document pad ........................8-12 Troubleshooting When the message "Trouble" appears (call a service representative) ........9-2 Problems that cannot be corrected by the user ................9-2 bizhub C652/C552 Contents-4...
Page 6 Specifications 12.1 Paper .............................. 12-2 Paper types and paper capacities ....................12-2 12.2 Machine specifications......................... 12-4 bizhub C652/C552 ........................... 12-4 Automatic duplex unit ........................12-6 Reverse automatic document feeder....................12-6 12.3 Options............................12-7 Finisher FS-526..........................12-7 Saddle stitcher SD-508........................12-8 Punch kit PK-516 ..........................
Page 7 13.3 Glossary ............................13-7 Index 14.1 Index by item ..........................14-2 14.2 Index by button..........................14-6 bizhub C652/C552 Contents-6...
Page 8: Introduction
Introduction...
Page 9: Welcome
This manual describes details on the fax driver func- tion that transmits faxes directly from a computer. • PC-FAX Network Administrator This manual describes details on setting methods for each function using the network connection. • Network settings • Settings using PageScope Web Connection bizhub C652/C552...
Page 10: User's Guide
Note that basic technical knowledge about the product is required to enable users to perform maintenance work or troubleshooting operations. Limit your maintenance and troubleshooting operations to the areas explained in this manual. Should you experience any problems, please contact our service engineer. bizhub C652/C552...
Page 11: Conventions Used In This Manual
This format number represents the order of serial steps. % This symbol indicates a supplementary explanation of a procedural instruction. A procedural operation is illustrated. This symbol indicates transition of the control panel to access a desired menu item. This symbol indicates a desired page. bizhub C652/C552...
Page 12: Key Symbols
X side the length. Paper indication w indicates the paper size with the length (X) being longer than the width (Y). v indicates the paper size with the length (X) being shorter than the width (Y). bizhub C652/C552...
Page 13: Part Names And Their Functions
Part names and their functions...
Page 14: Options
The original is scanned by the scanner section, and the scanned image is printed by the printer section. Referred to as the "machine", the "main unit", or the "C652/C552" throughout the manual. Authentication unit (biometric type) Performs user authentication by scanning vein pat- AU-101 terns in the finger.
Page 15 PDF document using the scan or User Box function. i-Option LK-103 v2 Provides both i-Option LK-101 v2 and LK-102 func- tions. • This option may not be available depending on the sales area. Upgrade kit UK-203 Required for using expansion functions. bizhub C652/C552...
Page 16: Main Body
Left-side cover release lever Left-side cover Lateral guide Original tray Original output tray Sub power switch USB port (type A) USB 2.0/1.1 USB port (type A) USB 2.0/1.1 (For compact keyboard) Automatic duplex unit release lever Automatic duplex unit bizhub C652/C552...
Page 17 Bypass tray door release lever Lower right-side door Lower right-side door release lever Paper-empty indicator Total counter Main power switch Tray 4 Tray 3 Tray 2 Tray 1 Lower front door Upper front door Output tray Status indicator bizhub C652/C552...
Page 18: Outside Of The Main Body (Rear)
The illustration above shows the main unit with an optional video interface kit, fax kit, and mount kit. Name Finisher connector Filter Power cord Power switch for dehumidifying heater Jack for connecting a telephone (TEL PORT2) Telephone jack 2 (LINE PORT2) bizhub C652/C552...
Page 19 Main Body Name Jack for connecting a telephone (TEL PORT1) Telephone jack 1 (LINE PORT1) USB port (type A) USB 2.0/1.1 RS-232C port USB port (type B) USB 2.0/1.1 Network connector (10Base-T/100Base-TX/1000Base-T) Ozone filter bizhub C652/C552...
Page 20: Main Bodyinside
Main Body 2.2.3 Main bodyInside Name Original glass Fusing unit Fusing unit cover lever Print head glass cleaning tool Waste toner box Imaging unit bizhub C652/C552...
Page 21: Control Panel
Imaging unit release lever Toner cartridges Original glass Original scales Jam removal dial Original glass cleaner 2.2.4 Control panel Name Touch pen Touch panel Main power indicator Sub power switch Function key Data indicator Keypad Brightness adjustment dial bizhub C652/C552...
Page 22: Adjusting The Angle Of The Control Panel
You can tilt the angle of the control panel to one of the three positions. To tilt the control panel to the left or right, hold the bottom of the control panel, and then tilt the panel to the left or right. bizhub C652/C552 2-10...
Page 23: Touch Panel
Basic tab Quick Copy tab Name Message display area Functions/settings display area Icon display area Toner supply indicators Left panel Check Job Job List Copier setting button (arrow) bizhub C652/C552 2-11...
Page 24 Press the [Utility/Counter] key ö [User Settings] ö [Custom Display Settings] ö [Copier Settings] ö [Default Tab]. To configure color selection settings for buttons and tabs: Press the [Utility/Counter] key ö [User Settings] ö [Custom Display Settings] ö [Color Selection Settings] . bizhub C652/C552 2-12...
Page 25: Finisher Fs-526/Saddle Stitcher Sd-508
Option Option 2.3.1 Finisher FS-526/Saddle stitcher SD-508 Name Output tray 1 Output tray 2 Front door bizhub C652/C552 2-13...
Page 26 Jam removal dial [FN3] Guide lever [FN1] Staple replacement door Guide lever [FN13] Guide lever [FN12] Exit cover * Press the output tray switch to move folded and center stapled paper to the end of the folding output tray. bizhub C652/C552 2-14...
Page 27: Punch Kit Pk-516
Option 2.3.2 Punch kit PK-516 Install the punch kit onto the finisher. Name Punch kit Punch scrap box bizhub C652/C552 2-15...
Page 28: Large Capacity Unit Lu-301/Lu-204
Option 2.3.3 Large capacity unit LU-301/LU-204 Name Jam removal cover Upper door Paper take-up roller Paper-empty indicator Release lever bizhub C652/C552 2-16...
Page 29: Using This Machine
Using this machine...
Page 30: Turning On Or Off The Machine
To turn the power on, open the main power switch cover, and then press [ n ] on the [main power switch]. Close the main power switch cover. Press the [sub power switch]. Check that the touch panel is turned on. bizhub C652/C552...
Page 31 Turning on or off the machine To turn the power off, press the [sub power switch], then the [main power switch]. Reference To change the default settings for Copy: Press the [Utility/Counter] key ö [User Settings] ö [Copier Settings] ö [Default Copy Settings]. bizhub C652/C552...
Page 32: Basic Copy Operations
% If the document is loaded in any orientation other than with the top of the document toward the back of the machine, be sure to select the document orientation. Slide the adjustable lateral guides against the edges of the original. bizhub C652/C552...
Page 33: Placing The Original On The Original Glass
The original is scanned and copied. % To interrupt the copy operation being performed, press the [Stop] key. % A "Ready to accept another job" message that appears during the current printing job indicates that the next original can be scanned. bizhub C652/C552...
Page 34: Copy Operations Using Multiple Functions
This section describes copy operations using combination of functions. Load the original. Press [Basic] ö [Original Setting]. % For details on original setting, refer to page 5-14. Press [Basic] ö [Duplex/Combine]. % For details on the Duplex/Combine settings, refer to page 5-8. bizhub C652/C552...
Page 35 % For details on the setting not to rotate images, refer to page 5-13. Press [Application] and then configure settings for respective functions. % For setting for the application functions, refer to page 5-19. Press [Basic] ö [Finishing]. % For details on copy finishing and folding/binding, refer to page page 5-10. bizhub C652/C552...
Page 36: Functions That Cannot Be Combined
Some settings cannot be combined with each other. If they are combined improperly, the settings will be given priorities in either of the two ways described below. The setting configured last is given priority. (The setting specified first is canceled.) The setting configured first is given priority. (A warning message appears.) bizhub C652/C552...
Page 37: Control Panel Keys And Authentication Unit
Control Panel Keys and Authentication Unit...
Page 38: Control Panel And Functions
[Utility/Counter] Switches to the Utility screen or the Meter Count p. 4-7 screen. [Reset] Resets all settings (except programmed settings) p. 4-5 entered using the control panel or touch panel. bizhub C652/C552...
Page 39 Guide [Network Scan/Fax/Network Fax Opera- tions]". [Copy] Enters Copy mode. (As a default, the machine is in p. 4-6 Copy mode. ) While the machine is copying, the in- dicator on the [Copy] key lights up in green. bizhub C652/C552...
Page 40: Authentication Unit
(biometric type). Authentication unit (bio- metric type) AU-102 Authentication unit (IC card User authentication can be performed by reading in- p. 4-23 type) AU-201 formation recorded in the IC card with the optional authentication unit (IC card type). bizhub C652/C552...
Page 41: About The [Start] Key, The [Stop] Key, And The [Interrupt] Key
The copy settings return to those specified before the interrupting copying job. The [Reset] key Resets all settings (except programmed settings) entered using the control panel or touch panel. Press the [Reset] key. The basic settings screen appears. bizhub C652/C552...
Page 42: About The [Copy] Key, The [Fax/Scan] Key, And The [User Box] Key
Press this key to enter Fax/Scan mode. For details on the fax/scan function, refer to the "User's Guide [Network Scan/Fax/Network Fax Operations]". The [User Box] key Enters User Box mode. For details on User Box functions, refer to the "User's Guide [Box Operations]". bizhub C652/C552...
Page 43: The [Utility/Counter] Key
Allows you to select whether to enable or disable printing on long sheets of paper. This menu item appears when the optional finisher is not installed. For details on long paper print, refer to the "User's Guide [Print Opera- tions]". bizhub C652/C552...
Page 44: The [Mode Memory] Key
Press the [Utility/Counter] key ö [Administrator Settings] ö [System Settings] ö [Restrict User Access] ö [Copy Program Lock Settings]. To delete a copy program: Press the [Utility/Counter] key ö [Administrator Settings] ö [System Settings] ö [Restrict User Access] ö [Delete Saved Copy Program]. bizhub C652/C552...
Page 45: The [Access] Key
To get permission to use the machine, you can use an authentication unit (biometrics type/IC card type) for authentication. If authentication is performed with PageScope Authentication Manager, check with your server administrator for information on the login procedure. Press the [Access] key. Screen for user authentication Screen for account track bizhub C652/C552...
Page 46 [Password] to enter alphabets and sym- bols in succession. Login Displays the basic settings screen, enabling you to use this machine. Reference To configure user authentication/account track: Press the [Utility/Counter] key ö [Administrator Settings] ö [User Authentication/Account Track]. bizhub C652/C552 4-10...
Page 47: Using The Machine During Non-Scheduled Hours
Using the keypad, enter the length of time to elapse before the machine enters Sleep mode again. Press [OK]. The basic settings screen appears. Reference To configure Weekly Timer: Press the [Utility/Counter] key ö [Administrator Settings] ö [System Settings] ö [Weekly Timer Settings]. bizhub C652/C552 4-11...
Page 48: The [Power Save] Key
The machine returns from Low Power mode when any other key on the control panel or the touch panel surface is pressed. Reference To enable Low Power mode: Press the [Utility/Counter] key ö [Administrator Settings] ö [System Settings] ö [Power Save Settings]. bizhub C652/C552 4-12...
Page 49: The [Accessibility] Key
To perform adjustment again, press the [C] (Clear) key, and then press the four check point buttons ([+]) again. • To cancel the touch panel adjustment process, press the [Stop] or [Re- set] key. • If the touch panel cannot be adjusted, contact your service represent- ative. bizhub C652/C552 4-13...
Page 50 [Severe Caution Sound]: A sound produced when an error occurs that cannot be corrected by the user or requires action by a service repre- sentative Default Enlarge Display For details, refer to the "User's Guide [Enlarge Display Operations]". Settings bizhub C652/C552 4-14...
Page 51: The [Enlarge Display] Key
For details on the Enlarge Display screen, refer to the "User's Guide [Enlarge Display Operations]". Press the [Enlarge Display] key to return to normal display. If PageScope Authentication Manager is used for authentication, the login screen cannot be switched to the enlarged display mode. Press the [Enlarge Display] key. bizhub C652/C552 4-15...
Page 52: The [Guidance] Key
Consumables Replace/ Check procedures for replacing the toner cartridge, imaging unit or waste Processing Procedure toner box, adding staples or discarding punch-hole scraps by viewing an- imations. Press the target button, and then press [Start Guidance]. bizhub C652/C552 4-16...
Page 53: The [C] (Clear) Key
The [C] (Clear) key 4.10 The [C] (Clear) key Clears a value (such as the number of copies, a zoom ratio and size) entered using the keypad. Press the [C] key. The value is deleted. Enter the correct value. bizhub C652/C552 4-17...
Page 54: The [Proof Copy] Key
Stored job registration is performed when the System Auto Reset function is activated or one minute after (if System Auto Reset is set to "OFF"). Press the [Proof Copy] key to repeat proof copy. Press [Print]. The number of copies yet to be printed is registered as a copy job. bizhub C652/C552 4-18...
Page 55: Using A Preview Image To Check The Copy Result (Advanced Preview)
Up to eight scanned pages can be displayed. Press ] or [ ] to change the selection. View Finishing View the finishing settings using icons or in text on the preview screen, and check the finishing state. bizhub C652/C552 4-19...
Page 56 Switch between the View Status and View Pages tab in the Preview screen. Perform image rotation and setting changes on [View Pages] and stop scanning on [View Status]. Press the [Start] key. Select this menu to start printing. bizhub C652/C552 4-20...
Page 57: Authentication Unit (Biometric Type)
Authentication is carried out when you enter the user name and place your finger on the 1-to-1 authentication. 4.12.1 When 1-to-many authentication has been specified Place your finger on the authentication unit. Authentication unit AU-101 Authentication unit AU-102 The basic settings screen appears. bizhub C652/C552 4-21...
Page 58: When 1-To-1 Authentication Has Been Specified
Authentication unit (biometric type) 4.12.2 When 1-to-1 authentication has been specified Select [User Name], and enter the user name. Place your finger on the authentication unit. Authentication unit AU-101 Authentication unit AU-102 The basic settings screen appears. bizhub C652/C552 4-22...
Page 59: Authentication Unit (Ic Card Type)
Authentication is carried out when you place the IC card and enter the password when both IC cards and passwords are used for authentication. 4.13.1 When IC card authentication is enabled Place the IC card on the working table. The basic settings screen appears. bizhub C652/C552 4-23...
Page 60: When Ic Card Authentication + Password Authentication Is Enabled
Authentication unit (IC card type) 4.13.2 When IC card authentication + password authentication is enabled Place the IC card on the working table. Enter the password, and then press either [Login] or the [Access] key. The basic settings screen appears. bizhub C652/C552 4-24...
Page 61: Copy Function
Copy Function...
Page 62 Configure the application settings for making copies. p. 5-19 Left panel Job List Check jobs currently being performed p. 5-57 and jobs waiting to be performed. Check Job Check the current settings and the result p. 5-58 of the settings. bizhub C652/C552...
Page 63: Basic
Select this item to divide a large original and scan it in a number of p. 5-12 batches. Auto Rotate OFF Select this item to copy the original according to the paper orien- p. 5-13 tation without rotating the image. bizhub C652/C552...
Page 64: Color
(apparent color densities) and the gradation levels into density differences of the single color. Average Density Copies the original by only converting the grada- tion levels into density differences of the single color, regardless of the color differences in the original, bizhub C652/C552...
Page 65: Paper
Specify a paper size to use the bypass tray as a paper tray dedicated to the paper size. [Custom Size] (only for Bypass Tray): Enter the paper size. [Wide Paper]: Select a paper size larger than the original. bizhub C652/C552...
Page 66: Configuring A Custom Size
[Basic] ö [Paper] ö [Bypass Tray] ö [Change Tray Settings] ö [Wide Paper]. Settings Wide Paper Select the size of the paper to be loaded. Change Size Enter the length [X] and width [Y] of the paper. Preset Paper Sizes Enables 12 e 18 w to be selected. bizhub C652/C552...
Page 67: Zoom
User Preset Zoom Select a registered copy zoom value. To change the registered zoom val- ues, use [Set Zoom]. Reference To set image rotation: Press the [Utility/Counter] key ö [User Settings] ö [Copier Settings] ö [Enlargement Rotation]. bizhub C652/C552...
Page 68: Duplex/Combine
11-11/16 inch, a binding margin along the short side of the paper is selected. • If [Auto] is selected for the original binding po- sition, the binding margin is set at the top or on the left. bizhub C652/C552...
Page 69 Copies images of four original pages on one sheet of paper. <Horizontal> <Vertical> 8in1 Copies images of eight original pages on one sheet of paper. <Horizontal> <Vertical> Horizontal Specify the combine order of the original (Num- bering Direction setting). Vertical bizhub C652/C552...
Page 70: Finishing
"Staple" or "Punch". Press [Basic] ö [Finishing]. Settings Sort Prints the copied sets separately when a multi-page original is copied. Group Makes multiple copies of each page when you make multiple copies of a multi- page original. bizhub C652/C552 5-10...
Page 71 Staple or punching positions are set on the upper or left-side end. • Be sure to load the original so that its top side is placed in the back. • If desired, press [Original Direction], and then select the original direction. bizhub C652/C552 5-11...
Page 72: Separate Scan
Repeat Step 4 until all pages of the original are scanned. After all original pages have been scanned, press [Finish]. Press the [Start] key. Reference To set the Separate Scan output method: Press the [Utility/Counter] key ö [User Settings] ö [Copier Settings] ö [Separate Scan Output Method]. bizhub C652/C552 5-12...
Page 73: Auto Rotate Off
Select this setting to copy the original according to the paper orientation without rotating the image. For some paper sizes or zoom values, part of the image may be cut off. Press [Basic] ö [Auto Rotate OFF]. bizhub C652/C552 5-13...
Page 74: Original Setting
Specify the original direction to load into the ADF or place on the original glass when copying 2-sided originals or making 2-sided or combined cop- ies. Despeckle Reduces the influence of a dirt of the original glass upon a copy output when loading an original in the ADF. bizhub C652/C552 5-14...
Page 75: Copying Mixed Originals
5-1/2 e 8- 1/2 w 1/2 v 11 e 17 w 8-1/2 e 11 w 8-1/2 e 14 w 8-1/2 e 11 v 5-1/2 e 8-1/2 w 5-1/2 e 8-1/2 v Possible to combine Not possible to combine bizhub C652/C552 5-15...
Page 76: Copying Z-Folded Originals
Unfold folded originals before loading them into the ADF. If the original is copied without being unfolded, a paper jam may occur. Load the original into the ADF. In the basic settings screen, press [Original Setting]. Press [Z-Folded Original]. % To cancel the setting, press [Z-Folded Original] again to deselect it. bizhub C652/C552 5-16...
Page 77: Quality/Density
Select this setting to copy originals with a back- ground color, originals containing pencil markings or fine colored lines such as maps. A sharp copy image is produced. bizhub C652/C552 5-17...
Page 78 +. To emphasize the background image, press [Lighter Text] to adjust the set- ting toward -. [Text Enhancement] can be configured when an item other than [Photo] is selected. Glossy Makes copies with a glossy finish. bizhub C652/C552 5-18...
Page 79: Application
Stamp/Composition Prints the date/time, page number or a stamp printed on copies. p. 5-42 Save in User Box Saves the scanned original data in a User Box. p. 5-55 bizhub C652/C552 5-19...
Page 80: Ohp Interleave
Press [Application] ö [Sheet/Cover/Chapter Insert] ö [OHP Interleave]. Settings Interleave Paper Select the paper tray loaded with paper with a transparency interleaf. Transparency Indicates the paper size of the loaded transparency. Reference Setting Black for Color Settings: Press [Basic] ö [Color] ö [Black]. bizhub C652/C552 5-20...
Page 81: Cover Sheet
Add paper for the back cover sheet to the last page of the copy. Paper Select the paper tray loaded with the paper for the front/back cover page or blank cover pages. Reference To configure the 2-sided copy mode: Press [Basic] ö [Duplex/Combine]. bizhub C652/C552 5-21...
Page 82: Insert Sheet
Inserts the specified paper as the fourth page of the copy. For 2-sided copy: Leaves the back side of the second page of the copy blank, and inserts the specified paper for the third page of the copy. REPORT REPORT REPORT bizhub C652/C552 5-22...
Page 83: Insert Image
Settings P --- Specify the position to insert the page scanned through the original glass. Sort Sorts specified pages in the ascending order. Press the [Start] key. Place the original to be inserted on the original glass. bizhub C652/C552 5-23...
Page 84 % To insert a multi-page original, repeat steps 4 and 5 until all pages of the insertion original are scanned in the order that they are to be inserted. Press [Finish]. Press the [Start] key. Copying begins. bizhub C652/C552 5-24...
Page 85: Chapters
Makes copies of the first pages of the chapters on paper of a different type from that for the text pages. None Copies all pages with the same type of paper. Reference To configure the 2-sided copy mode: Press [Basic] ö [Duplex/Combine]. bizhub C652/C552 5-25...
Page 86: Program Jobs
Select the desired copy settings, and then press the [Start] key. Press [Fix] and then press [OK]. % Select [Retry] to delete the scanned job. Press [Change Setting] to configure the copy settings. Load the next original and press [Change Setting]. bizhub C652/C552 5-26...
Page 87 % Repeat Steps 3 to 5 until all originals have been scanned. After all original pages have been scanned, press [Finish]. Select [Yes] and then press [OK]. Specify finish settings as needed. Press [Start] or the [Start] key. bizhub C652/C552 5-27...
Page 88: Edit Color
Press [Application] ö [Edit Color] ö [Neg./Pos. Reverse]. % To cancel the Neg./Pos. Reverse function, press [Neg./Pos. Reverse] again. Reference To set Single Color: Press [Basic] ö [Color] ö [Single Color]. To Set Background Color: Press [Application] ö [Edit Color] ö [Background Color]. bizhub C652/C552 5-28...
Page 89: Mirror Image
Original Size Select [Auto] to detect the size of the original automatically. If the size of the original is not automatically detected, select the original size. Custom Size Enter the original size. Photo Size Select the photo size. bizhub C652/C552 5-29...
Page 90: Background Color
Press [Application] ö [Edit Color] ö [Background Color]. Settings Select Color Select a background color. Color Adjustment Adjust color quality of the original to be copied in color to satisfy your needs. Press [Application] ö [Edit Color] ö [Color Adjust]. bizhub C652/C552 5-30...
Page 91 By changing the amount of each of the four toners, adjust the tints in the copy. Configure respective functions. % Press [Sample Copy] to see how it will appear with the currently specified color quality adjustment settings. bizhub C652/C552 5-31...
Page 92: Book Copy/Repeat
Select this settings to not erase the frame. Center Erase Erases projection of the dark shadow at the center of the book. Binding Position Select the binding position of the original. To indicate it, select [Separation], [Front Cover], and [Front and Back Cover]. bizhub C652/C552 5-32...
Page 93: Image Repeat
[Repeat Interval Settings] can be configured only for [2 Repeat]. Repeat Interval Set- Specify the clearance between copied images. tings bizhub C652/C552 5-33...
Page 94: Poster Mode
Original Size Select [Auto] to detect the size of the original automatically. If the size of the original is not automatically detected, select the original size. Custom Size Enter the original size. Photo Size Select the photo size. bizhub C652/C552 5-34...
Page 95: Booklet Original
% To use the ADF, load the pages with the side that includes the first page on top. Press [Application] ö [Book Copy/Repeat]. Press [Booklet Original]. Press the [Start] key. After all original pages have been scanned, press [Finish] and the [Start] key. bizhub C652/C552 5-35...
Page 96: Page Margin
If the positions of the staples or punched holes are different from the binding position, the positions of the staples or punched holes are given priority. If part of the image is lost when copied with the specified binding margin settings, reduce the zoom and perform copying. Press [Application] ö [Page Margin]. bizhub C652/C552 5-36...
Page 97 [+] and [-]. When [None] is selected, the binding margin width is set to 0 inch. Original Direction Select the orientation of the original loaded into the ADF or placed on the original glass. Reference To set the zoom: Press [Basic] ö [Zoom]. bizhub C652/C552 5-37...
Page 98: Image Adjust
Original Size Select [Auto] to detect the size of the original automatically. If the size of the original is not automatically detected, select the original size. Custom Size Enter the original size. Photo Size Select the photo size. bizhub C652/C552 5-38...
Page 99: Booklet
Reference To enable an appropriate zoom (70.7%) to be set automatically: Press the [Utility/Counter] key ö [User Settings] ö [Copier Settings] ö [Auto Zoom for Combine/Booklet]. bizhub C652/C552 5-39...
Page 100: Erase
Erases the four sides of the original in the same width. Top Right Bottom Left Erases each frame side in a different width. Press [+], [-] to set the erasing width between 1/16 inch and 2 inch. None Sets the erasing width to 0 inch. bizhub C652/C552 5-40...
Page 101: Non-Image Area Erase
The original image may be defected at its top or end. Press [Application] ö [Erase] ö [Non-Image Area Erase]. Reference To set Erase Operation: Press the [Utility/Counter] key ö [Administrator Settings] ö [System Settings] ö [Expert Adjustment] ö [Erase Adjustment]. bizhub C652/C552 5-41...
Page 102: Stamp/Composition
Makes copies with the image of the first scanned original page overlapping the subsequent original images. Registered Overlay Saves an image of the scanned original as a registered overlay in the hard disk and later overlay the registered image on the copy of another original. bizhub C652/C552 5-42...
Page 103: Date/Time
Adjust horizontal and vertical positions between 1/16 inch and 1-15/16 inch. Text Details Set the text color, size and type. Reference To enable printing on blank pages: Press the [Utility/Counter] key ö [Administrator Settings] ö [System Settings] ö [Blank Page Print Settings]. bizhub C652/C552 5-43...
Page 104: Page Number
1. For example, if "-1" was specified, the numbers are printed starting with "1" on the third copied page. • The entered chapter number is printed if [1-1, 1-2...] is selected under "Page Number Type". Page Number Type Select the type (format) of the page. bizhub C652/C552 5-44...
Page 105 Press [Application] ö [Sheet/Cover/Chapter Insert]. To configure the settings for the Chapters function: Press [Application] ö [Sheet/Cover/Chapter Insert] ö [Chapters]. To enable printing on blank pages: Press the [Utility/Counter] key ö [Administrator Settings] ö [System Settings] ö [Blank Page Print Settings]. bizhub C652/C552 5-45...
Page 106: Stamp
Select a position from the nine print position options. Adjust Position Adjust horizontal and vertical positions between 1/16 inch and 1-15/16 inch. Reference To enable printing on blank pages: Press the [Utility/Counter] key ö [Administrator Settings] ö [System Settings] ö [Blank Page Print Settings]. bizhub C652/C552 5-46...
Page 107: Copy Protect
Prints the distribution control number. Number Specify the distribution control number using a val- ue between 1 and 99999999. Detail Settings Configure the settings for Text/Background Color, Density, Copy Protect Text, Text Size, Pattern Overwrite and Background Pattern. bizhub C652/C552 5-47...
Page 108: Stamp Repeat
Select a stamp to be printed from the eight types available. Date/Time Select the type of date and time notation. When [None] is selected for Time Format, the time is not printed. The date/time as of scanning the original is stamped on the paper. bizhub C652/C552 5-48...
Page 109 To delete the Stamp Repeat text, press [Delete], and then press the button for the Stamp Repeat text to be deleted. Reference To delete a registered stamp: Press the [Utility/Counter] key ö [Administrator Settings] ö [Security Settings] ö [Stamp Settings] ö [Delete Registered Stamp]. bizhub C652/C552 5-49...
Page 110: Header/Footer
Select the Text Color, Text Size and Text Type. Reset Reset the settings to the initial contents. Reference To register a header/footer: Press the [Utility/Counter] key ö [Administrator Settings] ö [System Settings] ö [Stamp Settings] ö [Header/Footer Settings]. bizhub C652/C552 5-50...
Page 111: Watermark
Watermark Type Select a watermark from the eight types available. The watermark selected is printed over the original image. Text Color Select the watermark color from [Black], [Magenta] and [Cyan]. The watermark is printed in the selected color. bizhub C652/C552 5-51...
Page 112: Overlay
[Red]. Composition Transparent Prints the overlay image and the original so that both are visible. Background Compo- Prints the overlay image over the original. sition (Original) Back Prints the original over the overlay image. bizhub C652/C552 5-52...
Page 113: Registered Overlay
It is useful to register frequently used overlay images. Copies can be printed with a selection from the registered overlay images over the image from each original scanned. Press [Application] ö [Stamp/Composition] ö [Registered Overlay]. bizhub C652/C552 5-53...
Page 114 Photo Size Select the photo size. Reference To prohibit changing the overlay registration: Press the [Utility/Counter] key ö [Administrator Settings] ö [System Settings] ö [Restrict User Access] ö [Restrict Access to Job Settings] ö [Change Registered Overly]. bizhub C652/C552 5-54...
Page 115: Save In User Box
A name automatically assigned to the document appears. You can change the file name. Save & Print [Yes]: Select to copy the scanned original and save it in the specified User Box. [No]: Select to save the data of the scanned original in the specified User Box. bizhub C652/C552 5-55...
Page 116: Left Panel Display
Press the [Utility/Counter] key ö [Administrator Settings] ö [Security Settings] ö [Security Details] ö [Hide Personal Information]. To delete all job logs: Press the [Utility/Counter] key ö [Administrator Settings] ö [Security Settings] ö [Security Details] ö [Initialize] ö [Job History]. bizhub C652/C552 5-56...
Page 117: Job List
• For confirmation, press the [Proof Copy] key to print a copy from a stored job. Check Job Set. Check job settings for stored jobs, jobs being printed, jobs queued to be printed, and held jobs. bizhub C652/C552 5-57...
Page 118: Check Job
From the Check Job Settings screens, the current copy settings can be checked and changed if desired. Press [Check Job] ö [Check Details]. Check the copy settings. To change the copy settings, press the relevant button. After checking the settings, press [Close]. bizhub C652/C552 5-58...
Page 119: User Settings
User Settings...
Page 120: System Settings
Configure setting is for the printer operations. Change Password Change the password for the user who is currently logged in. Change E-Mail Address Change the E-mail addresses specified for registered users. Change Icon Change the icons specified for registered users. bizhub C652/C552...
Page 121 Adjust the reference level for detecting a color or black-and-white original when the Auto Color setting is selected. Power Save Settings Refer to page 7-3. Appears when user access is permitted under Administrator settings. Output Settings Refer to page 7-4. AE Level Adjustment Refer to page 7-8. bizhub C652/C552...
Page 122 Auto Paper Select for Small Prohibit Copy Original Blank Page Print Settings Do Not Print Page Number Print Posi- Left & Right Bind: All the Same tion Top & Bottom Bind: All the Same Select Keyboard Local Keyboard bizhub C652/C552...
Page 123 Reference To enable Auto Paper: Press [Basic] ö [Paper] ö [Auto Paper]. To enable Auto Color: Press [Basic] ö [Color] ö [Auto Color]. To configure Background Removal to Auto: Press [Basic] ö [Quality/Density] ö [Background Removal] ö [Auto]. bizhub C652/C552...
Page 124: Copier Settings
This setting is for the network scan, fax, and network fax operations. For details, refer to the "User's Guide [Network Scan/Fax/Network Fax Opera- tions]". Factory default Default Tab Basic Shortcut Key 1/Shortcut Key 2 Default Tab (Fax/Scan Set- Address Book tings) bizhub C652/C552...
Page 125: Fax/Scan Settings
Default Address Type Group (Fax/Scan Settings) Default Tab (User Box Set- Public tings) Shortcut Key 1/Shortcut Key 2 (User Box Settings) Copy Operating Screen Color Selection Settings Green Left Panel Display Default Job List Job Display Setting List Display bizhub C652/C552...
Page 126 Batch Print Printing begins after all pages of the original have been scanned. Enlargement Rotation Configure whether to rotate and print a large-size original image when the original orientation does not match that of paper. bizhub C652/C552...
Page 127 Specify Default Tray when Tray Before APS ON APS Off Select Tray for Insert Sheet Tray 2 Tri-Fold Print Side Inside Print Jobs During Copy Accept Operation Automatic Image Rotation When Auto Paper/Auto Zoom Is Set Finishing Program bizhub C652/C552...
Page 128 Fax/Scan Settings Fax/Scan Settings This setting is for the network scan, fax, and network fax operations. For details, refer to the "User's Guide [Network Scan/Fax/Network Fax Operations]". bizhub C652/C552 6-10...
Page 129: Printer Settings
Printer Settings Printer Settings This setting is for the printer operations. For details, refer to the "User's Guide [Print Operations]". bizhub C652/C552 6-11...
Page 130: Change Password
Press the [Utility/Counter] key ö [User Settings] ö [Change Password]. Enter the previous password, and then press [OK]. Enter a new password, and then press [OK]. For confirmation, enter the new password again, and then press [OK]. The new password is registered. bizhub C652/C552 6-12...
Page 131: Change E-Mail Address
When logged in as a registered user, you can change the E-mail address. Appears when user access is permitted under Administrator settings. For details, refer to page 7-44. Press the [Utility/Counter] key ö [User Settings] ö [Change E-Mail Address]. Press [E-mail Address]. Change the E-mail address. Press [OK]. bizhub C652/C552 6-13...
Page 132: Change Icon
Change the icon specified as registered user information. When logged in as a registered user, you can change the E-mail address. Press the [Utility/Counter] key ö [User Settings] ö [Change Icon]. Select the icon and press [OK]. bizhub C652/C552 6-14...
Page 133: Administrator Settings
Administrator Settings...
Page 134 Fax Settings Configure settings for the fax and network fax operations. System Connection Configure network settings. Security Settings Configure settings to restrict the functions of this machine for processing secret data. License Settings Enable an optional i-Option function. bizhub C652/C552...
Page 135: System Settings
Low Power Mode Settings has elapsed. Immediately Enters the power save mode in a short time. Factory default Low Power Mode Settings 15 minutes Sleep Mode Settings 30 minutes Power Save Key Lower Enter Power Save Mode Immediately bizhub C652/C552...
Page 136: Output Settings
Print Reports: Tray 2 • Fax: Tray 2 Shift Output Each Job 7.1.3 Date/Time Settings Configure the current date and time and the time zone. Press the [Utility/Counter] key ö [Administrator Settings] ö [System Settings] ö [Date/Time Settings]. bizhub C652/C552...
Page 137: Daylight Saving Time
Universal Time) is specified. For details, refer to the "User's Guide [Network Administrator]". Press the [Utility/Counter] key ö [Administrator Settings] ö [System Settings] ö [Daylight Saving Time]. Settings Configure whether to use daylight saving time and the time difference from UTC (Coordinate Universal Time). Factory default Daylight Saving Time bizhub C652/C552...
Page 138: Weekly Timer Setting
• To make the user to enter the password, you need to specify the pass- word. Factory default Weekly Timer ON/OFF Set- tings Select Time for Power Save Password for Non-Busi- ness Hours bizhub C652/C552...
Page 139: Restrict User Access
For details, refer to the "User's Guide [Network Scan/Fax/Network Fax Operations]". Factory default Changing Job Priority Allow Delete Other User Jobs Restrict Registering and Changing Allow Addresses Changing Zoom Ratio Allow Changing the "From" Ad- Restrict dress Change Registered Over- Allow bizhub C652/C552...
Page 140: Expert Adjustment
Adjust leading edge erase width. For details on displaying this item, contact your service representative. Vertical Adjustment Adjust the feed direction zoom ratio of paper types. For details on displaying this item, contact your service representative. Media Adjustment p. 7-12 bizhub C652/C552...
Page 141: Center Staple Position
Scanner Area Adjust the scan range of the scanner. For details on displaying this item, contact your service representative. ADF Adjustment Make adjustments for scanning images in the ADF. For details on displaying this item, contact your service representative. bizhub C652/C552...
Page 142: Punch Vertical Position Adjustment
Punch Regist Loop Size 0.0 mm Adjustment Density Adjustment Image Stabilization Only Image Stabilization Only Image Stabilization Setting Standard Paper Separation Adjust- 0.0 mm ment Color Registration Adjust 0 dot Prior Detection Setting Warning Display: TYPE2 Detection Level: Std. bizhub C652/C552 7-10...
Page 143 % To adjust the starting print position at the left edge of the second side for 2-sided printing (with respect to the paper feed direction), press [Centering (Duplex 2nd Side)]. Select a paper tray to be adjusted. Press the [Start] kay. A test pattern is printed. bizhub C652/C552 7-11...
Page 144 ö [Finisher Adjustment] ö [Center Staple Position]. Select the size of paper of which the center staple position is adjusted. Press [+] or [-] to adjust the staple position while checking the sample. Press [OK]. Create a sample, and check the print result. bizhub C652/C552 7-12...
Page 145 ö [Finisher Adjustment] ö [Tri-Fold Position Adjustment]. Select the size of paper of which tri-fold position is adjusted. Press [+] or [-] to adjust the tri-fold position while checking the sample. Press [OK]. Create a sample, and check the print result. bizhub C652/C552 7-13...
Page 146 Press the [Utility/Counter] key ö [Administrator Settings] ö [System Settings] ö [Expert Adjustment] ö [Finisher Adjustment] ö [Punch Horizontal Position Adjustment]. Press [+] or [-] to adjust the punched hole position while checking the sample. Press [OK]. Create a sample, and check the print result. bizhub C652/C552 7-14...
Page 147 This adjustment is available if the punch kit is installed. Press the [Utility/Counter] key ö [Administrator Settings] ö [System Settings] ö [Expert Adjustment] ö [Finisher Adjustment] ö [Punch Edge Sensor Adjustment]. Press the [Start] key. The punch edge sensor is automatically adjusted. The adjusted result appears. bizhub C652/C552 7-15...
Page 148 % Press [+] or [-] to adjust the color line to be corrected while checking the sample. The color registration is adjusted. Press the [Start] key to print a test pattern, and then check the print result. Press [OK]. bizhub C652/C552 7-16...
Page 149: Gradation Adjustment
Place 10 or more sheets of blank paper on top of the test pattern to prevent it from becoming transparent. Close the ADF. Press the [Start] key. The test pattern is scanned. The gradation level is automatically adjusted. Repeat steps 5 through 11 two more times. bizhub C652/C552 7-17...
Page 150: List/Counter
0. Counter Clear Resets the count to 0. Paper Size Select the paper size of the counter. Paper Type Select the paper type of the counter. Factory default Job Settings List • 1-Sided • Tray 1 bizhub C652/C552 7-18...
Page 151: Reset Settings
ADF. Next Job Configure whether to reset the following settings when the next job is selected. • Staple Setting • Original Set/Bind Direction • Reset Data After Job The destination of data is always reset. bizhub C652/C552 7-19...
Page 152: User Box Settings
Press the [Utility/Counter] key ö [Administrator Settings] ö [System Settings] ö [Standard Size Setting]. Settings Original Glass Original Size Configure the capability for detecting original sizes. Detect Foolscap Size Setting Select the size that you want to use when the paper size is close to 13 inch- bizhub C652/C552 7-20...
Page 153: Stamp Settings
Change the selected header or footer. Fax TX Settings This setting is for the fax and network fax operations. For details, refer to the "User's Guide [Network Scan/Fax/Network Fax Op- erations]". Factory default FAX TX Settings Cancel bizhub C652/C552 7-21...
Page 154: Blank Page Print Settings
Configure whether to skip a job in the fax mode. Other than Fax Configure whether to skip a job in a mode other than the fax mode. Factory default Skip Job Operation Set- Fax: Yes tings Other than Fax: Yes bizhub C652/C552 7-22...
Page 155: Default Bypass Paper Type Setting
Paper Type Setting]. Settings Configure whether to specify the initial setting for paper type for the bypass tray. When you specified this, select a paper type. Factory default Default Bypass Paper Type Setting Paper Type: Plain Paper bizhub C652/C552 7-23...
Page 156: Page Number Print Position
Top & Bottom Bind: All the Same Left & Right Bind: Symmet- rical Top & Bottom Bind: Sym- metrical Factory default Page Number Print Posi- Left & Right Bind: All the Same tion Top & Bottom Bind: All the Same bizhub C652/C552 7-24...
Page 157: Administrator/Machine Settings
Register the device name and E-mail address of this machine. The device name is used as a part of the name of the file created on this machine. The E-mail address can be used for Internet fax. Factory default Device Name KMBT_C652 KMBT_C552 bizhub C652/C552 7-25...
Page 158: One-Touch/User Box Registration
One-Touch/User Box Registration One-Touch/User Box Registration This setting is for the User Box, network scan, fax, and network fax operations. For details, refer to the "User's Guide [Network Scan/Fax/Network Fax Operations]" and "User's Guide [Box Operations]". bizhub C652/C552 7-26...
Page 159: User Authentication/Account Track
Settings can be configured for the both and used without being synchronized. A total of 1,000 users and accounts can be registered. To register more than 1,000, use PageScope Authentication Manager. You can register up to 30,000 users and accounts. bizhub C652/C552 7-27...
Page 160: General Settings
Select an authentication method when configuring account track settings. Account Name & Enter the account name and password to log in. Password Password Only Enter only the password to log in. • You cannot configure this when user authen- tication settings are configured. bizhub C652/C552 7-28...
Page 161 Ticket Hold Time Setting 60 min. Reference To configure external server settings: Press the [Utility/Counter] key ö [Administrator Settings] ö [User Authentication/Account Track] ö [External Server Settings]. For details on enhanced security settings, contact your service representative. bizhub C652/C552 7-29...
Page 162: User Authentication Settings
ID & Print User Box. ID & Print Operation Configure whether to print all jobs using one au- Settings thentication or print jobs one by one if multiple ID & print jobs are accumulated. bizhub C652/C552 7-30...
Page 163 Reset All Counters Resets all counters for all users. Counter Details Shows the use status for the selected user. Press [Clear Counter] to reset the counter. • The public user counter is specified for the last page. bizhub C652/C552 7-31...
Page 164 Manual Destination Input: Allow Limited Color Print: Restrict Icon Reference To specify the maximum number of registrations for the user: Press the [Utility/Counter] key ö [Administrator Settings] ö [User Authentication/Account Track] ö [General Settings] ö [Number of User Counters Assigned]. bizhub C652/C552 7-32...
Page 165: Account Track Settings
Account Track Counter Reset All Counters Resets all counters for all accounts. Counter Details Shows the use status for the selected account. Press [Clear Counter] to reset the counter. bizhub C652/C552 7-33...
Page 166: Print Without Authentication
Select the desired paper tray. Simplex/Duplex Select Print (1-Sided) or Print (2-Sided). Print Item Configure whether to print all data or printing data only. Factory default Print Counter List • Paper Tray: Tray 1 • 1-Sided • Print Item: All Data bizhub C652/C552 7-34...
Page 167: External Server Settings
For details on configuring external server settings, refer to the "User's Guide [Network Administrator]". 7.4.7 Limiting Access to Destinations This setting is for the network scan, fax, and network fax operations. For details, refer to the "User's Guide [Network Scan/Fax/Network Fax Operations]", "User's Guide [Network Administrator]". bizhub C652/C552 7-35...
Page 168: Authentication Device Settings
Press the [Utility/Counter] key ö [Administrator Settings] ö [User Authentication/Account Track] ö [User/Account Common Setting]. Settings Logout Confirmation Configure whether to display the logout confirmation screen when you Screen Display Setting press the [Access] key to log out. bizhub C652/C552 7-36...
Page 169: Scan To Home Settings
Scan/Fax/Network Fax Operations]""User's Guide [Network Administrator]". 7.4.11 Scan to Authorized Folder Settings This setting is for the network scan, fax, and network fax operations. For details, refer to the "User's Guide [Network Scan/Fax/Network Fax Operations]", "User's Guide [Network Administrator]". bizhub C652/C552 7-37...
Page 170: Network Settings
Network Settings Network Settings This setting is for the network operations. For details, refer to the "User's Guide [Network Administrator]". bizhub C652/C552 7-38...
Page 171: Copier Settings
Auto Zoom (ADF) Specify Default Tray when Tray Before APS ON APS Off Select Tray for Insert Sheet Tray 2 Print Jobs During Copy Accept Operation Tri-Fold Print Side Inside Automatic Image Rotation When Auto Paper/Auto Zoom is Set bizhub C652/C552 7-39...
Page 172: Printer Settings
Printer Settings Printer Settings This setting is for the print operations. For details, refer to the "User's Guide [Print Operations]". bizhub C652/C552 7-40...
Page 173: Fax Settings
Fax Settings Fax Settings This setting is for the fax and network fax operations. For details, refer to the "User's Guide [Network Scan/Fax/Network Fax Operations]". bizhub C652/C552 7-41...
Page 174: System Connection
System Connection System Connection This setting is for the network operations. For details, refer to the "User's Guide [Network Administrator]". bizhub C652/C552 7-42...
Page 175: Security Settings
Press the [Utility/Counter] key ö [Administrator Settings] ö [Security Settings] ö [Security Details] ö [Password Rules]. 7.10.2 User Box Administrator Setting Configure settings for the User Box operations. For details, refer to the "User's Guide [Box Operations]". bizhub C652/C552 7-43...
Page 176: Administrator Security Levels
• Blank Page Print Settings • Change E-Mail Address • Print Jobs During Copy Operation Prohibit Does not allow the user to change the settings allowed in Level 1 and Level Factory default Administrator Security Lev- Prohibit bizhub C652/C552 7-44...
Page 177: Security Details
Specify the max. allowance for authentication op- eration frequency. Release Releases the prohibited operations due to failure in authentication, enabling the operations. Release Time Set- Configure the length of time until prohibited oper- tings ations are automatically released. bizhub C652/C552 7-45...
Page 178 Release Time Settings: 5 min. Confidential Document Ac- Mode 1 cess Method Manual Destination Input Allow Print Data Capture Allow Job Log Settings Restrict Fax TX Hide Personal Information Display Activity Log Job History Thumbnail Dis- play Secure Print Only bizhub C652/C552 7-46...
Page 179: Enhanced Security Mode
Security Settings / Security Details / Confidential Set to [Mode 2]. Document Access Method Security Settings / HDD Settings / Overwrite Tem- Set to [Mode 1]. porary Data • If the setting has been [Mode 2], it is retained. bizhub C652/C552 7-47...
Page 180: Limitations On User Operations
Importing or exporting using PageScope Web Connection requires the password. The job history thumbnail display is prohibited. Image log TX is prohibited. 7.10.6 HDD Settings This setting is for the hard disk operations. For details, refer to the "User's Guide [Box Operations]". bizhub C652/C552 7-48...
Page 181: Function Management Settings
User Boxes • Using PageScope Scan Direct to retrieve doc- uments in User Boxes • Box operations using PageScope Web Con- nection (The User Box tab does not appear.) Factory default Network Function Usage Settings bizhub C652/C552 7-49...
Page 182: Stamp Settings
Sending: Do Not Apply Reference To configure copy protect and stamp repeat settings: Press [Application] ö [Stamp/Composition]. 7.10.9 Driver Password Encryption Setting This setting is for the print operations. For details, refer to the "User's Guide [Print Operations]". bizhub C652/C552 7-50...
Page 183: License Settings
Enter the function code and license code obtained from the license man- agement server (LMS). Reference When the functions of an optional component i-Option LK-101, LK-102, or LK-103 are enabled, the enabled functions can be checked with [List of Enabled Functions]. bizhub C652/C552 7-51...
Page 184: Maintenance
Maintenance...
Page 185: Paper
Paper with ribbons, hooks, buttons, etc., attached Paper storage Store paper in a cool, dark location with little humidity. If the paper becomes damp, a paper jam may occur. Store the paper flat, not on its edge. Curled paper may cause a paper jam. bizhub C652/C552...
Page 186: Loading Paper
% If special paper is loaded, the paper type must be specified. % Load letterhead paper so that the side to be printed on faces down. Close tray 1. Reference To configure paper settings: Press [Basic] ö [Paper]. bizhub C652/C552...
Page 187 % Load letterhead paper so that the side to be printed on faces down. % To change the paper size for tray 3, contact your service representative. Lower the paper take-up roller, and then close tray 3. Reference To configure paper settings: Press [Basic] ö [Paper]. bizhub C652/C552...
Page 188: Loading Paper Into The Bypass Tray
% When using envelopes: Expel air from the envelopes, and then load them while holding the folds of the envelopes. Load them with the flap side up, as shown in the illustration. The flap side of envelopes cannot be printed on. bizhub C652/C552...
Page 189 % OHP transparencies can be printed only in black. Before selecting OHP transparencies, select [Black] in the Color tab. % If you select [4 e 6 w], the paper type is automatically set to [Thick 3]. Reference To configure paper settings: Press [Basic] ö [Paper]. bizhub C652/C552...
Page 190: Loading Paper Into The Lct
% If paper is curled, flatten it before loading it. % If special paper is loaded, the paper type must be specified. % Load letterhead paper so that the side to be printed on faces Reference To configure paper settings: Press [Basic] ö [Paper]. bizhub C652/C552...
Page 191: Consumables
For the tonner cartridge, the machine stops operating after the message appears. Replace the toner cartridge or imaging unit according to the guidance contained in your maintenance agreement. Do not replace any color other than the one indicated in the message in the touch panel. bizhub C652/C552...
Page 192: Checking Consumables Status
In the Check Consumable Life screen, you can check the status (usage level) of consumables. Press the [Utility/Counter] key. Press [Check Consumable Life]. % To print the list of usage levels, press [Print List], then [Start] or the [Start] key. bizhub C652/C552...
Page 193: Viewing Counters
% To print the counter list, press [Print List], select paper, and then press the [Start] key. % To display the Coverage Rate screen, press [Coverage Rate]. Checking the total number of pages printed Pressing Total Counter displays the total number of pages printed to date. bizhub C652/C552 8-10...
Page 194: Cleaning Procedure
Wipe stains off the original glass using the original glass cleaner. Original glass, control panel, paper take-up roller NOTICE Do not press the control panel hard, or the keys and touch panel may be damaged. Wipe the surface using a soft, dry cloth. bizhub C652/C552 8-11...
Page 195: Housing, Document Pad
Cleaning procedure Housing, document pad NOTICE Never use solvents, such as benzene or thinner, to clean the document pad. Wipe the surface using a soft cloth moistened with a mild household detergent. bizhub C652/C552 8-12...
Page 196: Troubleshooting
Troubleshooting...
Page 197: When The Message "Trouble" Appears (Call A Service Representative)
Write down the malfunction code in the Service Call screen. Turn off the [sub power switch]. Turn off the [main power switch]. Unplug the machine. Contact your service representative and inform them of the written down malfunction code. bizhub C652/C552...
Page 198: Troubleshooting Table
In the Back- ground Removal screen, select a lighter background density. (p. 5-17) Is the electrostatic charger wire Use the charger-cleaning tool to dirty? clean the electrostatic charger. (p. 9-11) bizhub C652/C552...
Page 199 ADF. (p. 12-2) Is the original correctly loaded? Position the original correctly. (p. 3-4) The finisher does not operate Is any power being supplied to Check that the cord is correctly the connector? inserted into the connector. bizhub C652/C552...
Page 200 3/8 to 1 inch), a correct image cannot be obtained, and scanning may not finish. Try "stretching your fin- ger", "placing your finger deep- ly", or "placing your finger shallowly" on the scanning sec- tion. bizhub C652/C552...
Page 201 USB unit to this machine? cable from this machine or au- thentication unit, and then con- nect it again. Wait at least 10 seconds, and then turn on the main power of this machine. bizhub C652/C552...
Page 202: Main Messages And Their Remedies
The exit cover of the finisher is Securely close the exit cover of open. the finisher. Install the Imaging Unit and The indicated Imaging Unit is not Reinstall each consumable and close all doors installed correctly. replaceable part. Or contact your service representative. bizhub C652/C552...
Page 203 Clean the original glass on the The original glass is dirty. User the original glass cleaner to left with a glass cleaner. Contin- clean it. uing using the machine in this condition may cause lines to ap- pear in the output. bizhub C652/C552...
Page 204: Icons That Appear In The Touch-Panel Screen
Indicates that paper is not loaded in the paper tray. Indicates that very little paper remains in the paper tray. If the optional image controller is installed, press this icon to display the setting screen for the image controller. bizhub C652/C552...
Page 205 Troubleshooting table Icon Description Indicates that "Enhanced Security Mode" is set to "ON". Appears when the external memory (USB memory) is not connected. bizhub C652/C552 9-10...
Page 206: If Print Quality Is Deteriorated
Slowly pull out the charger-cleaning tool as far as possible. Next, slowly push in the charger-cleaning tool as far as possible. Repeat the above operations three times. Securely insert the charger-cleaning tool, and then close the front door. bizhub C652/C552 9-11...
Page 207: Cleaning The Print Head
Pull out tray 1. Remove the print head glass cleaning tool from tray 1. Open the machine's lower front door. Release the securing levers for the waste toner box, and then remove the waste toner box. bizhub C652/C552 9-12...
Page 208 Insert the print head glass cleaning tool into the print head cleaning opening, pull it out, and then repeat this back-and-forth movement two or three times. Install the waste toner box. Place back the print head glass cleaning tool to tray 1. Close tray 1. bizhub C652/C552 9-13...
Page 209: Authentication Unit (Biometric Type)
Authentication unit (biometric type)
Page 210: Using An Authentication Unit (Biometric Type)
This section explains how to configure the required settings in this machine, register a user, and log in to this machine or execute a print job when User Registration is enabled. bizhub C652/C552 10-2...
Page 211: Configuring This Machine
Use the control panel of this machine to display the Administrator Settings screen. Press [4 User Authentication/Account Track], then [1 General Settings]. Set [User Authentication] to "ON (MFP)", and then press [OK]. Press [Yes], and then [OK]. Press [8 Authentication Device Settings]. Press [1 General Settings]. Press [Bio Authentication]. bizhub C652/C552 10-3...
Page 212 Press [2 Logoff Settings]. Specify whether to log out the user when scanning the original has finished after the user logged in with the authentication unit. Press [OK], then [Close]. Press [2 User Authentication Settings]. Press [1 Administrative Settings]. bizhub C652/C552 10-4...
Page 213 ID & Print User Box. % [Print Each Job]: Press this button to print a document for each authentication when multiple documents are saved in the ID & Print User Box. Press [OK]. Press [Close] twice. bizhub C652/C552 10-5...
Page 214: Registering A User
Authentication/Account Track], and then [2 User Authentication Settings]. NOTICE [2 User Authentication Settings] is disabled when User Authentication is set to [OFF] in General Settings. Press [2 User Registration]. Select a desired registration number, and then press [Edit]. Press [Register Auth. Info.]. bizhub C652/C552 10-6...
Page 215: Registering A User Using Data Administrator
BioDriver (USB-Driver) of the authentication unit, and then install Data Administrator Bio Plugin. NOTICE Before setup, install Data Administrator V4.0 or later in your computer. For the Data Administrator operating environment and installation procedure, refer to the Data Administrator User's Guide. bizhub C652/C552 10-7...
Page 216: Checking The Version Of The Installed Data Administrator
Connect the authentication unit to the USB port of your computer. The "Found New Hardware" dialog box appears. Select "Locate and install driver software (recommended)". Insert the application CD-ROM provided with the authentication unit into the CD-ROM drive of the computer. bizhub C652/C552 10-8...
Page 217 Check that the driver's search location is the application CD-ROM, and then click the [Next]. % When the driver's search location is not the application CD-ROM, click the [Browse]. Select the BioDriver (USB-Driver) folder on the CD-ROM, and then click the [OK]. bizhub C652/C552 10-9...
Page 218 Install Data Administrator Bio Plugin. Open the DA_Bio_Plugin folder on the application CD-ROM, and then click setup.exe. Select a language, and then click the [OK]. The installation program starts. Follow the on-screen instructions to proceed with the installation. bizhub C652/C552 10-10...
Page 219 10.1 Using an authentication unit (biometric type) Click the [Next]. Select "I accept the terms in the license agreement", and then click the [Next]. Click the [Install]. bizhub C652/C552 10-11...
Page 220: User Registration
USB power supply, resulting in an operation failure. To use the USB hub, be sure to connect the self-power USB hub that supplies 500 mA or more. Restart the procedure 5 or more seconds after connecting the authentication unit. bizhub C652/C552 10-12...
Page 221 Data Administrator starts, and device information of this machine is imported. The Device Information window appears. % For details on how to import device information, refer to the Data Administrator User's Guide. In Select Function, select "Authentication Settings" - "User Setting", and then click the [Add]. bizhub C652/C552 10-13...
Page 222 Select the desired template, and then click the [OK]. The User Registration window appears. Enter the user name and password, select the "AU-101" or "AU-102" tab, and then click the [Import]. % Enter the E-mail address and other information as required. bizhub C652/C552 10-14...
Page 223 Place your finger on the authentication unit, and then click the [Start Reading]. % Scan the finger vein pattern three times; reset the same finger for each scanning. For authentication unit AU-101 For authentication unit AU-102 Click the [Registration]. bizhub C652/C552 10-15...
Page 224 Using an authentication unit (biometric type) Click the [OK]. % Repeat steps 5 to 10 to register all users. Click the [Export to the device]. % Select the user name and click the [Edit] to change the registered data. bizhub C652/C552 10-16...
Page 225 To turn the main power switch off and on, first turn the main power off, and then turn it on after 10 or more seconds has elapsed. Not doing so may result in an operation failure. When connecting or disconnecting the USB cable, hold the plug. Otherwise, the cable may be damaged. bizhub C652/C552 10-17...
Page 226: Logging In To This Machine
This section explains how to log in to this machine with the finger vein pattern authentication. When 1-to-many authentication has been specified Place the registered finger on the authentication unit. % You are authenticated, and then the basic settings screen appears. bizhub C652/C552 10-18...
Page 227: When 1-To-1 Authentication Has Been Specified
Place the registered finger on the authentication unit. % You are authenticated, and then the basic settings screen appears. NOTICE If an authentication failure frequently occurs, authentication data may not be registered properly. Retry to register the target user. bizhub C652/C552 10-19...
Page 228: Authentication Unit (Ic Card Type)
Authentication unit (IC card type)
Page 229: Using Authentication Unit (Ic Card Type)
User Authentication & Account Track to "Synchronize". Selecting "Do Not Synchronize" disables the ID & Print function. Use the control panel of this machine to display the Administrator Settings screen. Press [4 User Authentication/Account Track], then [1 Authentication Method]. Set [User Authentication] to "ON (MFP)", and then press [OK]. bizhub C652/C552 11-2...
Page 230 Card Authentication + Password: Allows the user to log in by placing the IC card and entering the password. Selecting Card Authentication + Password for user registration disables the ID & Print function. For details on how to log in to this machine, refer to page 10-18. Press [OK] twice. Press [3 Logoff Settings]. bizhub C652/C552 11-3...
Page 231 % [OFF]: The ID & Print function is not used. % [Print Immediately]: Any jobs of unauthenticated users or the public user are printed immediately. % [Save]: Any jobs of unauthenticated users or the public user are saved in the ID & Print User Box. bizhub C652/C552 11-4...
Page 232: Registering A User
Use the control panel of this machine to display the Administrator Settings screen. Press [4 User Authentication/Account Track], and then [2 User Authentication Settings]. Press [2 User Registration]. Select a desired registration number, and then press [Edit]. bizhub C652/C552 11-5...
Page 233 Press [Edit]. Place the IC card on the authentication unit, and press [OK]. When message [Registration complete] appears, press [Close] twice. Enter the user name and password. Configure function permission settings as required. Press [OK]. Press [Close]. bizhub C652/C552 11-6...
Page 234: Registering A User Using Data Administrator
If Data Administrator V3.x is installed, it is removed when V4.x is installed. Click the [Plug-in version]. In "Plug-in information list", confirm the plugin version of Data Administrator. % This software is available if the plugin version is "4.x". bizhub C652/C552 11-7...
Page 235: Setup
The "Found New Hardware" dialog box appears. Select "Locate and install driver software (recommended)". Insert the application CD-ROM provided with the authentication unit into the CD-ROM drive of the computer. Click the "Browse my computer for driver software (advanced)". bizhub C652/C552 11-8...
Page 236 Check that the driver's search location is the application CD-ROM, and then click the [Next]. % When the driver's search location is not the application CD-ROM, click the [Browse]. Select the IC Card Driver (USB-Driver) folder in the CD-ROM, and click the [OK]. % Installation starts. bizhub C652/C552 11-9...
Page 237 Install Data Administrator IC Card Plugin. Open the IC_Card_Plugin folder on the application CD-ROM, and then click setup.exe. Select a language, and then click the [OK]. The installation program starts. Follow the on-screen instructions to proceed with the installation. Click the [Next]. bizhub C652/C552 11-10...
Page 238 Using authentication unit (IC card type) Select "I accept the terms in the license agreement", and then click the [Next]. Click the [Install]. Click the [Finish]. Installation of the Data Administrator IC Card Plugin is completed, which completes the setup. bizhub C652/C552 11-11...
Page 239: User Registration
Restart the procedure 5 or more seconds after connecting the authentication unit. Data Administrator starts, and device information of this machine is imported. The Device Information window appears. % For details on how to import device information, refer to the Data Administrator User 's Guide. bizhub C652/C552 11-12...
Page 240 11.1 Using authentication unit (IC card type) In Select Function, select "Authentication Settings" - "User Setting", and then click the [Add]. Select the desired template, and then click the [OK]. The User Registration window appears. bizhub C652/C552 11-13...
Page 241 Place the IC card on the authentication unit, and click the [Start reading]. % If necessary, select "Input the card ID directly" to register the card ID. Click the [OK]. % Repeat steps 8 to 12 to register all users. bizhub C652/C552 11-14...
Page 242 Click the [OK]. Disconnect the authentication unit from the USB port of the computer. Turn the main power of this machine off, connect the authentication unit to this machine, and turn the main power of this machine on. bizhub C652/C552 11-15...
Page 243: Logging In To This Machine
This section explains how to log in to this machine with card ID authentication. When IC card authentication is enabled Place the registered IC card on the authentication unit. % You are authenticated, and then the basic settings screen appears. bizhub C652/C552 11-16...
Page 244: When Ic Card Authentication + Password Authentication Is Enabled
The importing notification sound is triggered. To reset this sound, press [Login] or the [Access] key to perform authentication, meanwhile this machine is running normally. If an authentication failure frequently occurs, authentication data may not be registered properly. Retry to register the target user. bizhub C652/C552 11-17...
Page 245: Specifications
Specifications...
Page 246: Paper
Fine and other special paper. Paper where company names, preset text, and others are already printed. Colored paper. Paper that is registered as one of frequently used paper types. For paper weight and media adjustment settings, contact your service engineer. bizhub C652/C552 12-2...
Page 247 When you select Plain Paper, Thick 1, Thick 1+, Thick 2, Thick 3, or Thick 4 for the bypass tray, you can select Duplex 2nd Side. Select Duplex 2nd Side when you load paper where something is printed on one side. bizhub C652/C552 12-3...
Page 248: Machine Specifications
12.2 Machine specifications 12.2 Machine specifications bizhub C652/C552 Specification Type Scanner, printer, desktop, or stand-alone Document holder Stationary (mirror scanning) Photo conductor Light source White rare-gas fluorescent Copy system Laser electrostatic copying Developing system Dry 2-component HMT developing system Fusing system...
Page 249 [sub power switch] was turned on to get ready for printing (room tempera- ture is 73.4 °F) C652: 30 sec. or less C552: 30 sec. or less Period from the time [main power switch] was turned on to the time this machine is ready for printing (room temperature is 73 °F)
Page 250: Automatic Duplex Unit
Original loading capacity 1- or 2-sided original: Max. 100 sheets (21-1/4 lb) Power supply Supply from machine Max. power consumption 60 W or less Size Width 24-5/16 e Depth 22-5/8 e Height 5-1/8 Weight Approx. 35-1/4 lb bizhub C652/C552 12-6...
Page 251: Options
( ) indicate the values applied when the tray is pulled output Weight Approx. 132-3/16 lb Consumables Staples STAPLE For EH-1028 (Product No. 1002 manufactured by MAX) (5,000 staples in- cluded) e 1 unit bizhub C652/C552 12-7...
Page 252: Saddle Stitcher Sd-508
Approx. 41 lb, Approx. 7-1/2 lb (Output tray) Consumables Staple MS-5C For EH-554 (Product No. 500 manufactured by MAX) (5,000 staples includ- ed) e 1 unit Power supply Supply from finisher Not applicable to multi-function jobs (jobs with multiple functions combined). bizhub C652/C552 12-8...
Page 253: Punch Kit Pk-516
Max. power consumption 22W or less Size Width 24-3/4e Depth 21-7/8e Height 15-15/16 Weight Approx. 55-1/16 lb The maximum number of loadable sheets for each paper size is 2,500 sheets (for 21-1/4 lb) or 2,750 sheets (for 17 lb). bizhub C652/C552 12-9...
Page 254: Authentication Unit (Biometric Type) Au-101
System conditions (during Ambient tempera- 41 to 95 operation) ture (ºF) Humidity (%) 20 to 80 (No dew condensation) System conditions (during Ambient tempera- 32 to 122 non-operation) ture (ºF) Humidity (%) 20 to 80 (No dew condensation) bizhub C652/C552 12-10...
Page 255: Authentication Unit (Ic Card Type) Au-201
800e 600 pixels, 16-bit color or more Network TCP/IP Application Microsoft Internet Explorer 6.0 (SP1) or later Microsoft .NET Framework (SP1) or later Interface USB 1.1 or later Supported Operating Systems Windows 2000 Professional (SP4) Windows XP Professional Edition (SP2) bizhub C652/C552 12-11...
Page 256: Appendix
Appendix...
Page 257: Colors
But what about when comparing the yellow of a lemon and the red of a bean? Obviously, the yellow of the lemon is brighter. "Brightness" is this degree of lightness that enables comparison regardless of the hue. bizhub C652/C552 13-2...
Page 258 "saturation", as opposed to "brightness". As opposed to hue and brightness, "saturation" is the characteristic that indicates the degree of vividness. Brightness Saturation bizhub C652/C552 13-3...
Page 259: Red, Green, And Blue
13.1 Colors Red, green, and blue This machine allows you to adjust red, green, and blue in 19 levels. Green Bule bizhub C652/C552 13-4...
Page 260: Image Quality
You can finely adjust the shading of an image. Sharpness: You can adjust the amount of contours in text and images. You can adjust the contrast and copy density in 19 levels and the sharpness in 7 levels. Contrast Copy Density Sharpness bizhub C652/C552 13-5...
Page 261: Color Balance (Cmyk)
Full-color copy reproduces colors of the original by mixing toners of four colors: yellow, magenta, cyan, and black. By changing the amount of each of the four toners, adjust the tints in the copy. You can adjust the color balance in 19 levels. Yellow Green Magenta Cyan Bule Black bizhub C652/C552 13-6...
Page 262: Glossary
1-sided or 2-sided. Edit Color Function that configures the image according to the objectives of copy editing. Finishing Allows you to select how to sort or finish copies when feeding them into the out- put tray. bizhub C652/C552 13-7...
Page 263 Staple Function that staples copies. Text Enhancement Function that allows you to configure the reproduction quality of the text when copying originals consisting of text that overlaps images such as illustrations or graphs (text with a background). bizhub C652/C552 13-8...
Page 264 Function that inserts a blank sheet between transparency films each time a leave transparency film is copied. This function prevents transparency films from stick- ing together. Tri-Fold Function that tri-folds printed paper. Zoom Function that changes the zoom ratio of the copy. bizhub C652/C552 13-9...
Page 265 Index...
Page 266: Index By Item
Enlarge Display ............4-15 Erasing ...............5-40 Erasing frames ............5-40 C ................4-17 Erasing non-image areas ...........5-41 Centering ..............7-11 Expert adjustment ............7-8 Centering (duplex 2nd side) ........7-11 External controller port ..........2-6 Changing E-mail addresses ........6-13 External server settings ..........7-35 Changing icons ............6-14 bizhub C652/C552 14-2...
Page 267 Jack for connecting a telephone (TEL PORT2) ...2-6 Output tray switch .............2-13 Jam removal cover ............2-16 Outside of the main body (front) ........2-4 Jam removal dial ..........2-8 2-13 Outside of the main body (rear) ........2-6 Job list ...............2-11 Overlay ..............5-52 Overlaying registered images ........5-53 bizhub C652/C552 14-3...
Page 268 Video interface kit ............2-2 Security settings ............7-43 Separate scan ............5-12 Separating chapters ..........5-25 Waste toner box ............2-8 Service call ..............9-2 Watermark ..............5-51 Settings common to user and account track Weekly timer setting ............7-6 authentication ............7-36 Wide paper ..............5-6 bizhub C652/C552 14-4...
Page 269 14.1 Index by item Working table ..............2-2 Z-folded original ............5-16 Zoom ................5-7 bizhub C652/C552 14-5...
Page 270: Index By Button
7-39 Copy ..............4-6 5-22 Back (Blank) ..............5-21 Copy Density .............5-31 Back (Copy) ...............5-21 Copy Insert ..............5-25 Background Color .............5-30 Copy Program Lock Settings ........7-7 Background Removal ..........5-18 Copy Protect .............5-47 Banner Printing ............4-7 Copy Screen ..............6-6 bizhub C652/C552 14-6...
Page 271 Insert Paper ...............5-22 Fax Settings ..............7-41 Insert Sheet ...............5-22 Fax TX Settings ............7-21 Insert Sheet Setting ...........5-45 Fax/Scan ..............4-6 Install License ............7-51 Fax/Scan Settings .............6-10 Interleave Paper ............5-20 Finished Jobs ............5-58 Interrupt ...............4-5 Finisher Adjustment .............7-9 Finishing ..............5-10 bizhub C652/C552 14-7...
Page 272 Prohibited Functions When Authentication Error ..7-45 Non-Image Area Erase ..........5-41 Proof Copy ..............4-18 Non-Image Area Erase Operation Settings ....7-10 Public User Access ........4-10 7-28 Number of User Counters Assigned ......7-29 Punch ................5-11 Punch Edge Sensor Adjustment .......7-15 bizhub C652/C552 14-8...
Page 273 Shift Output Each Job ..........7-4 User Counter .............7-31 Shortcut Key ..............6-6 User Name ............4-10 7-31 Single Color ..............5-4 User Name List ..........4-10 7-30 Single Color > 2 Color Output Management .....7-37 User Preset Zoom ............5-7 bizhub C652/C552 14-9...
Page 274 Weekly Timer ON/OFF Settings ........7-6 Weekly Timer Setting ..........7-6 When # of Jobs Reach Maximum ......7-29 When AMS Direction is Incorrect ........6-8 Wide Paper ..............5-6 With Margin ...............5-33 Without Margin ............5-33 X/Y ................5-6 Z-Folded Original ............5-14 Zoom ............4-19 5-34 bizhub C652/C552 14-10...
