Page 1: Specifications

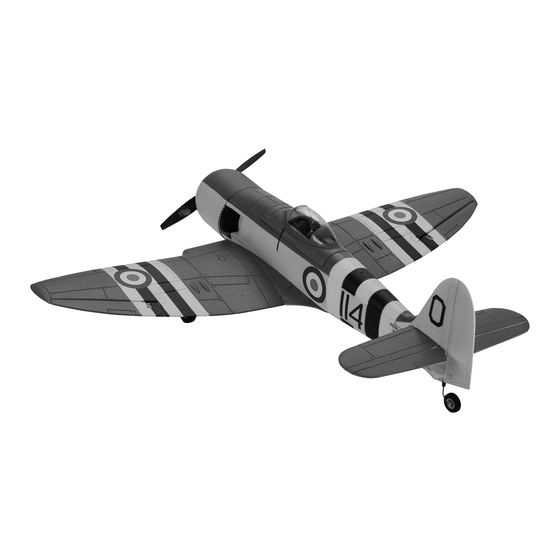

Hawker Sea Fury 400 ARF Assembly Manual Specifications Wingspan: 36.8 in (935mm) Length: 33.3 in (845mm) Wing Area: 267.8 sq in (17.4 sq dm) Weight w/ Battery: 25–30 oz (710–850 kg) Weight w/o Battery: 20–25 oz (565–710 kg) -
Page 2: Table Of Contents
Note on Lithium Polymer Batteries ........5 fighters to successfully engage a turbine-powered adversary. Warning ................5 E-flite has produced the Hawker Sea Fury 400 ARF as an EPS Warranty Information ............5 injection-molded foam model to offer lightweight, durable and Safety, Precautions, and Warnings ........ -
Page 3: Using The Manual
Remember to take your time and follow the directions. If you own the Spektrum DX6i radio, just add the AR6100E DSM2 ™ 6-channel receiver and three (to six) of our E-flite S75 Contents of Kit/Parts Layout Sub-Micro Servos. Large Parts:... -
Page 4: Important Information About Motor Selection
Tools & Equipment EFLA250 Park Flyer Tool Assortment, 5-piece We recommend the E-flite Park 450 Brushless Outrunner Motor, 890Kv (EFLM1400) for sport performance or the E-flite Or Purchase Separately Park 480 Brushless Outrunner Motor, 1020Kv (EFLM1505) for EFLA257 Screwdriver, #1 and #2 Phillips maximum performance. -
Page 5: Notes Regarding Servos And Esc
Horizon. Return of any goods by Purchaser must be approved in writing by Horizon before shipment. E-flite Hawker Sea Fury 400 ARF Assembly Manual... -
Page 6: Damage Limits
Provided warranty conditions have been met, your Product will be repaired or replaced free of charge. Repair or replacement decisions are at the sole discretion of Horizon Hobby. E-flite Hawker Sea Fury 400 ARF Assembly Manual... -
Page 7: Safety, Precautions, And Warnings
• Moisture causes damage to electronics. Avoid water exposure Please call 877-504-0233 with any questions or concerns to all equipment not specifically designed and protected for regarding this product or warranty. this purpose. E-flite Hawker Sea Fury 400 ARF Assembly Manual... -
Page 8: Fixed Gear Installation
Phillips screwdriver: #0, #1 1. Insert the landing gear into the landing gear block. 3. Repeat Steps 1 and 2 to assemble the second landing gear. (Make one left and one right) E-flite Hawker Sea Fury 400 ARF Assembly Manual... -
Page 9: Retract Installation
Note: The servos are shown with the servo arms centered. Make sure to position the servo horn so they travel equally from this center position or your retracts may not operate correctly. E-flite Hawker Sea Fury 400 ARF Assembly Manual... - Page 10 4. Secure the retract assembly in the wing using a #1 on the side opposite the servo arm. Phillips screwdriver and four 3mm x 6mm countersunk sheet metal screws per assembly. 3. Connect the retract linkage to the retract actuator arm. E-flite Hawker Sea Fury 400 ARF Assembly Manual...
- Page 11 Adjust the end point at the Adjust the end point at the radio to align the arm with radio to align the arm with the linkage. the linkage. E-flite Hawker Sea Fury 400 ARF Assembly Manual...
-
Page 12: Aileron Servo Installation
Y-harness (EXRA320) instead. 8. Repeat Steps 2 through 7 to install the remaining retract and servo. E-flite Hawker Sea Fury 400 ARF Assembly Manual... - Page 13 4. Remove the backing from the double-sided tape. Position the servo so the arm is facing toward the aileron and the outboard side off the wing. Press each aileron servo into the openings in the wing. E-flite Hawker Sea Fury 400 ARF Assembly Manual...
- Page 14 Make sure to align the cover when positioning it. along the channel in the wing. The extension(s) then pass to the top of the wing through the hole in the center of the wing. E-flite Hawker Sea Fury 400 ARF Assembly Manual...
- Page 15 10. Insert the Z-bend on the aileron linkage into the outer hole of the aileron servo horn. 12. Repeat Steps 9 through 11 to connect the remaining aileron linkage. E-flite Hawker Sea Fury 400 ARF Assembly Manual...
-
Page 16: Main Wheel Installation
CA. Use care not to get CA between the landing gear and wheel, which will prevent the wheel from rolling. 4. Repeat Steps 1 through 3 to install the remaining wheel. E-flite Hawker Sea Fury 400 ARF Assembly Manual... -
Page 17: Motor And Cowling Installation
Use threadlock on the screws to prevent the vibrations of the motor from loosening the screws. 2. Use a razor saw to cut the length of the motor mounting stick to 15/16-inch (24mm) as shown below. Park 450 E-flite Hawker Sea Fury 400 ARF Assembly Manual... - Page 18 Secure them using string to prevent them from being unplugged inside the fuselage. 4. Remove the battery stop from the inside of the fuselage by sliding it rearward and out of the fuselage. E-flite Hawker Sea Fury 400 ARF Assembly Manual...
- Page 19 8. Connect the leads from the motor to the speed control. Slide the motor mount onto the motor stick. E-flite Hawker Sea Fury 400 ARF Assembly Manual...
- Page 20 11. Remove the backing from the double-sided tape on both sides of the fuselage. Park 480 Park 450 E-flite Hawker Sea Fury 400 ARF Assembly Manual...
- Page 21 Note: If it is necessary to enlarge the hole in the propeller or the spinner, make sure to check the balance of each afterwards. E-flite Hawker Sea Fury 400 ARF Assembly Manual...
- Page 22 Tighten the adapter nut once all is well. 16. Install the adapter nut, but do not tighten it at this time. 18. Snap the spinner cone onto the spinner backplate to complete the motor assembly. E-flite Hawker Sea Fury 400 ARF Assembly Manual...
-
Page 23: Radio Installation - Fuselage
3. Use double-sided tape to secure the receiver in the fuselage as shown. Note: If you have elected not to install the optional rudder, you will not need to install the rudder servo. E-flite Hawker Sea Fury 400 ARF Assembly Manual... -
Page 24: Tail Gear Installation - Fixed Rudder
1. Slide the tail wheel collar onto the tail wheel bearing. Align the setscrew with the notch in the bearing. 3. Slide the wheel spacer onto the tail gear wire. E-flite Hawker Sea Fury 400 ARF Assembly Manual... -
Page 25: Optional Operable Rudder
CA. Use care not to get CA between the as close to the fin as possible for the best results. tail gear wire and wheel, which will prevent the wheel from rolling. E-flite Hawker Sea Fury 400 ARF Assembly Manual... - Page 26 CA to glue the hinges half-way into the rudder 3. Mount the control horn to the rudder as shown using as shown. two 2mm x 10mm sheet metal screws, control horn backplate and a #1 Phillips screwdriver. E-flite Hawker Sea Fury 400 ARF Assembly Manual...
- Page 27 6. Hold the rudder against the fin and use a felt-tipped 8. Slide the operational tail gear wire through the tail pen to transfer the location of the hinges to the find. gear bushing as shown. E-flite Hawker Sea Fury 400 ARF Assembly Manual...
- Page 28 CA. Use care not to get CA between the tail gear wire and wheel, which will prevent the wheel from rolling. 10. Slide the wheel spacer onto the tail gear wire. E-flite Hawker Sea Fury 400 ARF Assembly Manual...
-
Page 29: Stabilizer/Elevator Installation
Fuselage assembly Stabilizer assembly -inch (335mm) pushrod w/clevis -inch (345mm) pushrod w/clevis (for optional rudder) Required Tools and Adhesives Foam-safe CA 1. Remove the elevators and elevator joiner wire from the stabilizer. E-flite Hawker Sea Fury 400 ARF Assembly Manual... - Page 30 as to the elevator joiner wire. wing and stabilizer must be parallel to each other. Lightly sand the opening in the fuselage for the stabilizer to correct for any alignment issues. E-flite Hawker Sea Fury 400 ARF Assembly Manual...
- Page 31 8. Connect the bend in the pushrod to the elevator servo horn. Position the horn so the angle between it and the pushrod wire is 90 degrees. Secure the horn to the servo. E-flite Hawker Sea Fury 400 ARF Assembly Manual...
- Page 32 90 degrees. Secure the horn to the servo. 10. With the radio system on, adjust the position of the clevis so the elevator is parallel to the stabilizer. E-flite Hawker Sea Fury 400 ARF Assembly Manual...
-
Page 33: Final Assembly
Y-harness or plug directly into the receiver if using separate channels. 13. With the radio system on, adjust the position of the clevis so the rudder is parallel to the fin. E-flite Hawker Sea Fury 400 ARF Assembly Manual... - Page 34 4. Connect the motor battery to the speed control. Note: Make sure to be clear of the propeller when connecting the battery in case the motor starts unexpectedly. E-flite Hawker Sea Fury 400 ARF Assembly Manual...
- Page 35 6. Place the canopy back onto the fuselage. E-flite Hawker Sea Fury 400 ARF Assembly Manual...
-
Page 36: Control Throws
Low Rate: 1/2-inch (13mm) (Right/Left) High Rate: 13/16-inch (20mm) (Right/Left) These are general guidelines measured from our own flight tests. You can experiment with higher rates to match your preferred style of flying. E-flite Hawker Sea Fury 400 ARF Assembly Manual... -
Page 37: Center Of Gravity
After the first flights, the CG position can be adjusted for your personal preference. E-flite Hawker Sea Fury 400 ARF Assembly Manual... -
Page 38: Preflight
Check the radio installation and make sure all the control surfaces are moving correctly (i.e. the correct direction and with We at E-flite hope you enjoy your Sea Fury as much as we the recommended throws). Test run the motor and make sure have. -
Page 39: 2008 Official Ama National Model Aircraft Safety Code
Only personnel involved with flying the aircraft are allowed at or in front of the flight line. Intentional flying behind the flight line is prohibited. E-flite Hawker Sea Fury 400 ARF Assembly Manual... - Page 40 © 2008 Horizon Hobby, Inc. 4105 Fieldstone Road Champaign, Illinois 61822 (877) 504-0233 horizonhobby.com E-fliteRC.com 12846...
