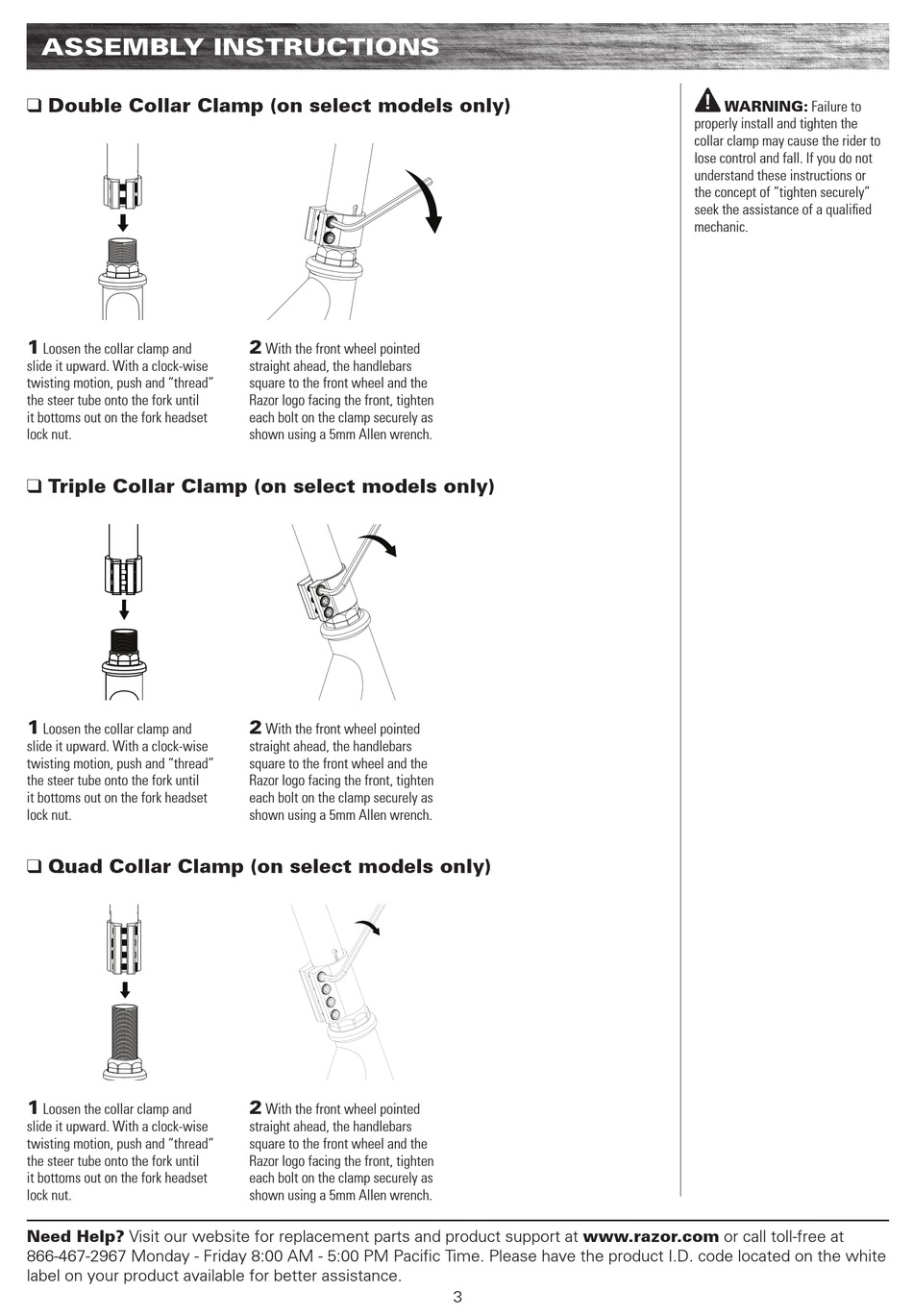

ASSEMBLY INSTRUCTIONS

q Double Collar Clamp (on select models only)
1
Loosen the collar clamp and
slide it upward. With a clock-wise
twisting motion, push and "thread"
the steer tube onto the fork until
it bottoms out on the fork headset
lock nut.
q Triple Collar Clamp (on select models only)
1
Loosen the collar clamp and
slide it upward. With a clock-wise
twisting motion, push and "thread"
the steer tube onto the fork until
it bottoms out on the fork headset
lock nut.
q Quad Collar Clamp (on select models only)
1
Loosen the collar clamp and
slide it upward. With a clock-wise
twisting motion, push and "thread"
the steer tube onto the fork until
it bottoms out on the fork headset
lock nut.
Need Help? Visit our website for replacement parts and product support at www.razor.com or call toll-free at
866-467-2967 Monday - Friday 8:00 AM - 5:00 PM Pacific Time. Please have the product I.D. code located on the white
label on your product available for better assistance.
2
With the front wheel pointed
straight ahead, the handlebars
square to the front wheel and the
Razor logo facing the front, tighten
each bolt on the clamp securely as
shown using a 5mm Allen wrench.
2
With the front wheel pointed
straight ahead, the handlebars
square to the front wheel and the
Razor logo facing the front, tighten
each bolt on the clamp securely as
shown using a 5mm Allen wrench.
2
With the front wheel pointed
straight ahead, the handlebars
square to the front wheel and the
Razor logo facing the front, tighten
each bolt on the clamp securely as
shown using a 5mm Allen wrench.
3
WARNING: Failure to
properly install and tighten the
collar clamp may cause the rider to
lose control and fall. If you do not
understand these instructions or
the concept of "tighten securely"
seek the assistance of a qualified
mechanic.
