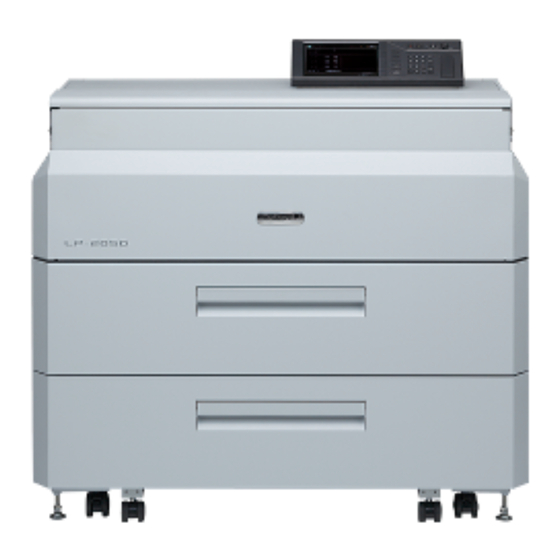

Oki LP-2050-MF User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

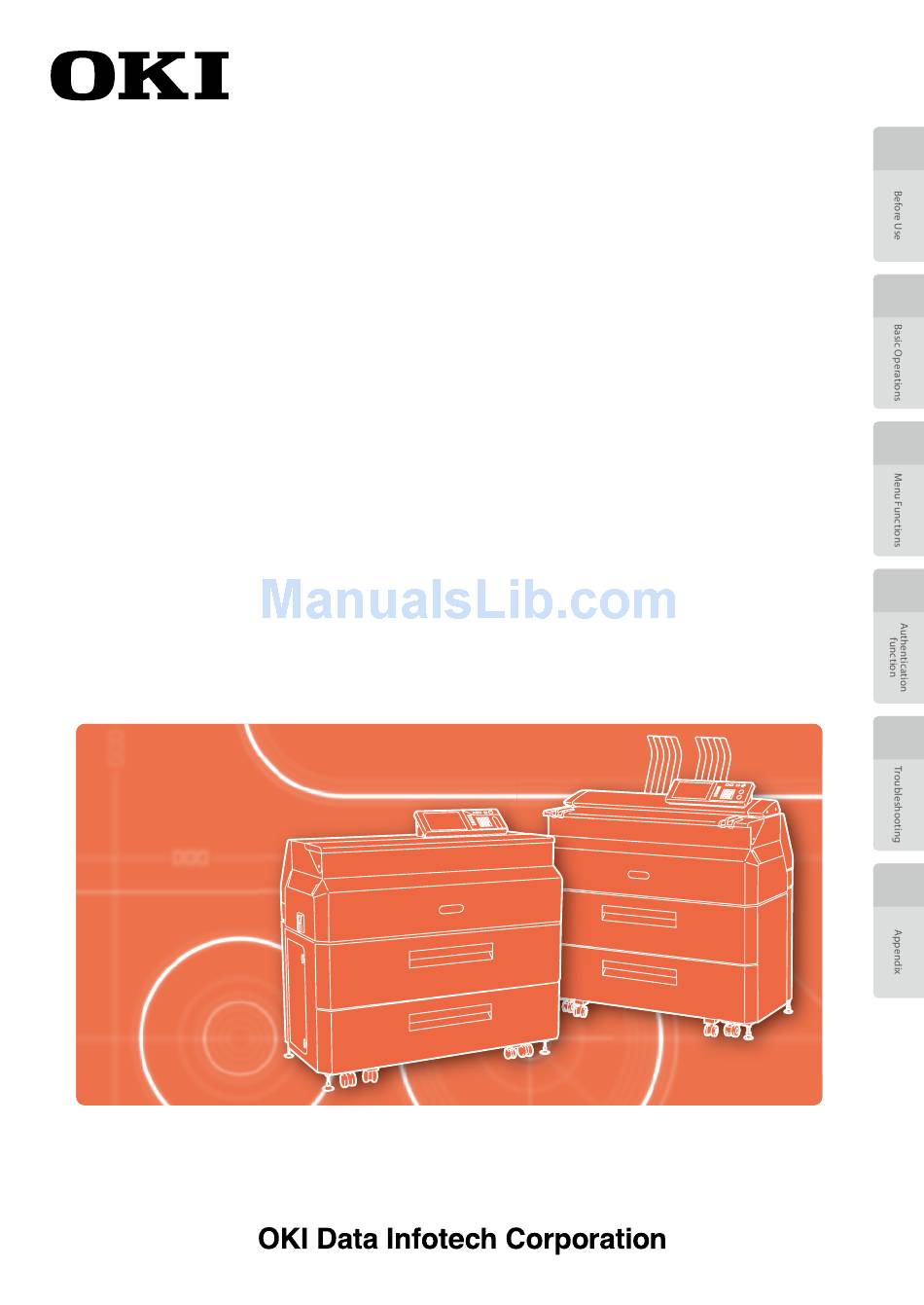

W i d e Fo r mat Pr inte r
Te r i o s t a r LP-20 5 0 S e r i e s
Multifunction Model
LP-2050-MF
Printer Model
LP-2050
User's Manual
U00121376205
for Basic Printer Operation
Chapter
1
Chapter
2
Chapter
3
Chapter
4
Chapter
5

Advertisement

Table of Contents
loading

Related Manuals for Oki LP-2050-MF

Summary of Contents for Oki LP-2050-MF

  • Page 1 Chapter W i d e Fo r mat Pr inte r Te r i o s t a r LP-20 5 0 S e r i e s Multifunction Model LP-2050-MF Chapter Printer Model LP-2050 Chapter User's Manual for Basic Printer Operation...
  • Page 2 U00121376204 April, 2015 U00121376205 December, 2015 Copyright© 2015 OKI Data Infotech Corporation. All rights reserved. The contents of this manual may be changed without prior notice. This product displays fonts created by TypeBank Co., Ltd. and ARPHIC TECHNOLOGY. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
  • Page 3 Printer Operation. To handle the Printer safely and correctly, be sure to read the Safety Precautions carefully before use. Keep this manual in a place where you can easily read it when required. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 4: Safety Precautions

    This symbol indicates a prohibited action. The example on the left means Do not disassemble. This symbol indicates required actions or instructions. The example on the left means Disconnect the power plug from the outlet. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 5 120V and a rated current of 16A or more, or to a power socket with a rated voltage of 230V and a rated current of 9A or more. To prevent a fire or electric shock, avoid the sharing of power with other equipment. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 6 When connecting and disconnecting the power cord, hold it by the plug or connector. To prevent a fire, electric shock, or malfunction, avoid pulling the cord. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 7 Before moving the Printer from its current installation location to another location, contact your service representative. In addition to the items above, observe the warnings and precautions in each section of the manual. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 8: Warning Labels

    Make sure you understand the information on the warning labels before handling the Printer. (2) Instruction label to remove jams (1) HIGH TEMPERATURE caution label (1) HIGH TEMPERATURE caution label (1) HIGH TEMPERATURE caution label (3) Caution label to prevent hands from being stuck LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 9 (3) Caution label to prevent hands from being stuck This label raises your caution to prevent your hands from being stuck between the Printer and the scanner. On closing the scanner, do not place your hands near this label. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 10: Reading The Manual

    Printer. Chapter 5 describes the action to solve a Printer problem. Take appropriate action by following the instructions in this chapter. Appendix contains the Printer's basic specifications, command lists, and menu structure. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 11: Notations

    ‹ D-SCAN format Note that the following related to D-SCAN is applied only for the customers in Japan. - All descriptions in the documents for LP-2050/LP-2050-MF. - All messages appearing on the operation panel. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 12: Supplied Items

    To the 200V system printers, two types of the power cords are attached. Power cord To the 120V system printers, no power cord is attached as it is already mounted and fixed to the printers. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 13: Consumables

    For stacking printouts with A1 or more Bucket (W) LP-859 For storing printouts. For storing original documents output Original Stacking tray LP-858 from the scanner. For high-speed PDF print operation using TerioStation PDF Print LP-874 TerioStation. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 14 LP-819 Carrier Sheet Set LP-857 Color Scan Upgrade LP-874 TerioStation PDF Print LP-862 Stacker LP-863 Catch Basket LP-859 Bucket (W) LP-858 Original Stacking tray LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 15: Table Of Contents

    Environment Requirements ....................24 Ensure Good Ventilation.......................25 Installation/Maintenance Space ..................26 Supported paper ........................27 Part Names and Functions.................30 Front Side ............................30 Left Side and Rear Side ......................31 Inside ..............................32 Operation Panel ........................33 Mode Screen ....................37 LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 16 Handling Print Jobs .........................72 Web Functions .....................73 Functions ............................73 Cleaning the Exterior ..................75 Using Paper from a New Size Standard ..........76 Using Paper from a User Defined Series ..........78 Restricting the Available Rolls ..............80 LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 17 Drawing Parameters ......................116 Scale Parameters ........................119 Format Parameters (only with HP-GL and D-SCAN) .........126 Pen Parameters (only with HP-GL and D-SCAN) ..........132 Raster Parameters ........................136 PDtF (PlotDataToFile) Parameters .................137 Stamp setting .......................... 140 LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 18 Initialize Printer for Use in US 1 ..................149 Initialize Printer for Use in US 2 ..................150 Initialize Printer for Use in US 3 ..................150 PDL Setting Print (Port 1 to 20) ..................150 Adjustment Menu ..................151 LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 19 User Authentication Setting Procedure ..............174 No Authentication Print Job Setting (Authentication from Specified Computers) ...........176 No Authentication Print Job Setting (Authentication by Port) ....177 User Authentication Procedure (Login) and Logout ........178 One-time Password Authentication ................182 LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 20 List of HP RTL Printing Commands ................235 List of D-SCAN Format Commands ................237 TIFF Tags ............................243 CALS Format Record ......................244 Commands Supported by lpd ..................246 xpt (socket I/F) ......................... 246 LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 21: Chapter Before Use

    Chapter 1 describes the information required for using the Printer. Be sure to understand the basic information described in this chapter before moving to the next chapters. Chapter Table of Contents Features ....................22 Operation Requirements ..............24 Part Names and Functions ..............30 Chapter Mode Screen ....................37 LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 22: Features

    Features Chapter This manual explains the operation for LP-2050-MF/LP-2050 Wide Format Printer, that is: - A monochrome raster printer with electro photographic technology, to receive and Print the graphic data created on a workstation or personal computer Chapter (referred to as “computer” in this manual).

  • Page 23: T Features

    ), and film are available in roll paper supported format. Select the paper type depending on your purpose. An original is scanned and copied at 600 dpi resolution. High resolution scanner Optionally, a color original is also scanned. unction LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 24: Operation Requirements

    In such a case, to solve them you are recommended to increase the room temperature to be within the range 20˚C to 30˚C (68 to 86˚F). LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 25: Ensure Good Ventilation

    Also, chemical substances may be emitted during printing operations. Ensure enough ventilation and air circulation Chapter for safe use of the Printer. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 26: Installation/Maintenance Space

    1200 (47.24) (23.62) (39.37) (39.37) (11.81) (Printer front) (Printer front) Chapter 2100 (82.68) 3200 (125.98) Unit: mm (inches) 2000 mm (78.74 inches) in height Note Before relocating the Printer, contact your service representative. ‹ LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 27: Supported Paper

    Use the OKI Data Infotech-specified roll paper listed below. Chapter Note If the installed paper is not OKI Data Infotech-specified, the image quality is ‹ not guaranteed and the Printer malfunction may occur. Store the paper carefully, following the instructions below.

  • Page 28: Chapter

    B standard size (17 inches) (11 inches) 431.8 mm 279.4 mm B standard size (17 inches) (11 inches) 11 inches (279.4 mm) 279.4 mm 215.9 mm A standard size (11 inches) (8.5 inches) LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 29: Chapter

    (19.69 inches) (19.69 inches) 500.0 mm 353.0 mm B3 standard size (19.69 inches) (13.90 inches) „ User-defined Series With user-defined series, standard-size printing is not available. All printing is performed at actual length. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 30: Part Names And Functions

    (5) Toner door/document table Open to replace the toner cartridge. ( & page 53) (6) Scanner cover Open to clear an original jam. ( & page 193) Roll 4 Roll 3 U001XXXXXXXX U001XXXXXXXX LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 31: Left Side And Rear Side

    Open when replacing a waste toner bottle. ( & page 57) (6) Outlet slot Outputs paper. (7) Original output guide Guides the scanned original to the proper position. (8) Output tray Stores output paper sized A3 or smaller. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 32: Inside

    Turn on or off to supply the power to the Printer. ( & page 40) (7) Ethernet interface connector The interface connector for 1000BASE-T, 100BASE-TX, and 10BASE-T. (8) Power cord Insert into a power outlet. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 33: Operation Panel

    The layout for the keys, lamps, and touchpanel screen on the operation panel is Chapter shown in the following figures. „ Multifunction Model Chapter Chapter ( & page 37) „ Printer Model Chapter ( & page 37) LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 34: Chapter

    Red: Error lamps Red (lights up): Indicates that an error has occurred for the corresponding mode. REMOTE lamp Green (lights up): Indicates data transmission with connected computers or access from Web functions. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 35: Chapter

    Changes, enters, or cancels the setting values. +/- button Uses to enter the values. Enter button Confirms the setting values. Cancel button Cancels the input operation or the last scanned document when copies are stored. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 36: Chapter

    Chapter Starts scanning the original or stops scanning in progress. STOP FEED button Stops the scanning of the original. Chapter START button Starts the scanning of the original. Chapter Chapter Chapter LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 37: Mode Screen

    Shows the Printer's status and a computer connected to the settings. network. For the structure of the Setup For more details, see the menu, see the following page. separate User's Manual for Multifunction Printer Operation. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 38 (& page 111) Port 1_CALS Paper Parameters (& page 116) Drawing Parameters Scale Parameters (& page 119) Port 20_CALS Raster Parameters (& page 136) (& page 137) PDtF Parameters (& page 140) Stamp Parameters LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 39 Replacing the Process Cartridge ............64 Job Operation ..................71 Web Functions..................73 Cleaning the Exterior ................75 Using Paper from a New Size Standard ..........76 Using Paper from a User Defined Series ..........78 Restricting the Available Rolls .............80 LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 40: Turning The Power On/Off

    POWER on the operation panel. Note Do not turn off the main power switch while data is being processed. The ‹ system may crash. Chapter Operation panel POWER button Chapter Heater switch Chapter Main power switch LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 41: Powering On

    POWER on the Printer's operation panel. The first time the power is turned on after purchasing the Printer, guidance is displayed for initial settings such as the panel language. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 42 Select No to keep the waiting print jobs. In this case, the waiting print jobs are printed when the Printer starts. After about 10 seconds, No is automatically selected and the message disappears. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 43: Powering Off

    Always turn off the power using the POWER button on the operation panel. ‹ Directly turning off the main switch may damage the data stored inside the Printer. Do not turn off the power when the REMOTE lamp is flashing. ‹ LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 44: Replacing The Roll Paper

    ‘ When the prompt message to supply paper appears, press Alternative Printing to print with: - a paper size bigger than the requested paper; or - a paper type different from the requested paper. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 45: Replacement Precautions

    Be careful not to drop the roll paper onto the flange guide. The flange guide ‹ may be damaged. The flange guide will be damaged if you drop the roll paper when the paper ‹ flanges are installed. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 46: Removing The Roll Paper

    The risk of trapping your hand will increase. Chapter Note Use the OKI Data Infotech-specified roll paper. If your paper is not OKI Data ‹ Infotech-specified, the image quality is not guaranteed. Store paper in a cool, dark, and dry place ‹...

  • Page 47: Installing The Roll Paper

    CLOSE direction. Knob Note If a paper flange knob is too loose, the roll paper will move from side to side. ‹ There will be a negative effect on printing. Fasten the knobs tightly. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 48 A2 or less. When installing a roll paper size of A1 or larger, get the help of another person to carry the roll paper. Installing the paper by yourself may injure your back. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 49 Dispose of the cut paper. Cutter Note After cutting the paper, move the cutter to the arrowed position in the right or ‹ left. Caution Be careful not to injure yourself on the cutter. ‹ LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 50 ‘ When you set a roll paper of a different type or series, press Paper on the supply paper error screen. Set the type and the series of the new paper roll on the paper setting popup screen which appears. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 51: Replacing The Toner Cartridge

    (white on black). The Printer may be damaged when the toner runs out. To avoid this, replace the toner as soon as possible when the toner level runs low. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 52: Handling Precautions

    After installing a new toner cartridge, try to use it all within 6 months. If a ‹ long period of time elapses after installing a cartridge, the printing quality will deteriorate. Store toner cartridges in a cool and dark place. ‹ Use genuine toner cartridges. ‹ LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 53: Toner Replacement Procedure

    Printer as far as it goes, then lift up and remove the cartridge. Warning Never refill an empty toner cartridge with toner. A malfunction may ‹ result. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 54 Insert the toner cartridge by aligning the tabs on the cartridge with the guide rails on the Printer. Chapter Push in the toner cartridge. Push in the cartridge to the left of the Printer as far as it goes. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 55 With your both hands, Close the toner Chapter door (or document table The toner mixing takes about 1 minute. Chapter ‘ Dispose of the used toner cartridge according to the local regulations. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 56: Replacing The Waste Toner Bottle

    Chapter ‘ An instruction label to replace waste toner bottle is affixed to the side of the waste toner bottle. Refer to this when replacing the waste toner bottle. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 57: Replacement Precautions

    Do not reuse the toner inside the waste toner bottle. ‹ ‹ Waste Toner Bottle Replacement Procedure Remove the new waste toner bottle from its box. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 58 Lightly tap the duct to remove any waste toner accumulating inside. Chapter Remove the waste toner bottle from the Printer. ① (1) Lift up the waste toner bottle. (2) Pull out the bottle towards you from the bottom. ② LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 59 Insert the bottle while lifting it up slightly. (2) Lower the bottle to the floor of the Printer, and stabilize it. ② Chapter Close the waste toner door. ‘ Dispose of the waste toner bottle according to the local regulations. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 60: Replacing The Charger Unit

    Printer off. Chapter Put the document table in the vertical position. Chapter Open the fuser unit drawer. Chapter By rotating the right and left outer- side knobs counterclockwise, release the process cartridge drawer's lock. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 61: T Replacing The Charger Unit

    ‘ Note that the knobs are classified into two: inner-side ones and outerside ones. At the step 3, rotate the outer-side knobs. Inner-side knob Chapter U00120305200 Outer-side knob Pull out the process cartridge to your Chapter side by holding its green-indicated parts. Chapter Chapter LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 62 Remove a new charger unit from its Chapter box. Chapter Install the new charger unit by aligning its | mark with the process cartridge’s | mark. The charger unit does not have right and left sides. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 63 Close the process cartridge drawer. Chapter Chapter By rotating the outer-side knobs, fix the process cartridge. Chapter Close the fuser unit drawer. By pressing the POWER button on the operation panel, turn on the printer. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 64: Replacing The Process Cartridge

    Printer. So it does not affect the print quality. To prevent the waste toner from being spilled, be careful not to expose the ‹ process cartridge to strong shaking, tilting, or impacts. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 65: Process Cartridge Replacement Procedure

    Chapter ‘ Note that the knobs are classified into two: inner-side ones and outerside ones. At the step 4, rotate the outer-side knobs. Inner-side knob U00120305200 Outer-side knob LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 66 Chapter ‘ To the used process cartridge, attach the protective case removed from a new process cartridge at the step 8. Then dispose of it according to the local regulations. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 67 With the protective case still attached, install the process cartridge in the Printer so that both of green arrow labels on the protective case and Chapter Printer are aligned. Chapter Remove the protective case of the process cartridge. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 68 Remove the drum protective sheet. Chapter Rotate the knob at the center to remove it, and then dispose of it. Chapter Chapter Close the process cartridge drawer. Chapter By rotating the outer-side knobs, fix the process cartridge. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 69 (1) Turn the knob and remove the cover. (2) Replace the filter inside. Chapter (3) Reinstall the cover. (4) Replace the small filter on the other side following the same procedure. Chapter Chapter Chapter Close the fuser unit drawer. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 70 ‘ Install the filter cover in any direction. Chapter Chapter ‘ Dispose of the two removed filters according to the local regulations. By pressing the POWER button on the operation panel, turn the Printer on. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 71: Job Operation

    Job N-n Job M Chapter Job M-1 Enable canceling Printing Job M-n Job L Job L-1 Enable reprinting (moved to the front of waiting) Job L-n Deleted in Sequence LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 72: Printing Pause And Cancellation

    Press Job on the print mode top screen to display the print job screen. Chapter The following operations can be performed from the print job screen. - Changing printing order and cancelling waiting jobs - Cancelling processing jobs - Deleting completed jobs Chapter LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 73: Web Functions

    PDtF submission destinations as well. (7) Image browsing, acquisition, and deletion in the submission box Enables the browsing, acquisition, and deletion of image data stored in the submission box of the Printer. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 74: T Web Functions

    (1) Install a Web browser on the host computer. Microsoft Internet Explorer Ver. 6.0 or higher Chapter (2) Open the Web browser. (3) Enter "http://(IP address set on the Printer)/" in the address field, and press ENTER. Chapter LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 75: Cleaning The Exterior

    If the Printer exterior becomes dirty, soak a soft cloth in water or a neutral detergent diluted with water. Wring the cloth thoroughly, and then wipe the Printer. Chapter Warning Never use volatile solvents such as thinner, benzene, or alcohol. ‹ Chapter Chapter Chapter LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 76: Using Paper From A New Size Standard

    99). You are recommended to set all unrequired roll widths to Off. Note It is not possible to set all the paper size standards in the same size standard ‹ to Off When the Paper Size Standards setting is changed, the Printer restarts. ‹ LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 77 In the PDL setup for the data transmission port, set Size of Automatically Chapter Supplied Paper to ANSI series ( & page 111). (6) Unexpected operation If the set series does not operate as expected, check the settings again from (1) to (5). Chapter Chapter LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 78: Using Paper From A User Defined Series

    Off. Note It is not possible to set all the user defined series rolls to Off. ‹ When this setting is changed, the Printer restarts. ‹ LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 79 Also, when performing user defined operations with the printer driver, set Printer Drive to User Defined ( & page 126). (7) Unexpected operation Chapter If the user defined series does not operate as expected, Again check the settings (1) to (6). Chapter LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 80: Restricting The Available Rolls

    On in Paper Size Standards. are available. When the roll that will produce the least wasted paper is not set in the Printer, a message prompting paper setting is displayed on the operation panel. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 81 Paper Menu ....................84 Printer Engine Menu ................86 System Menu ...................89 Chapter Ports Setting Menu ................104 Setup Items in PDL Setting Menu............. 108 Submission Destination Setting Menu ..........143 Function Menu ..................147 Adjustment Menu .................151 LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 82: Menu Mode Screen

    (11) Help Menu Chapter 4 Authentication Function. The following procedures are displayed ( & page 154) on the screen. • Replace the Toner Cartridge • Replace the Waste Toner Bottle (15) Submission Destination Settings Menu • Load Roll Paper ( & page 143) • Clear Paper Jams • Clear Original Jams LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 83: Confirming Printer Restart

    Standby button is pressed and the menu Chapter top screen is exited. Chapter Chapter To continue configuration, press No. When configuration is complete, press Yes to restart printer. Setting changes are not applied until the printer is restarted. Chapter LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 84: Paper Menu

    When you intend to install the rolls of a specif ic size standard, you are recommended to specify the size standard rather than Auto. A series A0 (841 mm (33.11 inches)), A1 (594.5 mm (33.11 inches)), A2 (420.5 mm (16.56 inches)), A3 (297.3 mm (11.70 inches)) LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 85 A series 30x42 series User Defined series ARCH series MAP series Note As options, the Printer displays only the paper size standard set to On in ‹ Available Size Standards in the System menu. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 86: Printer Engine Menu

    Sets the data waiting time after which the end of the roll paper is cut automatically. This is performed when data is received for printing after the data waiting status has continued for a while. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 87: Top Cut At Door Open

    ‘ With this function, the top of the roll paper is cut with the printer's cutter. Set for a clean cut on the top of the paper of the output page. <Parameter by selecting options> : Default value Does not cut the paper. Cuts the paper. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 88: Print Density

    : Default value Power saving is low, but warm-up time is short. Medium Power saving is fairly high, but warm-up time is fairly long. High Power saving is high, but warm-up time is long. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 89: Communication Parameters

    Sets the IP address (Internet address) of the Printer. This parameter is the same as the parameter that is set in the installation operation. <Parameter by entering numbers> 000.000.000.000 to 255.255.255.255 Default value: 0.0.0.0 (not set) LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 90: T System Menu

    0 to 15 characters Connection Speed Sets the communication speed. <Parameter by selecting options> : Default value Auto Automatically recognizes 1000BASE-T, 100BASE-TX, or 10BASE-T. 1000 Sets to 1000BASE-T. Sets to 100BASE-TX. Sets to 10BASE-T. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 91 The default name is public. Up to 63 characters can be used for this setting. SNMP Version Sets the version of the SNMP to use. <Parameter by selecting options> : Default value Version 1 Version 2 LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 92 <Parameter by entering characters in IPv4/IPv6 format> Chapter 0 to 63 characters Prefix Length Sets the prefix length when IPv6 Address Manual Setting is On. <Parameter by entering numbers> 0 to 128 Default value: 64 LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 93 0.0.0.0 (not set) Network Address 01 to 10 Sets the network address. <Parameter by entering numbers> 000.000.000.000 to 255.255.255.255 Default value: 000.000.000.000 (not set) The gateway address set to 000.000.000.000 specifies the default routing LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 94 TRAP 1 to 5 Agent Computer Sets the IP address of the agent computer to return a trap. This setting is not required when, at the submission function, the destination is specified with an IP address. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 95 TRAP Agent Computer. Note that when this setting is 000.000.000.000, a trap is sent for all the received jobs. <Parameter by entering numbers> 000.000.000.000 to 255.255.255.255 Default value: 000.000.000.000 LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 96 0 to 65535 Default value: 30000 TWAIN Data Port Address Sets the data port (TCP) for when the TWAIN driver is used for connection. <Parameter by entering numbers> 0 to 65535 Default value: 32000 LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 97 When the set time elapses, the TWAIN mode is exited. <Parameter by selecting options> : Default value Chapter 30 minutes Performs timeout after 30 minutes. 60 minutes Performs timeout after 60 minutes. 90 minutes Performs timeout after 90 minutes. Chapter Chapter Chapter LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 98: Available Size Standards

    - Size Standard in the Paper menu - Size of Automatically Supplied Paper in PDL Setting - Original size standard at copy setting - Original size standard at submission setting LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 99: Paper Size Standards

    It is not possible to set all the items in the same series to Off at the same ‹ time. Chapter In a same size standard, it is not possible to set all the sizes to Off at the ‹ same time. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 100: User Defined Size

    Printer restarts. This setting is available when User Defined series is set to ON in Available ‹ Size Standards. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 101: Printer Settings

    : Default value English Italiano Русский 日本語 Français Dutch (NL) 简体中文 Español 繁體中文 Deutsch Português Unit of Length Changes the unit of length between mm and inches. <Parameter by selecting options> : Default value Inch LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 102 - With the START button pressed after an original is set. <Parameter by selecting options> : Default value Original Setting Starts scanning automatically when an original is set. Press START Starts scanning when the START button is pressed after an original is set. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 103 - User registration -> User name <Parameter by selecting options> : Default value Russian language entry is not available. Russian language entry is available. At the panel keyboard screen, Russian language entry can be enabled by pressing button. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 104: Ports Setting Menu

    A total of 20 ports is available, including XTP, LPD, and FTP. ‹ ‹ Common Settings Connection Timeout Select a wait time to close the TCP port. The Printer starts counting the time when the Printer is not receiving data during the data transmission. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 105: Port 1 To 20

    The port does not accept HP-GL format command. The port accepts HP-GL format command. D-SCAN <Parameter by selecting options> : Default value The port does not accept D-SCAN format command. The port accepts D-SCAN format command. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 106: Printer Name

    Port number The available characters are A to Z, 0 to 9, - (hyphen) , and _ (underscore). Case is not distinguished. Do not use the same user name in multiple ports. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 107 ASCII/UTF-8 File names are displayed. File names sent from the host computer are encoded in ASCII/UTF-8. Chapter ShiftJIS File names are displayed. File names sent from the host computer are encoded in ShiftJIS. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 108: Setup Items In Pdl Setting Menu

    Chapter The data formats shown in the following table can be used with this Printer. Panel Display Data Formats This is OKI Data Infotech's original D-SCAN format. D-SCAN raster D-SCAN Chapter data is also supported. This data format is compatible with HP-GL, HP-GL/2, and HP RTL HP-GL from HP.

  • Page 109: Setting Parameter Table In Pdl Setting Menu

    Port n_TIFF in TIFF format are performed with this parameter. Sets the parameter for the PDL table of Ethernet port n. Settings for printing in Port n_CALS CALS format are performed with this parameter. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 110: Pdl Parameter Priority Mode

    - At the HP-GL PDL setting with a printer driver, the printer driver setting was deactivated by setting the printer driver option to invalid. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 111: Paper Parameters

    The Printer prints on the roll 2 paper. Roll 3 The Printer prints on the roll 3 paper. Roll 4 The Printer prints on the roll 4 paper. Note The default value varies depending on the Printer initialization category. ‹ LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 112: Page Size

    Longer Side Shorter Side B1 size 1000.0 mm (39.37 inches) 707.0 mm (27.83 inches) B2 size 707.0 mm (27.83 inches) 500.0 mm (19.69 inches) B3 size 500.0 mm (19.69 inches) 353.0 mm (13.90 inches) LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 113 <Parameter by selecting options> : Default value The printed image is not centered. The printed image is centered. The image is not centered when the data size is larger than the spool memory LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 114 However, note that the part of the image exceeding the used paper size is not printed, as the actual print area is not affected by the excess size tolerance. <Parameter by entering numbers> 0 to 30 Default value = 2, Unit in mm LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 115: Print Direction

    The printer plots the image with setting its shorter edge toward the roll paper's lead edge. Long Edge First The printer plots the image with setting its longer edge toward the roll paper's lead edge. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 116: Drawing Parameters

    Note that the parameter is valid only when the offset mode is set to Same Drawing Size with Top and Bottom Blank. <Parameter by entering numbers> 0 to 100 Default value = 0, Unit in mm LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 117 : Default value Overwrite Overwrites. Delete and Write Deletes and writes. Mirror With the parameter, the Printer prints the image reversed, that is, symmetrical around the drawing's center line parallel to the x axis. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 118 Adds and prints an error memo on the side of the page if a PDL error occurs during data processing. However, the Printer does not print the error memo for the command errors (only with HP-GL). LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 119: Scale Parameters

    - X scale - Y scale - Standard-size scale Auto Scale The parameter selects the image to be scaled automatically so that the whole image larger than the paper is printed on the paper. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 120 - Line widths - Inter-dot distance - Dash-dot distance The parameter applies the scaling to: - Line widths - Inter-dot distance - Dash-dot distance However, note that the maximum line width is 16 mm. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 121 The Printer prints the D standard size image in the ANSI series, auto scaled from a standard size original image. The Printer prints the E standard size image in the ANSI series, auto scaled from a standard size original image. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 122 A0 Width The Printer prints the image reduced to A0 roll width size. A1 Width The Printer prints the image reduced to A1 roll width size. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 123 The Printer prints the image enlarged to E roll width size. D Width The Printer prints the image enlarged to D roll width size. C Width The Printer prints the image enlarged to C roll width size. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 124 2 roll width size. User Defined 3 Width The Printer prints the image enlarged to user defined 3 roll width size. User Defined 4 Width The Printer prints the image with the original size. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 125 User Defined 3 Width The Printer prints the image reduced to user defined 3 roll width size. User Defined 4 Width The Printer prints the image reduced to user defined 4 roll width size. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 126: Format Parameters (Only With Hp-Gl And D-Scan)

    Enabled to prioritize the driver settings over the PDL settings with the operation panel. However, when the Printer receives data from the other printer driver, the PDL settings with the operation panel is prioritized. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 127 However, when the Printer receives data from the other printer driver, the PDL settings with the operation panel is prioritized. Chapter Note The default value varies depending on the Printer initialization category. ‹ Chapter Chapter LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 128 *1: Paper size is enabled but series specification is disabled. *2: Vectors are specified on the operation panel. *3: The printer driver's Draw figure area item cannot be specified with the operation panel. However, the printout depends on the panel settings. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 129 Be sure to set the Terminator SP0 to Off when you apply SP0 to your drawing pen, or your pen 0 is taken as a terminator. <Parameter by selecting options> : Default value Does not set the command as a terminator (EOF). Sets the command as a terminator (EOF). LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 130 <Parameter by selecting options> : Default value Disables the paper number in the information block. Paper Position Identifies the paper number as the paper position. Paper Type Identifies the paper number as the paper type. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 131 Prints with film. 4 or higher Supplies paper with identifying the Paper Supply Mode as Roll 4. Chapter Note The settings are valid only with the application compatible with the paper ‹ numbers above. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 132: Pen Parameters (Only With Hp-Gl And D-Scan)

    Line Join parameter. Performs rounding for all micro-vectors. With the Printer, micro-vector is defined as follows: - The line width and line length are 1 mm or less. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 133 1.00 to 1.03 mm (0.0394 to 0.0406 inches) Density (%) Sets the density of the printer's pens. <Parameter by entering numbers> 0 to 100 Default values: Pen 0 = 0, Pens 1 to 15 (32) = 100 LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 134 <Parameter by selecting options> : Default value Round Sets the line join to round. Mitered Sets the line join to mitered. The connection method of these parameters are shown in the figures below. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 135 The Line Join parameter is not valid when a line attribute below is changed: - Line color - Line width - Line type The Line Join parameter may not be valid for the outermost line on a drawing. Chapter Chapter LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 136: Raster Parameters

    Standard Uniformity processing is not performed. Better uniformity Uniformity processing is performed. (Print quality is less than with Standard.) High uniformity Uniformity processing is performed. (Print quality is less than with Better uniformity.) LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 137: Pdtf (Plotdatatofile) Parameters

    Uses the login name of the user logged in the host computer when the print data was sent for the file names. Host Name Uses the name of the host computer from which the data was sent for the file names. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 138 Image submission destination number (Image Destination No.) When the file save destination is set to Image Submission Destination, specify the shared folder by the submission destination number. <Parameter by entering numbers> 1 to 100 Default value = 1 LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 139 In the case the data was created on December 23, 2010, at 12:34:56 p.m., the creation date and time are displayed as follows. <Parameter by selecting options> : Default value Chapter YYMMDDhhmmss Example: 101223123456 YYYYMMDD Example: 20101223 YYMMDD Example: 101223 hhmmss Example: 123456 Chapter LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 140: Stamp Setting

    Top Right Top Left Stamp Direction This parameter specifies the direction of the character string. <Parameter by selecting options> : Default value Left to right Right to left Bottom to top Top to bottom LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 141 December 23, 2010, at 12:34:56 p.m. from a computer with user logged in, the following stamp is printed. us er CO NFID EN T IAL 2010/12 /23 12: 3 4: 56 Stamped item 1 Stamped item 2 Stamped item 3 LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 142 This parameter sets the user specified character string. <Parameter by entering characters> 0 to 16 characters Default value: 0 The available characters are A to Z, 0 to 9, - (hyphen), and _ (underscore). Chapter LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 143 ‘ Files stored in the hard disk drive of the Printer can be accessed using Chapter the WEB functions or TerioStation (exclusive application). Chapter Select the submission destination number to be preset, and then press Add/Edit. Configure the following settings. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 144: T Submission Destination Setting Menu

    <Parameter by entering characters> 0 to 15 characters Domain Name When Domain Name was selected for Shared server name selection, enter the domain name of the host computer. <Parameter by entering characters> 0 to 255 characters LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 145 When the protocol is set to FTP, specify the path of a folder at the submission destination. <Parameter by entering characters> 0 to 128 characters ‘ Multiple languages entry is performed with Web functions. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 146 Specify whether to call a preset from memory for each submission destination automatically. <Parameter by selecting options> : Default value Chapter If Yes is selected for Call Settings Preset, specify the preset to be called. <Parameter by selecting numbers> 1 to 10 LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 147: Function Menu

    ‹ Print System Settings Chapter Prints the system settings. ‹ Print Print Settings Chapter Prints the Print settings. ‹ Print Copy Settings Prints the copy function settings. ‹ Print Submission Settings Prints the submission function settings. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 148: Print All Settings

    Prints the accounting information based on the customer's maintenance contract Chapter so that the customer can send it to OKI Data Infotech by fax. ‹ Date and Time Setting Sets the date (year, month, and day) and time (hour, minute, and second) for the Chapter Printer.

  • Page 149: Initialize Port Accounting Information

    ‹ Initialize Printer for Use in US 1 The Printer is initialized for the operation mainly with ARCH series (36 in., 24 in., 18 in., 12 in.), suited for a use in the US. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 150: Initialize Printer For Use In Us 2

    The Printer is initialized for the operation mainly with 36 in., 30 in., 24 in. and 15 in. papers, suited for a use in the US. ‹ PDL Setting Print (Port 1 to 20) Chapter Prints PDL settings for each port. Chapter LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 151: Adjustment Menu

    In such a case, calibrate the touchpanel coordinates by operating the calibration screen following the instruction on the screen. Panel Brightness Adjustment Chapter Adjusts the panel brightness. <Parameter by selecting options> : Default value Bright Slightly Bright Normal Slightly Dark Dark Chapter Chapter LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 152 Chapter Chapter Chapter Chapter Chapter LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 153: T Printer Administration

    Chapter Chapter Chapter Authentication Function Chapter Chapter 4 describe the authentication function for the Printer. Chapter Contents Chapter Authentication Function Overview ..........154 Printer Administration .................156 User Authentication ................165 Chapter LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 154 When a user operates the Printer, the authentication code is required to identify the user. With the authentication function, users without an authentication code cannot operate the Printer. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 155 With the one-time password specified, the Printer does not print data it receives until the password is entered from the operation panel. Chapter Print data with one-time password Password entry Print LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 156: User Administrators And Standard Users

    Up to three supervisors can be registered. 1. Changing the Printer settings 2. Acquiring logs 3. Special job operations User administrator Up to five user administrators can the registered Copying, submitting, scanning, and printing Standard user LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 157 *1: Even if Printer Administration is set to Off, supervisor privileges are necessary to register a supervisor or an administrator. *2: When Edit submission destination/memory is set to Allow edit, changes can be made without printer administration privileges. *3: For actual login, authentication is required using a login name and password. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 158 Upgrade All ports/All PDL import/ export Special maintenance User registration ActiveDirectory user verification Scanner Maintenance *1: This mode is available when Submission destination / Preset editing is set to Permit in Printer Administration. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 159: Registering A Supervisor

    The first time you register a supervisor, login using the default login name and password. Login name: supervisor Password: (blank) After login, the menu top screen is displayed again. Press Register Supervisor in Administrator Settings. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 160: Registering User Administrators

    Supervisor 1 cannot be deleted. ‹ ‹ Registering User Administrators Chapter To register an user administrator, you will have to login as a supervisor even if Printer Administration is set to Off Press MENU. Press Administrator Login. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 161 OK. Chapter Chapter Note Do not forget the login name and password of the user administrator. If you ‹ forget this information, you will have to log in with supervisor privileges. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 162: Enabling Printer Administration

    „ Edit submission destination/memory In the initial condition with printer administration enabled, only user administrators with printer administration privileges can edit: - Submission destinations in submission mode; and - Registration memory in copy/submission mode. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 163 This setting must be changed by a user administrator with printer administration privileges. „ Logging in and logging out using the Web function User administrators can log in and out using the Web function. The Web function cannot be used for supervisor login. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 164: Administrator Login

    Enter a supervisor or user administrator login name and password and then press Login. If the Printer display returns to the standby screen Chapter after logging in, the user is logged out. Chapter LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 165: Operation Guide For User Authentication

    For example, it is possible to restrict print and copy modes, which use consumables such as paper and toner, to authorized users only, while allowing all users to use submission and scan modes, which do not use consumables. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 166 If Auth. Required is set, print authentication is performed. If Auth. Not Required is set, printing is performed without print authentication. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 167 - Job operation screen (for print, copy, submit and scan); - Submission box screen; and Chapter - PDtF box screen. So your job cannot be monitored nor operated by other users. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 168: Printer Setting Procedure To Enable User Authentication Operation

    ‹ Procedure for User Authentication Operation „ For copy, submit, and scan modes ( & page 178) For your intended operation. press a mode button, COPY, SUBMIT, or SCAN. The Authentication screen appears. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 169 Even when the printer receives print data, printing is suspended until the authentication code is entered. Chapter Chapter Press PRINT on the operation panel. The Print screen appears. Press Authenticated Printing on the print screen. The Authentication screen appears. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 170 The authenticated printing screen appears. On the authenticated printing screen, select the print data to be Chapter printed and press Print. The selected print data is printed. Chapter Chapter Press Log Out. The standby screen appears. Chapter LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 171: Registering A User

    Press MENU. Chapter Press User Authentication Settings. Chapter Note When Printer Administration is On, user administration settings are ‹ operated only by user administrators with printer administration privileges. Press User Registration. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 172 LPR Identification When LPR Data for User Identification is set to User Name or Host Name Name, enter the user name or host name used by the user. 0 to 31 alphanumeric characters LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 173 A LPR identification name must be set when using LPR Data for User ‹ Chapter Identification. Specify a unique string of characters for the LPR identification name for each user. Chapter LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 174: User Authentication Setting Procedure

    Press >>. Set Login Name in Job Log to Yes or Set Project Name Management to User Priority or Common to All Users. Set Print Authentication Login Name to Case Insensitive or Case Sensitive. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 175 Printer restarts when leaving the menu mode. ‘ For IC card authentication, you are required to: - Set IC card authentication; and - Specify information location. For details, contact your dealer or nearest service representative. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 176 Register the IP address of the host computer that can print without user authentication. Up to three host computers can be registered. If the user authentication setting is changed, the Printer restarts when leaving the menu mode. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 177: No Authentication Print Job Setting (Authentication By Port)

    Printer restarts when leaving the menu mode. page 83) Note When Authentication by port is set to No authentication, Port settings ( & ‹ page 104) and PDL settings ( & page 108) are required. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 178: User Authentication Procedure (Login) And Logout

    If a project name is registered in the user information, select a project. The screen of the desired mode appears. When operation is complete, press Log Out at the bottom of the top screen to logout. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 179 Chapter For details, see the Help section of the printer driver. Even after submission, printing is not performed. Chapter Chapter Press PRINT. The Print mode top screen appears. Chapter Press Authenticated Printing. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 180 Setting. For more details, see & page Chapter 174. Select the job to be printed and press Print. Chapter After all printing is complete, press Log Out at the Print top screen to logout. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 181 On the job screen, only the jobs of authenticated users are displayed. After logging in, the user can operate the Printer under the specified restrictions. To logout, click Log Out at the top of the Web browser window. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 182: One-Time Password Authentication

    To print the suspended print job with that one-time password, the user who has submitted the one-time password job can enter the one-time password on the operation panel at a convenient time. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 183 „ Setting procedure with the printer driver Chapter When you are printing from the printer driver, specify one-time passwords with the authentication sheet. For details, see the help section of the printer driver. Chapter LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 184 The checkbox's default status is set to On or Off at the User Authentication Setting. For more details, see & page 174. On the authenticated printing screen, select a job to print it. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 185 Initial Checks ..................186 When the Error Screen Appears ............187 Chapter Error Log Reference ................196 Ethernet Troubleshooting ..............207 Image Quality Defects ................ 209 Unusual Sound ..................210 When you have set the wrong language .........211 LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 186: Initial Checks

    ( & page 196). For data errors, the error message can be printed on a part of the printout ‹ ( & page 118). LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 187: When The Error Screen Appears

    The touchpanel also shows the paper jam location. Remove the paper jam by following the procedures described next. The method for removing the paper jam can also be viewed in the Help of the error screen. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 188 After removing the jammed paper, go to Warning Be careful not to touch the fuser unit. ‹ Note that the fuser unit is very hot. To avoid burning yourself, remove the jammed paper carefully. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 189 Close the paper outlet cover, and then close the fuser unit drawer. When the fuser unit drawer is closed, the Printer restarts the print from the page at which the paper jam occurred. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 190 Open the front door. Chapter Chapter Remove the jammed paper, and then close the front door. When the front door is closed, the Printer restarts the print from the page at which the paper jam occurred. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 191 Chapter „ Removing a Paper Jam from the Roll Paper Drawer and the Front Door Chapter Chapter Press the latch button, and open the fuser unit drawer. Chapter Chapter Open the front door. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 192 When the Error Screen Appears Chapter Open the roll paper drawer. Chapter Rewind the roll paper. Chapter Chapter Cut the paper. Chapter Remove the roll paper. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 193 Chapter Close the front door. Chapter Close the fuser unit drawer. Chapter Chapter „ Original Jam When an original jam occurs, the following messages appear on the screen. Chapter Open the scanner cover. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 194 Slide the stopper to the right. Chapter Remove the jammed original. Chapter Chapter Release the stopper. Slide the stopper to the left. Chapter Close the scanner cover. Be closing the scanner cover, then the Printer becomes ready. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 195: Door Is Open

    Chapter ‹ Door is Open The following messages are displayed on the screen when a door or drawer is open. Chapter Following the message, close the indicated door or drawer. Chapter Chapter Chapter LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 196: Error Log Reference

    ‹ Error Log List Solve the problem by identifying the error with referring to the Error Log List shown below. If the problem persists after the corresponding troubleshooting, contact your dealer or nearest service representative. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 197 Module start error (upgrade library) 1031 Initialize TIMER Module start error (timer task) 1032 Initialize OPERATION Module start error (operation task) 1033 Initialize PANEL Module start error (panel task) (1) Type (2) Character string (3) Error number LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 198 MYKselect returned an error when sending a message 4300 Receive message error MYKrcvInterface returned an error 4310 Send message error MYKsndInterface returned an error C000 Internal information error (1) Type (2) Character string (3) Error number LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 199 MYKsndInterface returned an error when sending a jobEvent message jobevent LN 1100 alloc memory xx Insufficient internal memory Restart the Printer. xx: Internal code (01 to 04) (1) Type (2) Character string (3) Error number LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 200 Communication timeout (application level) Check the status of the data (Communication with the host broke during transmission host. data transmission) PPP: Protocol name (FTP/LPD/XPT) xx: Internal code (1) Type (2) Character string (3) Error number LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 201 Supported character string xx: Internal code LN 8260 PPP bind(nnnn) xx Communication connection related: bind error PPP: Protocol name (FTP/LPD/XPT) nnnn: Supported character string xx: Internal code (1) Type (2) Character string (3) Error number LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 202 CC or DATA process) & CC or DATA ML 8737 server protocol Check CC & SMTP server protocol error (CC permission and DATA process) DATA (1) Type (2) Character string (3) Error number LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 203 NPRINT OM 4740 Receive message error from MYKrcvInterface returned an error when receiving a message from a CIFS task CIFS (1) Type (2) Character string (3) Error number LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 204 Data was disregarded because there was no Check on the computer side whether valid print data on the paper. valid print data is being transmitted. (1) Type (2) Character string (3) Error number LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 205 MIB information access error SN C020 Internal communication error A000 Cannot Parse PJL PJL analysis failed Check the print data. * Details may be divided into multiple items (1) Type (2) Character string (3) Error number LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 206 TW 83FF Twain : others (net) • Check the other network settings. Network errors other than above If the error persists, replace the ARC substrate. (1) Type (2) Character string (3) Error number LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 207: Ethernet Troubleshooting

    Contact and check with the system Contact the system administrator. DNS server, the DNS administrator. server is not set up, or the IP address setting of the DNS server on the Printer is incorrect. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 208 (However, with some host devices, bin is not issued even after setting the bin specification. In such a case, set the setting on the device side to bin fixed.) LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 209: Image Quality Defects

    Printer does not print for the Chapter prescribed time or more between the current printing and the next printing. ( & page 86, Top Cut Timer (Roll 1 to 4)) LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 210: Unusual Sound

    Unusual Sound Chapter If the Printer issues an unusual sound, contact your dealer or nearest service representative. Chapter Chapter Chapter Chapter LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 211: When You Have Set The Wrong Language

    Chapter The Printer starts normally and the standby screen appears. Press the following buttons consecutively. Chapter Cancel --> . --> Enter --> Cancel The language selection screen appears. Select a language. Chapter Chapter LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 212 Chapter Chapter Chapter Chapter Chapter LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 213: Appendix

    Appendix Chapter Chapter The Appendix contains information such as the Printer's basic specifications, components, menu structure, and command lists. Chapter Table of Contents Basic Specifications ................214 Menu Structure ..................216 Chapter Command Lists ..................231 LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 214: Printer Specifications

    - 5 mm on rear end - 5 mm on both sides Data format D-SCAN, HP-GL, HP-GL/2, HPRTL, TIFF, CALS 320 GB Interface Ethernet (10Base-T/100Base-Tx/1000Base-T) Network protocol TCP/IP (ftp, lpr, xpt (socket)) LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 215 2100 mm (82.68 inches) (W) × 2740 mm (107.87 inches) (D) × Installation space 2000 mm (78.74 inches) (H) 3200 mm (125.98 inches) (W) × 3540 mm (139.37 inches) (D) × Maintenance space 2000 mm (78.74 inches) (H) LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 216 Chapter ‘ The menu structure in this section was created based on the Printer's factory default settings. Chapter Chapter Chapter & page 218 & page 217 Chapter & page 223 & page 224 LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 217: Printer Engine Menu

    5 minutes 10 minutes Chapter Top Cut at Door Open Print Density Slightly Low Normal Slightly High High Humidity for Tracing Paper Normal High Humidity Power Saving in Standby Medium High : Default value LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 218: System Menu

    Chapter SNMP SNMP Community 0 to 32 characters SNMP Version Version 1 Version 2 IPv6 Connection IPv6 Address Manual Setting IPv6 Address 0 to 63 characters Prefix Length 0 to 63 characters DHCPv6 LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 219 TWAIN Data Port Address 0 to 65535 Chapter TWAIN Connection Timeout 30 minutes 60 minutes 90 minutes Available Size A Series Standards ARCH Series ANSI Series 30×42 Series Map Series DIN Series User Defined LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 220 12 in. Roll ANSI Series 34 in. Roll Chapter 22 in. Roll 17 in. Roll 11 in. Roll 30×42 Series 30 in. Roll 15 in. Roll MAP Series B1 Map Roll B2 Map Roll LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 221 Printer Settings Common Settings 30 seconds Time 1 minute Chapter 2 minutes 3 minutes 5 minutes 10 minutes 15 minutes Language English 日本語 简体中文 Deutsch Italiano Français Español Português Русский Dutch (NL) 繁體中文 LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 222 Reverse Chronological Multifunction Settings Start Scanning Original Setting Press START Job box retention period 3 to 10 (days) Chapter Time to Start Scanning 0 to 10 (seconds) Character entry settings Russian language Chapter LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 223: Ports Setting Menu

    XPT Port 0 to 65535 Printer Name 3 to 15 characters User Name 3 to 15 characters FTP password 3 to 15 characters Host character encoding Not Specified ASCII/UTF-8 ShiftJIS : Default value LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 224: Pdl Setting Menu

    Plain Tracing Film Excess Size Tolerance 0 to 30 (mm) Output Tray Output Tray Print from End Print direction Short Edge First Long Edge First : Default value *1: HP-GL, TIFF, CALS only. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 225 Auto Scale X Scale 0.01 to 1000.00 (%) Y Scale 0.01 to 1000.00 (%) Pen Width Scale : Default value *2: D-SCAN only. *3: HP-GL, D-SCAN only. *4: TIFF, CALS only. *5: HP-GL only. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 226: Menu Structure

    C Width / B Width E Width / D Width / E Width C Width / B Width Same Width / E Width / Width Exceeding E D Width / C Width / B Width LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 227 User Defined 3 Width User Defined 2 Width User Defined 1 Width Format Parameters Printer Driver Not Enabled Enabled User Defined Language Auto HP-GL HP-GL/2 Terminator PG1; Terminator NR; : Default value *5: HP-GL only. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 228 Pen N Width 0.00 to 16.00 (mm) Density 0 to 100 (%) Line End Round Butt Line Join Rounded Mitered : Default value *5: HP-GL only. *6: D-SCAN only. *7: HP-GL, D-SCAN only. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 229 Host Name File naming rules 4 Not Specified Date and Time Created File Name User Name Host Name : Default value File save destination PDtF Box *8: HP-GL, D-SCAN, Image submission TIFF only. destination LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 230 Stamped items 1 to 3 Not Specified Reception Date and Time User Specified User name Date and time YYMMDDhhmmss received format YYYYMMDD YYMMDD hhmmss User-specified 0 to 16 characters character string : Default value LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 231: List Of Hp-Gl And Hp-Gl/2 Printer Engine Control Commands

    ) The fonts of the font numbers specified with the AD and SD commands are printed with the fonts of the font numbers indicated in the CS command table below. ) Recognized as EOF. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 232: List Of Hp-Gl And Hp-Gl/2 Printer Engine Printing Commands

    Relative coordinates 3-point arc printing command Arc resolution mode selection command Graduation length setting command X axis graduation printing command Y axis graduation printing command Encryption printing command Absolute coordinates Bezier printing command Relative coordinates Bezier printing command LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 233 Bitmap font setting command Character string printing command Character string storage command Stored character string printing command Character Number of characters movement command Commands Symbol mode setting command User character registration command User character printing command LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 234 Font No. Font No. Font No. Font No. Font No. Font No. 1611 (Kanji) 101 (Kanji) 1643 (Kanji) 101 (Kanji) (Note 1) (Note 1) Character set 531 is handled as user defined characters. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 235: List Of Hp Rtl Printing Commands

    Sets the RGB value of the specified index Foreground Color ESC * v # s|S number as the lower limit for raster printing. Specifies the algorithm for expressing neutral Render Algorithm ESC * t # j|J Partially ( color data. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 236 ) The only parameter value enabled for ESC*t#J is 0. ) ESC*l#O is enabled only in some logical calculations for monochrome binary raster. Chapter Commands not included in the table result in command errors or are disregarded. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 237: List Of D-Scan Format Commands

    40 to 7F Writes a symbol. PLOT 80 to FF Prints a line segment or moves a coordinate. PTN SET 0001 Registers a fill pattern. PATRN 0002 Fills the inside of closed polygons. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 238 Specifies the output bin number for the sorter. STOCK Specifies the stock of the sorter. PAPER Specifies the paper type number. Partially * USERN Specifies the user name (EBCDIC). * On hold. Not supported yet. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 239 Specifies the output bin number for the sorter. STOCK Specifies the stock of the sorter. PAPER Specifies the paper type number. Partially * USERN Specifies the user name (EBCDIC). * On hold. Not supported yet. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 240 * The maximum values of the 4 parameters (0 to 255) indicating the proportion of yellow, magenta, cyan, and black are used to determine the gradation in 16 levels. This is expressed as the density of black. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 241 DIRECT RASTER 2 1195 Sets the information for direct raster (2). PACKING RASTER 2 1196 Sets the information for packing raster (2). PIXEL 2 1197 Pixels 2 * On hold. Not supported yet. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 242 Pixel data CONTINUATION 12FF Data continued from the previous block. DATA * Even yellow, magenta, and cyan pattern arrays are registered as black pattern arrays. The registered dots are all expressed in black. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 243: Tiff Tags

    Specifies the option information for T4 compression. Partially Specifies the physical unit of resolution units in the X ResolutionUnit 0128 Resolution and Y Resolution tags. Color Map 0140 Specifies the palette color table (RGB). LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 244: Cals Format Record

    Specifies the rotation direction for the page. Specifies the number of dots in 1 line and the rpelcnt number of lines. Chapter rdensty Specifies the number of dots in each inch. Chapter LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...
  • Page 245 Logs in to the Printer's ftp server. After executing the user user (user name) — command, enter the user name and password. ‘ Up to 10 users can be connected in 3 protocols: ftp (for data transfer), lpr (lpq, lprm), and xpt. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

  • Page 246: Commands Supported By Lpd

    With LP-2050 xpt, data from up to 20 users can be transferred. Chapter ‘ Up to 20 users can be connected in 3 protocols: ftp (for data transfer), lpr (lpq, lprm), and xpt. LP-2050/LP-2050-MF User's Manual for Basic Printer Operation...

This manual is also suitable for:

Lp-2050

Table of Contents
