Nextar NCD60C Instruction Manual

Nextar inc. car stereo with cd player instruction manual
Hide thumbs
Table of Contents

Advertisement

Quick Links

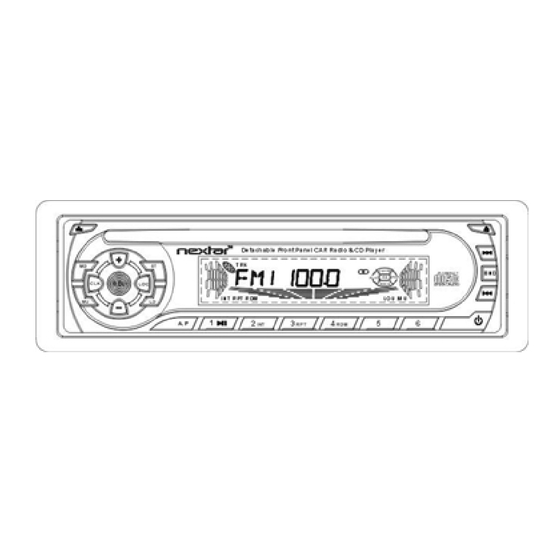

CAR STEREO WITH CD PLAYER
NCD60C

Advertisement

Table of Contents
loading

Related Manuals for Nextar NCD60C

Summary of Contents for Nextar NCD60C

  • Page 1 CAR STEREO WITH CD PLAYER NCD60C...

  • Page 2: Dear Customer

    DEAR CUSTOMER: Thank you for purchasing this car audio product. Selecting fine audio equipment such as the unit you have just purchased is only the start of your musical enjoyment. Now it is time to consider how you can maximize the fun and excitement your equipment offers.

  • Page 3: Location And Function Of Controls

    LOCATION AND FUNCTION OF CONTROLS 1. RELEASE BUTTON Press this button to eject the front control panel from the main body. 2, 3 & 4. SEL BUTTON (Select) AND VOLUME (MENU) UP (+) / DN (–) BUTTONS a) Press the SEL button briefly to select each of the following modes: VOLUME - >...

  • Page 4: Power On/Off

    SEEK 1 / 2: (only available during radio operation) In this mode you can select SEEK 1 / SEEK 2 by pressing the + or – button. SEEK 1: Hold down the > > | or | < < buttons and the radio will tune to the next station that is detected .

  • Page 5: Mute Button

    13. MUTE BUTTON This button turns the MUTED state on / off . Press the MU button to mute the loudspeaker temporarily, and press again to resume listening. The muted state will be also released when the MODE, LOUD, SEL, + or – button on the front panel is pressed . 14.

  • Page 6: Clock Button

    23. LOUDNESS BUTTON Briefly press this button to turn LOUD mode on, which enhances the bass when the volume level is low. Press again to cancel the loudness effect. 24. CLOCK BUTTON Press the CLK button briefly to display time on the display. Press the CLK button and hold until the HOUR flashes on the display, then press the + or –...

  • Page 7: Installation Method

    INSTALLATION METHOD This is an anti-theft installation method. The main unit wears a METAL MOUNTING SLEEVE. Please connect the wiring, e.g., the Power Supply, the Speakers and the Antenna, according to the requirements of this Instruction Manual, then install the metal mounting sleeve into the car as per the diagram illustrated below.

  • Page 8: Disc Precautions

    DISC PRECAUTIONS: Cleaning the CD: Before playing a CD, wipe it with a clean, dust-free cleaning cloth. Wipe the disc in the direction of the arrow. Always insert the CD with the label side facing upwards. If the CD is inserted with the printed side facing downwards, the device may be damaged.

  • Page 9: Troubleshooting

    TROUBLE SHOOTING Before using this checklist, please make all the connections first. If you still have questions after going through the checklist, please consult your local customer service representative. Common Symptoms The car ignition is switched off. There is no power. The fuse has blown.

  • Page 10: Specifications

    SPECIFICATIONS GENERAL Supply Voltage Current Consumption Power Output Unit Dimensions FM SECTION Frequency range Effective sensitivity I.F Frequency AM SECTION Frequency range Effective sensitivity I.F Frequency RCA LINE OUT Output CD PLAYER System Suitable CDs Signal format Frequency characteristics S/N Ratio to CD Number of channels DC 12V.
