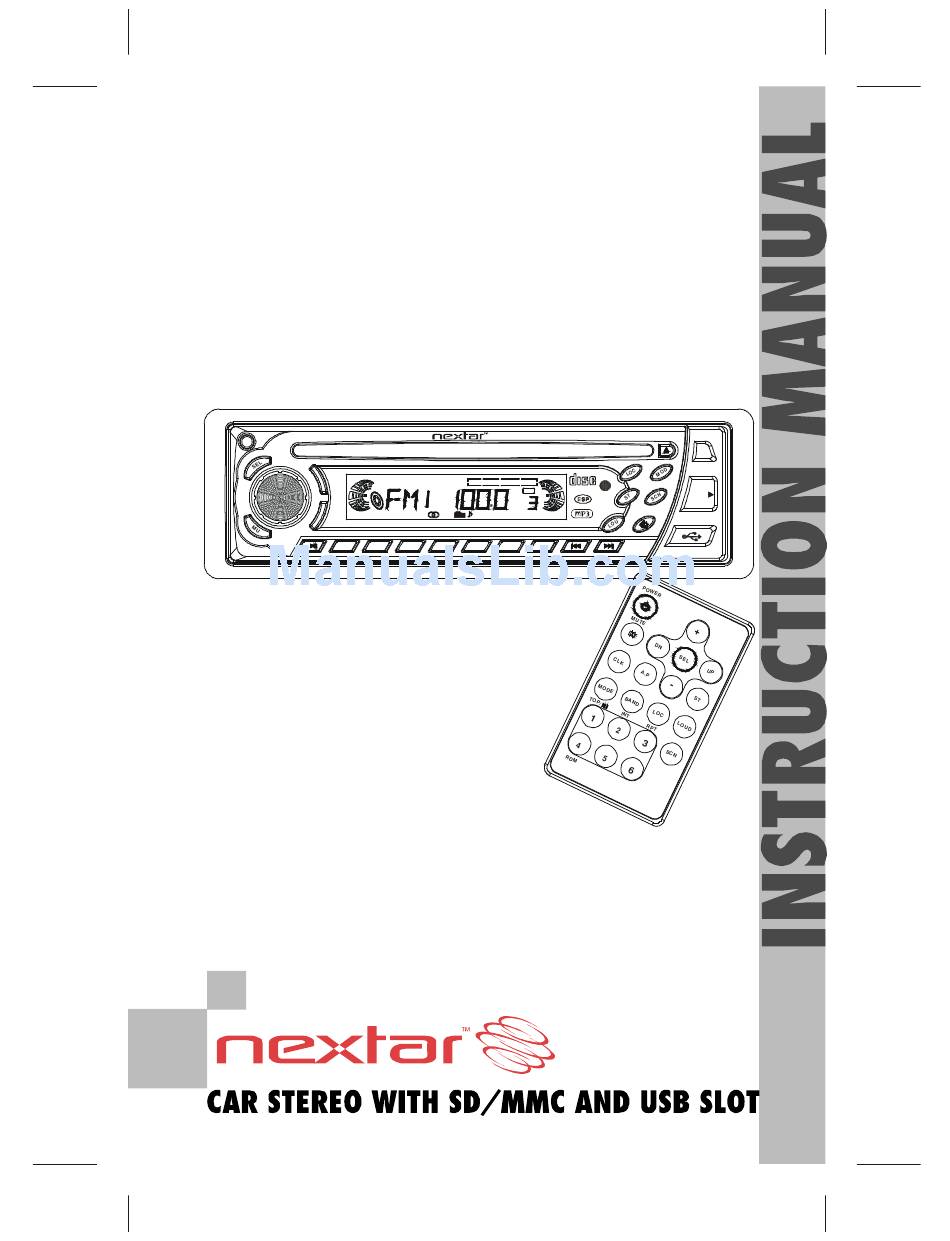

- Page 1 TRACK POP ROCK CLASS FLAT MUTE LOUD INT RDM RPT MUSIC A LBU M A RT IS T ESP45 FL ASH I NT COM PACT DIGITA L AUDIO OPE N NCU101...
-
Page 2: Dear Customer
DEAR CUSTOMER: Selecting fine audio equipment such as the unit you have just purchased is only the start of your musical enjoyment. Now it is time to consider how you can maximize the fun and excitement your equipment offers. We hope you get the most out of your equipment by playing it at a safe level. One that lets the sound come through loud and clear without annoying blare or distortion, and, more important, without affecting your sensitive hearing. - Page 3 LOCATION AND FUNCTION OF CONTROLS TRACK MUTE LOUD INT RDM RPT 1. SEL( AUDIO MODE SELECT)/ROTARY ENCODER (1) Press SEL button shortly and repeatedly to change the mode in the sequence as follows: --> VOL --> BAS --> TRE --> BAL --> FAD --> 1) VOLUME CONTROL A.
-
Page 4: Fader Control
5) FADER CONTROL A. Press the SEL button to select the fader mode until FAD appears on the display. B. Rotate the VOL knob to increase or decrease the sound level of front / rear speaker. (2) When pressed longer 2 seconds, it is activated as cyclical mode of following functions for user’s selection. - Page 5 3. LCD (LIQUID CRYSTAL DISPLAY) 4. TUNE, SEEK, TRACK, SKIP UP / DOWN BUTTONS 1) In RADIO mode, press >>| or |<< button shortly and repeatedly to manually tune up or down for the desired radio station with step by step. Press >>| or |<< button hold for more than 0.5 seconds to automatically tune up or down for the radio station of strong signal.
- Page 6 6. BAND BUTTON Press it repeatedly to select your desired radio band during RADIO mode. In MMC/SD, USB or MP3/WMA disc mode, if you press BAND button repeatedly, the file name, folder name, song’s title, artist and album information will be scrolling on the LCD display.
-
Page 7: Release Button
C) In MMC/SD, USB mode, press INT button shortly to display M-INT and play the first 10 seconds part of each track of all. In CD/MP3/WMA disc mode, press INT button shortly to display S-INT and play the first 10 seconds part of each track of all. In MMC/SD, USB or MP3/WMA disc mode, Press INT button long to display D-INT and play the first 10 seconds part of each in current folder. - Page 8 17. INFRARED REMOTE CONTROL SENSOR 18. EJECT BUTTON Press this key, a loaded disc can be to ejected. 19. CLOCK BUTTON Press the CLK button briefly to display time for 5 seconds on the display, and then returns to its previous display unless the button is pressed again. Then press the CLK button and hold for more than 1 second until the real time flashes on the display.
-
Page 9: Disc Maintenance
DISC MAINTENANCE: 1. Before playing, clean the disc with a clean, lint-free cloth. Wipe the disc in the direction of the arrow. Do not use solvents such as benzine, thinners. Commercially available cleaners or anti static spray will damage the unit. 2. -
Page 10: Battery Information
MAINTENANCE OF REMOTE CONTROLLER Before using the remote control, pull out the insulating patch. This patch was installed to insulate the battery from draining until ready to use. BATTERY INFORMATION: Lithium Battery: CR2025 3V Battery Life: Approximately 6 months. Replacing the Battery from the Remote Controller: 1) Remove the battery holder by pressing the locking tab with your thumb and pulling it out. -
Page 11: Installation Method
INSTALLATION METHOD This is an anti-theft installation method. The main unit wears a METAL MOUNTING SLEEVE. Please connect the wiring, eg, the Power Supply, the Speakers and the Antenna according to the requirements of this Instruction Manual, then install the metal mounting sleeve into the car as per the diagram illustrated below. -
Page 12: Troubleshooting
TROUBLE SHOOTING Before using the check list please make all the connections first. If you still have questions after going through the checklist, please consult your local customer service representative. Common Symptoms The car ignition is switched off. There is no power. The fuse has blown. -
Page 13: Specification
SPECIFICATION GENERAL Supply Voltage Current Consumption Maximum Power Output Number of channels Unit Dimensions FM SECTION Frequency range Effective sensitivity I.F Frequency AM SECTION Frequency range Effective sensitivity I.F Frequency RCA LINE OUT (OPTION) Output CD PLAYER System Suitable CDs Frequency characteristics S/N Ratio to CD DC 14.4 V.
