• W A R N I N G •
Please refer to the System Installation Manual for information on limitations regarding product
use and function and information on the limitations as to liability of the manufacturer.
TM

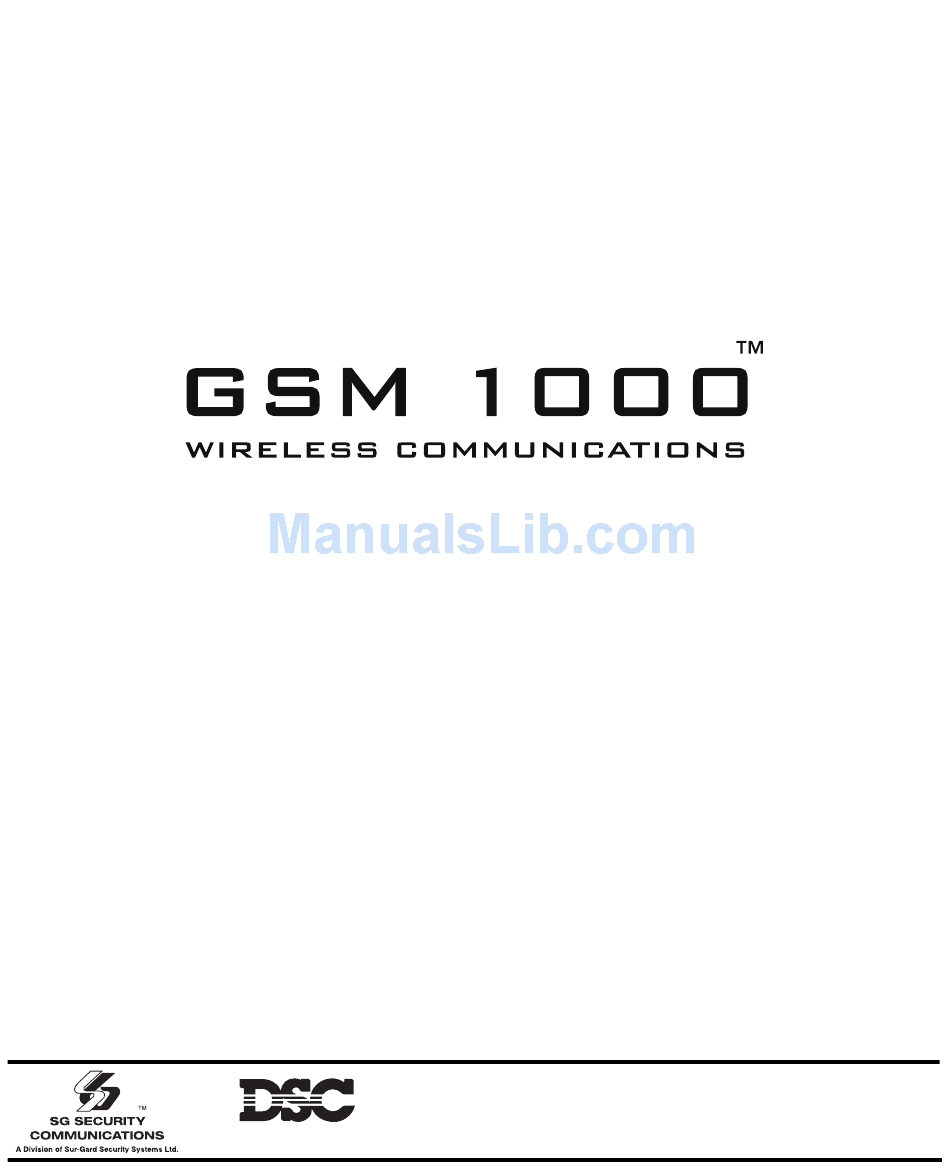

INSTALLATION MANUAL

Version 1.O
Security Products

Advertisement

Table of Contents
loading

Related Manuals for DSC GSM 1000

Summary of Contents for DSC GSM 1000

  • Page 1: Installation Manual

    • W A R N I N G • Please refer to the System Installation Manual for information on limitations regarding product use and function and information on the limitations as to liability of the manufacturer. INSTALLATION MANUAL Version 1.O Security Products...

  • Page 2: Table Of Contents

    3.4 Mounting the Antenna ........................ 9 Section 4 - Programming ......................... 11 4.1 Programming the GSM 1000 Module ..................11 4.2 Setting up the GSM 1000 Programmer/PC ................13 4.3 Programming the Control Panel ....................14 Section 5 - Testing ..........................17 5.1 Testing the System ........................

  • Page 3: Section 1 - Introduction

    If the control panel is unable to complete an alarm transmission through the normal telephone line, due to any line problems, the GSM 1000 will be activated and will transmit the alarm communication over the cellular network. The GSM 1000 works automatically.

  • Page 4: Section 2 - Functions

    2.5 Emergency Calling The GSM 1000 is capable of making an emergency call via the GSM network, for such cases as when the regular telephone line is down. Simply by pressing the emergency button, the GSM 1000 will dial the preprogrammed emergency telephone number.

  • Page 5: Section 3 - Installation

    SIM card is transmitted to the GSM cell-site and the cell-site –upon verification of data- will send an authorisation back to the GSM 1000. It is therefore very important that a PIN number be programmed into the GSM 1000 before attempting to connect to the network. Registration is done upon power up of the GSM 1000 and whenever requested by the network.

  • Page 6: Hookup Diagram - Pc1580

    HOOKUP DIAGRAM - PC1580...

  • Page 7: Hookup Diagram - Pc5010 / Pc5015 / Pc585 / Pc1565 / Pc5008

    HOOKUP DIAGRAM - PC585 / PC1565 / PC5008 / PC5010 / PC5015...

  • Page 8: Hookup Diagram - Pc4010(Cf) / Pc4020(Cf) V3.X

    HOOKUP DIAGRAM - PC4010(CF) / PC4020(CF) / PC4020KT V1.0 TO V2.X...
  • Page 9 HOOKUP DIAGRAM - PC4010(CF) / PC4020(CF) V3.X...

  • Page 10: Terminal Descriptions

    3.3 Terminal Descriptions Do not connect the transformer or the battery to the control panel until all other wiring between the GSM 1000 module and the control panel, including antenna connection, has been completed and checked. Incorrect wiring connections may cause the GSM 1000 unit to operate improperly. Please refer to the hookup diagrams in the manual for the appropriate control panel that is used with the GSM 1000 module.

  • Page 11: Mounting The Antenna

    3.3.7 RNG (Ring) Terminal When the GSM 1000 receives a phone call, it will activate the RNG terminal on the GSM 1000 Module. Please refer to Option 05 to enable ring detect. This output may be used for the control panel which allows it to answer incoming downloading calls via the GSM network.
  • Page 12 Step 1: Make all connections between the GSM 1000 and the control panel. Step 2: Power up the control panel. Step 3: Check number of flashes on status LED on the GSM 1000 module. If the LED flashes only once every 10 seconds then the antenna is in an acceptable location.

  • Page 13: Section 4 - Programming

    A1AA55. Enter the password terminating the line with <ENTER>. The Password can be entered 2 times only. After 2 wrong attempts the GSM 1000 unit will lock you out. All data strings have to be terminated with <ENTER>..Upper case letters from A to F can be produced by pressing <1 to 6> while depressing the <SHIFT>...
  • Page 14 Note: This value must not be “00”. The factory default value is “04”. 05: Ring Detect (EEPROM flag) If enabled, the GSM 1000 can detect incoming call such as a downloading call. The RNG output will activate when a call is incoming.

  • Page 15: Setting Up The Gsm 1000 Programmer/Pc

    • Stop bit: 1 • Flow control: none Power up the GSM 1000 module and then connect the GSM 1000 Programming cable to J1 (RJ45 socket). Note: Jumper J4 should be ON when programming the unit via PC or GSM 1000 Programmer. Remove jumper when programming is complete.

  • Page 16: Programming The Control Panel

    If there is some doubt whether a ‘Preamble’ is needed, simply dial the central station from the premises land line, then, dial the number using the installed GSM 1000. If both calls connect, do not add a ‘Preamble’. To add a ‘Preamble’ simply enter the additional digits required in the location provided (see Control Panel Programming section).
  • Page 17 4.3.4 PC585 / PC1565 / PC5008 / PC5010 / PC5015 Programming the Control Panel Section(s) [001]-[004] GSM 1000 Supervisory: choose the zone that will be used to report the 24 hour GSM 1000 supervisor y alar ms [section 004]. Program...
  • Page 18 The following PC4010/PC4020/PC4020KT Menu Items are not used while programming telephone numbers for GSM 1000 operation. Do not select these items while programming telephone numbers for GSM 1000 operation, as adding pauses or the DTMF digits may result in improper dialing.

  • Page 19: Section 5 - Testing

    Apply power to the whole system after all wiring connections have been made. Ten seconds after power is applied to the GSM 1000 unit, LED1 on the unit will begin to flash. Observe LED1 for at least 40 seconds, if LED1 flashes once every ten seconds, then the GSM unit is operating properly. If there is a trouble condition, LED1 will flash either four times or eight times in every ten seconds.

  • Page 20: Trouble Indication

    5.2.3 Other Checks A. Connect a telephone handset to TIP & RING of the control panel. Send a signal through the GSM 1000. Listen to the handset. If a ‘network’ message is heard, make note of it and follow the instructions. For instance;...
  • Page 21 Check the supply voltage to the GSM 1000 radio between BELL_IN and BLK terminal points. If there is no power at these terminals, the transceiver will not function, the micro-controller will register a “Cell Problem” and the LED will flash 4 times.

  • Page 22: Section 6 - Glossary Of Terms

    The acronym SIA stands for Security Industry Association. The SIA format is an alarm communication format, in the form of a modem protocol, used by the DSC alarm control panels to transmit information to the Monitoring Central Station.
  • Page 23 CE CONFORMITY The GSM 1000 module will bear the CE symbol of conformity. This symbol is a declaration that on account of its design and implementation, the GSM 1000 is in compliance with the currently valid versions of the following EC Directives.
  • Page 24 How to Contact Us: Sales For information about additional products, please call our sales number: 1-800-418-7618, or e-mail us at sales@sur-gard.com. Technical Support If you have questions or problems when using Sur-Gard products, you can call technical support. If you are within the United States, Puerto Rico, the U.S. Virgin Islands or Canada, you can get support by dialing 1-800-503-5869 ext.1.
