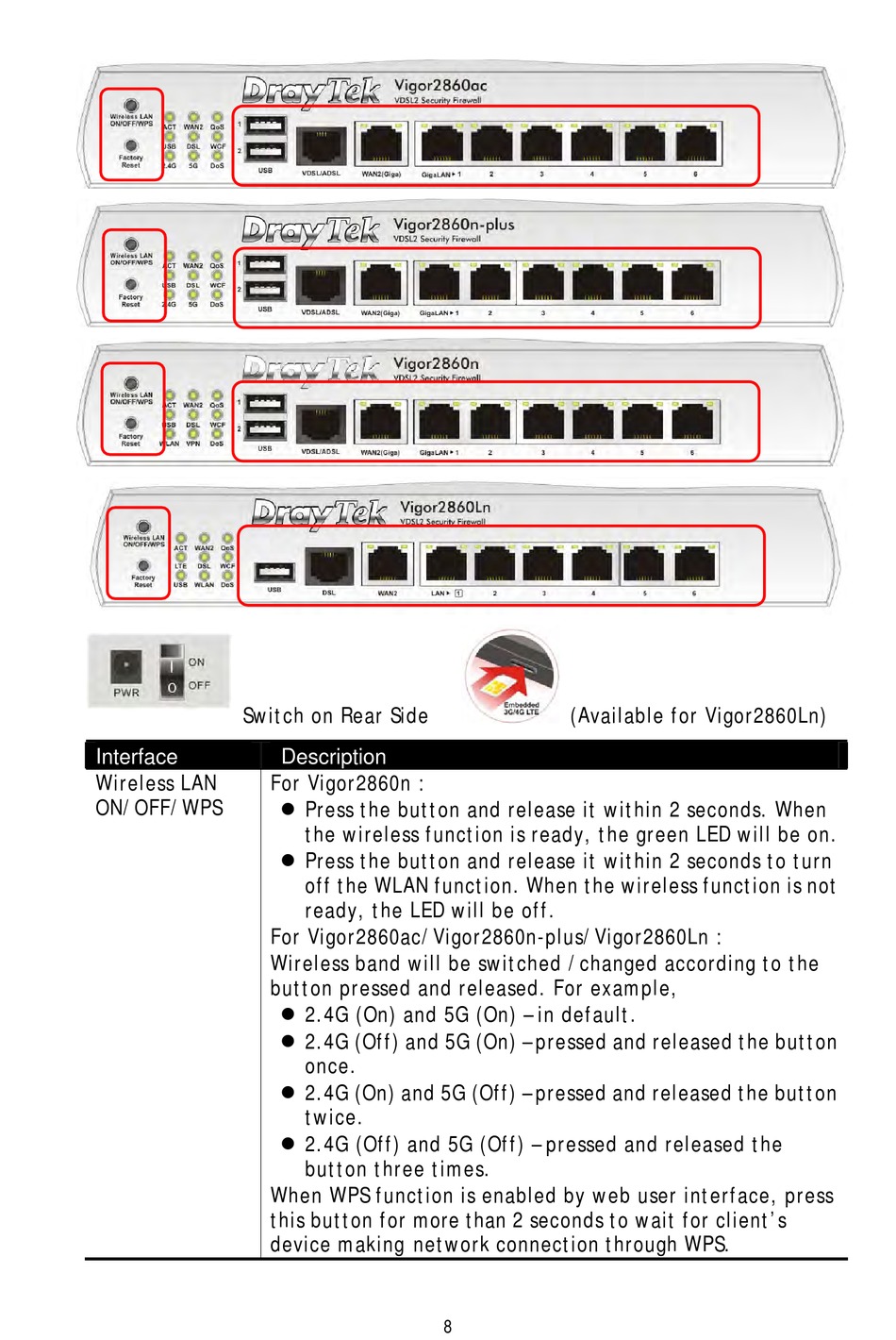

Draytek Vigor2860 Series Quick Start Manual page 14

Switch on Rear Side
Interface
Wireless LAN
ON/OFF/WPS
Description
For Vigor2860n :
 Press the button and release it within 2 seconds. When
the wireless function is ready, the green LED will be on.
 Press the button and release it within 2 seconds to turn
off the WLAN function. When the wireless function is not
ready, the LED will be off.
For Vigor2860ac/Vigor2860n-plus/Vigor2860Ln :
Wireless band will be switched /changed according to the
button pressed and released. For example,
 2.4G (On) and 5G (On) – in default.
 2.4G (Off) and 5G (On) – pressed and released the button
once.
 2.4G (On) and 5G (Off) – pressed and released the button
twice.
 2.4G (Off) and 5G (Off) – pressed and released the
button three times.
When WPS function is enabled by web user interface, press
this button for more than 2 seconds to wait for client's
device making network connection through WPS.
(Available for Vigor2860Ln)
8
