WARNING !
When using electric power tools
basic safety precautions should
always be used to reduce the risk
of fire, electric shock and personal
injury.
Read all of these instructions
before attempting to operate this
product and save these instructions
REVO - R322 DRILL
ORIGINAL INSTRUCTIONS
G&J Hall Ltd, Burgess Road, Sheffield, S9 3WD, England
Tel: +44 114 254 3206
Email: info@gjhall.co.uk
www.revo-tools.co.uk

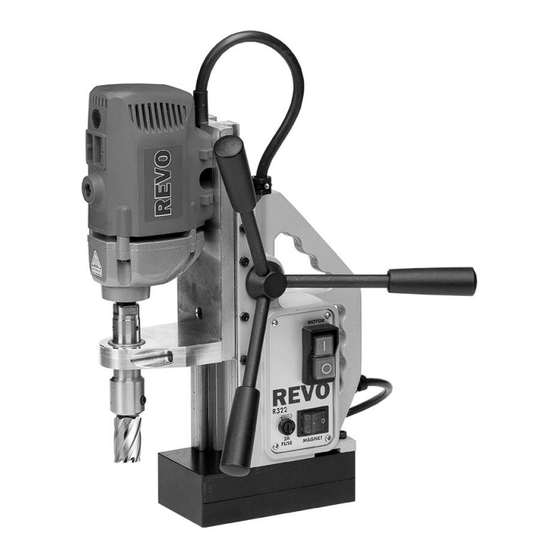

Machine shown
R322 DRILL - without
the safety guard for
clarity.
Fax: +44 114 244 9256
Web: www.revo-tools.co.uk
R322 DRILL - W18XC473 - Revised 231111
Advertisement
Table of Contents
Related Manuals for Revo R322
Summary of Contents for Revo R322
- Page 1 R322 DRILL - without the safety guard for clarity. G&J Hall Ltd, Burgess Road, Sheffield, S9 3WD, England Tel: +44 114 254 3206 Fax: +44 114 244 9256 Email: info@gjhall.co.uk Web: www.revo-tools.co.uk www.revo-tools.co.uk R322 DRILL - W18XC473 - Revised 231111...
-
Page 2: Table Of Contents
Using the drill with annular cutters 7 - Lifting handles/transportation. Maintenance and servicing 1 - Regular cleaning, maintenance and lubrication. 2 - Servicing by manufacturer. 3 - Special Tools 4 - Blockages of chips or work piece fragments. R322 DRILL - W18XC473 - Revised 231111... -
Page 3: Machine Specification
These factors may increase the vibration experienced by the operator, each individual application of the tool should be assessed for the effect of these application variable factors, before exposure. R322 DRILL - W18XC473 - Revised 231111... -
Page 4: Explanation Of Symbols Used
Read and understand the instruction manual - before operating this tool. Caution ! / Attention ! Instruction Manual WEEE - Waste of Electrical and Electronic Equipment This tool should be disposed of as Electrical & Electronic Waste. R322 DRILL - W18XC473 - Revised 231111... -
Page 5: Intended Use Of Power Tool
The power tool should be used in a weather protected environment and be used with the accessories provided or REVO - TOOLS recommended accessories only. The power tool can be used vertically, horizontally and upside down, provided the magnetic adhesion and work environment allow. -
Page 6: Precautions And Use Of Ppe
Always wear ear protection. Always wear head protection. Always wear non-skid safety shoes. Where appropriate wear a dust mask and gloves depending on the working environment. WORK IN A SAFE MANNER AT ALL TIMES R322 DRILL - W18XC473 - Revised 231111... -
Page 7: Special Safety Precautions - Magnetic Drills
Care should be taken with the ejected slug, this will be both hot and sharp, gloves should be worn when handling the slug. R322 DRILL - W18XC473 - Revised 231111... -
Page 8: Electrical Safety
This is both to protect the operator and to protect the motor inlet from ingress of harmful dust particles. Operators should wear suitable dust masks if dust is created whilst working. R322 DRILL - W18XC473 - Revised 231111... -
Page 9: General Safety Instructions
12 - Secure work Where possible use clamps or a vice to hold the work. It is safer than using your hand. 13 - Do not overreach Keep proper footing and balance at all times. R322 DRILL - W18XC473 - Revised 231111... - Page 10 22 - Have your tool repaired by a qualified person This electric tool complies with the relevant safety rules. Repairs should only be carried out by qualified persons using original spare parts, otherwise this may result in considerable danger to the user. R322 DRILL - W18XC473 - Revised 231111...
-
Page 11: Unpacking And Assembly
UNPACKING AND ASSEMBLY The REVO R322 DRILL comes in a rugged blow moulded carrying case before first use:- Remove the machine from the carrying case. (Note:- 12.0kg weight) Fit the three screw in handles to the pinion shaft. Fit the safety guard as shown in the instructions, see “Using the safety guard”... -
Page 12: Illustrated Description Of Functions
ILLUSTRATED DESCRIPTION OF FUNCTIONS PINION SHAFT DRILL UNIT/MOTOR HANDLE x 3 MOTOR ON/OFF SWITCH ARBOR MAGNET ON/OFF SWITCH SAFETY STRAP SLOT 2A FUSE (MAGNET) ELECTRO - MAGNET BASE R322 DRILL - W18XC473 - Revised 231111... -
Page 13: Limitations On Ambient Conditions
° Ambient temperatures of >45 C should be avoided. STANDARD ACCESSORIES The R322 DRILL is supplied in a rugged carrying case with the following as standard :- 3/4” Weldon Shank Arbor (25mm cut depth) Safety Cam Buckle Strap Safety Guard... -
Page 14: Setting And Testing
First ensure the ejector pin is in place. Align the flats with the two fixing screws. Push the cutter up into the arbor until it stops. Tighten the two fixing screws onto the cutter flats with the hex keys supplied. R322 DRILL - W18XC473 - Revised 231111... -
Page 15: Removing The Arbor And Fitting The Drill Chuck
Replacement of the arbor is a reversal of the procedure above. USING TWIST DRILLS Twist drills can be used with the R322 DRILL. To accommodate twist drills, or any plain shank cutting tool, the R322 DRILL is supplied as standard with a 13mm drill chuck and key. -
Page 16: Guards
The security of the magnet should always be physically checked BEFORE starting the drill unit. The magnet is protected by a 20mm 2A fast acting fuse (G). R322 DRILL - W18XC473 - Revised 231111... -
Page 17: Cutting Speeds/Materials-Hss Cutters
CUTTING SPEEDS/MATERIALS—HSS CUTTERS The REVO R322 DRILL is a single speed drill unit with a nominal load speed of 390 rev/min. Under load the R322 will regulate its speed depending on the load applied. ie: a small cutter will run faster than a larger cutter (if the same feed rate is applied) The R322 DRILL has the optimum power / torque / spindle speed for HSS annular and Ø... -
Page 18: Drill Unit Spindle Control
BEFORE using the drill. The motor control has an under-voltage relay, if the power is interrupted the motor will stop and will not restart when the power is resumed until the motor control is operated again. R322 DRILL - W18XC473 - Revised 231111... -
Page 19: Reversing Of The Handles
The pinion shaft can be reversed on this type of machine to allow the drill better access in confined spaces. When the handles are reversed, again the operator should still have full access to the control panel before using the machine. R322 DRILL - W18XC473 - Revised 231111... -
Page 20: Using The Drill With Annular Cutters
This will be both hot and sharp. Care should be taken when handling the slug. Care should be taken that the ejection slug is safe and can not injure anyone in the vicinity, the slug should be prevented from falling where possible. R322 DRILL - W18XC473 - Revised 231111... -
Page 21: Regular Cleaning, Maintenance And Lubrication
“saddle” so chuck to be quickly placed into the arbor the material of the workpiece does of the machine. not need to be magnetic. R322 DRILL - W18XC473 - Revised 231111... -
Page 22: Maintenance And Servicing
W A R R A N T Y S T A T E M E N T REVO -TOOLS warrants its magnetic drills for one (1) year from the date of purchase against defects due to faulty material or workmanship and will repair or replace (at its op- tion) without charge, any items returned. - Page 23 R322 DRILL - WIRING DIAGRAMS R322 DRILL - W18XC473 - Revised 231111...
- Page 24 KNOB (12mm) 18X419 SAFETY STRAP - CAM BUCKLE 17+18 18Y145 HANDLE/KNOB COMPLETE 18X519 CABLE GLAND (CORD GRIP) 18X503/2 REVO CABLE FLEX TO MOTOR 18Y181 MAINS CABLE 110V (2P+E) 18X503 MAINS CABLE 230V (UK) R322 DRILL - W18XC473 - Revised 231111...
- Page 25 NOTE: The replaceable parts for the drill unit are limited to carbon brushes, brush caps and fixing screws only. If the drill unit becomes unserviceable due to wear, it is normally more cost effective to replace the entire drill unit. R322 DRILL - W18XC473 - Revised 231111...
- Page 26 R322 DRILL - W18XC473 - Revised 231111...
- Page 27 R322 DRILL - W18XC473 - Revised 231111...
-
Page 28: Ce Declaration Of Conformity
CE Declaration of Conformity On our sole responsibility we declare that this product, the REVO R322 Drill, is in conformity with the following standards and standard documents :- EN61029-1:2009 - Safety of Transportable Motor Operated Electric Tools EN61000-6-4:2007 - Electromagnetic Compatibility (EMC). Generic standards...
