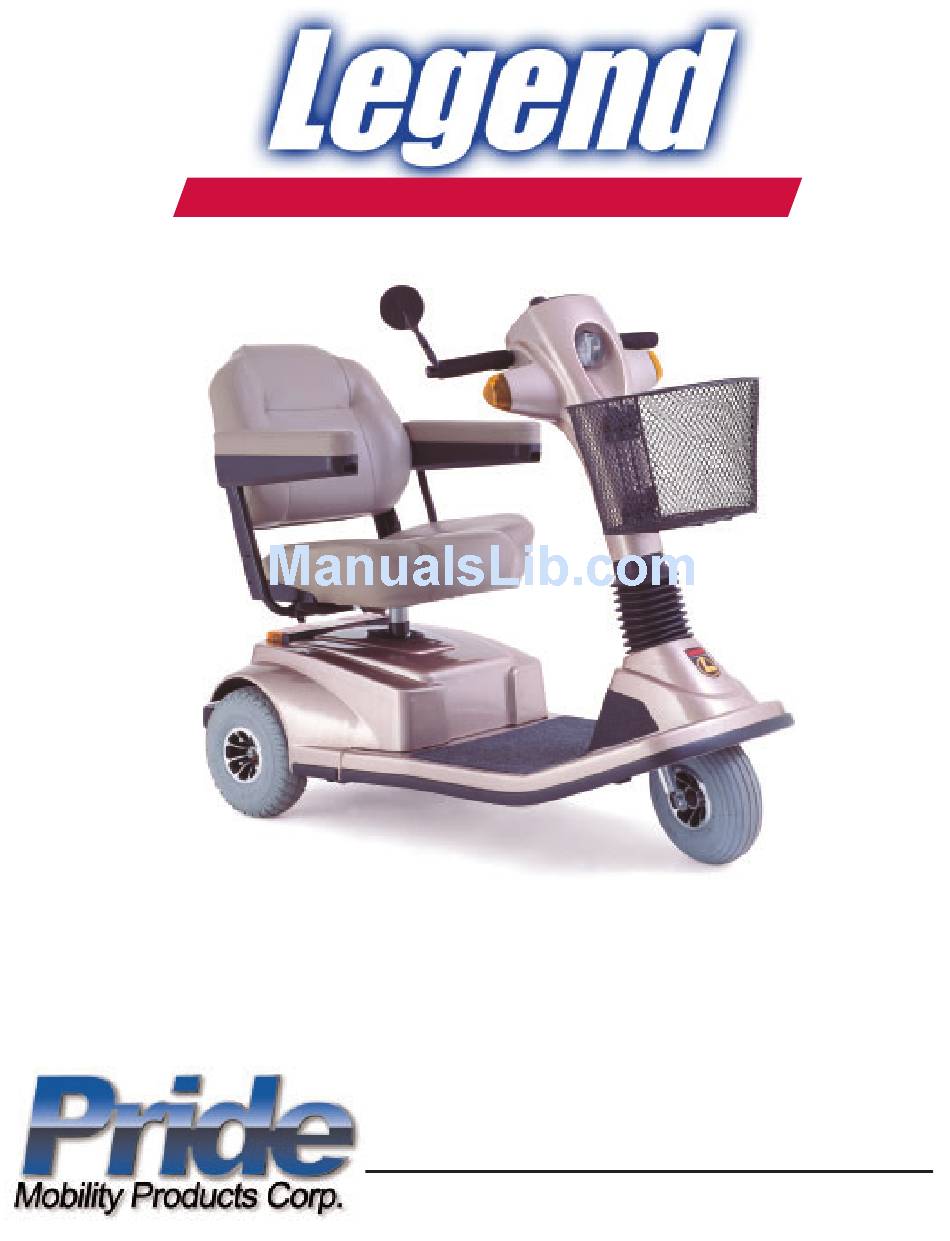

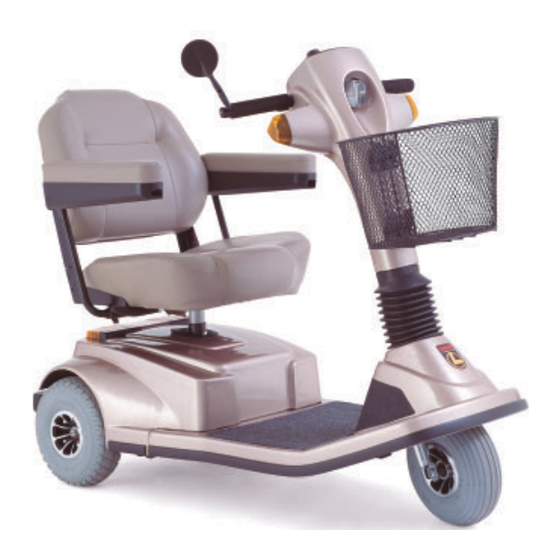

- Page 1 Owner’s Manual 3&4 Wheel Scooters The Ultimate In Style & Performance ® Exeter, PA St. Catharines, ON 1-800-800-8586 www.pridemobility.com...
- Page 2 WARNING! Failure to heed the warnings in this owner’s manual may result in personal injury. CAUTION! Failure to heed the cautions in this owner’s manual may result in damage to your Scooter. Copyright ©2002 Pride Mobility Products Corp. CELEBRITY INFMANU1000/REV H/JULY 2002...
-
Page 3: Table Of Contents
C O N T E N T S INTRODUCTION ......................... 4 SAFETY ............................6 III. EMI/RFI ............................15 IV. SPECIFICATIONS ........................17 YOUR LEGEND ......................... 19 VI. BATTERIES AND CHARGING .................... 23 VII. OPERATION ..........................27 VIII. COMFORT ADJUSTMENTS....................29 IX. DISASSEMBLY AND ASSEMBLY ..................32 OPTIONAL ACCESSORIES .................... -
Page 4: Introduction
I N T R O D U C T I O N Welcome to Pride Mobility Products Corporation (Pride). Congratulations on the purchase of your new Pride Scooter. Your Legend design combines the most advanced state-of-the-art components with modern, attractive styling. -
Page 5: I. Introduction
Scooter Model:________________________________________________________________________ Serial Number:__________________________________________________________________________ Purchase Date:________________________________________________________________________ NOTE: If you ever lose or misplace your product registration card or your copy of this manual, e-mail or write to us and we will be glad to send you a new one immediately. Legend... - Page 6 However, under no circumstances should you modify, add, remove, or disable any feature, part, or function of your scooter. WARNING! Do not modify your scooter in any way not authorized by Pride. Unauthorized modifica- tions may result in personal injury and/or damage to your scooter. Legend...
-
Page 7: Weight Limitations
When driving down a ramp, keep the scooter’s speed adjustment set to the slowest speed setting to ensure a safely controlled descent. See V. “Your Legend.” n Avoid sudden stops and starts. -
Page 8: Safety
FIGURE 2. MAXIMUM RECOMMENDED INCLINE ANGLES 4 WHEEL WARNING! Any attempt to climb or descend a slope steeper than shown in figures 1 and 2 may put your scooter in an unstable position and cause it to tip, resulting in personal injury. Legend... -
Page 9: Cornering Information
WARNING! When cornering sharply, reduce your speed. When using your scooter at higher speeds, do not corner sharply. This greatly reduces the possibility of a tip or fall. To avoid personal injury or property damage, always exercise common sense when cornering. Legend... -
Page 10: Braking Information
WARNING! Do not attempt to have your scooter climb or descend an obstacle that is inordinately high. Serious personal injury and/or damage may result. WARNING! Do not attempt to have your scooter proceed backwards down any step, curb, or other obstacle. This may cause the scooter to tip and cause personal injury. Legend... -
Page 11: Freewheel Mode
Your scooter is equipped with a manual freewheel lever that when pulled up allows the scooter to be pushed. For more information about how to place your scooter into and out of freewheel mode, see V. “Your Legend.” WARNING! Do not use your scooter in freewheel mode without an attendant present. Personal injury may result. -
Page 12: Preventing Unintended Movement
WARNING! If you anticipate being seated in a stationary position for an extended period of time, turn off the power. This will prevent unexpected motion from inadvertent throttle control lever contact. Failure to do so may result in personal injury. Legend... -
Page 13: Motor Vehicle Transport
Power down your scooter. See VII. “Operation.” n Ensure that your scooter is not in freewheel mode. See V. “Your Legend.” n Make certain that the seat is locked into place and the key is removed from the key switch. -
Page 14: Reaching And Bending
WARNING! Do not operate your scooter while you are under the influence of alcohol, as this may impair your ability to drive safely. REMOVABLE PARTS WARNING! Do not attempt to lift or move a scooter by any of its removable parts. Personal injury and damage to the scooter may result. Legend... - Page 15 Turn off your Legend by removing the key from the key switch when you are getting on or off of your Legend. n Never leave the key in the key switch of an unattended Legend.
-
Page 16: Iii. Emi/Rfi
What can I do to find out if my Legend is likely to be affected by EMI/RFI? If you have had your Legend for some time and have not experienced any unintended motion, it is not likely that you will have a problem in the future. However, it is always possible that EMI/RFI problems could arise if you are close to a source of radio waves. -
Page 17: Specifications
S P E C I F I C A T I O N S 18.5" 8 "-12" Adjustable 90˚,100˚ 16.5" - 20.5" 102˚,105˚ 4" FIGURE 5. LEGEND DIMENSIONS 18" 50.25" 48.5" 16" 24"- 28" 41" 58" 3 Wheel Turning Radius 4 Wheel Turning Radius 24"... - Page 18 ................32.5 lbs. each (12V, 40AH) Basket....................1.5 lbs. Front-to-Rear Lockup Lock pin and lever system Ground Clearance 4 in. Cane/crutch holder, cup holder, oxygen holder, power seat assembly, rear basket, rear bumper, Optional Accessories rearview mirror, safety flag, taillight, walker holder Legend...
- Page 19 CONTROL CONSOLE ASSEMBLY The control console assembly houses all of the controls you need to drive your Legend, including the key switch, speed adjustment dial, throttle control lever, battery condition meter, status LED, horn buttons, light switch, turn signal buttons, and the hazard light switch.
-
Page 20: Your Legend
Use your right thumb to push the right side of the lever to disengage your Legend’s brakes and move forward. n Release the lever and allow your Legend to come to a complete stop before pushing the other side of the lever to move in reverse. -
Page 21: Main Circuit Breaker
The Status LED alerts you to electrical problems that may occur with the Legend. The LED remains constantly lit while your scooter is on. If the Legend develops an electrical problem, the status LED will flash a code. See XI. “Basic Troubleshooting”... - Page 22 L E G E N D Manual Freewheel Lever Whenever you need or want to push your Legend for short distances, you can put it in freewheel mode. WARNING! Before placing your Legend into or taking it out of freewheel mode, make certain that the key is removed from the key switch.
- Page 23 B A T T E R I E S A N D C H A R G I N G Your Legend uses two long-lasting, 12-volt, deep-cycle batteries that are sealed and maintenance free. They are recharged by an onboard 3-amp charging system designed for ease of use and convenience.
-
Page 24: Vi. Batteries And Charging
“full day” of service. We recommend that you charge your Legend’s batteries for 8 to 14 hours after daily use. n If you use your Legend once a week or less, charge its batteries at least once a week for 12 to 14 hours at a time. n Keep your Legend’s batteries fully charged. - Page 25 NOTE: Do not remove the caps from sealed batteries. Water cannot be added to sealed batteries. Cap removal voids the battery warranty and may cause damage to the batteries and to your Legend. Use these specifications to reorder deep-cycle batteries:...
- Page 26 It may take a few days for the temperature of your Legend’s batteries to stabilize and adjust to their new room or ambient temperature.
- Page 27 Is the speed adjustment dial set to a lower setting? See V. “Your Legend.” n Are you grasping the handgrips with a thumb resting on each side of the throttle lever? See V. “Your Legend.” n Does your Legend’s horn work properly?
-
Page 28: Vii. Operation
5. Carefully and safely get out of the seat and stand to the side of your Legend. 6. You may, if you wish, leave the seat facing to the side to facilitate boarding your Legend the next time you are going to operate it. -
Page 29: Comfort Adjustments
6. Reinstall the rear shroud and the seat. FIGURE 14. SEAT HEIGHT ADJUSTMENT FRONT-TO-BACK SEAT ADJUSTMENT The Legend is equipped with a sliding seat that is operated like FRONT-TO-BACK SEAT RELEASE LEVER an automobile seat. You can reposition the Legends’s seat ARMREST ADJUSTMENT KNOBS forward or rearward. -
Page 30: Armrest Width Adjustment
2. Slide the armrests in or out to the desired width. 3. Tighten the armrest adjustment knobs. The armrests can also be lifted upward to allow getting on and off of your Legend easier. ARMREST HEIGHT ADJUSTMENT Refer to figure 16 when adjusting the armrest height. -
Page 31: Seatback Adjustment
FIGURE 16A. SEATBACK HINGE SEAT ACTUATOR POWER SEAT ACTUATOR (OPTIONAL) Your Legend may be equipped with a power seat actuator, which raises and lowers the seat automatically. See figure 17. WARNING! The power seat mechanism is intended for operation only while the vehicle is stationary and on a level surface. - Page 32 DISASSEMBLY You can disassemble the Legend into seven pieces: the seat, the front section, the rear section, the rear shroud, the basket, and the batteries. Place the scooter in an area where you have sufficient clearance to move the parts around.
-
Page 33: Ix. Disassembly And Assembly
FIGURE 20. DISCONNECTING THE BATTERY HARNESSES FIGURE 24. BALL DETENT PINS WITH RINGS FIGURE 21. DISCONNECTING THE FRONT-TO-REAR HARNESS FIGURE 25. SEPARATING THE FRAME SECTIONS FIGURE 22. BATTERY REMOVAL FIGURE 26. MOTOR HARNESS. UNLOCKED POSITION FIGURE 23. LOCKING CAM LEVERS Legend... - Page 34 D I S A S S E M B L Y A N D A S S E M B L Y ASSEMBLY NOTE: Raise the tiller before starting to assemble the Legend. 1. Place the manual freewheel lever in the drive ( down) position.
-
Page 35: Optional Accessories
OPTIONAL ACCESSORIES For information concerning these optional accessories, see your authorized Pride provider. •SINGLE CANE/CRUTCH • WALKER HOLDER • DOUBLE CANE/CRUTCH • FOREARM CRUTCH HOLDER HOLDER HOLDER • SAFETY FLAG • OXYGEN TANK HOLDER • REAR BASKET • CUP HOLDER Legend... - Page 36 With the key turned on Check the status LED. If the LED flashes three times, a short pause, then flashes two times, this is the manual freewheel lever code and means your Legend is in freewheel mode. See figure 7.
-
Page 37: Basic Troubleshooting
Have your authorized Pride provider load test each battery. n Or, see the previous troubleshooting question for load testing the batteries yourself. If you experience any problems with your Legend that you are not able to solve, immediately contact your authorized Pride provider for information, maintenance, and service. -
Page 38: Tire Pressure
M A I N T E N A N C E Your Legend requires a minimal amount of care and maintenance. If you do not feel confident in your ability to perform the maintenance listed below, you may schedule inspection and maintenance at your authorized Pride provider. -
Page 39: Xii. Care And Maintenance
M A I N T E N A N C E CONSOLE, CHARGER, AND ELECTRONIC CONTROLLER ASSEMBLY: n Keep these areas free of moisture. n If any of these items do become exposed to moisture, let them dry thoroughly before operating your Legend again. STORAGE See VI. -
Page 40: Warranty Exclusions
Battery fluid spillage or leakage n Abuse, misuse, accident, or negligence n Improper operation, maintenance, or storage n Commercial use or use other than normal n Labor, service calls, shipping, and other charges incurred for repair of the product Legend... -
Page 41: Xiii. Warranty
This is the exclusive remedy. Liabilities for consequential damages under any and all warranties are excluded. Some states do not allow limitations on how long an implied warranty lasts or do not allow the exclusion of limitation of incidental or consequential damages. So, the above limitation or exclusion may not apply to you. Legend... - Page 42 182 Susquehanna Ave. Exeter, PA 18643 1-800-800-8586 www.pridemobility.com INFMANU1000/REV H/JULY 2002...
