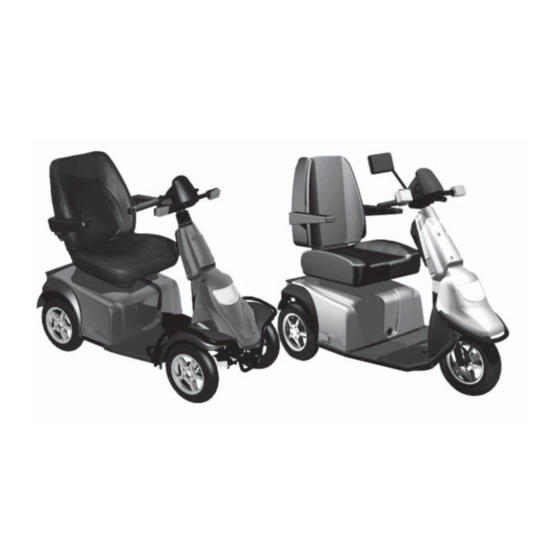

- Page 1 Owner’s Manual ATTENTION: Read all information in this manual before operating your PMV ® The Ultimate In Style & Performance Exeter, PA St. Catharines, ON 1-800-800-8586 www.pridemobility.com...
- Page 2 We reserve the right to make changes as they become necessary. Any changes to our products may cause slight variations between the illustrations and explanations in this manual and the product you have purchased. This product is manufactured by: Mini Crosser A/S Enggardvej 7, Snejbjerg 7400 Herning Copyright © 2005 Pride Mobility Products Corp.
-
Page 3: Table Of Contents
IV. YOUR PMV... 16 BATTERIES AND CHARGING ... 20 VI. OPERATION ... 24 VII. COMFORT ADJUSTMENTS... 26 VIII. BASIC TROUBLESHOOTING ... 29 IX. CARE AND MAINTENANCE ... 31 WARRANTY... 35 Mini Crosser C O N T E N T S www.pridemobility.com... -
Page 4: Introduction
I N T R O D U C T I O N SAFETY WELCOME to Pride Mobility Products Corporation (Pride). The product you have purchased combines state-of the-art components with safety, comfort, and styling in mind. We are confident the design features will provide you with the conveniences you expect during your daily activities. - Page 5 PMV. REMOVABLE PARTS WARNING! Do not attempt to lift or move your PMV by any of its removable parts. Personal injury and damage to the PMV may result. Mini Crosser I I . S A F E T Y www.pridemobility.com...
-
Page 6: Your Pmv
! When driving down a ramp, keep the PMV’s speed adjustment set to the slowest speed setting to ensure a safely controlled descent. ! Avoid sudden stops and starts. www.pridemobility.com I I . S A F E T Y Mini Crosser... - Page 7 WARNING! Any attempt to climb or descend a slope steeper than what is shown in figure 1 may put your PMV in an unstable position and cause it to tip, resulting in personal injury. Mini Crosser I I . S A F E T Y 150 kg 330 LBS.
- Page 8 ! Disc Park Brake: Activates mechanically after regenerative braking slows the vehicle to near stop, or when power is removed from the system for any reason. ! Handbrake: Gives you additional stopping power when squeezed. www.pridemobility.com I I . S A F E T Y Figure 2A. Increased Stability Driving Position Mini Crosser...
- Page 9 See figures 3 and 3A. WARNING! Do not attempt to negotiate a curb that has a height greater than 4.72 in. Figure 3. Correct Curb Approach Mini Crosser I I . S A F E T Y Figure 3A.
- Page 10 If you will be traveling with your PMV, you may find it necessary to use a lift/elevation product to aid in transpor- tation. Pride recommends that you closely review the instructions, specifications, and safety information set forth by the manufacturer of the lift/elevation product before using that product. www.pridemobility.com I I . S A F E T Y Mini Crosser...
- Page 11 WARNING! Ensure your PMV and its batteries are properly secured when being transported. Failure to do so may result in personal injury and/or damage to your PMV. Mini Crosser I I . S A F E T Y...
- Page 12 WARNING! If you require a positioning belt to safely operate your PMV, make sure it is fastened securely. Serious personal injury may result if you fall from the PMV. www.pridemobility.com I I . S A F E T Y Mini Crosser...
- Page 13 NOTE: For further information on EMI/RFI, go to the resource center on www.pridemobility.com. If unintended motion or brake release occurs, turn the PMV off as soon as it is safe to do so. Call Pride at 800-424-8205 to report the incident. Mini Crosser I I . S A F E T Y...
- Page 14 Figure 4A. Tire Dimensions (Front And Rear) www.pridemobility.com S P E C I F I C A T I O N S 15.7" - 20" 5" 18.89" 17.32" 25.6" 3.93" 3-wheel: 52.4" 4-wheel: 54" 3-wheel: 41" 4-wheel: 55.50" Turning Radius Mini Crosser...
- Page 15 (2) Due to manufacturing tolerances and continual product improvement, this specification can be subject to variance of (+ or – ) 3 %. NOTE: All specifications subject to change without notice. Mini Crosser S P E C I F I C A T I O N S...
- Page 16 ! To disengage the handbrake lock, squeeze the handbrake. www.pridemobility.com I V . Y O U R P M V HAZARD LIGHTS BUTTON TURN SIGNAL BUTTONS HORN BUTTON SPEED ADJUSTMENT DIAL PUSH TO GO IN REVERSE PULL TO GO FORWARD Figure 5A. Throttle Control Lever Mini Crosser...
- Page 17 ! Turn the key counterclockwise to power down (turn off) your PMV — (0) indicates the off position. Charger Port The (3-pin) off-board charger cord plugs into this port. Mini Crosser I V . Y O U R P M V CHARGER PORT KEY SWITCH Figure 6.
- Page 18 PMV will not run until the manual freewheel lever is pulled up and the key is turned to the “off” position, then back to the “on” position. www.pridemobility.com I V . Y O U R P M V Figure 7. Anti-Tip Wheels Figure 8. Manual Freewheel Lever ANTI-TIP WHEELS MANUAL FREEWHEEL LEVER Mini Crosser...
- Page 19 WARNING! DO NOT leave the PMV in freewheel mode when securing it for transport. WARNING! DO NOT use your PMV as a seat in a moving vehicle. Mini Crosser I V . Y O U R P M V...
-
Page 20: Batteries And Charging
6. When the batteries are fully charged, unplug the charger power cord from the electrical outlet and then from the charger port. NOTE: There is a charger inhibit function on your PMV. The PMV will not run and the battery condi- tion meter will not operate while the batteries are charging. www.pridemobility.com Figure 11. Battery Condition Meter Mini Crosser... - Page 21 Below are a few suggestions for obtaining the maximum range per battery charge. ! Always fully charge your PMV’s batteries prior to daily use. ! Maintain 50 psi in each tire. ! Plan your route ahead to avoid as many hills, cracked, broken, or soft surfaces as possible. Mini Crosser www.pridemobility.com...
- Page 22 10. Reconnect the battery tie-down strap. 11. Reinstall the rear shroud and seat. www.pridemobility.com TERMINAL BOOTS BATTERY STRAPS Figure 12. Battery Straps BATTERY TERMINAL BATTERY CABLE Figure 13. Battery Cable Removal From The Terminal Figure 14. Battery Cable Orientation Mini Crosser...
- Page 23 What about public transportation? If you intend to use public transportation with your PMV, you must contact the transportation provider in advance to determine their specific requirements. Mini Crosser www.pridemobility.com...
-
Page 24: Operation
! Engage the throttle control lever to move forward or in reverse. ! The electromechanical disc park brake automatically disengages and the PMV accelerates smoothly to the speed you preselected with the speed adjustment dial. www.pridemobility.com O P E R A T I O N Mini Crosser... - Page 25 If the power down timer feature takes effect, perform the following steps to resume normal operation. 1. Turn the key to the “off” (0) position. 2. Turn the key back to the “on” (1) position. Mini Crosser O P E R A T I O N www.pridemobility.com...
-
Page 26: Comfort Adjustments
PMV easier. www.pridemobility.com A D J U S T M E N T S SEATBACK ADJUSTMENT LEVER SEAT ROTATION LEVER SEAT SLIDING LEVER Figure 15. Seat Adjustments ADJUSTMENT DIAL Figure 15A. Armrest Angle Adjustment Mini Crosser... - Page 27 SHROUD RELEASE SCREW Figure 16. Shroud Release Screw LOWER SEAT POST UPPER SEAT POST Figure 18. Seat Height Adjustment Mini Crosser A D J U S T M E N T S Figure 17. Rear Shroud Removal SEAT HEIGHT ADJUSTMENT BOLTS www.pridemobility.com...
- Page 28 3. Release the tiller adjustment lever to secure the tiller in position. www.pridemobility.com A D J U S T M E N T S RUBBER PLUG HEX HEAD SCREW Figure 19. Tiller Height Adjustment TILLER ADJUSTMENT LEVER Figure 20. Tiller Angle Adjustment Mini Crosser...
- Page 29 WARNING! The replacement fuse must exactly match the rating of the new fuse. Failure to use properly rated fuses may cause damage to the electrical system and may result in personal injury. Mini Crosser T R O U B L E S H O O T I N G CONDITION Charge batteries or unplug the charger power lead from the electrical outlet.
-
Page 30: Basic Troubleshooting
If you experience any problems with your PMV that you are not able to solve, immediately contact your authorized Pride Provider for information, maintenance, and service. www.pridemobility.com T R O U B L E S H O O T I N G Mini Crosser... -
Page 31: Care And Maintenance
The motor brushes are housed inside of the motor transaxle/assembly. They should be inspected periodically for wear by your authorized Pride Provider. HANDBRAKE The handbrake lever may require periodic adjustment to maintain proper operation. Contact your authorized Pride Provider for more information. Mini Crosser www.pridemobility.com... - Page 32 For prolonged storage, you may wish to place several boards under the frame of your PMV to raise it off of the ground. This takes the weight off the tires and reduces the possibility of flat spots developing on the areas of the tires contacting the ground. www.pridemobility.com Mini Crosser...
- Page 33 See figure 26. 11. Reattach the brake cable. See figure 22. 12. Inflate to 50 psi. Figure 22. Brake Cable Figure 25. Rim Securement Mini Crosser Figure 23. Front Wheel Securement Figure 26. Front Wheel Installation www.pridemobility.com Figure 24. Brake Removal...
- Page 34 7. Reinstall the wheel back onto the PMV and secure it with the five (5) screws. 8. Inflate to 50 psi. NOTE: When remounting the wheel, mount the spring washers (not shown) between the wheel rim and the screws. Figure 27. Wheel Removal Figure 28. Rim Securement www.pridemobility.com Mini Crosser...
-
Page 35: Warranty
This warranty does not extend to those items which may require replacement due to normal wear and tear. ! ABS Plastic shrouds ! Brake Pads Mini Crosser X . W A R R A N T Y ! Fork ! Tiller Frame... - Page 36 ! Circumstances beyond the control of Pride ! Labor, service calls, shipping, and other charges incurred for repair of the product, unless specifically autho- rized, IN ADVANCE, by Pride Mobility Products Corporation ! Repairs and/or modifications made to any part without specific consent from Pride...
- Page 37 182 Susquehanna Ave. Exeter, PA 18643 1-800-800-8586 www.pridemobility.com *INFMANU3202*...
