Summary of Contents for Dimplex ComfortAir DIM2IN1

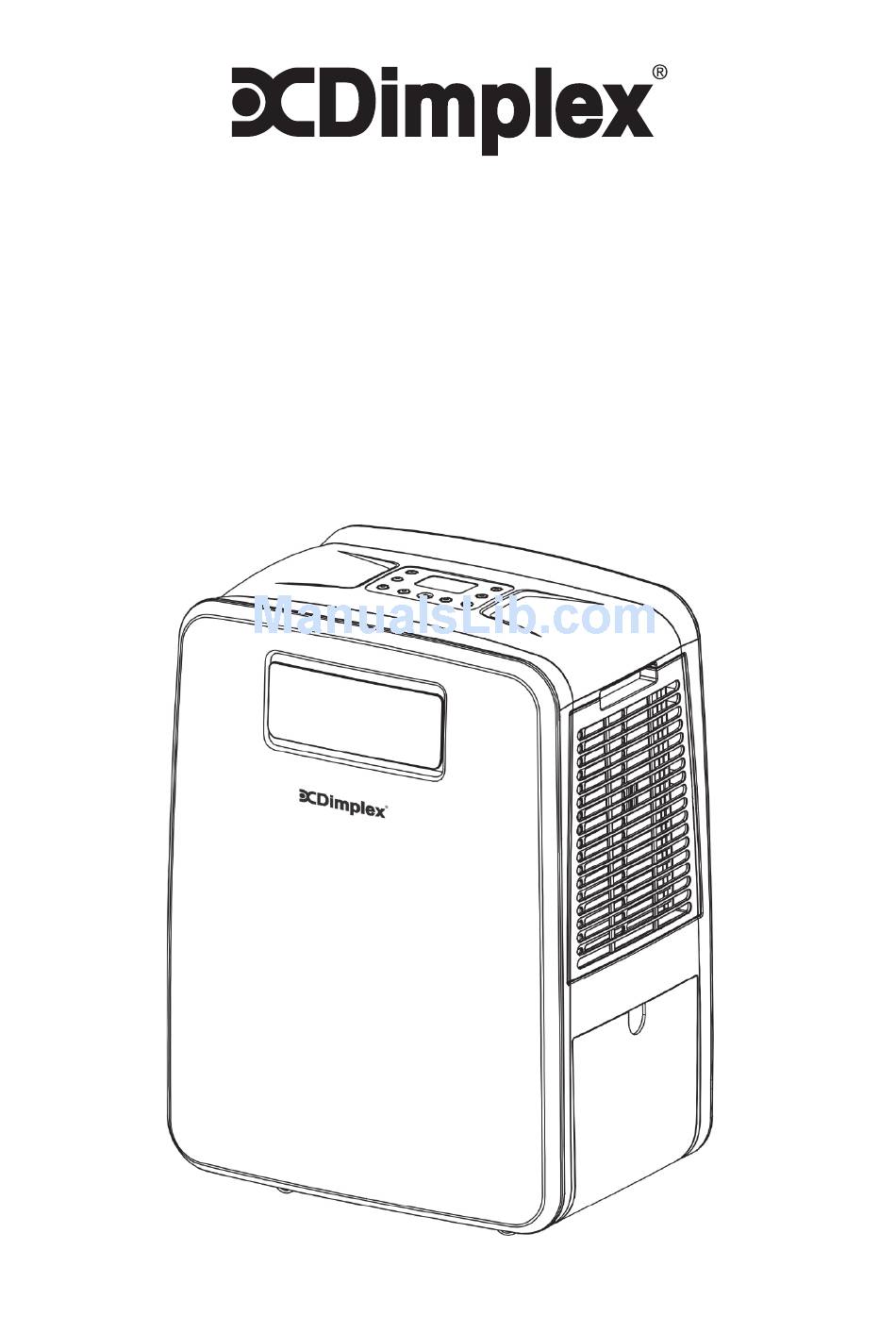

  • Page 1 COMFORTAIR 2In1 AIR COndITIOneR And dehuMIdIFIeR dIM2In1...
  • Page 2 VERY IMPORTANT CAUTION Do not install and use your ComfortAir before carefully reading this To efficiently cool rooms up to 11m , install the window kit to ensure the instruction guide. ComfortAir expels warm air outdoors. Please make sure the inlet and outlet ventilation is not blocked at all times.
  • Page 3 NOTES ON WINDOW KIT INSTALLATION CONGRATULATIONS ON YOUR PURCHASE OF A For effective cooling of a room (up to 11m ), please ensure that the following steps are undertaken: Extend the exhaust hose to a length of not more than 400mm. The exhaust hose must be kept straight and must not be bent up or down.

  • Page 4: Parts Diagram

    CONTENTS PARTS DIAGRAM continued • ComfortAir main unit Air filter • Remote control Air inlet • User manual 10. Hot air outlet joint • Window Kit (exhaust hose can be 11. Hot air outlet found in dehumidification tank) 12. Remote control storage 13.
  • Page 5 CONTROL PANEL & DESCRIPTION CONTROL PANEL & DESCRIPTION OF FUNCTIONS OF FUNCTIONS continued DECREASE TEMPERATURE OR HUMIDITY (-) During cooling function: press to lower the desired room temperature by 1°C. The minimum temperature possible is 17°C. During dehumidifying: press to lower the humidity by 5%. The minimum limit is 30%.
  • Page 6 FUNCTIONS COOLING MODE This setting will cool the room if you have an exhaust hose and window kit PROGRAMMABLE TIMER installed. Use the temperature selection buttons to choose your desired room TIMER-ON: The timer can be set to turn on the ComfortAir automatically temperature.

  • Page 7: Remote Control Function

    LCD SCREEN DISPLAY GUIDE REMOTE CONTROL FUNCTION Sleep Fan Mode only Timer Digital display Child lock Temperature sign Swing Humidity percentage Alarm Hours on timer Cooling Automatic fan speed Dehumidifying Air speed indicator POWER On/Off switch FUNC Function/“mode” selector TIMER Set timer AUTO Automatic fan speed...

  • Page 8: Exhaust Hose Installation

    MAINTENANCE PLACEMENT FOR USE PLEASE DISCONNECT THE POWER CORD BEFORE CLEANING Because the ComfortAir exhausts hot air, please do not operate in narrow environments. Do not operate in direct sunlight as the ComfortAir may over heat and shut AIR FILTERS down or the plastic may fade.

  • Page 9: Window Kit Installation

    WINDOW KIT INSTALLATION Attach the pipe joint onto the ComfortAir (see arrow 4). Install the Exhaust Hose and the Adjustable Window Slider Kit as depicted in Fig.1 and Fig.1a. Figure 1 - Vertical sliding Figure 1a - Horizontal windows installation sliding windows installation Screw the exhaust pipe counterclockwise on to the pipe joint (see arrow 5).
  • Page 10 SPECIFICATION Model No. PC11-DM2A Power Source 220-240V~50Hz Rated Power (EN60335) 610W Cooling Cooling Capacity 1100W Moisture Removed 30 litres/day Humidifying capacity 0.2 L /H Refrigerant R134a Water Tank Capacity 2.6L Dimensions (mm) 285W x 375D x 500H (CE) N 842/2006: R134a is a kind of fluorinated greenhouse gases covered by the Kyoto Protocol.
