4. Check the electrolyte level in each battery cell.
Before charging, add just enough distilled water to
cover the plates. After charging is complete, add
just enough distilled water to bring up the level to
the indicator ring. If the water level is too high
before charging, normal expansion rate of the elec-
trolyte may cause an overflow. Resulting in a loss
of battery acid balance and damage the machine.
5. Replace the battery caps, and leave them in place
while charging.
6. Unplug the battery connector from the machine.
FOR SAFETY: When charging, connect the
charger to the batteries before connecting the
charger to the AC wall outlet. Never connect the
charger to the AC wall outlet first. Hazardous
sparks may result.
7. Plug the charger connector into the battery
connector. Connect the charger AC plug to a wall
outlet. The charger gauge should indicate that the
batteries are charging.
8. When the batteries are fully charged, disconnect
the charger from the AC wall outlet, then discon-
nect the charger from the batteries.
9. Connect the batteries to the machine connector.
10. Check the electrolyte level. It should be up to the
indicator ring. If necessary, add distilled water.
11. Lower the battery cover.
Machines equipped with On board Charger:
1. Connect charger's AC power cord to AC
mains.The charger's YELLOW "AC" LED will light.
NOTE: When charger is energized, all machine
function will shut down.
2. Current level being delivered to the batteries will be
displayed on the charger's bar graph.
3. When battery charge level has reached 80% the
YELLOW "80%" LED will light.
4. Batteries will then receive a low current "finish-
charge" indicated by the flashing GREEN "100%"
LED.
5. Charging cycle is complete when "100%" LED is
continuously GREEN.
6. Disconnect charger's AC power cord.
7. Raise battery cover and check the battery electro-
lyte level. It should be up to the indicator ring. If
necessary, add distilled water.
86400260 Manual Operators - Cutter 24V Deluxe
8. Lower the battery cover.
NOTE: For additional information about battery
charger function, please see the charger Product
Manual.

Changing Batteries

Stop the machine in a clean area next to the
charger.Turn off machine.
FOR SAFETY: Before leaving or servicing the
machine; stop on level surface, turn off machine
and remove key.
1. Raise the battery cover.
2. Disconnect battery pack from machine.
3. Use the proper size open end wrench to discon-
nect main ground wire first and secure cable
terminal away from batteries.
4. Disconnect main positive lead and secure cable
terminals away from batteries.
5. Loosen both terminals on each jumper cable and
remove one at a time.
6. Prepare a suitable site to place the batteries.
7. Attach suitable battery lifting device and lift
batteries from the machine.
Batteries are a potential environmental hazard.
Consult your battery supplier for safe disposal
methods.
Les batteries constituent un danger potentiel pour
l'environnement. Consultez le fournisseur de votre
batterie pour connaître les méthodes d'élimination
sûres.
+

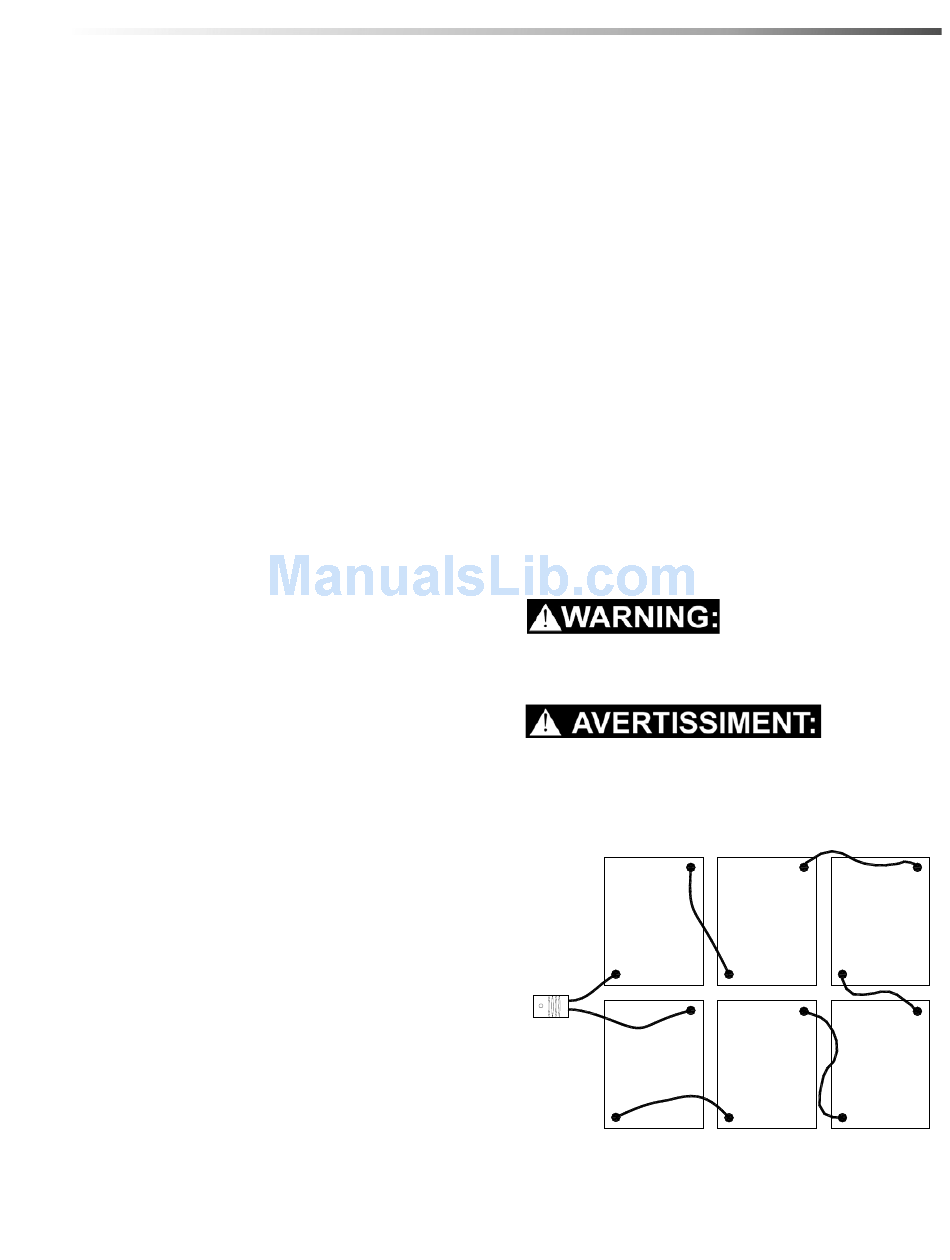

RED
BLK
-
+
RED
BLK
-
FRONT OF MACHINE
Maintenance
+
RED
BLK RED
-
+
-
BLK
RED RED
+ +
-
BLK
-
BLK
25
