Smeg CE6GPXU Instruction Manual

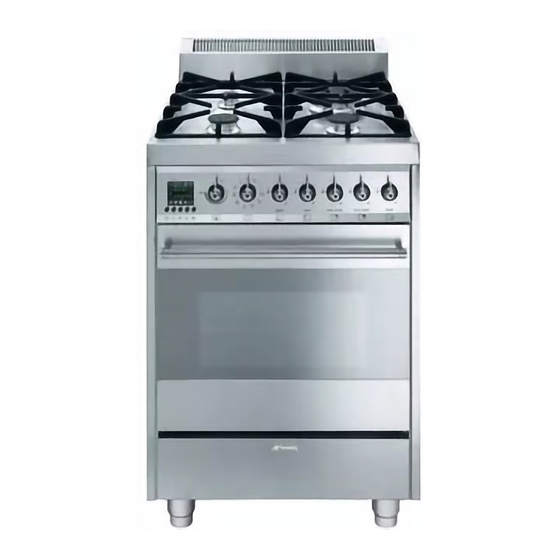

24 inch freestanding dual-fuel range
Hide thumbs Also See for CE6GPXU:

Advertisement

Quick Links

Download this manual See also: Owner's Manual, Function Manual
1. IMPORTANT SAFETY INSTRUCTIONS ................................................................................. 4
2. DIMENSION REQUIREMENTS .............................................................................................. 7
3. UNPACKING, MOVING AND POSITIONING THE RANGE .................................................... 9
4. WALL ATTACHMENT AND THE ANTI-TIP DEVICE ............................................................ 10
5. ELECTRICAL REQUIREMENTS ........................................................................................... 12
6. GAS SUPPLY REQUIREMENTS .......................................................................................... 15
WARNING:
precisely, a fire or explosion may result causing property damage, personal
injury or loss of life.
- Do not store or use gasoline or other flammable vapors and liquids near this
or any other appliance.
• Do not try to light any appliance.
• Do not touch any electrical switch.
• Do not use any phone in your building.
• Immediately call your gas supplier from a neighbor's phone. Follow the gas
supplier's instructions.
• lf you cannot reach your gas supplier, call the Fire Department.
- Installation and service must be performed by a qualified installer, service
agency or the gas supplier.
NOTE: THIS APPLIANCE MUST BE INSTALLED SOLELY AND EXCLUSIVELY BY A QUALIFIED
TECHNICIAN. ANY TECHNICAL PROCEDURES MUST BE CARRIED OUT BY AN AUTHORIZED
TECHNICIAN.
INSTALLER INSTRUCTIONS: these are intended for the qualified technician who is able to install,
commission and test the appliance.

Table of Contents

If the instructions contained in this manual are not followed
WHAT TO DO IF YOU SMELL GAS
3

Advertisement

loading

Related Manuals for Smeg CE6GPXU

Summary of Contents for Smeg CE6GPXU

  • Page 1: Table Of Contents

    Table of Contents 1. IMPORTANT SAFETY INSTRUCTIONS ................. 4 2. DIMENSION REQUIREMENTS ....................7 3. UNPACKING, MOVING AND POSITIONING THE RANGE ............ 9 4. WALL ATTACHMENT AND THE ANTI-TIP DEVICE ............10 5. ELECTRICAL REQUIREMENTS ................... 12 6. GAS SUPPLY REQUIREMENTS ..................15 WARNING: If the instructions contained in this manual are not followed precisely, a fire or explosion may result causing property damage, personal...

  • Page 2: Important Safety Instructions

    Important Safety Instruction 1. IMPORTANT SAFETY INSTRUCTIONS READ AND SAVE THESE INSTRUCTIONS – Your safety and the safety of others are very important. We have provided many important safety messages throughout this manual and on the appliance. Read all the instructions before using the appliance and always obey all safety messages. RECOGNIZE SAFETY INFORMATION This is the safety alert symbol.
  • Page 3 Important Safety Instruction All ranges can tip WARNING Bodily injury can result Install the anti-tip device shipped with the range See installation instructions FAILURE TO FOLLOW THESE INSTRUCTIONS CAN RESULT IN LOSS OF LIFE OR SERIOUS BURNS TO CHILDREN AND ADULTS. NOTE: This range is NOT designed for installation in manufactured (mobile) homes or in recreational vehicles (RVs).
  • Page 4 Installer instructions Do not obstruct oven vents or openings for air intake. Test the appliance immediately after installation, following the instructions in this booklet. If the appliance does not work properly, disconnect it from the electrical power supply and call the service center.

  • Page 5: Dimension Requirements

    MODEL 216 mm 150 mm 612 mm 636 mm 612 mm 457 mm 610 mm 330 mm CE6GPXU 24 ” 25 ” 24 ” 18” 24 ” 13 ” ” ” 1 min. when bottom of wood or metal cabinet is protected by not less than ¼ “ (0.64 cm) flame retardant millboard covered with not less than No.

  • Page 6: Product Dimensions

    Installer instructions 2.1 Product dimensions Overall dimensions: location of electrical connection points. 60 mm - 2 ” 703 mm - 27 ” 758 mm - 29 ” 164 mm - 6 ” 130 mm - 5 ” 185 mm - 7 ”...

  • Page 7: Unpacking, Moving And Positioning The Range

    Installer instructions 3. UNPACKING, MOVING AND POSITIONING THE RANGE CAUTION: This unit is designed as a cooking appliance. Out of safety considerations, never use it for warming the room or as a space heater. It is recommended that the grates, the griddle plate and burner rings, burner caps, front kick panel and oven racks be removed to facilitate handling.

  • Page 8: Wall Attachment And The Anti-Tip Device

    Installer instructions 4. WALL ATTACHMENT AND THE ANTI-TIP DEVICE All ranges can tip WARNING Bodily injury can result Install the anti-tip device shipped with the range See installation instructions FAILURE TO FOLLOW THESE INSTRUCTIONS CAN RESULT IN LOSS OF LIFE OR SERIOUS BURNS TO CHILDREN AND ADULTS. ELECTRICAL SHOCK HAZARD WARNING Use extreme caution when drilling holes into the wall or floor.
  • Page 9 3 Attach the two anti-tip brackets to the wall using an appropriate fastener (for example, screws appropriate for the type of the wall). Adhere scrupulously to the heights indicated in the figure (A) using the appliance’s dimensions as a guide. (Type of screw recommended ” ). CE6GPXU ( ” 608 mm) Front view...

  • Page 10: Electrical Requirements

    Installer instructions 5. ELECTRICAL REQUIREMENTS ELECTRICAL GROUNDING INSTRUCTIONS WARNING ELECTRICAL SHOCK HAZARD Plug into a grounded 3-prong receptacle. Do not cut or remove the grounding prong. WARNING Do not use an adaptor. Do not use an extension cord. Check with a qualified electrician if you are not sure whether the range is grounded.
  • Page 11 Installer instructions WARNING ELECTRICAL SHOCK HAZARD Turn power supply off before connecting wires. WARNING Electrically ground the range. Failure to follow these instructions can result in loss of life, fire, or electrical shock. Improperly connecting the appliance grounding conductor can result in a risk of electrical shock.
  • Page 12 Installer instructions 5.2 U.S. and Canada installation/ 4-wire branch circuit Refer to Figure 2, Separate the green or yellow-green wires from the white wires that extend out of the end of the appliance cable. The ground wire must be connected first; Connect the green or yellow-green ground wire from the appliance to the ground wire in the junction box (green colored wire) using UL/CSA...

  • Page 13: Gas Supply Requirements

    Installer instructions 6. GAS SUPPLY REQUIREMENTS EXPLOSION HAZARD Use a new AGA or CSA-certified connector. Install a manual shut-off valve. WARNING Securely tighten all gas connections. lf connected to LP, have a qualified technician ensure that the gas pressure does not exceed a 14" W.C.P. Examples of qualified technicians include licensed heating personnel, authorized gas company personnel, and authorized service personnel.
  • Page 14 Installer instructions The supply line must be fitted with an approved shut-off valve. This valve should be located in the same room as the range and should be in a location where it can be easily opened and closed. Do not block access to the shut-off valve. The valve is necessary for turning the gas to the appliance on or off.
