16 Using the Main Menu

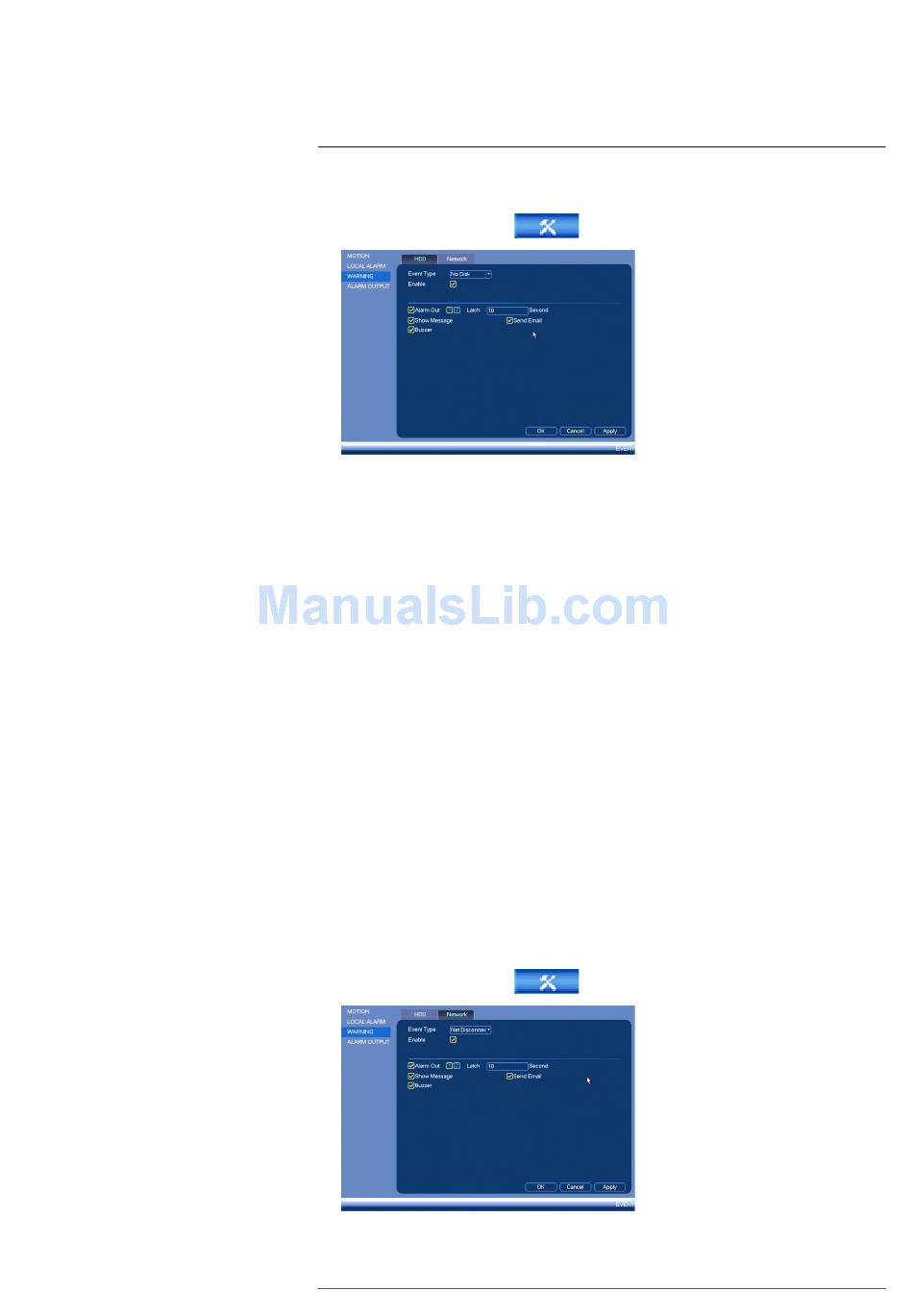

To configure hard drive warnings:
1. From the Main Menu, click
2. Under Event Type, select the hard drive event you would like to configure.
• No Disk: No hard drive detected.
• Disk Error: A hard drive error has been detected.
• Disk Full: The hard drive is full or almost full. You can enter the percentage of disk
space remaining that will trigger a warning under Less Than (e.g. when less than
10% of the hard drive is empty, trigger a warning). Disk Full warnings will not occur
if overwrite is enabled.
• All: Configure warnings for all hard drive events.
3. Configure the responses the system will take when the selected event occurs:
• Show Message: Show a popup message on the monitor.
• Alarm Out: Check the box to activate alarm output devices (not included) and se-
lect the alarm output devices (not included) will be activated when the selected
event occurs.
• Latch: Enter the number of seconds an alarm will activate after the selected event
occurs.
• Send Email: Check to enable email alerts. You must configure email alerts before
you will be able to receive them (see 16.3.5 Configuring Email Alerts, page 58).
• Buzzer: Check to activate the system buzzer.
4. Click OK to save changes.

16.3.13 Configuring Network Warnings

Network warnings will notify you if there your system loses connection to the Internet or
local network or if there is an issue on your network.
To configure network warnings:
1. From the Main Menu, click
#LX400021; r. 4.0/30344/30494; en-US
and then click Event>Warning>HDD.
and then click Event>Warning>Network.
