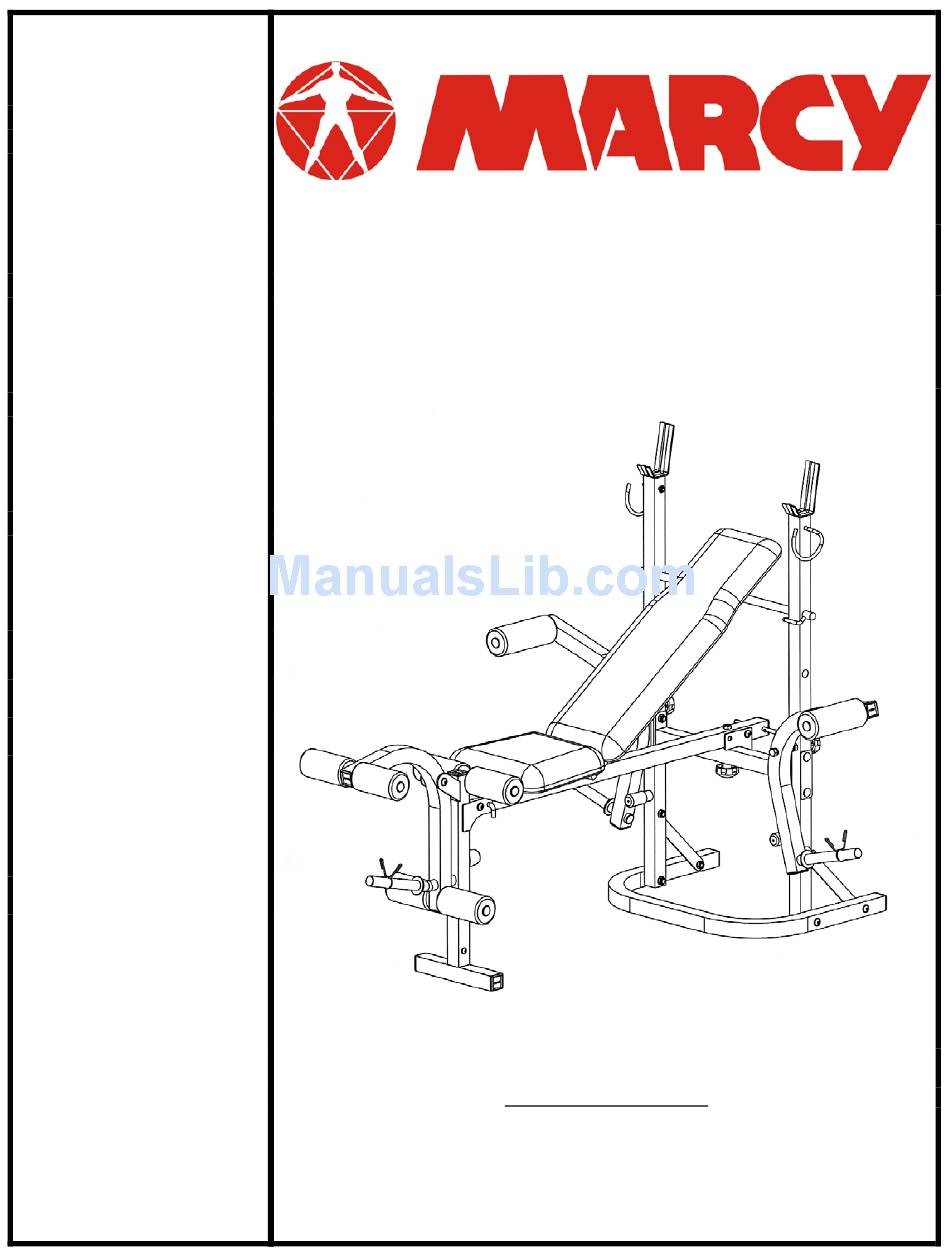

  • Page 1 NOTE: Please read all instructions carefully before using this product MARCY Table of Contents FOLD UP BENCH Safety Notice MFB 400 Hardware Pack Assembly Instruction Exploded Diagram Parts List Warranty Ordering Parts Model MFB 400 Retain This Manual for Reference...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS BEFORE YOU BEGIN..................IMPORTANT SAFETY NOTICE................HARDWARE PACK..................….. ASSEMBLY INSTRUCTIONS................EXPLODED DIAGRAM..................PARTS LIST......................WARRANTY......................ORDERING PARTS.................... BEFORE YOU BEGIN Thank you for selecting the MARCY FOLD UP BENCH MFB-400. For your safety and benefit, read this manual carefully before using the machine. As the distributor, we are committed to provide you complete customer satisfaction.

  • Page 3: Important Safety Notice

    IMPORTANT SAFETY PRECAUTIONS This bench is built for optimum safety. However, certain precautions apply whenever you operate a piece of exercise equipment. Be sure to read the entire manual before you assemble or use your bench. In particular, note the following safety precautions: 1.
  • Page 4 WARNING LABEL...

  • Page 5: Hardware Pack

    HARDWARE PACK NOTE: The following parts are not drawn to scale. Please use your own ruler or scale to measure the size.
  • Page 6 HARDWARE PACK NOTE: The following parts are not drawn to scale. Please use your own ruler or scale to measure the size.

  • Page 7: Assembly Instruction

    ASSEMBLY INSTRUCTION Tools required assembling the machine: Two Adjustable Wrenches and Allen Wrenches. NOTE: It is strongly recommended this machine be assembled by two or more people to avoid possible injury. STEP 1 (SEE DIAGRAM 1) A.) Do not tighten the Nuts and Bolts until instructed to do so. B.) Attach a Rear Upright Beam (#1) to the Rear Stabilizer (#2).
  • Page 8 STEP 2 (SEE DIAGRAM 2) A.) Attach the Leg Developer Holder (#5) onto the Front Stabilizer (#7). Secure it with three M8 x 5/8” Allen Bolts (#38) and Ø 5/8” Washers (#46). B.) Connect the Main Seat Support (#6) to the Leg Developer Holder. Secure the front hole with a M10 x 2 1/8”...
  • Page 9 STEP 3 (SEE DIAGRAM 3) A.) Insert a M12 x 4 7/8” Hex Bolt (#42) through the Left Butterfly (#10). Place a M12 Regular Nut (#43) onto the Bolt. Then insert the Bolt through the holes on the Rear Upright Beam (#1). Secure the Bolt with a M12 Lock Knob (#29) behind the Upright Beam.
  • Page 10 STEP 4 (SEE DIAGRAM 4) A.) Attach the Backrest Supports (#8) onto both ends of the Pivot on the Main Seat Support (#6). Place the other ends rest against the Backrest Adjustment Bar (#4). B.) Attach the Backrest Board (#18) onto the Backrest Supports. Secure it with four M6 x 1 5/8”...
  • Page 11 STEP 5 (SEE DIAGRAM 5) A.) Attach the Leg Developer (#9) to the Leg Developer Holder (#5). Secure it with one M10 x 2 7/8” Allen Bolt (#36), two Ø ¾” Washers (#44), and one M10 Aircraft Nut (#47). Do not over tighten the Nut and Bolt.
  • Page 12 STEP 6 (SEE DIAGRAM 6) A.) Pull out the 3 3/8” Lock Pin (#22) to fold down the Leg Developer Holder. B.) Loosen and remove the M10 Lock Knob (#29) from the bottom of the Main Seat Support then fold up the bench to a vertical position. C.) Insert the 6”...

  • Page 15: Parts List

    PARTS LIST KEY NO. DESCRIPTION QUANTITY Rear Upright Beam Rear Stabilizer Cross Brace Backrest Adjustment Bar Leg Developer Holder Main Seat Support Front Stabilizer Backrest Support Leg Developer Left Butterfly Right Butterfly Rear Diagonal Support Foam Tube Butterfly Foam Tube Bracket Left Safety Hook Right Safety Hook...

  • Page 16: Limited Warranty

    LIMITED WARRANTY Escalade warrants this product to be free from defects in workmanship and material, under normal use and service conditions, for a period of two years on the frame and one year on all other parts and components from the date of purchase. This warranty extends only to the original purchaser.
