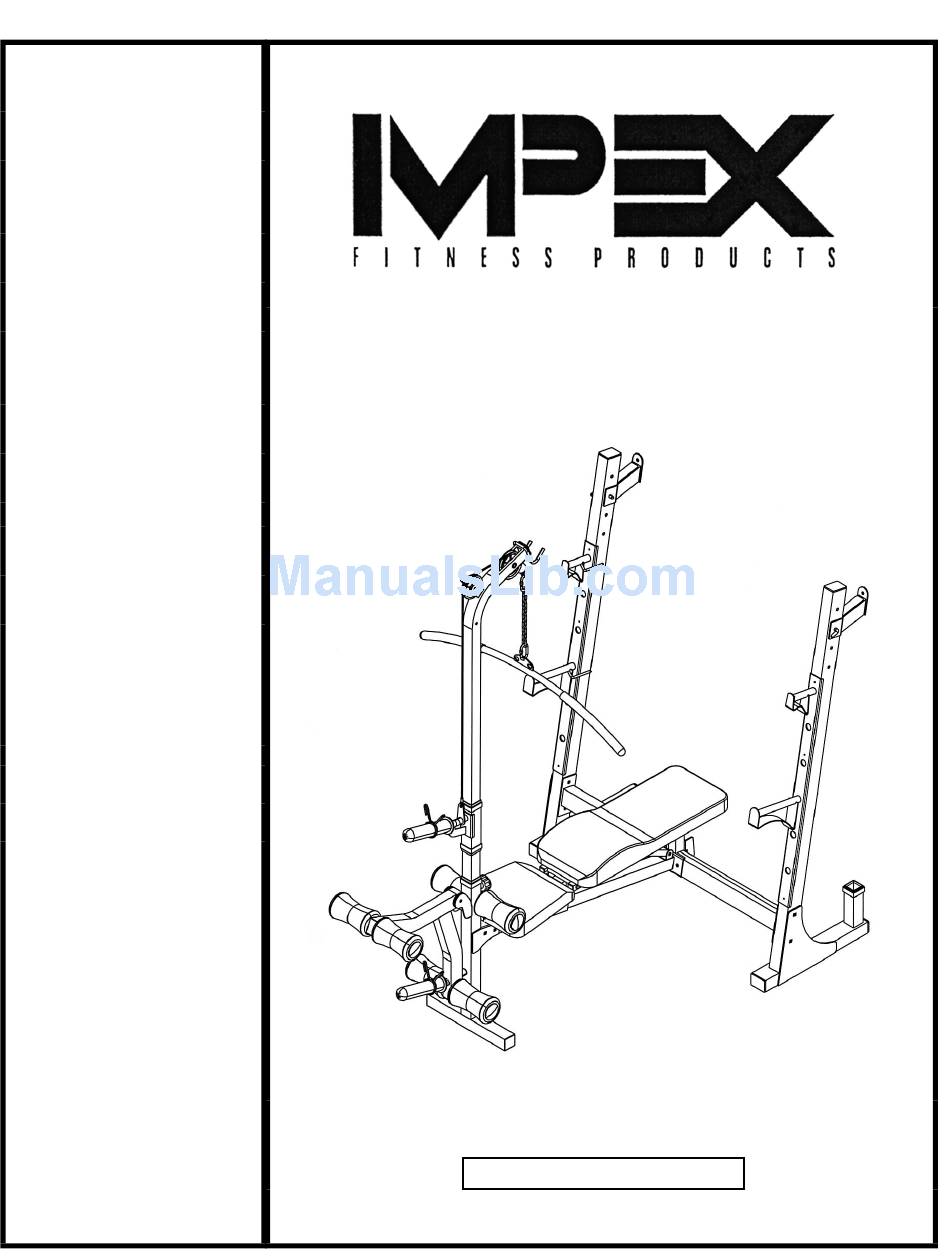

NOTE: Please read all instructions carefully before using this product Table of Contents Safety Notice MARCY WEIGHT BENCH Hardware Identifier MWB OLYMPIAN Assembly Instruction Parts List Warranty Ordering Parts Model OLYMPIAN Retain This Manual for Reference 07-20-03 OWNER'S IMPEX FITNESS PRODUCTS MANUAL 14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746...
PARTS LIST………………………………………………………………………………….. 12 WARRANTY....................…………. 13 ORDERING PARTS..................………… 13 BEFORE YOU BEGIN Thank you for selecting the MARCY OLYMPIAN BENCH by IMPEX FITNESS PRODUCTS. For your safety and benefit, read this manual carefully before using the machine. As a manufacturer, we are committed to provide you complete customer satisfaction.
IMPORTANT SAFETY NOTICE PRECAUTIONS This exercise machine is built for optimum safety. However, certain precautions apply whenever you operate a piece of exercise equipment. Be sure to read the entire manual before you assemble or operate your machine. In particular, note the following safety precautions: 1.
ASSEMBLY INSTRUCTION Tools Required Assembling the Machine: Two Adjustable Wrenches and Allen Wrenches. NOTE: It is strongly recommended two or more people assembling this machine to avoid possible injury. STEP 1 (See Diagram 1) A.) Attach an Upright Beam (#4) to the Left Stabilizer (#1). Then attach the Cross Brace (#3) to the Upright Beam.
Page 7
STEP 2 (See Diagram 2) A.) Attach the Leg Developer Holder (#5) to the Front Stabilizer (#21). Secure them with three M10 x ¾” Allen Bolts (#58) and ¾” Washers (#70). B.) Slid the Sliding Block (#17) onto the Main Seat Support (#6). Use a M18 Lock Knob (#26) to hold the Sliding Block in position.
Page 8
STEP 3 (See Diagram 3) A.) Attach the Leg Developer (#25) to the Leg Developer Holder (#5). Secure it with an Axle (#27), two ¾” Washers (#70), and two M10 x 1” Allen Bolts (#59). B.) Insert one M8 x 2 1/8” Allen Bolt (#63) through the hole on the Lat bar Frame (#22) and secure it with a M8 Aircraft Nut (#68).
Page 9
STEP 4 (See Diagram 4) A.) Attach the Seat Bracket (#12) to the short pivot on the Sliding Block. Secure it with one M10 x 5” Allen Bolt (#57), two ¾” Washers (#70), and one M10 Aircraft Nut (#67). B.) Place the Backrest Incline Support (#7) in between the two Backrest Supports (#9). Attach the Backrest Supports to the long Pivot on the Sliding Block.
Page 10
STEP 5 (See Diagram 5) A.) Insert one Foam Roll Tube (#10) halfway through the hole on the Leg Developer Holder (#5). Insert two Foam Roll Tubes (#10) halfway through the holes on the Leg Developer (#25). Push six Foam Rolls (#38) onto the Tubes from both ends. Plug six Foam Roll End Caps (#39) into the ends.
Page 11
STEP 6 (See Diagram 6) A.) Attach the ball end of the Cable (#11) to a Pulley (#37). Place the Pulley in the open slot on top of the Lat Bar Frame (#22). Secure the Pulley with one M10 x 2 3/8” Allen Bolt (#61), two Pulley Bushings (#34), and one M10 Aircraft Nut (#67).
PARTS LIST KEY NO. DESCRIPTION Q’ty Left Stabilizer Ø ¾” Bushing Right Stabilizer Rubber Bumper Cross Brace M10 x 3” Carriage Bolt Upright Beam M10 x 2 ¾” Carriage Bolt Leg Developer Holder M10 x 2 ½” Carriage Bolt Main Seat Support M12 x 3 3/8”...
IMPEX INC. LIMITED WARRANTY IMPEX Inc. ("IMPEX") warrants this product to be free from defects in workmanship and material, under normal use and service conditions, for a period of two years on the Frame from the date of purchase. This warranty extends only to the original purchaser. IMPEX's obligation under this Warranty is limited to replacing or repairing, at IMPEX's option.
