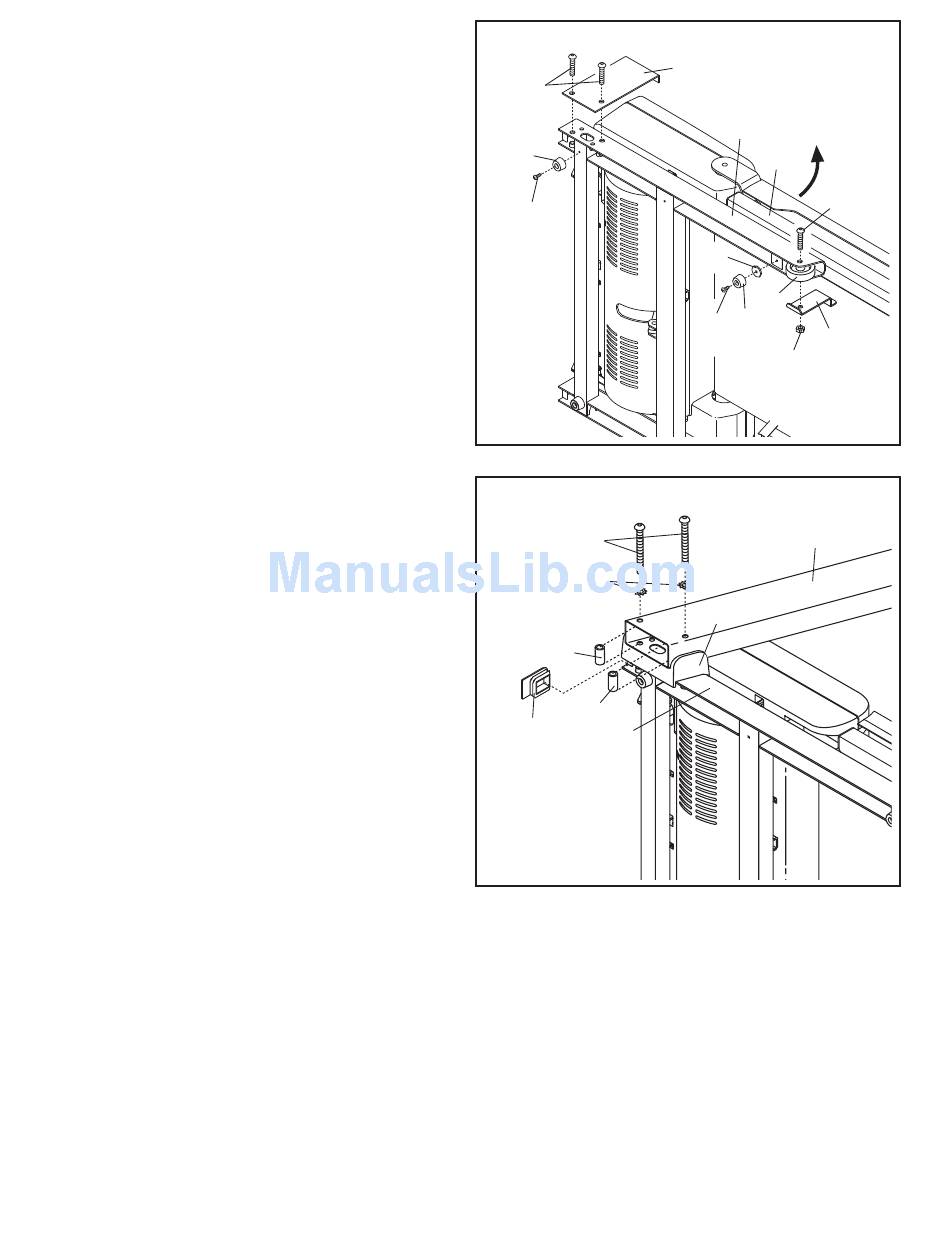

5. With the help of a second person, carefully tip

the treadmill onto its right side. Partially fold the

Frame (48) so the treadmill is more stable; do
not fully fold the Frame yet.
Remove and discard the two indicated bolts (A)
and the shipping bracket (B).
Attach a Base Pad (81) to the Base (85) in the
location shown with a Base Pad Spacer (104)
and an M4 x 25mm Screw (2). Then, attach an-
other Base Pad (81) with only an M4 x 25mm
Screw (2).
Remove the M10 Nut (33), the M10 x 50mm
Bolt (27), and the shipping bracket (C) from the
Base (85). Attach a Wheel (86) with the Bolt and
the Nut that you just removed. Do not over-
tighten the Nut; the Wheel must turn freely.
Discard the shipping bracket.
6. With the help of a second person, hold a Bolt
Spacer (79) inside the lower end of the Left
Upright (73). Insert an M10 x 96mm Bolt (5) with
an M10 Star Washer (8) into the Left Upright
and the Bolt Spacer. Repeat this step with a
second Bolt Spacer (79), an M10 x 96mm Bolt
(5), and an M10 Star Washer (8).
Orient the Left Upright (73) and the Left Upright
Spacer (83) as shown. Hold the Left Upright
Spacer and the Left Upright against the Base
(85). Finger tighten the M10 x 96mm Bolts (5);
do not fully tighten the Bolts yet.
Press a Base Endcap (82) into the Base (85).
With the help of a second person, tip the tread-
mill so that the Base (85) is flat on the floor.
