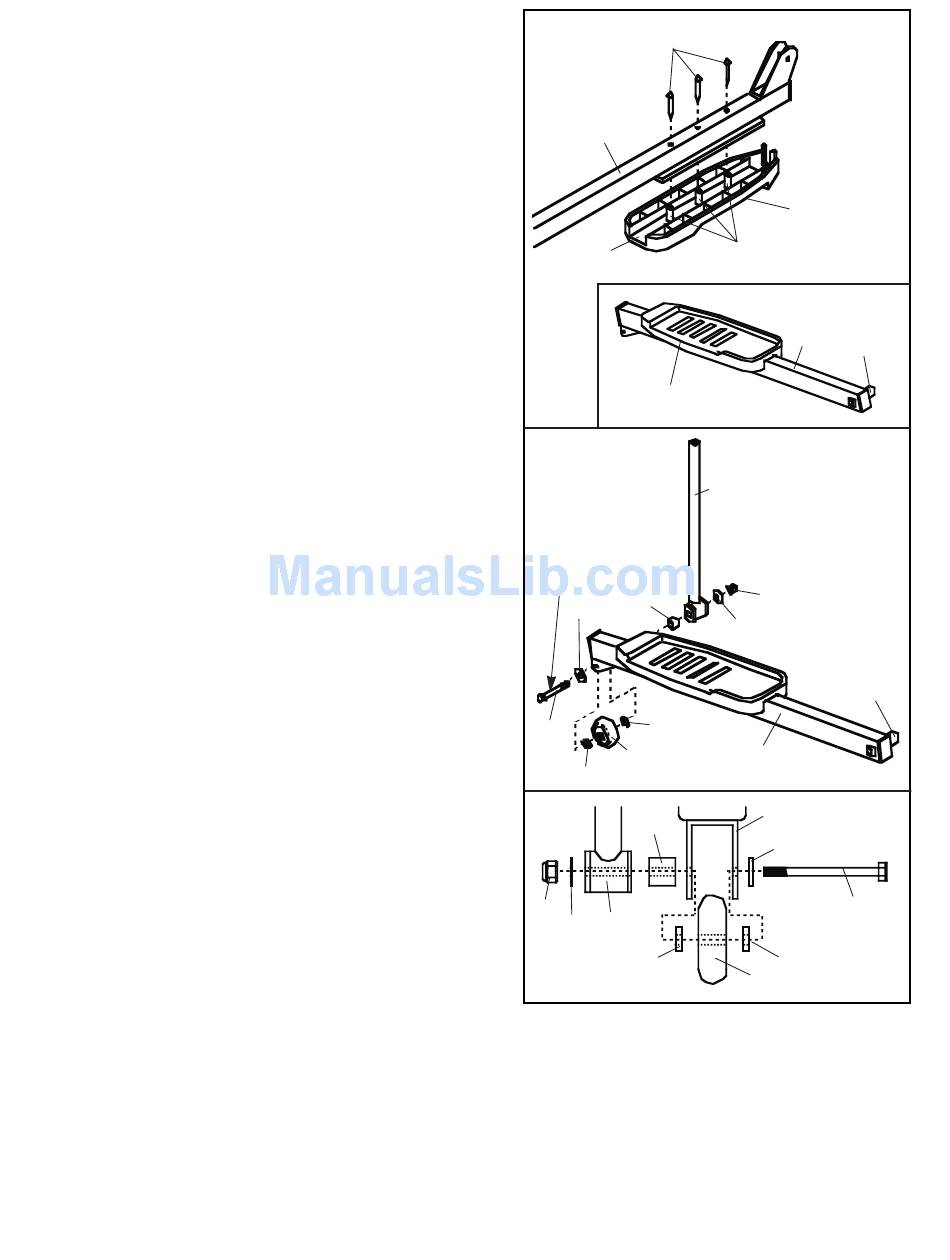

9. Identify the Left Pedal Arm (3), which has an ÒLÓ sticker
on it. Be careful not to confuse the Left Pedal Arm
with the Right Pedal Arm (not shown); look at the
position of the round tube in the inset drawing to
identify the Left Pedal Arm. Next, identify the Left
Pedal (41), which has the letter ÒLÓ molded onto the
bottom.
Turn over the Left Pedal Arm (3) as shown. Insert the
three plastic posts on the Left Pedal (41) into the three
indicated holes in the Left Pedal Arm. Make sure that
the Left Pedal is turned as shown. Attach the Left
Pedal with three M4 x 16mm Flange Screws (43).
Attach the Right Pedal (not shown) to the Right Pedal
Arm (not shown) in the same way.
10. Apply grease to an M8 x 108mm Bolt (79). Slide an M8
Washer (81) onto the Bolt and insert the Bolt into the
indicated side of the Left Pedal Arm (3). Be careful not
to confuse the Left Pedal Arm with the Right Pedal
Arm (not shown); look at the position of the round
tube to identify the Left Pedal Arm. Next, slide a
Spacer (44), a Pedal Wheel (77), and another Spacer
(44) onto the Bolt and push the Bolt through the other
side of the Left Pedal Arm.
Next, slide a Tube Spacer (82), a Chrome Tube (21),
and an M8 Washer (81) onto the M8 x 108mm Bolt
(79). Tighten an M8 Nylon Locknut (80) onto the Bolt.
Attach the other Chrome Tube (not shown) to the Right
Pedal Arm (not shown) in the same way.
