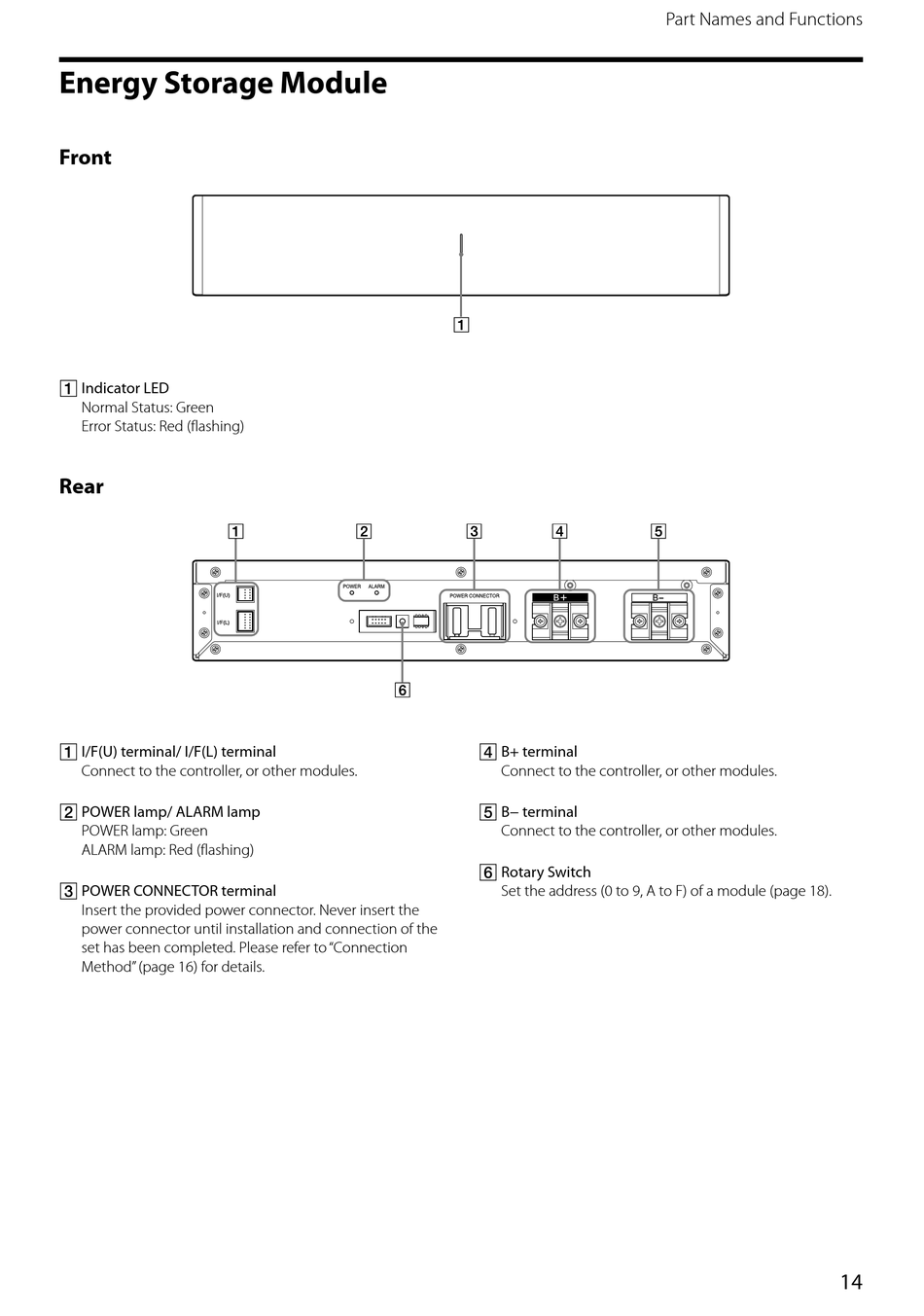

Energy Storage Module

Front
 . I ndicator .LED
Normal Status: Green
Error Status: Red (flashing)
Rear
 . I /F(U) .terminal/ .I/F(L) .terminal
Connect to the controller, or other modules.
 . P OWER .lamp/ .ALARM .lamp
POWER lamp: Green
ALARM lamp: Red (flashing)
 . P OWER .CONNECTOR .terminal
Insert the provided power connector. Never insert the
power connector until installation and connection of the
set has been completed. Please refer to "Connection
Method" (page 16) for details.
 . B + .terminal
Connect to the controller, or other modules.
 . B − .terminal
Connect to the controller, or other modules.
 . R otary .Switch
Set the address (0 to 9, A to F) of a module (page 18).
Part Names and Functions
