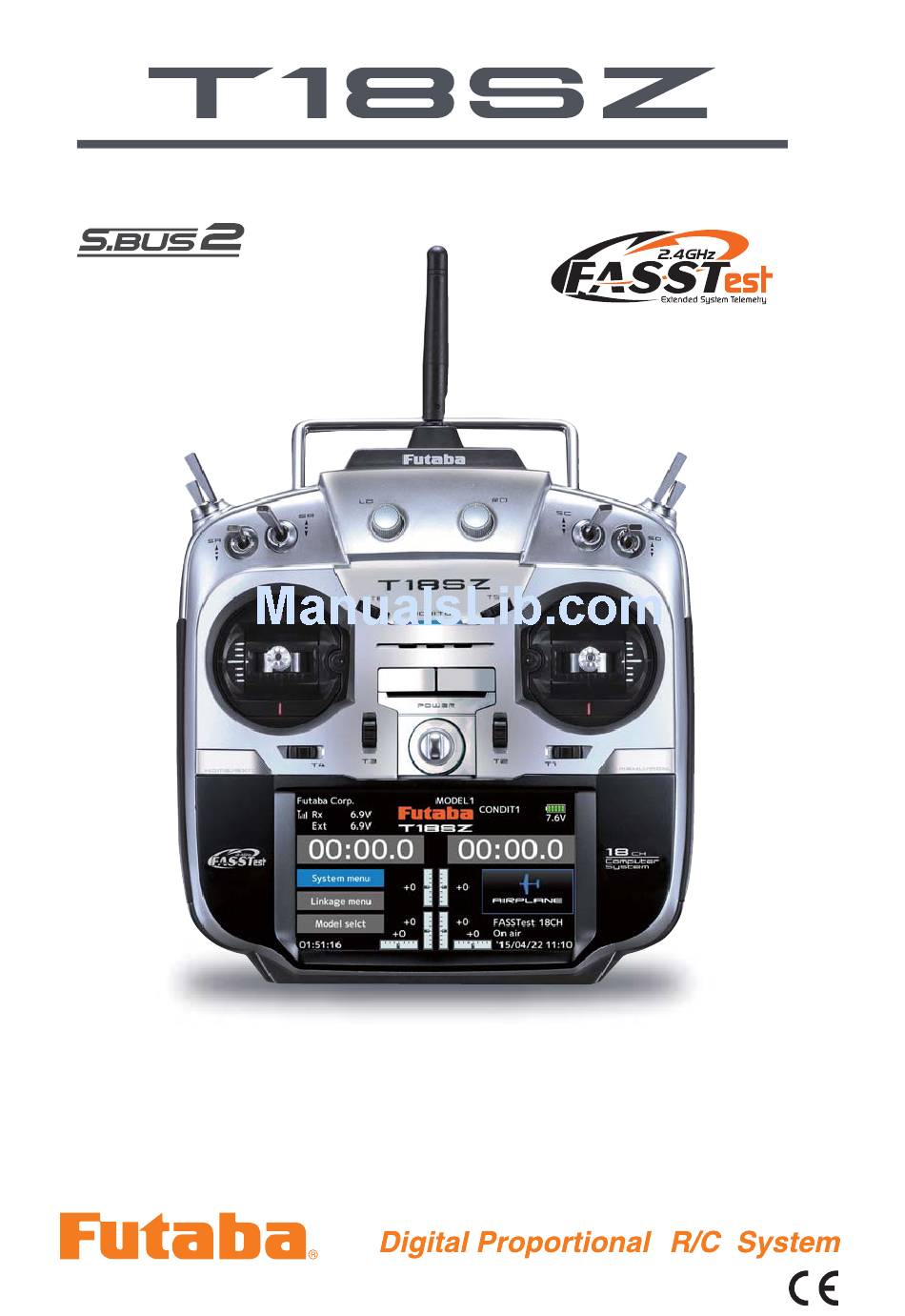

Page 1 18-Channel Digital Proportional R/C System INSTRUCTION MANUAL 1M23N30202...
Page 2 TABLE OF CONTENTS INTRODUCTION..........4 ...... 46 ..................24...
Page 3 TABLE OF CONTENTS → → → → ............96 ............→ → → → → →...
Page 4 INTRODUCTION ＜ Introduction ＞...
Page 5 ＜ Introduction ＞...
Page 6 ＜ Introduction ＞...
Page 7: Flying Precautions
Use of this product with other than models may be restricted by Export and Trade Control Regulations. 3. Modiﬁcation, adjustment, and parts replacement: Futaba is not responsible for unauthorized modiﬁcation, adjustment, or replacement of parts on this product. ■ No part of this manual may be reproduced in any form without prior permission.
Page 8 Do not ﬂy at the following places: Always check operation of each control surface and perform a range test before each flying ■ Near another radio control ﬂying ﬁeld. session. Also, when using the trainer function, ■ Near or above people. check the operation of both the teacher and ■...
Page 9 ■ Charging the battery past the specified value may Insert the power cord plug firmly into the cause a ﬁre, combustion, rupture, or liquid leakage. When receptacle up to its base. quick charging, do not charge the battery above 1C. Always use the charger with the specified ■...
Page 10: Storage And Disposal Precautions
■ Since the metal parts of the case may corrode, always keep them clean. ■ Futaba is not responsible for damage sustained by combination with other than Futaba Genuine Parts. Use Join the Academy of Model Aeronautics. the parts speciﬁed in the instruction manual and catalog.
Page 11: Before Use
2 channels) 2.4GHz dedicated system. Color touch screen LCD T18SZ has a HVGA 4.3inch full color Backlight LCD touch screen. The screen is manufactured of a S.BUS2 system By using the S.BUS2 system multiple servos, gyros and telemetry sensors are easily installed with a minimum amount of cables.
Page 12 You cannot use the self-neutral throttle stick for R/C airplanes, helicopters, and certain multi- copters. Allowing the engine/motor to reach middle speed via automatic throttle stick return is very dangerous. If using the T18SZ for R/C airplanes and helicopters, you must change the throttle stick to the ratchet type. ＜ Before Use ＞...
Page 13 : SBS-01G] [Voltage sensor : SBS-01V] [S.BUS servo sensor : SBS-01S] • Neckstrap - a neckstrap may be connected to your T18SZ system to make it easier to handle and improve • Y-harnesses, servo extensions, hub,etc - Genuine Futaba extensions and Y-harnesses, including a heavy- duty version with heavier wire, are available to aid in your larger model and other installations.
Page 14 ● Monitor LED ● Antenna ● Carrying handle ● Dial LD.RD ● Switch ● Switch SA.SB.SE.SF SC.SD.SG.SH ● Slide lever ● Slide lever ● Stick ● Stick ● Power Switch ● Digital trim T1 ∼ T6 ● Hook ● HOME/EXIT Button ●...
Page 15 As with all radio frequency transmissions, the strongest area of signal transmission is from the sides of the transmitter's antenna. As such, the antenna should not be pointed directly at the model. If your If you ﬂy with your Low power transmitter facing the model at the angle shown in the illustration,...
Page 16 SF : SH : 2 positions; Alternate; 2 positions; Momentary; Long lever Long lever SE : SG : 3 positions; Alternate; 3 positions; Alternate; Short lever Short lever SA : 3 positions; Alternate; SD : 3 positions; Alternate; Short lever Short lever SB : 3 positions;...
Page 17 The Linear Slider LS and RS offer analog input. *The T18SZ transmitter beeps when the lever comes to the center. *You can select a slide lever and set the movement direction on the setting screen of mixing functions.
Page 18 This transmitter is equipped with 6 digital trims. Each time you press a trim button, the trim position moves one step. If you continue pressing it, the trim position starts to move faster. In addition, when the trim position returns to the center, the tone will change.
Page 19 This 2P connector connects FT2F2100B V2 to the transmitter. LiFe Battery The balance charge connector is not connected ① A side battery cover when the battery is installed in the transmitter. is opened. *This connector is used when charging with the LBC-4E5, which is sold separately.
Page 20 * If there is any problem, the message "Backup Error" will be shown the next time when you turn on the power of the transmitter. Do not use the transmitter as it is. Send it to the Futaba service center. WARNING Never plug the charger into an outlet other than the indicated voltage.
Page 21 When turning on the power, the T18SZ transmitter will begin emitting RF automatically after it part of the front of a T18SZ. *If THR stick is high, a WARNING screen will appear. Another warning will appear if a power supply is attached. (In Multicopter mode, the THR position alarm will not appear.)
Page 22 Tapping the settings buttons for Tap the panel with your finger to enter each value on the settings screen data. will cause value input buttons to appear at the top of the panel. be careful so that you don't scratch the Touch Panel Pressing and holding a value will push the Touch Panel with excessive force or drop return it to its default setting.
Page 23 CAUTION The T18SZ's touch screen is very sensitive. To avoid accidentally activating it during a flight, it is suggested that it be locked. Due to the touch screen's sensitivity, allowing it to be touched...
Page 24 The status of the transmitter is displayed by LED at the upper part of the front of a T18SZ. A Test mode Light lue light A T mode reen light mode ellow green light iolet light tarting ed light Trainer tudent...
Page 25 *Example Stick Mode2 A general model example. (There is also a diﬀerent operational model.) Roll Axis Control Pitch Axis Control Right roll Nose Up The right aileron is up. Elevator stick The left aileron Aileron stick is down. To the right (moved to the bottom) Elevator is Level ﬂight...
Page 26 *Example Stick Mode2 A general model example. (There is also a diﬀerent operational model.) Roll Axis Control Pitch Axis Control Right roll Nose Up Elevator stick Aileron stick To the right (moved to the bottom) Level ﬂight Level ﬂight Neutral Neutral Left roll Elevator stick...
Page 27 *Example Stick Mode2 A general model example. (There is also a diﬀerent operational model.) Roll Axis Control Pitch Axis Control Right roll Nose Up Right slide Elevator stick Aileron stick Back slide To the right (moved to the bottom) Hovering Level ﬂight Hovering Level ﬂight...
Page 28 sticks in line with your hand size. Stick head Stick head Side cover 1. Hold the lever head " " and turn the lever 3. Using your hand remove the transmitter's rear head "A" counter clockwise. The lock will be rubber grips.
Page 29 •Stick Tension (J4) (Mode 1/2) a stick lever either inwards or outwards from the •Stick Tension (J1) (Mode 1/2) center stick position. 1.5mm hexagonal wrench •Stick Tension (J3) (Mode 1) •Stick Tension (J2) (Mode 2) 1.5mm hexagonal wrench Turn screw counter-clockwise. Turn screw clockwise.
Page 30 You can choose either airplane ratchet system or helicopter-touch. *This transmitter has two ratchet plates, one for airplane and the other one for helicopter. If you tighten both screws, you won't be able to *If you want to change the setting from airplane to helicopter (or from helicopter to airplane), turn the ratchet screw clockwise until the throttle stick moves freely.
Page 31 The T18SZ transmitter model data can be stored by using any commonly found SD card. When T18SZ transmitter update software is released, the software is updated using an SD card. The T18SZ is capable of using SD cards with a memory size between 32MB and 2GB.
Page 32 When using an S.BUS servo and telemetry sensor, connect them both here. Earphone Connecting a stereo headphone to this plug, the Plug speech information of telemetry can be heard. Charge Plug This is the connector for charging the LiFe battery FT2F2100BV2 that is installed in the transmitter.
Page 33 DANGER Before using the receiver, be sure to read the precautions listed in the following pages. Don't attach a connector as shown in the preceding illustration. *It will short-circuit if connected in this way. A short circuit across the battery terminals may cause abnormal heating, ﬁre and burns.
Page 34 Link button for more than 2 seconds. 6. Once locked into the correct mode the LED will change to a solid color. The T18SZ has the ability to link to two 7. Please cycle the receiver(s) power off and R7008SB receivers. One of them outputting...
Page 35 The R7008SB has two antennas. In order to maximize signal reception and promote safe modeling Futaba has adopted a diversity antenna system. This allows the receiver to obtain RF signals on both *Must be kept as straight as possible. Antenna...
Page 36 Wood screw 2.3-2.6mm nut washer Rubber Rubber WARNING grommet grommet Brass eyelet Brass eyelet Servo mount Connecting connectors Servo mount 2.3-2.6mm screw Be sure to insert the connector until it stops at the deepest point. (Airplane/Glider) (Helicopter) How to protect the receiver from vibration and water To prevent the servo lead cable from being Wrap the receiver with something...
Page 37 even with models that use a large number of servos. In addition, the wings can be quickly installed to the fuselage without any erroneous wiring by the use of only one simple wire, even when there are a large number of servos used. S.BUS Glider usage example Receiver: R7008SB Servo: S3174SV×9 ( Optional )
Page 38 *When using 8/SB as S.BUS, you must set the receiver to Mode B or Mode D. See ●S.BUS Servo R7008SB CH MODE TABLE Since the channel number is memorized by the S.BUS itself, any connector can be used. When the SBD-1, SBD-2 (sold separately) Receiver is used, ordinary servos can be used with the S.BUS system.
Page 39 When using the S.BUS2 port, an impressive array of telemetry sensors may be utilized. S.BUS2 TABLE S.BUS Servo S.BUS2 Servo Receiver port Telemetry sensor S.BUS2 S.BUS Gyro Gyro S.BUS ○ ○ × S.BUS2 × （※） ○ ○ （※）Don't connect S.BUS Servo, S.BUS Gyro to S.BUS2 connector.
Page 40 S.BUS/S.BUS2 servos or a telemetry sensor can be connected directly to the T18SZ. Channel setting and other data can be entered for the S.BUS/S.BUS2 servos or sensors. 1. Connect the S. US device you want to set with as shown in the gure.
Page 41 This switch ESW-1J connects a Futaba receiver to a battery and is turned on and off in an FET circuit. Compared to using a mechanical switch, it allows more current to be sent with less loss. Receiver Battery The receiver power supply can be connected to any ＜...
Page 42: Basic Operation
BASIC OPERATION This is the Home screen and descriptions of its menus. Use your finger to operate the touch screen. Battery voltage for receivers Condition name Battery Indicator • In FASSTest/T-FHSS mode, it is • The condition name • When the battery voltage displayed.
Page 43 Each transmitter has an individually assigned, unique ID code. In order to start operation, the receiver must be linked with the ID code of the transmitter to which it is being paired. Once the link is made, the ID code is stored in the receiver and no further linking is necessary unless the receiver is to be used with another transmitter.
Page 44 setup a "Rx1" and "Rx2" in the "dual" mode. 9. ACT will be chosen if telemetry is used. It is INH when not using it. *Telemetry function cannot be used for the 2nd receiver. → FASSTest18CH *Telemetry function cannot be used for the dual mode.
Page 45 ◆ When the receiver has the transmitter's ID in memory, a link is established and normal operation is allowed. ◆ When the transmitter has the receiver's ID in memory, a link is established and telemetry functions are usable. The transmitter stores receiver IDs by model; thus, if it does not have a particular receiver model ID stored in memory or has a different receiver ID stored, telemetry functions will be unusable.
Page 46 "HOME/EXIT" button. NEVER start flying when the "Range check mode" is active. Should you require additional time to perform a range 3. T18SZ Power ON. check, highlight Restart before your time expires and tap 4. Select "Range check" at the System menu.
Page 47: Model Basic Setting Procedure
MODEL BASIC SETTING PROCEDURE Initial setting assigns 1 model to the T18SZ transmitter. The Model Select function is used to add models and to select models which are already set. If the direction of the servo is incorrect, adjust the direction with the Reverse function of the Linkage menu.
Page 48 This function is used when an air brake is necessary when taking off or diving, etc. offset amount can be activated by a switch. The offset amount of the aileron, elevator, and flap servos can be adjusted as needed. Also the speed of the aileron, elevator, and flap servos can be adjusted.
Page 49 Default setting assigns 1 model to the T18SZ. To add new models or to call a model already set, use the Model per model. select function. The Condition select function automatically allocates This is convenient when calling a model after (General setting) registering the model names in advance.
Page 50 For a description of the connection method, see "Servos connection by model type". Note: The channel assignment of the T18SZ is different from that of our existing systems. Swash plate correction (Except H-1 mode)
Page 51 matched to airborne ight. Set to -7º~ 12º as standard. *If throttle hold is necessary, please refer to the Throttle hold Pitch curve (Idle up 2) function. The high side pitch setting is less than idle up 1. The standard is +8º. Pitch curve (Hold) Throttle cut provides an easy way to stop the engine, At auto rotation, use the maximum pitch at both...
Page 52 The T18SZ transmitter channels are automatically assigned for optimal combination according to the type selected with the Model type function of the Linkage menu. The channel assignment (initial setting) for each model type is shown below. Connect the receiver and servos to match the type used.
Page 53 1AIL 2AIL 2AIL+1FLAP 2AIL+2FLAP 2AIL+4FLAP 4AIL+2FLAP 4AIL+4FLAP Airplane Glider Airplane Glider Airplane Glider Airplane Glider Airplane Glider Airplane Glider Airplane Glider Aileron Aileron Aileron Aileron Aileron Aileron Aileron Aileron Aileron Aileron Aileron Aileron Aileron Aileron Elevator Elevator Elevator Elevator Elevator Elevator Elevator Elevator...
Page 54 2AIL 2AIL+1FLAP 2AIL+2FLAP 2AIL+4FLAP 4AIL+2FLAP 4AIL+4FLAP Airplane Glider Airplane Glider Airplane Glider Airplane Glider Airplane Glider Airplane Glider Aileron Aileron Aileron Aileron Aileron Aileron Aileron Aileron Aileron Aileron Aileron Aileron AUX4 AUX4 AUX4 AUX4 AUX4 AUX4 Aileron2 Aileron2 Aileron2 Aileron2 Aileron2 Aileron2 Throttle...
Page 55 2AIL 2AIL+1FLAP 2AIL+2FLAP 2AIL+4FLAP 4AIL+2FLAP 4AIL+4FLAP Airplane Glider Airplane Glider Airplane Glider Airplane Glider Airplane Glider Airplane Glider Aileron Aileron Aileron Aileron Aileron Aileron Aileron Aileron Aileron Aileron Aileron Aileron Rudder2 Rudder2 Rudder2 Rudder2 Rudder2 Rudder2 Aileron2 Aileron2 Aileron2 Aileron2 Aileron2 Aileron2 Throttle...
Page 56 H-4/H-4X Swash All other Aileron Aileron Elevator Elevator Throttle Throttle Rudder Rudder Gyro Gyro Pitch Pitch Governor Governor Elevator2 Governor2 Gyro2 Gyro2 Gyro3 Gyro3 Governor2 Needle Needle AUX5 AUX4 AUX3 AUX2 AUX1 H-4/H-4X Swash All other Aileron Aileron Elevator Elevator Throttle Throttle Elevator2...
Page 57 Multicopter Aileron Elevator Throttle Rudder Gyro Gyro2 Gyro3 Camera TILT Camera PAN Camera REC Mode AUX5 AUX4 AUX3 AUX2 AUX1 SW SH SW SH SW SA SW SA ＜ Model Basic Setting Procedure ＞...
Page 58: System Menu
SYSTEM MENU When the System menu button is tapped, The System menu sets up functions of the the menu shown below is called up. Tap the transmitter. This does not set up any model data. function button that you want to enter. Return to Home screen [Display]: Display adjustment.
Page 59 Display The following LCD screen adjustments: Backlighting brightness adjustment Backlighting decrease time adjustment Touch screen calibration Tap the [Display] button in the System menu to call the setup screen shown below. Return to System menu Backlight max. brightness adjustment Touch calibration 1.
Page 60: Sound Volume
Date and Time This function adjusts the system clock of the The system timer can also be reset. T18SZ transmitter. Perform this setting when you *The system timer is displayed on the Home screen. purchase the set and when adjustment is necessary.
Page 61 To change the mode the stick ratchet must be use. changed. Request that this be done by Futaba Tap the [H/W setting] button in the System menu to call the setup screen shown below.
Page 62: Range Check
Low battery alarm voltage set Battery Select the battery alarm voltage according to the battery to be used. It isn't indicated in case of manual setting. Return to System menu Battery type change : LiFe(2cells) → NiMH(5cells) → Manual setting When choosing manual setting, the numerical value can be input.
Page 63: S.bus Servo
An S.BUS(2) servo can memorize the channel and various settings you input. Servo setting can be performed on the T18SZ screen by wiring the * With some S.BUS(2) servos, there are some functions which cannot be used. If a function cannot be used, the display S.BUS/S.BUS2...
Page 64 S.BUS Servo Description of function of each parameter *There are functions that can and cannot be performed according to the servo type. • ID Displays the ID of the servo whose parameters are to be read. It cannot be changed. •...
Page 65 • Boost ON/OFF OFF : It is the boost ON at the time of low-speed operation.(In the case of usual) ON : It is always the boost ON.(When quick operation is hope) • Damper The characteristic when the servo is stopped can be set. When smaller than the standard value, the characteristic becomes an overshoot characteristic.
Page 66 Information language and Unit system used by the system can also be changed. The Information screen displays the T18SZ This function registers the T18SZ user name system program version information, SD card and the language displayed at proportional can be (memory size, card free size) information.
Page 67: Linkage Menu
LINKAGE MENU Tap the [Linkage menu] button in the Home screen to call the setup screen shown below. Select the function name and return to the Home screen. ＜ Linkage menu ＞...
Page 68: Servo Monitor
Servo Test Graph Display / Displays servo positions. Servo monitor Test mode change : Select [Servo monitor] at the linkage menu and OFF → Neutral → Moving call the setup screen shown below. ＜ or ＞ ● Long press the [U.MENU/ M O N .
Page 69: Model Select
The Model selection function performs model addition, call, Model select deletion, copy, and model name setting. Select [Model select] at ● When model data on the linkage menu and a SD card is used, this call the setup screen icon appears. shown below.
Page 70 Model call Model deletion 1. Tap the Internal or SD card. Select the 1. Tap the select model name or the model you location to which the desired model is to be want to delete in the model list. saved. (The model currently selected cannot be deleted.) 2.
Page 71 Model name change Model copy 1. The model data chosen at current model 1. The model data chosen at current model can be changed. The current model name, can be copied. The current model name, tap. tap. 2. When [Rename] is tapped, a keyboard appears on the screen.
Page 72: Model Type
This function selects the model type from among airplane, glider, Model type helicopter, and multicopter. Note: The Model Type function automatically selects the appropriate output channels, control functions, and mixing functions for the chosen model type. When the Model Type Selection command is accessed, all of the data in the active memory is cleared.
Page 73 Set the type you choose by tapping Airplane/Glider : Choose the Helicopter : Choose the wing type and tail. swash type. ＜ Linkage menu ＞...
Page 74: Servo Reverse
Use to reverse the servo throw direction. Servo Reverse WARNING Before a flight, it always check that your model's servo operation, the direction of control surfaces, and switch setup are correct. Default setting of the throttle/motor channel is always reverse. Tap the [Servo reverse] button in the Linkage menu to call the setup screen shown below.
Page 75: End Point
Sets the travel, limit point. End point 30 ∼ 30 ∼ 140% 140% Tap the [End point] button in the Linkage menu to call the setup screen shown below. Travel rate Limit point Next page Return to 7-16 Ch Linkage menu Tap the values you wish to adjust and value input buttons...
Page 76: Servo Speed
Sets the speed of each servo. Servo speed （First） 0 ∼ 27 （Slowly） Tap the [Servo speed] button in the Linkage menu to call the setup screen shown below. Return to Linkage menu Servo speed setting 3. Repeat this procedure for each channel. 1.
Page 77 Channel assignment for each function can be changed to suit your needs. Function DG1, DG2 (switch channels) Channel restrictions by a System Type Tap the [Function] button in the Linkage menu to call the setup screen shown below. Return to Linkage menu Function change Operation control change...
Page 78 Trim change 1. Tap the trim button to call the trim setup screen. H/W reverse 2. The following items can be set at the trim setup screen. Hardware setting (Selection of switch, etc. which controls trim) Rate setting Trim mode setting Normal mode: Normal trim (linear) operation ATL mode: ATL operation mode.
Page 79 Sets the servos' operating position when transmitter signals can no Fail safe longer be received or when the receiver battery voltage drops. WARNING For safety, always set the fail safe functions. ■ Especially set the throttle channel fail safe function so that the servo moves to the maximum slow side for airplanes and to the slow side from the hovering position for helicopters.
Page 80: System Type
System mode setting, Receiver link System type System Type selection Dual receiver function (only FASSTest 18CH mode) Select [System type] in the Linkage menu and access the setup screen shown below. Return to Linkage menu Telemetry function (FASSTest /T-FHSS mode) Receiver linking DL Interval (only FASSTest mode) Linking method...
Page 81 The example for choosing System Type -Want to use a -Want to use an miniature receiver T-FHSS system -Response speed has -Want to use a -Want to use an for indoor planes receiver priority over number previously used S-FHSS system of channels receiver as is miniature receiver...
Page 82: T1-T6 Setting (Trim)
Digital trim settings T1-T6 setting (Trim) Select [T1-T6 setting] at the linkage menu and call the setup screen shown below. Return to Linkage menu Control step amount setting Separate/combination mode selection 1. The [Step] item tap the screen to the data [Comb.]: Combination mode.
Page 83: Throttle Cut
Stops the engine safely and easily. Throttle cut − Tapping this will change − " INH to either OFF or ON Tap the [Throttle cut] button in the Linkage menu to and activated. call the setup screen shown below. Return to Linkage menu The yellow line is the cut position.
Page 84 Lowers the engine idling speed. Idle down −− " Select [Idle down] at the linkage menu and call the setup screen shown below. Tapping this will change INH to either OFF or ON and activated. Return to Linkage menu T h i s i s t h e i d l e d o w n throttle position.
Page 85: Swash Ring
Limits the swash travel within a xed range to prevent linkage damage Swash ring (Helicopter only) Tap the [Swash ring] button in the Linkage menu to call the setup screen shown below. Return to Setting the function to Linkage menu "ACT"...
Page 86 Swash operation linkage correction function (helicopter only, except Swash swash type H-1). Neutral Point Mixing Rate Linkage Compensation Swash AFR Speed Compensation Select [Swash] at the linkage menu and call the setup screen shown below. Return to Linkage menu ＜ Linkage menu ＞...
Page 87 Linkage correction setting procedure Neutral point setting procedure 1. Hold the servo horn at a right angle to the linkage rod, and then tap the [Enter] button and read the actual neutral point. 1. Set the throttle stick to the maximum slow position.
Page 88: Stick Alarm
Stick alarm Alarm function ON/OFF can be set by switch. Tapping this will change INH to ON and activated. If the throttle stick Return to Linkage menu reaches the yellow l i n e , a n a l a r m w i l l sound.
Page 89 Timer setting Timer Last twenty seconds Last ten seconds Target time Time ： Two short Continue counting One short Alarm : Also beeps with displaying a beep minus (-) sign. beep Select [Timer] at the linkage menu and call the setup screen shown below.
Page 90: Function Name
Function name can be changed Function name Tap the [Function name] button in the Linkage menu to call the setup screen shown below. Return to Linkage menu Function name change method 6. The function name may be displayed in 10 1.
Page 91: Telemetry System
P.98 voltage. Using various optional Optional telemetry sensors are necessary. P.92 telemetry sensors. T18SZ setting is unnecessary. Using several telemetry Setting by "sensor" in the menu is necessary. P.94 sensors of the same type. (Register is necessary.) Setting alarms from the Setting by "Telemetry"...
Page 92 Home display HOME/EXIT is pushed 4 of telemetry data is displayed *Be aware that pressing and holding this activates the key lock Y o u c a n c h o o s e which type of sensor t o d i s p l a y f o r f o u r displays.
Page 93 Various telemetry sensors setting Sensor [What is a slot?] sensors “slot” slots No. 1 No. 31 Altitude sensors, GPS sensors multiple slots start slot Tap the [Sensor] button in the Linkage menu to call the setup screen shown below. Slot Number Registered sensor Sensor ID : Multiple usage of sensors Tap the slot to display...
Page 94: Sensor：reload
Return to Linkage menu Reading all the sensors to be used 1. Connect the sensor to the T18SZ as shown in the gure above. 2. Tap Reload on page 3/3 of the [Sensor] screen. 3. Tap Reload . All the sensors are registered and can be used.
Page 95 Tap the [Change slot] button in the Sensor screen to call the setup screen shown below. Sensor slot change 1. Connect the sensor to the T18SZ as shown in the gure above. 2. Tap Change slot on page 3/3 of the Sensor screen.
Page 96 Displaying data from the receiver Telemetry T a p p a g e b u t t o n t o Tap the [Telemetry] button in the Linkage menu to advance to next page. call the setup screen shown below. ( T h e n u m b e r o f p a g e s changes with the number of sensor registration.)
Page 97: Telemetry: Receiver [Battery]
Displaying data from the Telemetry: Receiver [Battery] receiver battery voltage Tap the [Receiver] button in the Telemetry screen to call the setup screen shown below. Return to Receiver battery Linkage menu voltage Max. and min. values s i n c e t h e p o w e r was turned ON will display.
Page 98 Displaying data from the EXT Telemetry: Receiver [Ext. battery] battery voltage port *CA-RVIN-700 must be installed in the aircraft. Tap the [Receiver] button in the Telemetry screen to call the setup screen shown below. Return to Linkage menu Ext. battery voltage Max.
Page 99: Telemetry : Temperature
Displaying data from the temperature Telemetry : Temperature *A temperature sensor must be installed in the aircraft. Tap the [Temperature] button in the Telemetry screen to call the setup screen shown below. Return to Linkage menu Temperature Max. and min. values s i n c e t h e p o w e r was turned ON will display.
Page 100: Telemetry : Rpm Sensor
Displaying data from the rpm Telemetry : RPM Sensor *A rpm sensor must be installed in the aircraft. Tap the [rpm sensor] button in the Telemetry screen to call the setup screen shown below. Return to Linkage menu Max. and min. values s i n c e t h e p o w e r was turned ON will display.
Page 101 Displaying data from the altitude Telemetry : Altitude *An altitude sensor or GPS sensor must be installed in the aircraft. Tap the [Altitude] button in the Telemetry screen to call the setup screen shown below. Return to Linkage menu Altitude Max.
Page 102: Telemetry : Altitude [Variometer]
Displaying data from the Telemetry : Altitude [Variometer] variometer *An altitude sensor or GPS sensor must be installed in the aircraft. Tap the [Variometer] button in the Telemetry screen to call the setup screen shown below. Return to Linkage menu Max.
Page 103: Telemetry: Voltage [Battery]
Displaying data from the receiver battery voltage Telemetry: Voltage [Battery] *SBS-01V must be installed in the aircraft. ⇔ ⇔ Tap the [Voltage] button in the Telemetry screen to call the setup screen shown below. Return to Linkage menu Battery voltage Max.
Page 104 Di sp la yi ng dat a f ro m t he EXT Telemetry: Voltage [Ext. battery] battery voltage port *SBS-01V must be installed in the aircraft. ⇔ ⇔ Tap the [Voltage] button in the Telemetry screen to call the setup screen shown below. Return to Linkage menu Ext.
Page 105: Telemetry : Gps [Distance]
Displaying data from the Distance Screen Telemetry : GPS [Distance] *A GPS sensor must be installed in the aircraft. Tap the [GPS] button in the Telemetry screen to call the setup screen shown below. Return to Linkage menu Distance Max. and min. values s i n c e t h e p o w e r was turned ON will display.
Page 106 First, the set of a reference is required. Setting a "too close" alarm distance 1. The model and transmitter to which the GPS 1. Tap Alarm and choose from Bu er, Voice, sensor was connected are turned on. and Inhibit. 2.
Page 107: Telemetry : Gps [Speed]
Displaying data from the speed Telemetry : GPS [Speed] *A GPS sensor must be installed in the aircraft. Tap the [GPS] button in the Telemetry screen to call the setup screen shown below. Return to Linkage menu Max. and min. values Speed s i n c e t h e p o w e r was turned ON will...
Page 108: Telemetry : Gps [Altitude] [Variometer] [Position]
Telemetry : GPS [Altitude] [Variometer] [Position] *A GPS sensor must be installed in the aircraft. Select [GPS] in the Telemetry screen and access the setup screen shown below. Return to Linkage menu Max. and min. values s i n c e t h e p o w e r was turned ON will display.
Page 109: Telemetry : Servo Sensor [Current]
Telemetry : Servo sensor [Current] *Servo sensor must be installed in the aircraft. Tap here and go to the Servo 2 settings page. Select [Servo sensor] in the Telemetry (Display and settings screen and access the setup screen shown content is the same as below.
Page 110: Telemetry : Servo Sensor [Temperature] [Angle]
Telemetry : Servo sensor [Temperature] [Angle] *Servo sensor must be installed in the aircraft. Select [Servo sensor] in the Telemetry screen and access the setup screen shown below. Return to Linkage menu ● Temperature ↑ An upward arrow indicates the alarm will sound when the temperature reaches above your set value.
Page 111 Telemetry : Current [Current] [Voltage] [Capacity] *Current sensor must be installed in the aircraft. Select [Current] in the Telemetry screen and access the setup screen shown below. Return to Linkage menu Current Max. and min. values Tapping this will s i n c e t h e p o w e r Voltage take you to the was turned ON will...
Page 112: Tele. Setting
■ Extension FLD: Log data file *When copying or moving a log file, always select both the .FLI file and .FLD file. Log files can be converted to CSV format by using the telemetry log converter available at the Futaba website. ■ Notes ◇...
Page 113 Types of transmitters System Type Trainer setting System Type Trainer setting Trainer Cords Instructor Student Mod. mode CH mode Mod. mode CH mode Mod. mode T18SZ,FX-32 T18SZ,FX-32 Arbitrary 16CH Arbitrary 16CH T14SG,T18MZ T14SG,T18MZ T12FG (FUTM4405) T14MZ, FX-40, PCM-G3 and 9C (FUTM4415) T18SZ...
Page 114 "16/12/8 CH": When the student uses the "16/12/8 CHANNEL": When the student uses T18SZ,T14SG,T18MZ, select [16CH]. When the the T18SZ (including the T18MZ, T14SG)select student uses the T14MZ, T12Z, T12FG or FX-40, [16CH]. Otherwise select [12CH]or[8CH]. select [12CH]. Otherwise select [8CH].
Page 115 3. Select the operating mode for each channel. Trainer student channel setting function "NORM": The model is controlled by signals from the student transmitter. "MIX" mode: The model is controlled by s i g n a l s f r o m t h e t e a c h e r a n d s t u d e n t transmitters.
Page 116: Warning Setting
Mixing warning normal reset Warning setting Tap the [Warning setting] button in the Linkage menu to call the setup screen shown below. Return to Linkage menu The settings can be changed "Vibrator" type individually. When set to If the following types are selected, the transmitter [Inhibit], a warning is not will vibrate during the warning.
Page 117: User Menu Setting
Original menu screen making User menu setting Tap the [User menu setting] button in the Linkage menu to call the setup screen shown below. Return to Linkage menu Tap here to select your ﬁrst choice. Once pressed, 3 pages of choices will be displayed. When "---"...
Page 118: Data Reset
Model memory setting data reset. (by item) Data reset Model menu setting: All model setting: T1~T6 (All condition): Function Name: T1~T6 (Current and Group condition): Telemetry: Select [Data reset] at the linkage menu and call the setup screen shown below. Return to Linkage menu Data resetting method [T1-T6 (All condition)]: Resets only the T1-T6 (all...
Page 119: Model Menu (Common Functions)
Select function to add flight conditions. (Up to 8 and other functions common to all model types. conditions can be used) Note: The T18SZ is designed so that the airplane and Before setting the model data, use the Model glider model types are compatible with aircraft of Type function of the Linkage menu to select the similar type wings.
Page 120: Condition Select
Flight condition's addition, deletion, copy, condition renaming, Condition select and condition delay can be set. [All model types] when there are sudden changes in the servo The functions in the Model menu can be used by positions and when there are variations in switching the settings of up to 8 flight conditions the operating time between channels during condition switching can be suppressed.
Page 121 Currently selected condition name The ON/OFF switch of Conditions List condition is chosen. 1. Tap the [Copy] button. The Copy screen 1 . S e l e c t t h e c o n d i t i o n b y appears.
Page 122 The angle and curve of each operation function can be set. [All model types] Operation curve adjustment: Three types AFR function is used to adjust the throw and of curves (EXP1, EXP2, and Point) can be operation curve of the stick, lever, and switch selected.
Page 123 Dual rate D/R curves which can be switched by switch, etc. can be added. The curve can be adjusted by the AFR function. Up to 6 rates can be added for each condition. D/R is set for each condition and is not re ected at other conditions.
Page 124: Prog. Mixes
Program mixing which can be freely customi ed. Up to 10 Prog. mixes mixings can be used for each condition. [All model types] Offset-type mixing applies a fixed offset or Programmable mixing may be used to correct preset to the programmed channel servo operation undesired tendencies of the aircraft, and it may also and may control up to four circuits simultaneously.
Page 125 Trim mode ON/OFF setting 1. To turn the trim mode ON/OFF, tap the Trim Group/single mode selection button on the screen. Activating functions for only the selected conditions: *When mixing includes master side trim, set the Trim button to [ON]. When mixing does not include master side trim, set 1.
Page 126: Model Menu
Model menu functions section. First use (Up to 8 conditions can be used) Note: The T18SZ is designed so that the airplane and the Model type function of the Linkage menu to glider model types can handle aircraft of the same preset the model type, wing type, and tail type wing type.
Page 127 Camber mixing This mix adjusts the camber and corrects the This function is used when airbrakes are necessary when landing or when diving, etc. during flight. elevators. [Airplane/glider, 2 ailerons or more] [Airplane, general] This mix is used to correct operation of the airbrakes (spoilers) when landing.
Page 128: Aileron Differential
[Airplane/glider, 2 ailerons or more] Aileron diﬀerential The left and right aileron differential can be adjusted independently. The differential rate can also be adjusted according to the flying state by AIL1 AIL 2 (Main Aileron) (Main Aileron) AIL 3 AIL 4 (Chip Aileron) (Chip Aileron) Select [Aileron differential] at the...
Page 129: Flap Setting
[Corresponding model type]: Airplane/ Flap setting glider, 2 aps or more] The up/down travel of each flap (camber flaps: FLP1/2, brake flaps: FLP3/4) can be adjusted independently at each servo according to the wing type. The operation reference point of each ap can be FLP 4 FLP 3 offset...
Page 130 [Corresponding model type]: Airplane/ AIL → Camber ﬂap glider, 2 ailerons + 2 aps or more This mix operates the camber flaps (FLP1/2) in the aileron mode. When the aileron stick is manipulated, the ailerons and camber flaps perform aileron operation simultaneously and the operation characteristic of the roll axis is FLP 1 FLP 2...
Page 131 [Corresponding model type]: Airplane/ AIL → Brake ﬂap glider, 4 aps or more This mix operates the brake flaps (FLP3/4) in the aileron mode. When the aileron stick is manipulated, the aileron and brake flaps perform the aileron operation simultaneously FLP 4 FLP 3 (Brake Flap)
Page 132 [Corresponding model type]: Aileron → Rudder Airplane/glider, general Use this mix when you want to mix the rudders with aileron operation. A mixing curve can be set. AIL1 AIL 2 Mixing during ight can be turned ON/OFF by (Main Aileron) (Main Aileron) AIL 3 AIL 3...
Page 133 [Corresponding model type]: Airplane/glider, 2 ailerons or more Elevator → Camber This function is used when you want to mix the A mixing curve can be set. Mixing during ight can be turned ON/OFF by be increased. setting a switch. (Always ON at [--] setting) The mixing rate can be ne-tuned by setting a VR.
Page 134: Camber Mixing
[Corresponding model type]: Airplane/glider, 2 ailerons or more Camber mixing The up/down side rates of the aileron, ap, and elevator servos can be adjusted by curve. When This function adjusts the rate of camber the mixing direction is reversed by the linkage, operation which operates the wing camber adjustments can be made by changing the (ailerons, camber flaps, brake flaps) in the...
Page 135 Setting method (Curve/rate setup screen) Tap [INH]. The curve and rate are adjusted by calling (ON is displayed.) the aileron, flap, and elevator curve/rate When setting a switch, tap to the [--] item screens. of the switch and tap the screen to call the The rate and curve of each servo can be set selection screen, and then select the switch by calling each screen.
Page 136 [Corresponding model type]: Airbrake → ELE Airplane/glider, general AIR BRAKE This mix is used when you want to mix the elevators with airbrake (spoiler) operation. It raises the elevators to correct for dropping of the nose during airbrake operation. AILVATOR V-TAIL *This function does not operate when airbrake is not assigned at the Function menu in the Linkage menu.
Page 137 [Corresponding model type]: Airplane/ Camber ﬂap → ELE glider, 2 ailerons + 1 ap or more This mixing is used to correct changes (elevator FLP 1 FLP 2 The elevator servos up side/down side rate can be (Camber Flap) (Camber Flap) adjusted.
Page 138 [Corresponding model type]: Rudder → Aileron Airplane/glider, general This function is used when you want to mix the ailerons with rudder operation. It is used when rudder is applied during roll maneuvers, AIL1 AIL 2 (Main Aileron) (Main Aileron) knife edge, etc. of stunt planes. It can be used to AIL 3 AIL 3 (Chip Aileron)
Page 139 [Corresponding model type]: Airplane, general Rudder → Elevator Link can be set: Links this mixing to other mixings. This function is used when you want to mix The mixing rate can be ne-tuned by setting a VR. elevator operation with rudder operation. It is used (Fine tuning) to correct undesirable tendencies when rudder is applied in roll maneuvers, knife edge, etc.
Page 140 [Corresponding model type]: Glider, 2 ailerons or more Butterﬂy Mixing during ight can be turned ON/OFF by This function allows powerful brake operation setting a switch. (Always ON at [--] setting) by simultaneously raising the left and right The butter y operation reference point can be ailerons and lowering the flaps (camber flap, offset.
Page 141 (Elevator correction rate setup screen) Overall adjustment by Rate A and Rate B Mixing curve setting *For a description of the curve setting method, see the description at the back of this manual. FLP 4 FLP 3 (Brake Flap) (Brake Flap) FLP 1 FLP 2 (Camber Flap)
Page 142 [Corresponding model type]: Glider, general Trim mix 1/2 These functions call the ailerons, elevators, and Example 1. Move to the [INH] item Set the trim mix function to [ON]. The amount of ailerons, elevator, and flaps *When separating the settings for each condition, move to the [Group] item and set it to [Single].
Page 143 [Corresponding model type]: Airplane, general Snap roll Mode: [Master] This function selects the switch and rate Safety SW: [SW-G] (Safety measure) adjustment of each rudder, (ailerons, elevators, or M a s t e r S W : [ S W - H ] ( M a i n s w i t c h f o r Four snap roll directions can be set.
Page 144: Air Brake
Air brake This function is used when an air brake is necessary when landing or diving, etc. Elevator The preset elevators and flaps (camber flap, Aileron 2 brake flap) offset amount can be activated by a switch. Aileron 1 The offset amount of the aileron, elevator, and flap servos can be adjusted as needed.
Page 145 Tap to the [Rate] item. Adjust the rate. When using this function, Tap [INH]. When a Futaba GYA gyro is used, when [GY] type is selected, the sensitivity set value is directly read in both the AVCS and Normal modes.
Page 146 Wing type: Aileron 2 servos mounted fuselage selected (GYA431AIL), (GYA431ELE), (GYA430RUD), : at 5CH → Gyro 7CH → Gyro2 8CH → Gyro3 Control and Trim → "--" the Function menu of the Linkage menu. Gyro setting of the Model menu. Rate Type Switch...
Page 147 [Corresponding model type]: Airplane/glider, Tail type Ailevator Ailevator (Effective only when 2 servos used at the elevators) T h i s f u n c t i o n i m p r o v e s t h e o p e r a t i n g performance of the roll axis by operating the elevators as ailerons.
Page 148 [Corresponding model type]: Glider, general Acceleration Acceleration setting can be performed at Rudder. (Glider only) This setting is divided into elevator setting and camber setting. The setting method is the same. Camber setting sets the acceleration function for Elevator to camber mixing. Setting is not performed when Ele to camber mixing is INH.
Page 149 [Corresponding model type]: Airplane/glider, general Motor The set operation speed operation can be This function lets you set the operation speed activated at initial operation only. (1 time when the motor of a F5B or other EP glider is operation) However, operation can be repeated started by switch.
Page 150 [Corresponding model type]: Airplane/glider, Tail type V-tail V-Tail This function lets you adjust for left and right rudder angle changes at elevator and rudder operation of a rudder movement as elevators. In addition to each ELEVATOR RUDDER rudder side moving up and down together, each side (RUDDER 2) (ELEVATOR 2) moves in opposite directions when moving as elevators.
Page 151 [Corresponding model type]: Airplane/glider, winglet(2RUD) Winglet This function adjusts the left and right rudder angles of airplanes with winglets. Winglets are used to improve the efficiency of wingtip vortices. The winglet is a vertical or angled RUDDER 1 Winglet extension at the tips of each wing. at Flying wing Winglets work by increasing the effective aspect RUDDER 2...
Page 152 MODEL MENU (Helicopter functions) This section contains information on the Also, add flight conditions at the Condition commands that apply to helicopters only. For Select screen if necessary before setting the model instructions on airplane, glider and multicopter, data at each function. (Up to 8 conditions can be refer to the sections pertaining to those aircraft.
Page 153 Pitch curve / Pitch trim *Up to 17 points can be set for the point curve types. This function adjusts the pitch operation curve create a curve, a simple curve can be created by reducing relative to movement of the throttle stick. the number of input points to 3 or 5, and then entering the a curve.
Page 154 Setting method Group/Single item: When you also want to input the same setting contents at other conditions, perform setting in the group mode. In this case, the same contents are input to the other conditions set in the group mode. When you want to set each condition independently, select the single mode (initial setting).
Page 155 The hovering pitch, low pitch, and high pitch trim setup screen can be called from the Pitch curve setup screen. Return to Model menu Hovering pitch trim Low/high pitch trim setting setting Hovering pitch trim High Pitch/Low Pitch Trim The Hovering Pitch trim function trims the pitch High Pitch/Low Pitch Trim is the pitch servo near the hovering point.
Page 156 Throttle curve / Throttle Hover trim This function adjusts the throttle operation curve point data is used, a simple curve can be easily for each condition for optimum engine speed to created by reducing the number of input points of throttle stick movement.
Page 157 Curve setting examples created by reducing the number of points on the The curves shown below are created by using line to 5. When actually creating a curve, enter the point curve type and inputting the data of the 5 points 0% (low side), 25%, 50% (center), 75%, value).
Page 158 Acceleration This function is used to adjust the pitch and the throttle rise characteristic at acceleration/ deceleration operation. An acceleration function which temporarily increases the pitch and throttle operations at throttle stick acceleration/deceleration operation can be set. Example of acceleration function use When used at pitch, the acceleration function is effective when you want to uicken the response of the fuselage at 3D...
Page 159: Throttle Hold
Throttle hold Example of use Since throttle hold has 2 modes (Cut) and (Idle), using it in the Idling mode during This function sets the throttle cut position for t r a i n i n g a n d i n t h e C u t m o d e w h e n auto rotation.
Page 160: Swash Mixing
Swash mixing Example of use As an example, use swash mixing to correct undesirable tendencies in the roll direction. The swash mix function is used to correct the For a condition which uses Aileron to swash plate in the aileron (roll) direction and Elevator, set this function to ON.
Page 161: Throttle Mixing
Throttle mixing When correction is necessary, tap to the mixing item corresponding to the mixing that needs This function corrects slowing of engine speed correction and tap the screen to call the curve setup caused by swash plate operation during aileron screen, and then correct the slowing.
Page 162 Pitch → Needle This mixing is used when the engine is equipped acceleration/deceleration operation can be set. with needle control or other fuel-air mixture The rise characteristic of the needle servo at adjustment. A needle curve can be set. acceleration and deceleration operation can be adjusted.
Page 163 Pitch → Rudder (Revolution mixing) Use this mix when you want to suppress the However, when a GY Series or other heading reaction torque generated by main rotor pitch and hold gyro is used, since correction is performed speed changes during pitch operation. Adjust so by the gyro, this mix is not used.
Page 164: Gyro [Helicopter]
Gyro [Helicopter] Note: [Gyro] [Gyro2] [Gyro3] Default function This function is used to adjust gyro sensitivity. [Gyro]: CH6(FASSTest12CH) CH5(Other system type) The sensitivity and operation mode (Normal mode/ [Gyro2] : CH9 AVCS mode) can be set for each condition. [Gyro3] : CH10 The gyro sensitivity can be switched with each Always set to [--] both (control) and (trim) for condition or the switch.
Page 165 Usage example #1: Using gyro for only the rudder and adjusting sensitivity for each condition ＊ Gyro gain channel Gyro : CH5 For the FASSTest12CH, Gyro/RUD is 6ch. The gyro sensitivity adjustment connector connects to 6ch. Select [Gyro] at the model menu and call This is all that is needed the setup screen.
Page 166 Governor When using a Futaba governor, this function is *When using the Fuel Mixture function, the mixture servo is controlled from the governor. When transmitting the used to switch the RPM of the helicopter's head. mixture curve data from the transmitter to the governor, the Up to 3 rates can be set for each condition.
Page 167 Tap to the rate item . * In order to use the Governor function of the T18SZ, it is necessary to change the settings on the governor for the low Adjust the trim rate by "...
Page 168: Common Operations Used In Function Setup Screen
Common operations used in function setup screen This section describes the functions often used at the function setup screen. Refer to it when setting each function. Tapping the value setting buttons each screen will cause value input buttons to appear at the top of the panel. Value input buttons display at the top of the panel Pressing and holding...
Page 169 Operation mode selection *The operation modes which can be selected depend on the function. VR selection Rate adjustment (Fine tuning VR operation position) [Setting method] [Fine tuning VR operation mode] 1. Control selection [LIN.] M i x i n g r a t e 0 a t c e n t e r o f V R .
Page 170 Linear （First） 0 ∼ 27 （ Slowly） In case of Linear Speed In speed Servo speed setting The servo speed at each function operation (including flight condition switching) can be adjusted. The servos Out speed Speed operate smoothly at a fixed speed corresponding to the set speed.
Page 171 This section describes the setting procedure of curves which are used with the AFR function and each mixing function. Curve type selection Three types of curves (EXP1, EXP2, Point and Spline) can be selected. Curve type selection 1. Tap the button of the curve type you want to use.
Page 172 Setting by curve type When the curve type is selected as described above, adjustment items corresponding to the curve type appear on the screen. Adjust each curve as described below. EXP1/EXP2 curve adjustment [Offsetting the curve horizontally in the vertical direction] (EXP1 curve) 1.
Page 173 2. Tap the [Remove] button. (The selected Line and spline curve adjustment point becomes an outlined point.) 3. Tap the move between point button [ ← ] or [ → ]. *The point is deleted. The curve can also be offset horizontally in the vertical direction.
Page 174 The various functions used in the T18SZ can be selected by switch. The switch (including when stick, trim lever, or VR are used as a switch) setting method is common to all functions. Switch selection When a switch is selected at a mixing function, etc., the selection screen shown below is called.
Page 175 Operation modes Shifting the ON/OFF point The operation modes when stick, trim lever, or The ON/OFF point can be shifted. ON/OFF knob was selected are described below. at a free position can be changed. Linear mode Green range: OFF range Red range: ON range This mode sets ON/OFF at the left or right (up or down) with the set point as the reference.
Page 176 Logic switch (Condition select function only) The logic switch function lets you turn operation on and off by combining two switches. For instance, the condition is activated when 2 switches are turned on. Logic mode AND: When both switches are ON, the condition is ON.
Page 177 Your Futaba T18SZ transmitter programming can be updated easily online. When functions are added and then use the following procedure to update the program. Check our web site for the FAQ regarding updating for more information. Updating procedure 5. Insert the SD card with "FUTABA" folder that...
Page 178 Contact your local service center when this error message appears on the LCD screen of your T18SZ. FUTABA CORPORATION Phone: +81 475 32 6982, Facsimile: +81 475 32 6983 1080 Yabutsuka, Chosei-mura, Chosei-gun, Chiba-ken, 299-4395, Japan ©FUTABA CORPORATION 2015, 11 (WEB V1.4)
