How to update T16IZ SUPER
Your Futaba T16IZ SUPER transmitter programming can be updated
easily online. When functions are added or improved, the update file
can be downloaded from our website. Copy the update files to the
microSD card and then use the following procedure to update the
program. Check our web site for the FAQ regarding updating for more
information.
Note: If the battery fully discharges during
program updating, updating will fail. When
the remaining battery capacity is 50% or
less, always recharge the battery before
updating.
Note: The model data in the transmitter can
be used unchanged after updating, but to
be safe, back up the model data before
updating.

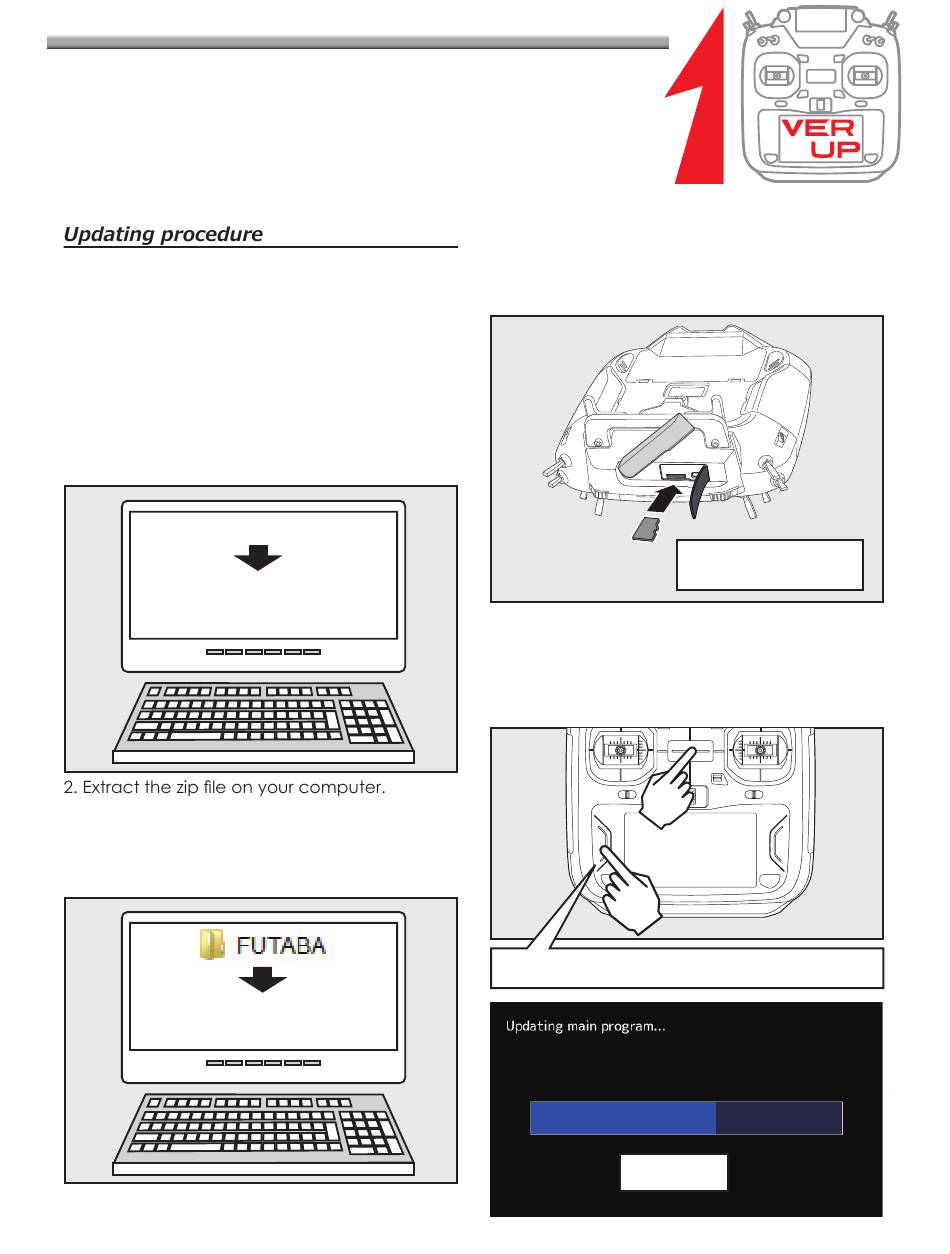

1. Download the zip file of the update data
from our website.
Futaba WEB
16IZ SUPER Update Zip file
Download
3. The "FUTABA" folder will be created on your
computer.
4. Copy the "FUTABA" folder into your microSD
card.
Copy the "FUTABA"
folder into your SD card.
Note: If the microSD card has already had
"another FUTABA" folder before you make a
copy, the "FUTABA" folder is OVERWRITTEN.
5. Insert the microSD card with "FUTABA" folder
that contained the update software into
the SD card slot on your T16IZ SUPER radio
transmitter.
6. Turn on the transmitter power while pressing
down the "HOME/EXIT" button. The update
screen appears on the LCD display of your
T16IZ SUPER and the software update is
started.
2
1
Press the HOME/EXIT switch and turn on
Updating
Installed microSD card
of the update file
Advertisement
Related Manuals for FUTABA T16IZ SUPER
Summary of Contents for FUTABA T16IZ SUPER
- Page 1 5. Insert the microSD card with "FUTABA" folder that contained the update software into Note: If the battery fully discharges during the SD card slot on your T16IZ SUPER radio program updating, updating will fail. When transmitter. the remaining battery capacity is 50% or less, always recharge the battery before updating.
- Page 2 1. Detach the battery from the transmitter. Complete 2. Insert the microSD card that contained 3. Attach the battery to the transmitter 8. Turn off the power switch of your T16IZ SUPER while pressing down the "HOME/EXIT" and remove the microSD card from the card button.
- Page 3 T16IZ SUPER SOFTWARE UPDATE CHANGES 1M23Z09110 V4.0 This software updates or alters the functions and features noted below. The instructions and information that follow are meant as a supplement to the original instruction manual that accompanied the T16IZS transmitter. Please refer to the original instruction manual where applicable, but replace the steps indicated below with these instructions. Please check to ensure that the update has been installed. 1) Select the System Menu. 2) Touch the [Information] button. 3) Confirm that the information in the display indicates the version numbers as noted above. 1. Receiver setting：It is now possible to connect a compatible receiver to the S.I/F port of the transmitter and configure the receiver settings. Compatible receivers are as follows. (As of January 2024) ● R7208SB/R7308SB (Compatible with software version 2.0 or later) ● R7206SB/R7306SB ●...
- Page 4 ④ Tap [Read]. ⑤ The receiver settings will be displayed. The displayed contents vary depending on the model. ⑥ Make the necessary receiver settings. Changing receiver channel output mode MODE A → MODE B → MODE C ・ ・・ MODE A Dual RX link mode [OFF ⇔ ON] [INH：Telemetry ON] [ACT：Telemetry OFF] ⑦ Tap [Write]. → Receiver settings will be changed. * T16IZS cannot operate after 17ch. ⑧ Remove the receiver from the transmitter.
- Page 5 2. DLPH-2 setting：It is now possible to connect a DLPH-2 to the S.I/F port of the transmitter and configure the DLPH-2 settings. ① Connect the power supply to the BAT.1 or BAT.2 port of DLPH-2. ② Connect the RX1 port of the DLPH-2 and the S.I/F port of the transmitter with a cable. S.I/F port RX1 port ③ Turn on the power switch of DLPH-2. ④ Tap [DLPH-2 setting] on the System menu. ⑤ Tap [Read]. ⑥ The DLPH-2 settings will be displayed. ⑦ Configure the DLPH-2. Dual RX mode → Single RX mode → Airplane gyro mode → Dual RX mode → ． ． ． 1-16CH + DG1,DG2 → 17-24CH + DG1,DG2 → 1-16CH + DG1,DG2 →． ． ． Mode selection *When setting mode is set to [Airplane gyro mode], PWM output mode is fixed to [1-16CH + DG1,DG2]. * T16IZS cannot operate after 17ch.
- Page 6 ⑧ Tap [Write]. → DLPH-2 settings will be changed. ⑨ Remove DLPH-2 from the transmitter.
- Page 7 3. Added switch identification function：On the hardware selection screen, operate the desired toggle switch and it will be automatically selected. ① Tap [H/W setting] on the System menu. ② Setting [Switch identification] to [ON] enables the switch identification function. Set to [OFF] to disable the switch identification function. ③ Call the [Hardware select] screen from the settings screen for each function. ④ Operate the toggle switch (either SA to SH) to assign. ⑤ The operated switch is selected. Sets the current switch position to ON. Operating the switch changes the ON position.
- Page 8 V3.0 1. Switch Sounds : The Sound select function adds sounds to switch positions. (Only English sounds are supported.) ● Tap the [Sound Select] button in the linkage menu to call the setup screen shown at the right. ● Take notice of the SW Letter and position ● Tap the desired switch position. ● Tap on the desired sound to add the requested sound in the previously selected switch position. (It will demo the sound once pressed) NOTE: Sounds and switch positions do not acknowledge condition priority. Sounds are intended as a reference for changes in flight profile and will need to be changed manually if programming deviates from previous setup.
- Page 9 2. Sound notification: It is possible to notify the operating status of the transmitter by voice, such as ON/OFF of various mixing functions. (Only English sounds are supported.) ● Tap the [Warning Setting] button in the linkage menu to call up the warning settings screen. ● Display the second page and call up the settings screen below. ● Tap the [Sound notification] setting button to turn the sound notification function ON/OFF. ● If you set the sound notification function to ON, you will be notified by voice when the ON/OFF status or condition of various mixing functions changes. NOTE: Condition audio notifications use standard condition names. Please note that if you change the condition name or rearrange the priority order, the audio notification and display will no longer match. 3. Telemetry settings: Added gear ratio setting button to Kontronik ESC and Scorpion ESC. rotor speed and the airplane gear down propeller speed. 4. Telemetry settings: Changed the motor pole number setting for each ESC to "100". Previously, the number of poles was up to 36, but now it can be set up to 100. poles for your motor.
- Page 10 V2.1 1. Bug fix for European T16IZ SUPER [For Europe only] Fixed an issue where communication became unstable when operating another transmitter at a short distance when using the T16IZ SUPER sold in the European region. This problem is ONLY when you use T16IZ SUPER under S-FHSS mode. *T16IZ SUPER sold outside Europe does not have the above problem. Also, T16IZ does not have the above problem. V2.0 1. Receiver or gyro updates By connecting a receiver or gyro that supports updates to the S.I/F connector of the transmitter, it is possible to update their software. ① Download the update file of the update data from Futaba website. ② Extract the update file on your computer. The "FUTABA" folder will be created on your computer. ③ Copy the "FUTABA" folder into your microSD card. ④ Insert the microSD card with "FUTABA" folder that contained the update software into the SD card slot on your transmitter. ⑤ Turn on the transmitter and call "System Menu" ⇒ "Update". ⑥ Select the product to update. *Conventional Servo Update and Sensor Update screens open from this screen. ⑦ Select the product name to update.
- Page 11 ⑧ The update screen is displayed. Connect the receiver or gyro to be updated to the S.I/F connector of the transmitter, prepare for update, and then tap the [Update] button. ⑨ Update start. ⑩ When finished, the following will appear. ⑪ Disconnect the receiver or gyro from the transmitter's S.I/F connector. V1.2 1. GYA553 New firmware Version 3.x support. → Refer to T16IZ/T16IZ SUPER GYA553 V3 Setting manual Airplane Gyro GYA553 is compatible with 3rd aileron and 4th aileron. ©FUTABA CORPORATION...
