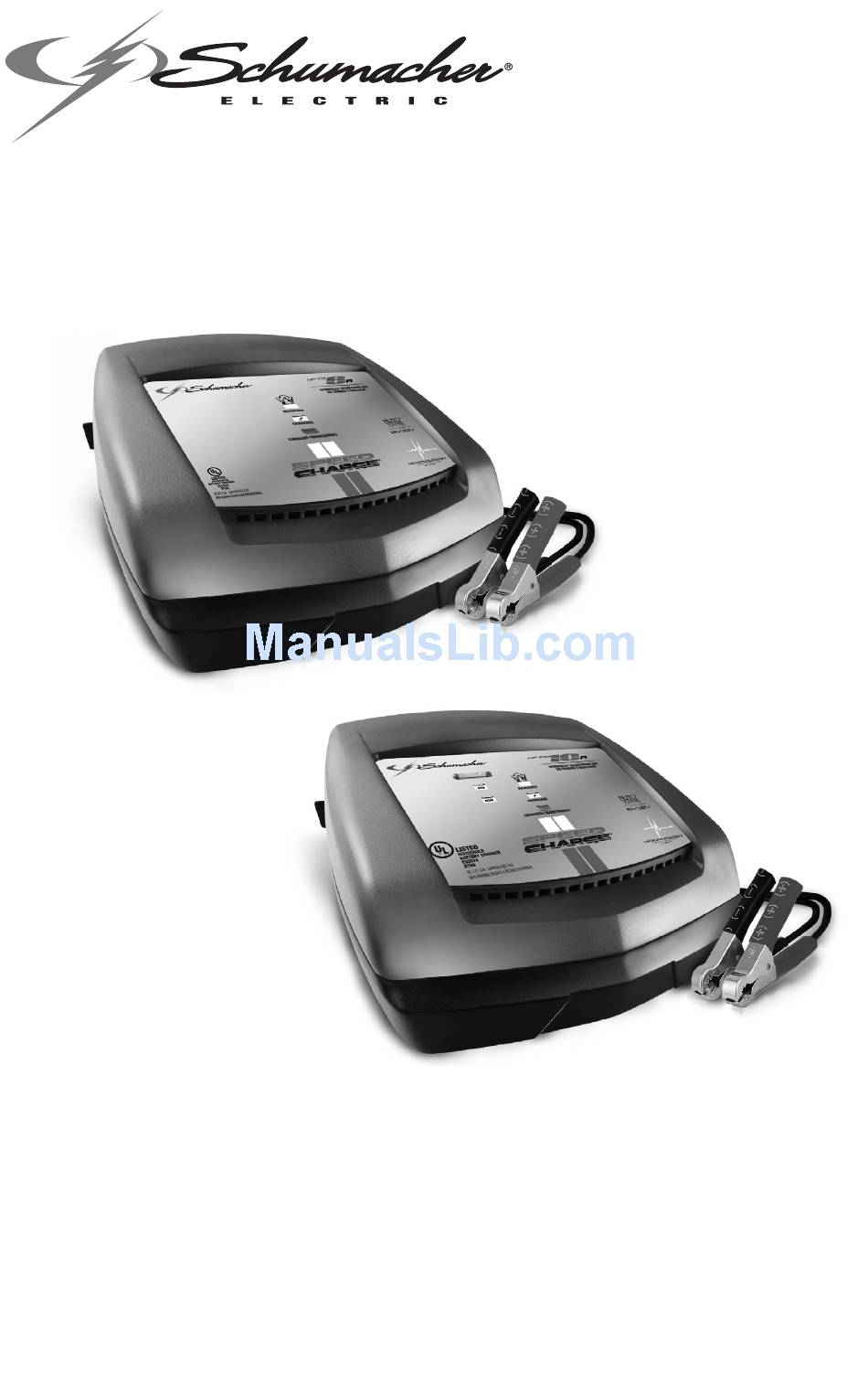

OWNERS MANUAL MANUAL DEL USUARIO Models / Modelos: XC6-CA, XC10-CA Automatic Battery Charger Cargador de batería automático XC6-CA 2A DC 6V DC 6A DC 12V DC XC10-CA 2A DC 6V DC 10A DC 12V DC PLEASE SAVE THIS OWNERS MANUAL AND READ BEFORE EACH USE. This manual will explain how to use the battery charger safely and effectively.
CONTENTS IMPORTANT SAFETY INSTRUCTIONS ................3 PERSONAL SAFETY PRECAUTIONS................3 ASSEMBLY INSTRUCTIONS ..................4 GROUNDING AND AC POWER CORD CONNECTIONS ..........4 FEATURES/CONTROL PANEL ..................4 OPERATING INSTRUCTIONS ..................4 MAINTENANCE AND CARE ..................6 TROUBLESHOOTING ....................6 SPECIFICATIONS ......................6 BEFORE RETURNING FOR REPAIRS ................7 LIMITED WARRANTY ....................7 WARRANTY CARD / TARJETA DE GARANTÍA ............14 CONTENIDOS INSTRUCCIONES IMPORTANTES DE SEGURIDAD ...........8...
IMPORTANT SAFETY INSTRUCTIONS WARNING – RISK OF EXPLOSIVE GASES WORKING IN THE VICINITY OF A LEAD-ACID BATTERY IS DANGEROUS. BATTERIES GENERATE EXPLOSIVE GASES DURING NORMAL OPERATION. FOR THIS REASON, IT IS IMPORTANT THAT YOU FOLLOW THESE INSTRUCTIONS EACH TIME YOU USE THE CHARGER.
ASSEMBLY INSTRUCTIONS Remove all cord wraps and uncoil the cables prior to using the battery charger. GROUNDING AND AC POWER CORD CONNECTIONS This battery charger is for use on a nominal USING AN EXTENSION CORD 120 volt circuit. The plug must be plugged The use of an extension cord is not into an outlet that is properly installed and recommended.
Page 5
(For Model XC10-CA only). 8. When charging is complete, disconnect MAINTAINING A BATTERY the charger from the AC power, The XC6-CA and XC10-CA maintain both 6 disconnect the negative clamp, and finally and 12 volt batteries, keeping them at full the positive clamp.
SPECIFICATIONS XC6-CA Input Voltage ..................120V AC @ 60Hz, 1.5A Output Voltage .............6V or 12V, with Auto Voltage Detection Output Current Rating............2A DC @ 6V DC; 6A DC @ 12V DC XC10-CA Input Voltage ..................120V AC @ 60Hz, 2.5A...
Manufacturer does not provide any warranty for any accessories used with this product that are not manufactured by Schumacher Electric Corporation and approved for use with this product. This Limited Warranty is void if the product is misused, subjected to careless handling, repaired, or modified by anyone other than Manufacturer or if this unit is resold through an unauthorized retailer.
INSTRUCCIONES IMPORTANTES DE SEGURIDAD ADVERTENCIA – RIESGO DE GASES EXPLOSIVOS RESULTA PELIGROSO TRABAJAR EN FORMA CERCANA A UNA BATERÍA DE PLOMO-ÁCIDO. LAS BATERÍAS GENERAN GASES EXPLOSIVOS DURANTE SU NORMAL FUNCIONAMIENTO. POR ESTE MOTIVO, ES IMPORTANTE QUE SIGA ESTAS INSTRUCCIONES CADA VEZ QUE UTILIZA EL CARGADOR. Para reducir el riesgo de explosión de una batería, siga estas instrucciones y aquellas publicadas por el fabricante de la batería y por el fabricante de cualquier equipo que intente utilizar en la proximidad de la batería.
PRECAUCIONES DE SEGURIDAD PERSONAL • Use protección completo de los ojos y la • Neutralice el ácido derramado ropa de protección cuando trabaje cerca de abundantemente con bicarbonato de sodio baterías de plomo-ácido. Siempre cuente antes de intentar limpiarlo. con la presencia de otra persona para • Retire todos los objetos metálicos de su obtener ayuda.
BOTÓN DE BATTERY TYPE regulares no se deben utilizar en (Modelo XC10-CA solamente) aplicaciones de ciclo profundo. Utilice este botón para establecer el tipo de • AGM (Malla de fibra de vidrio batería a cargar. absorbente) – Establezca el botón en • Regular (STD) – Establezca el botón en La construcción de la malla de fibra de vidrio Este tipo de batería generalmente se utiliza absorbente permite la suspensión del...
MANTENIENDO UNA BATERÍA CA, espere algunos minutos y vueva a Los XC6-CA y XC10-CA mantener las enchufar. baterías de 6 y 12 voltios, manteniéndolas a MODO DE DESULFATACIÓN carga complete.
ESPECIFICACIONES XC6-CA Voltaje de entrada ................120V CA @ 60Hz, 1,5A Salida de voltaje ............6V o 12V, con Detección de Auto Voltaje Salida de corriente ............2A CC @ 6V CC; 6A CC @ 12V CC XC10-CA Voltaje de entrada ................120V CA @ 60Hz, 2,5A...
El Fabricante no presta garantía por lo accesorios utilizados con este producto que no sean los fabricados por Schumacher Electric Corporation y que no estén aprobados para su uso con este producto. La presente Garantía Limitada será nula si el producto se utiliza en forma errónea, se trata de manera inadecuada, es reparado o modificado por personas que nos sean...
ORIGINAL receipt because it will be required for any warranty claims. This warranty is not transferable. Send warranty card only. DO NOT SEND UNIT TO THIS ADDRESS FOR REPAIR. Mail this card to: Schumacher Electric Corporation 801 Business Center Drive Mount Prospect, IL 60056-2179 Name ______________________________________________________________...
