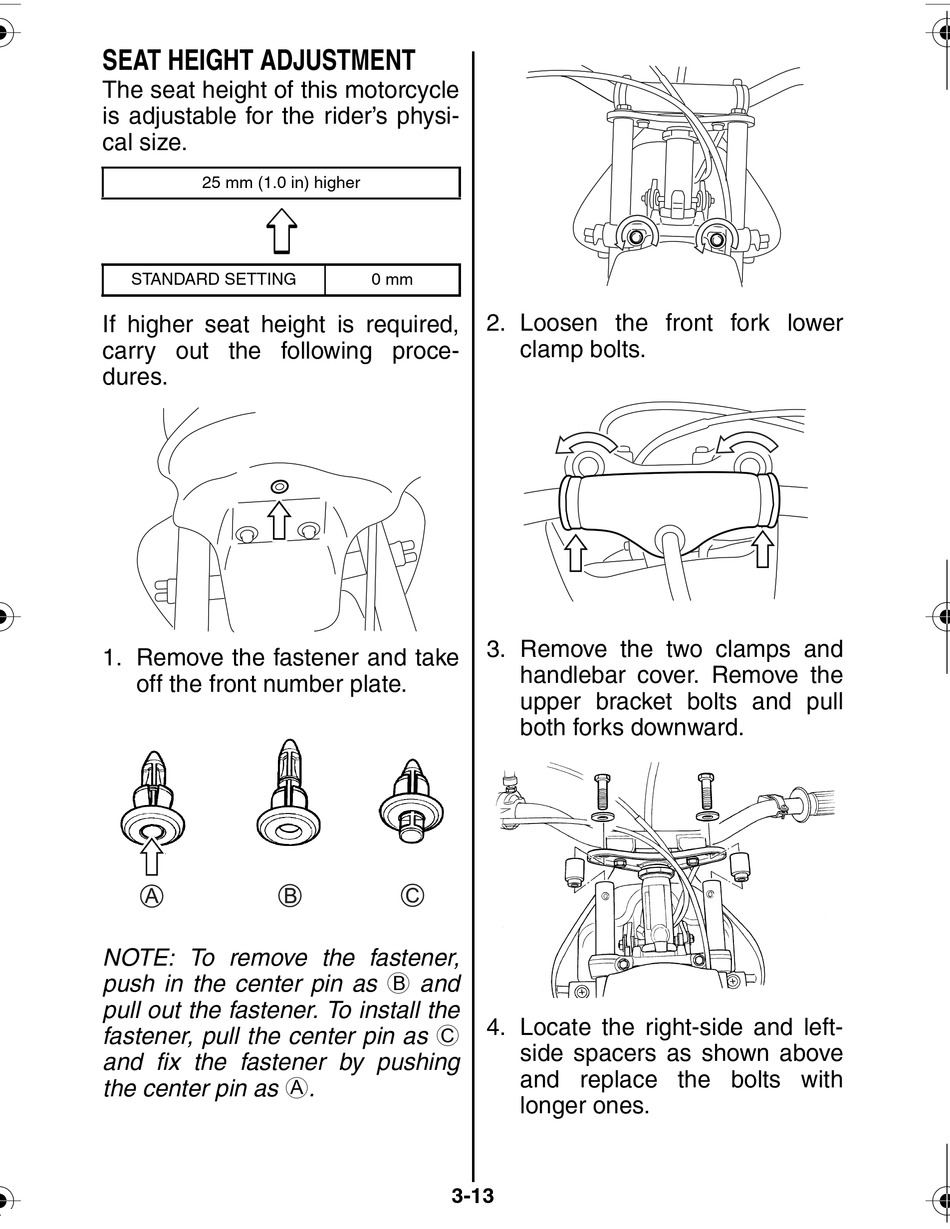

SEAT HEIGHT ADJUSTMENT

The seat height of this motorcycle
is adjustable for the rider's physi-
cal size.
25 mm (1.0 in) higher
STANDARD SETTING
If higher seat height is required,
carry out the following proce-
dures.
1. Remove the fastener and take
off the front number plate.
NOTE: To remove the fastener,
push in the center pin as B and
pull out the fastener. To install the
fastener, pull the center pin as C
and fix the fastener by pushing
the center pin as A.
0 mm
2. Loosen the front fork lower
clamp bolts.
3. Remove the two clamps and
handlebar cover. Remove the
upper bracket bolts and pull
both forks downward.
4. Locate the right-side and left-
side spacers as shown above
and replace the bolts with
longer ones.
3-13
