Summary of Contents for Chauvet Hurricane Haze 1D

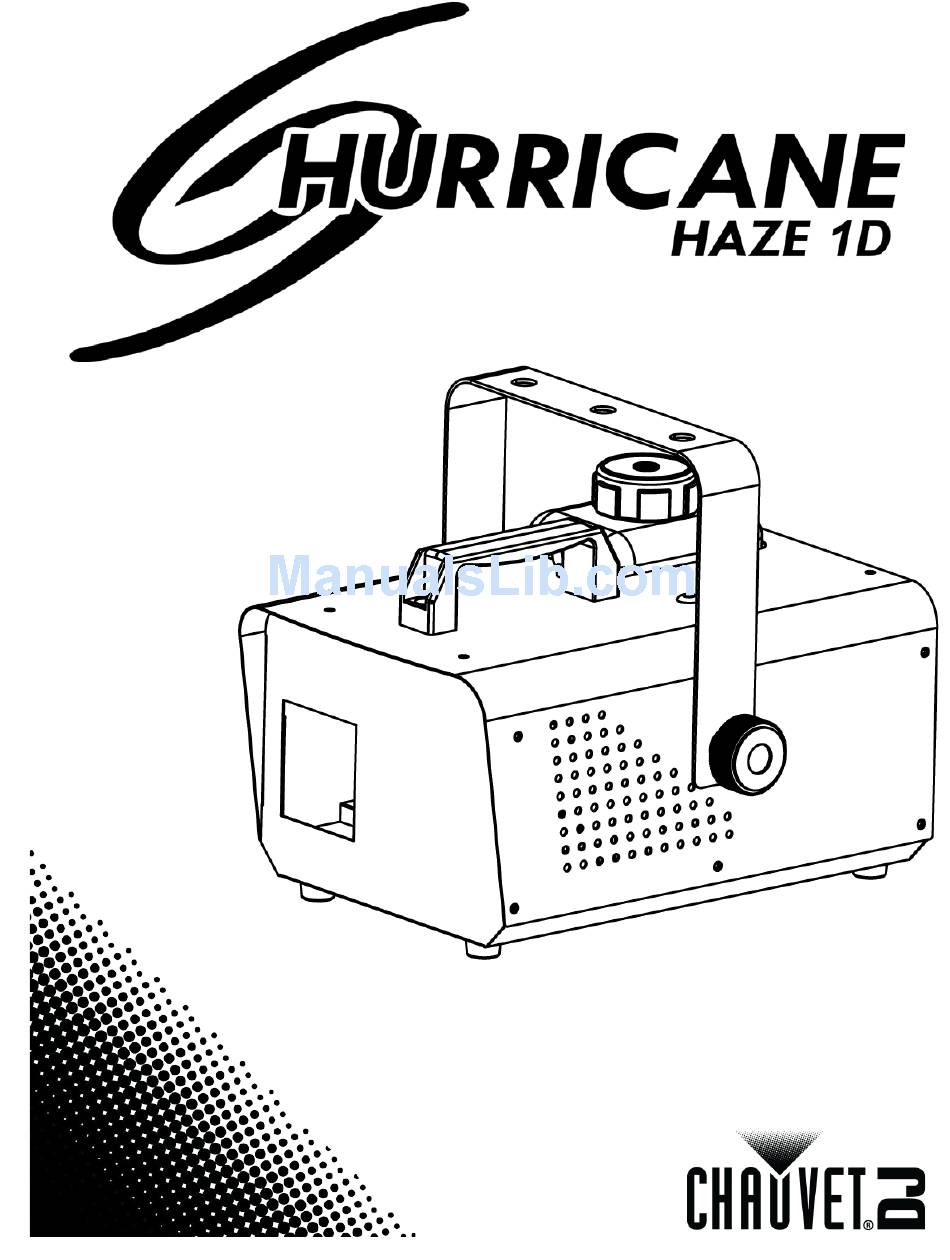

- Page 1 User Manual...
-
Page 2: Table Of Contents
1-CH ........................11 5. Technical Information ..............12 Hazer Maintenance ..................12 Storage ......................12 General Troubleshooting................13 Returns ....................14 Contact Us ..................15 6. Technical Specifications .............. 16 Page 2 of 16 Hurricane Haze 1D User Manual Rev. 1... -
Page 3: Before You Begin
Chauvet. Failure to do so in a timely manner may invalidate your claim with the carrier. In addition, keep the container and all the packing material for inspection. -
Page 4: Product At A Glance
FCQ (Fog Cleaner Quart) was specifically developed by Chauvet to clean your Hurricane Haze 1D. Make sure you use FCQ regularly, no longer than 90 days between cleanings, to increase the life of your product. -
Page 5: Introduction
Introduction Product Overview Fluid Tank Manual Fog Button Remote Control Receiver Port DMX In/Out LED Display On/Off Switch Power In Fuse Holder Wireless Remote Fluid Level Indicator Hurricane Haze 1D User Manual Rev. 1 Page 5 of 16... -
Page 6: Product Dimensions
Product Dimensions 12.80 in 325 mm 12.52 in 318 mm 9.84 in 250 mm 5.95 in 151 mm 7.95 in 202 mm 10.55 in 268 mm Page 6 of 16 Hurricane Haze 1D User Manual Rev. 1... -
Page 7: Setup
Safety cap Spare fuse holder (inside safety cap) The product does not ship with a spare fuse; however, the safety cap has room for a spare. Hurricane Haze 1D User Manual Rev. 1 Page 7 of 16... -
Page 8: Mounting
Mounting Orientation The Hurricane Haze 1D may be mounted in any position provided there is adequate room for ventilation around it. Rigging Be sure that the structure or surface onto which you are mounting this product can support its weight. Please see the... -
Page 9: Operation
· Flashing Blue - the fluid tank requires refilling Note: The Hurricane Haze 1D may be operational while the heater is warming up and may emit bursts of fog while resetting itself or while the fluid tank is heating. This is normal operation. -
Page 10: Wired Timer Remote Operation
Wired Timer Important: Using the Control Board, set the Haze (HAZe) output to 0. You can then connect and operate the included wired remote with the Hurricane Haze 1D. Remote Operation The wired timer controller allows you to automatically trigger fog output by setting interval and duration times. -
Page 11: Menu Map
The Hurricane Haze 1D has one DMX personality, a 1-channel mode for basic control. Address The Hurricane Haze 1D uses 1 channel in DMX mode, which defines the highest configurable address to 512. When selecting a starting DMX address, always consider the number of DMX channels the selected DMX mode uses. -
Page 12: Technical Information
Do not operate the machine without fluid at any time. Fog Cleaner Quart (FCQ) was specifically developed by Chauvet to clean your Hurricane Haze 1D. Make sure you use FCQ regularly, no longer than 90 days between cleanings, to increase the life of your product. -
Page 13: General Troubleshooting
Terminator not connected Install a terminator, as indicated in the “DMX Primer” section. If you still experience problems after trying the solutions presented here, contact Chauvet Technical Support. Hurricane Haze 1D User Manual Rev. 1 Page 13 of 16... -
Page 14: Returns
Be prepared to provide the model number, serial number, and a brief description of the cause for the return. You must send the merchandise prepaid, in its original box, and with its original packing and accessories. Chauvet will not issue call tags. -
Page 15: Contact Us
Outside the U.S., United Kingdom, Ireland, Mexico, or Benelux contact the dealer of record. Follow their instructions to request support or to return a product. Visit our website for contact details. Hurricane Haze 1D User Manual Rev. 1 Page 15 of 16... -
Page 16: Technical Specifications
Channel Range 3-pin XLR Sockets Product Name Item Code UPC Number Ordering 09071158 (120 V) 781462215064 Hurricane Haze 1D 781462215071 09071159 (230 V) UL 499 CSA C22.2 No. 64 Page 16 of 16 Hurricane Haze 1D User Manual Rev. 1...
