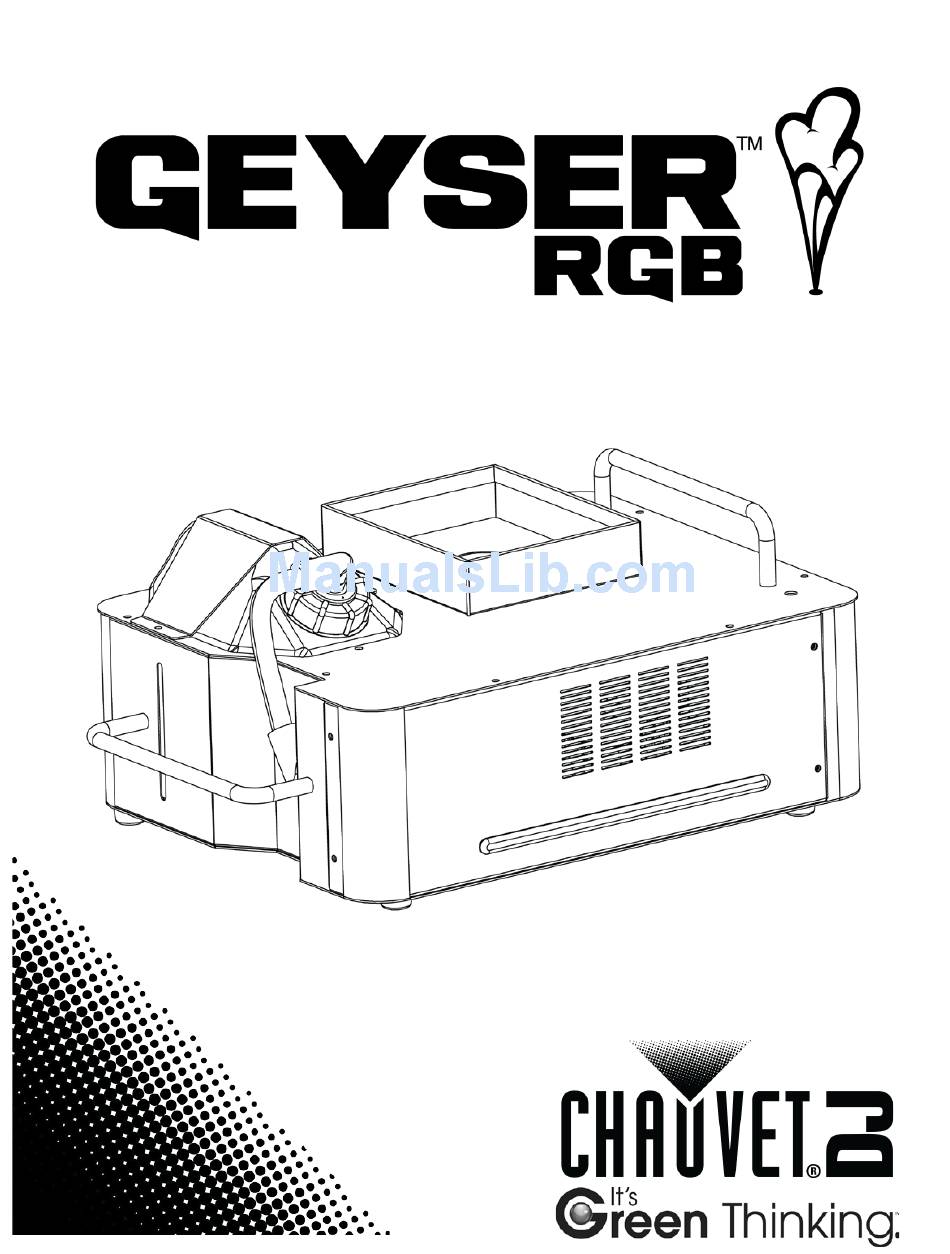

- Page 1 User Manual...
-
Page 2: Table Of Contents
Wireless Remote Control ......................... 13 Programmable Color Selection ........................ 13 5. Technical Information ....................14 Fogger Maintenance ........................14 Storage ............................14 6. Technical Specifications ....................15 Returns ............................16 Contact Us ............................16 Page 2 of 16 Geyser™ RGB User Manual Rev. 6... -
Page 3: Before You Begin
Failure to report damage to the carrier immediately may invalidate your claim. In addition, keep the box and contents for inspection. For other issues, such as missing components or parts, damage not related to shipping, or concealed damage, file a claim with CHAUVET® within 7 days of delivery. Text Convention Meaning 1–512... -
Page 4: Product At A Glance
· Fog Cleaner Quart (FCQ) was specifically developed by CHAUVET® to clean your Geyser™ RGB. Make sure you use FCQ regularly to increase the life of your fogger. Page 4 of 16 Geyser™ RGB User Manual Rev. 6... -
Page 5: Introduction
Safety Eye Loop On/Off Switch In/Out Attachment Point LED Display Handles Power In Safety Eye Safety Cable Loop 5-pin DMX Attachment Point In/Out (Underside) Fuse Holder Remote Control Receiver Port Geyser™ RGB User Manual Rev. 6 Page 5 of 16... -
Page 6: Dimensions
Dimensions Page 6 of 16 Geyser™ RGB User Manual Rev. 6... -
Page 7: Setup
ETUP AC Power The Geyser™ RGB has a fixed voltage power supply and it can work with an input voltage of either 120 V, 60 Hz or 230 V, 50 Hz, depending on the specific model. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s panel, or refer to... -
Page 8: Mounting
Safety Notes. Orientation Primarily, the Geyser™ RGB is to be floor mounted in a vertical fog jet orientation. The Geyser™ RGB may also be mounted in a floor mounting/horizontal fog jet orientation or in an overhead mounting/downward fog jet orientation, but follow instructions closely to avoid tank spills. - Page 9 Overhead Mounting – Downward Fog Jet With inverted mounting, avoid spillage of the fog fluid by setting the fluid tank in an upright position. Be sure to use a safety cable for both the Geyser™ RGB and the fluid tank when rigging in this manner.
-
Page 10: Tank Inversion For Inverted Mounting
Turn the fog machine upside down and remove the screws to take off the removable plate. Removable Plate Attach the removable plate to the opposite side and secure the tank with the bottle lock. Page 10 of 16 Geyser™ RGB User Manual Rev. 6... -
Page 11: Operation
DMX mode uses. If you choose a starting address that is too high, you could restrict the access to some of the product’s channels. The Geyser™ RGB uses up to 8 DMX channels in its 8-Channel mode, which defines the highest configurable address to 505. -
Page 12: Dmx Channel Modes, Assignments, And Values
010 ó 255 Speed, slow to fast 000 ó 009 No function Strobe 010 ó 255 Strobe, slow to fast 000 ó 009 No function Dimmer 010 ó 255 0–100% Page 12 of 16 Geyser™ RGB User Manual Rev. 6... -
Page 13: Configuration (Standalone)
Geyser™ RGB. On the wireless transmitter, press the button assigned to the color program (1–4). The Geyser™ RGB emits fog and activates the color program for as long as you hold down the button. Note: If the color program is set to oFF for any trigger button, only fog output is triggered when that button is pressed. -
Page 14: Technical Information
Refill with fog fluid. Run the machine briefly to clear any cleaning solution from the pump and heater. Fog Cleaner Quart (FCQ) was specifically developed by CHAUVET® to clean your Geyser™ RGB. Make sure you use FCQ regularly to increase the life of your fogger. Storage Before storing the product, run FCQ through the system as described in the cleaning procedure above. -
Page 15: Technical Specifications
104 °F (40 °C) Convection I/O Connectors Connector Type Channel Range 3- and 5-pin XLR Sockets Product Name Item Code UPC Number Ordering Geyser™ RGB 05070561 781462209094 Geyser™ RGB 220 V 05070567 781462209155 Geyser™ RGB User Manual Rev. 6 Page 15 of 16... -
Page 16: Returns
You must send the merchandise prepaid, in its original box, and with its original packing and accessories. CHAUVET® will not issue call tags. Clearly label the package with the RMA number. CHAUVET® will refuse any product returned without an RMA number.
